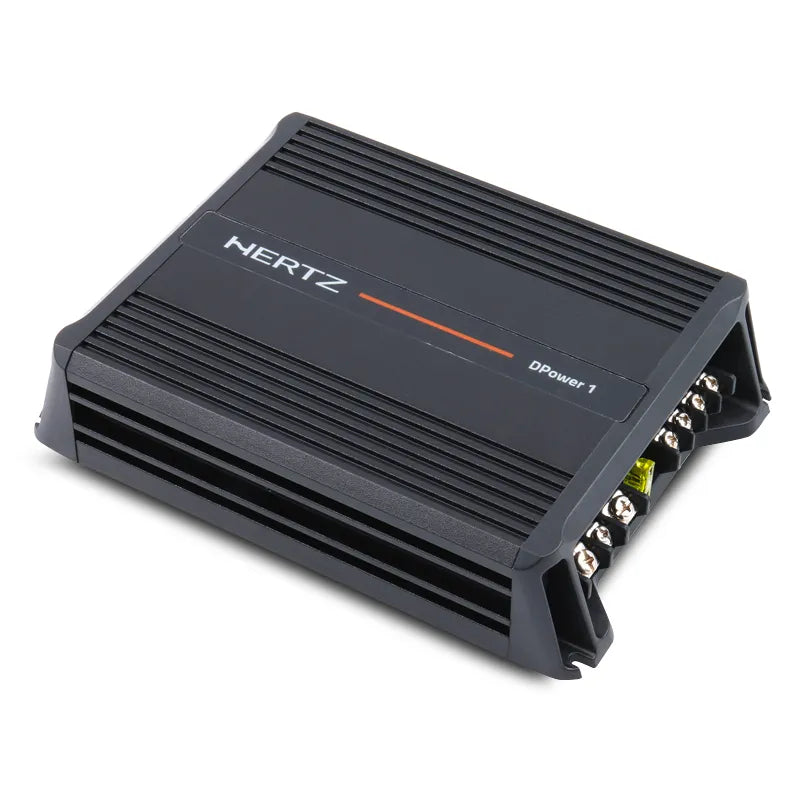

Hertz DPOWER1 Class D Monoblock Amplifier, 300W RMS, 600W Max

The Hertz DPOWER1 is a class D one channel amplifier with 300W RMS total and 600W maximum power.

Problems it solves

• Tight mounting space. Hertz notes a high power to size ratio for the DPOWER1.
• Integrating a sub. Crossovers are adjustable.

DPOWER1 specifications

• Channels: 1
• Power: 300W RMS total, 600W maximum
• Supply: 11 to 15V DC
• Remote in: 4 to 15V DC
• THD: 0.1% at 100Hz, 4 ohms
• Bandwidth: 10 to 500Hz
• Signal to noise: 105dB
• Pre in sensitivity: 0.2 to 5V RMS
• Minimum load: 2 ohms

Fitment and compatibility

Pair it with one subwoofer, or several wired to present no less than 2 ohms.

What is in the box

The DPOWER1 amplifier with one input plug and leads, four mounting screws, a spare 20 A fuse and the user manual.

Install notes

The pre input accepts 0.2 to 5V RMS from a head unit.

Warranty

Your rights under the Australian Consumer Law always apply. Keep your receipt and contact us first if anything goes wrong.

DPOWER1 FAQs

Which subwoofer load suits the DPOWER1?

Hertz rates it down to 2 ohms minimum.

Can I connect the DPOWER1 to an aftermarket head unit by RCA?

Yes. The pre input takes 0.2 to 5V RMS.

Can the DPOWER1 cope with the voltage swing of a running 12V car?

Hertz rates the supply at 11 to 15V DC.
