HELIX M SIX | 6 Channel Digital Amplifier | 100W x 6 2Ω Stable

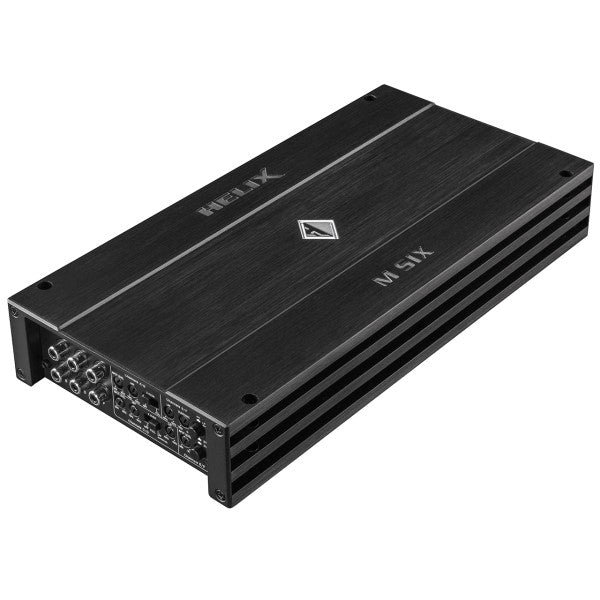

HELIX M SIX 6 Channel Digital Amplifier | 100W x 6 2Ω Stable

One For All. Maximum Flexibility.

Experience ultimate 6-channel versatility with HELIX M SIX's Class D efficiency—delivering 100W RMS per channel at both 4Ω and 2Ω loads with comprehensive crossover controls and bridging capability for any system configuration.

One for all – no matter if 3-way, 2-way or subwoofer application, the 6-channel amplifier M SIX will always be the right choice. With generously 100 Watts RMS per channel into both 4 Ohms and 2 Ohms load this amp really gets your speaker cones going despite its super-compact dimensions. On the other hand the M SIX stays totally cool thanks to its highly efficient Class D design topology. And even bridged configurations are possible, delivering up to 3 x 200 Watts RMS of clean and undistorted output power. In addition a comprehensive and stunningly practical feature set leaves nothing to be desired. And finally the perfect sound tuning is no big deal thanks to its integrated crossover with all its setup options.

M SIX Features:

• Small footprint Class D amplifier with high output power of 100 Watts RMS @ 4 and 2 Ohms load
• Start-Stop capability down to 6V supply voltage

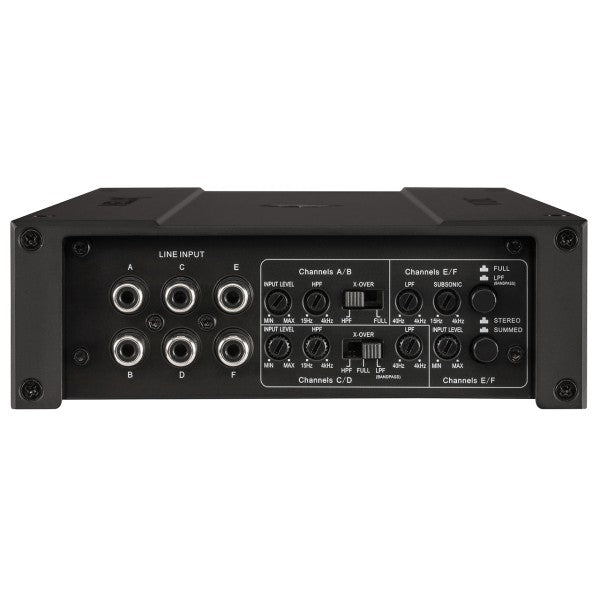

• 6-channel lowlevel input
• Integrated, active crossover with highpass, lowpass, bandpass and subsonic
• "Input mode" switch for channel E & F for flexible input signal routing
• SMD (Surface Mounted Device) manufacturing technology combines minimum space requirement with maximum reliability
• Exclusive, extremely compact and clean design with illuminated HELIX-logo and low heat dissipation thanks to extraordinary efficiency

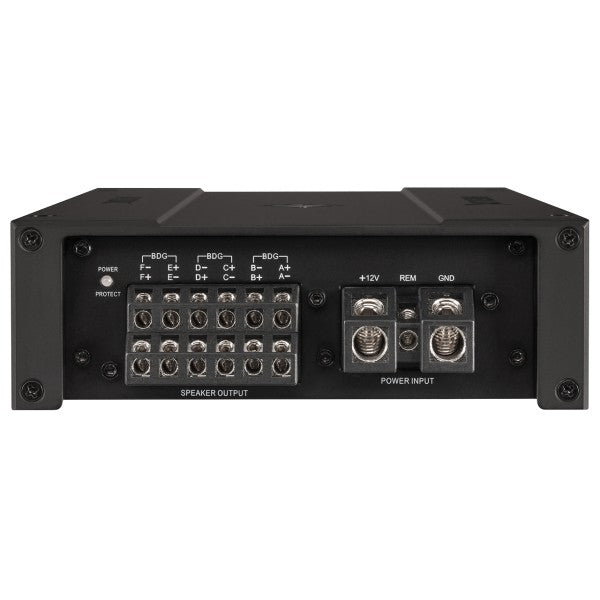

• Bridgeable to 3x200W RMS configuration for powerful applications
• Comprehensive crossover controls for perfect sound tuning
• Professional Class D efficiency with minimal power consumption
• Ultra-compact design without performance compromise
• Flexible channel routing with input mode switching
• Perfect for 2-way, 3-way, and subwoofer applications
• Advanced subsonic filtering capabilities
• Temperature-stable operation in all conditions


Specifications:

• Channels: 6 Channel
• Built-in DSP: No
• RCA Input: 6x RCA
• High-Level Input: 0x | RCA only
• Power W RMS/ch | 4Ω: 100W x 6
• Power W RMS/ch | 2Ω: 100W x 6
• Power W RMS/ch | 1Ω: N/A
• Bridged @ 4Ω: 200W x 3
• Max Output Power: 130W RMS per channel @ 4/2Ω
• Class: D
• Max Input Sensitivity: 6V
• THD+N: 0.05%
• RCA Out: 0x | No Pre-out
• Frequency Response: 10 Hz - 30,000 Hz
• Highpass: 15 Hz - 4,000 Hz adjustable
• Lowpass: 40 Hz - 4,000 Hz adjustable
• Bandpass: 15 Hz - 4,000 Hz adjustable
• Subsonic/HPF: 15 Hz - 4,000 Hz adjustable
• Crossover Slope: 12 dB/Oct.
• Signal-to-Noise Ratio: 98 dB (A-weighted)
• Damping Factor: 100
• Operating Voltage: 10.5-16V (max. 5 sec. down to 6V)
• Operating Temperature: -40°C to +70°C
• Dimensions (H x W x D): 50 x 320 x 154mm
• Fuse: 2 x 35A Maxi-fuse (APX)
• Power Rating: DC 12V ⎓ 80A max.
• Idle Current: 1550mA


Scope of Delivery:

• 1 x Amplifier HELIX M SIX
• 1 x Mounting material
• 1 x Instruction manual


Perfect for:

• Multi-channel system configurations, 2/3-way component systems, full-range installations with subwoofer, bridged high-power applications, compact installations requiring maximum channel count, and any application demanding flexible 6-channel amplification with comprehensive crossover control.
