HELIX IK EB6.1 DVC2 - 6" 150W RMS Vented Subwoofer Box | 2x2Ω

HELIX IK EB6.1 DVC2 - 6" 150W RMS Vented Subwoofer Box | 2x2Ω

The IK EB6.1 proves that outstanding bass performance can come in a remarkably compact package. Thanks to its diminutive design, this subwoofer is the ideal problem solver for particularly space-saving installations, with its form factor making it perfect for integration into unused battery compartments in vehicle interiors.

Compact design, impressive performance Despite its small dimensions, the IK EB6.1 delivers incredible sound pressure and audio performance comparable to much larger subwoofers. Equipped with a powerful 6" (160 mm) high-excursion woofer featuring an ultra-stiff, hand-scooped paper cone, this subwoofer provides rich, deep bass with impressive dynamics.

Optimized bass reflex enclosure The sophisticated bass reflex enclosure maximizes sound pressure and low-frequency performance, ensuring a full-bodied bass experience inside the vehicle.

Flexible connection With the option of a 1 x 2 Ohms (SVC2) or 2 x 2 Ohms (DVC2) configuration, there is a perfect deep bass specialist for every amplifier setup to maximize power output.

Easy installation and robust build Thanks to the pluggable screw terminal, installation and removal are quick and secure. The sturdy carpet surface with the embroidered HELIX logo adds a touch of style, while the solid metal grille protects the woofer cone from damage, ensuring long-lasting reliability.

HELIX IK EB6.1 DVC2 Features & Benefits

Impressive Sound Pressure and Audio Performance - Comparable to larger subwoofers despite ultra-compact dimensions for maximum bass impact in minimal space

Ultra-Compact Subwoofer in Car Battery Format - Allows installation in unused battery compartments in vehicle interiors for space-efficient integration

Bass Reflex Enclosure Technology - Maximizes sound pressure and low-frequency performance for full-bodied bass experience inside the vehicle

Powerful 6" / 160mm High Excursion Woofer - Ultra-stiff, hand-scooped paper cone with single voice coil ensures rich, deep bass reproduction

2 x 2 Ohms Impedance - Dual voice coil configuration for maximum power output of the amplifier with flexible wiring options

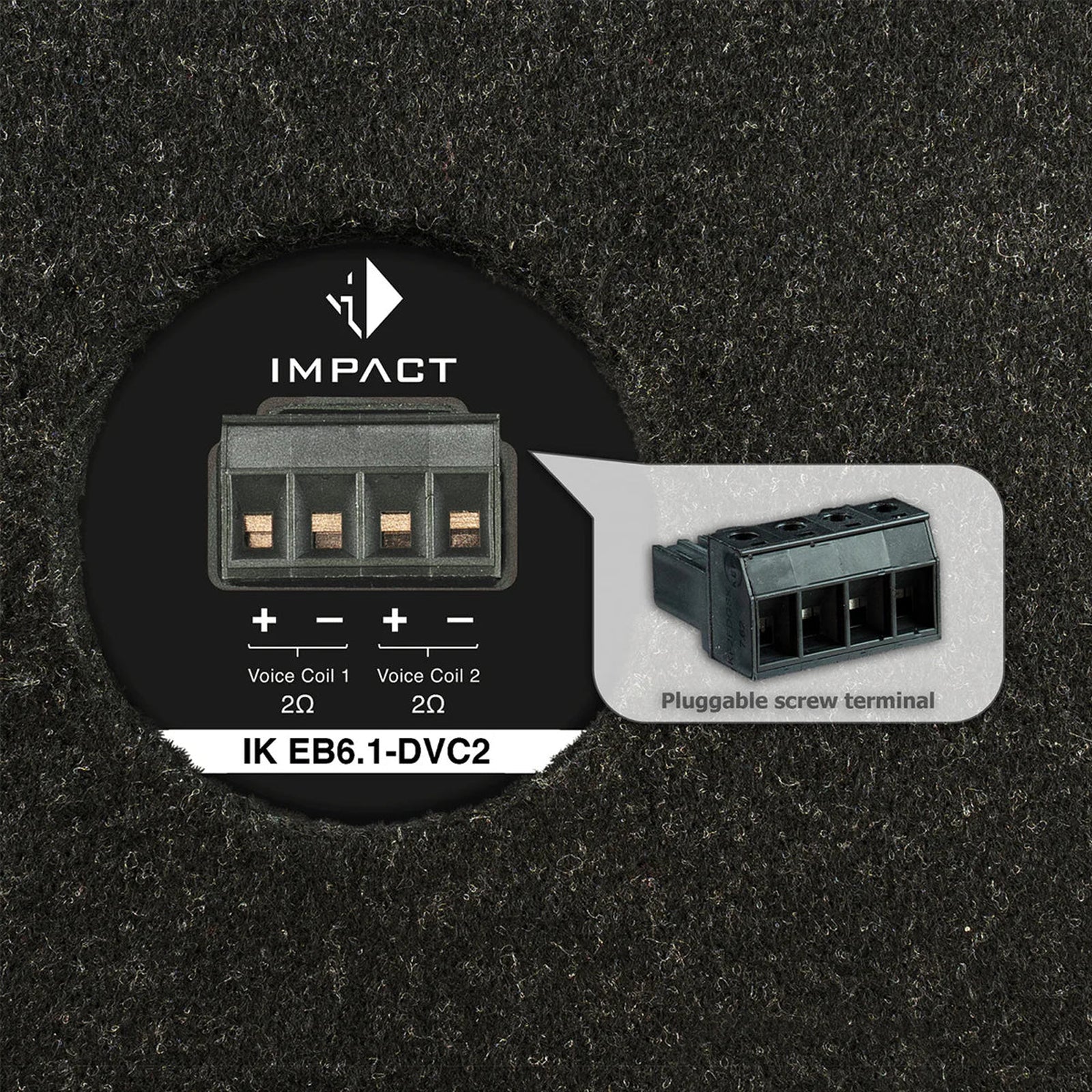

Pluggable Screw Terminal - Quick and safe installation and removal with secure connection system

Sturdy Carpet Surface - Embroidered HELIX logo adds professional styling while providing durable finish

Solid Metal Grille - Perfect protection of the woofer cone against damage ensuring long-lasting reliability

Technical Specifications:

SKU: IK EB6.1 DVC2
Type: 6" Vented Enclosure Subwoofer
Size: 165mm | 6.5"
Driver Power | Watts RMS: 150
Voice Coil x Impedance: 2 x 2Ω
Unit Type: Enclosure | Loaded
Power Handling RMS: 150 Watts
Recommended Amplifier Power RMS: 75 - 150 Watts
Impedance: 2 x 2 Ω
Max. Linear Excursion: +/- 6.0 mm
Port Tuning Frequency: 48 Hz
Sensitivity SPL: 92 dB @ 2.83V / 1m, 86 dB @ 1W / 1m
Sensitivity 2.83V/1m | dB: 89
Dimensions (H x W x D): 175 x 175 x 340 mm / 6.9 x 6.9 x 13.4"
Product Height | mm: 175
Product Width | mm: 175
Product Depth | mm: 340
Integrated Subwoofer Chassis: HELIX IK W6-DVC2
Recommended DSP Settings: "Self-define" highpass 40 Hz / Q = 1.0; EQ filter: 55 Hz / Q = 2.0 / -2 dB
Brand: HELIX IK Series

Compatible With / Goes Well With

• HELIX amplifiers with 75-150W RMS output
• Dual voice coil amplifier configurations
• Car audio systems requiring space-efficient bass solutions
• Battery compartment installation applications
• Professional installation projects requiring minimal space

Kit Contents

• 1x Vented enclosure subwoofer HELIX IK EB6.1-DVC2

Installation Applications:

Space-Constrained Installations: Perfect for vehicles with minimal trunk space where traditional subwoofers won't fit, utilizing unused battery compartments

Dual Voice Coil Applications: Ideal for amplifier setups requiring flexible impedance matching with 2x2Ω configuration options

Professional Custom Builds: Excellent choice for custom installations where space efficiency and wiring flexibility must be balanced

Battery Compartment Integration: Specifically designed form factor allows installation in unused battery compartments for hidden bass solutions

Flexible Amplifier Matching: Dual voice coil design allows series (4Ω) or parallel (1Ω) wiring for optimal amplifier impedance matching

Weight

Approximately 6.8kg

For professional auto sparks and car audio enthusiasts demanding superior bass performance in compact applications, the HELIX IK EB6.1 DVC2 provides the essential low-frequency foundation for space-constrained installations. With its innovative dual voice coil engineering and ultra-compact design, it's the perfect subwoofer for transforming any vehicle into a professionally equipped audio platform without compromising space.
