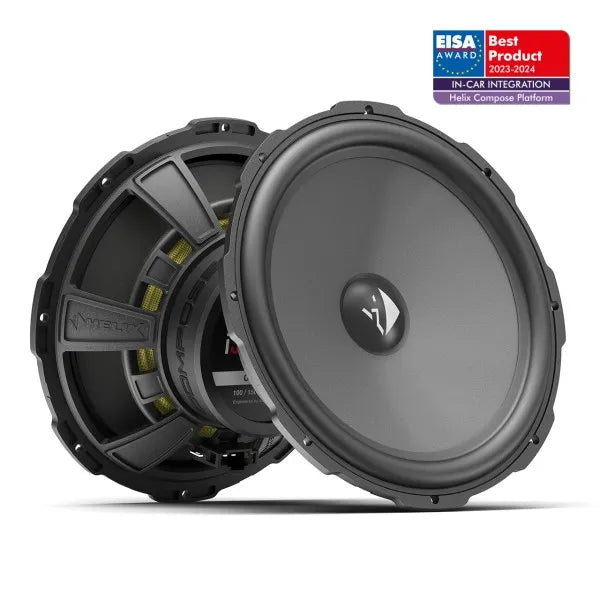

HELIX Ci3 W200FM-S3 COMPOSE i3 8" Performance Woofer 3 Ohm

Quick answer

The HELIX Ci3 W200FM-S3 is an 8 inch 3 ohm woofer from the COMPOSE i3 range, rated at 100W RMS and 150W peak.

It is shallow at 63.7 mm, so it goes into many factory 8 inch door spots, and the 3 ohm load pulls a little more power from an amplifier than a 4 ohm driver.

Problems it solves

• Thin midbass from factory 8 inch woofers. 94 dB at 2.83V gives real punch.
• Doors with little depth. Mounting depth is just 63.7 mm.
• Odd factory mounts. A universal ring with grille is supplied for each woofer.

Specifications

• Size: 8 inch, 195 mm outer, 208.9 mm with ring
• Impedance: 3 ohm
• Power: 100W RMS, 150W max
• Frequency response: 50 to 3000 Hz
• Sensitivity: 94 dB at 2.83V, 90 dB at 1W
• Fs: 67 Hz
• Qts: 0.76
• Vas: 19.0 litres
• Cone area: 214 sq cm
• Voice coil: 25 mm
• Xmax: plus or minus 3.8 mm
• Cutout: 173.5 mm
• Mounting depth: 63.7 mm

Fitment and compatibility

Check for a 173.5 mm cutout and 63.7 mm of depth. HELIX FlexMount200 adaptors and WireKits suit many factory mounts and are sold separately.

What is in the box

Two Ci3 W200FM-S3 woofers, two universal mounting rings with grilles and two sets of mounting hardware.

Install notes

Use the ProConnect terminal, or a HELIX WireKit, to plug in without cutting. Seal the ring to the door skin so the woofer does not lose bass.

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

FAQ about the Ci3 W200FM-S3

Will the Ci3 W200FM-S3 fit my factory 8 inch woofer spot?

In many cars, yes. It needs 173.5 mm cutout and 63.7 mm depth, and FlexMount200 adaptors help. HELIX FlexMount200 adaptors and WireKits suit many factory mounts and are sold separately.

What comes with the Ci3 W200FM-S3?

HELIX packs two woofers, each with its own ring, grille and fixings. Two Ci3 W200FM-S3 woofers, two universal mounting rings with grilles and two sets of mounting hardware.

What crossover does the Ci3 W200FM-S3 need?

Run it from a DSP or the matching COMPOSE i3 crossover, as it plays up to 3000 Hz.
