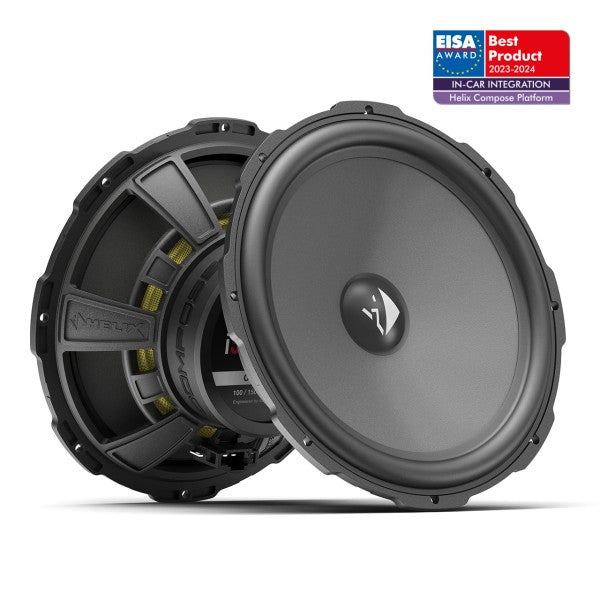

HELIX COMPOSE Ci3 W200FM-S2 | 8" Performance Woofer | COMPOSE i3 Series

HELIX COMPOSE Ci3 W200FM-S2 | 8" Performance Woofer | COMPOSE i3 Series

Universal Speakers Evolved. COMPOSE Technology.

Experience exceptional low-frequency performance with HELIX COMPOSE Ci3 W200FM-S2's innovative design—featuring 2Ω technology, Cenosphere paper cone, FlexMount200 compatibility, and compact dimensions delivering maximum performance despite small outer diameter.

Born out of the increasingly demanding challenges of modern automobile technology and the HELIX-typical pursuit of intelligent solutions, we made the progressive redesign of proven universal speaker systems our mission. The result: our innovative HELIX COMPOSE platform that, according to the motto "developed inside the vehicle, for the vehicle", combines classic universal speakers with the advantages of vehicle-specific systems. Our HELIX COMPOSE i3 series is an absolute price-performance highlight, providing a first-class sound experience thanks to high-quality components and smart engineering. The Ci3 W200FM-S2 features innovative 2Ω technology for maximum power output and Cenosphere coating with hollow spheres incorporated into a polyamide layer, creating an exceptionally stable yet lightweight cone for outstanding precision in sound reproduction.

COMPOSE Ci3 W165FM-S3 Features:

• 8" / 200 mm performance woofer which combines outstanding sound quality with versatile physical integration options
• High efficiency and 2 Ohms technology for maximum power output of the amplifier
• Unique Cenosphere coated paper cone for precise and detailed sound reproduction
• High-tech polymer composite basket reinforced with glass beads for enormous rigidity and minimized ringing
• Specially shaped rubber surround for high linear cone excursion
• Polyurethane dustcap for optimized frequency response in the upper midrange area
• 1" / 25 mm voice coil ensures high power handling
• Compact dimensions with maximum performance - despite the small outer diameter, this woofer comes with the same cone area known from typical 200 mm chassis
• Automotive grade ProConnect connection terminal allows the use of conventional speaker cables or a fast, secure and fail-safe connection via optionally available WireKits
• Powerful magnet system for high efficiency and optimum impulse response
• Universal mounting ring with grille included in delivery
• Designed for the optionally available car-specific FlexMount200 adaptors which allow an acoustically optimized and professional integration in the original mounting location of the vehicle
• Designed for optionally available, car-specific WireKits which allow a non-destructive integration
• Maximum stability with minimal self-resonance design
• Reverse polarity protection through ProConnect system
• Perfect impedance matching for maximum amplifier power extraction
• Professional automotive connector with interlocked connection


Specifications:

• Power Handling RMS/Max: 100/150 Watts
• Impedance: 2Ω
• DC Resistance (Re): 1.8Ω
• Frequency Response: 50 Hz - 3,000 Hz
• Resonance Frequency (Fs): 72 Hz
• Mechanical Q Factor (Qms): 4.56
• Electrical Q Factor (Qes): 1.09
• Total Q Factor (Qts): 0.88
• Compliance (Cms): 230 µm/N
• Equivalent Air Volume (Vas): 14.5 L
• Force Factor (B*I): 4.0 Tm
• Sensitivity: 96 dB @ 2.83V/1m, 90 dB @ 1W/1m
• Cone Area (Sd): 214 cm²
• Moving Mass (Mms): 20.8 g
• Cone Material: Paper with Cenosphere coating
• Mechanical Resistance (Rms): 2.07 kg/s
• Voice Coil Diameter: 25mm
• Voice Coil Winding Height: 11.9mm
• Max Linear Excursion (Xmax): ±4.0mm
• Outer Diameter: 195mm / 7.68"
• Outer Diameter with Universal Mounting Ring: 208.9mm / 8.22"
• Installation Diameter: 173.5mm / 6.83"
• Installation Depth: 63.7mm / 2.51"


Compatibility:

• FlexMount200
• WireKits


Scope of Delivery:

• 2 x Ci3 W200FM-S2
• 2 x Universal mounting ring with grille
• 2 x Mounting material


Perfect for:

• Deep bass applications, high-power woofer upgrades, professional installations, FlexMount200 compatible vehicles, maximum amplifier power extraction, HELIX and MATCH amplifier systems, and any installation requiring superior woofer performance with compact dimensions and vehicle-specific integration capabilities.
