HELIX COMPOSE. The Perfect Speaker for Any Composition.

Experience exceptional sound with HELIX CB K130.2-S3's innovative COMPOSE platform—featuring 3Ω technology, FlexMount20 tweeter system, separate crossover with level adjustment, and 5.25" polypropylene midbass for professional component installations.

Born out of the increasingly demanding challenges of modern automobile technology and the HELIX-typical pursuit of intelligent solutions, we made the progressive redesign of proven universal speaker systems our mission. The result: our innovative HELIX COMPOSE platform that, according to the motto "developed inside the vehicle, for the vehicle", combines classic universal speakers with the advantages of vehicle-specific systems. Our BASIC component systems are the perfect introduction to the world of HELIX COMPOSE, providing all the essentials for an exceptional sound experience in your vehicle. All components harmonize perfectly and form an ideal team with our HELIX and MATCH amplifiers, guaranteeing maximum performance and power output at all times.

COMPOSE BASIC CB K130.2-S3 Features:

• 2-way speaker kit which combines high efficiency with exceptional sound performance
• 3 Ohm technology for maximized power output of the amplifier
• Compact design for trouble-free installation even in cramped conditions
• Tweeter
• 0.75" / 20 mm tweeter with silk dome for brilliant and clear treble response
• Very efficient neodymium magnet for high magnetic flux linearity
• Compact design and various mounting options for numerous installation demands
• Mounting pods for flush mount and angle mount included in delivery
• Designed for the optionally available car-specific FlexMount20 adaptors which allow an acoustically optimized and professional integration in the original mounting locations of the vehicle
• Midbass
• 5.25" / 130 mm midbass with lightweight polypropylene cone which provides essential stiffness for exceptional sound performance
• Sturdy steel basket with additional ventilation holes for better voice coil cooling and high power handling
• Powerful magnet system for optimum impulse control
• Polyurethane dustcap for optimized frequency response in the upper midrange area
• Crossover
• Separate, high quality crossover with compact dimensions for easy integration
• 4-stage tweeter level adjustment with integrated tweeter protection for optimized treble adaptation to mounting position
• Extensively fine-tuned – with 12 dB slope for tweeter
• HELIX COMPOSE platform engineering for vehicle-specific optimization
• Smart 3Ω technology for enhanced amplifier compatibility
• FlexMount20 system for universal-to-vehicle-specific adaptation
• Professional component system with separate crossover
• Ultra-compact tweeter design for versatile installation options
• Enhanced 5.25" midbass for improved bass response


Specifications:

• Power Handling RMS / Max: 70 / 105 Watts
• Frequency Response: 80 Hz - 22,000 Hz
• Impedance: 3Ω
• Sensitivity: 90 dB @ 2.83V / 1m, 86 dB @ 1W / 1m
• Tweeter Outer Diameter: 32.0 mm / 1.26"
• Midbass Outer Diameter: 130 mm / 5.12"
• Tweeter Installation Diameter: 32.0 mm / 1.26"
• Midbass Installation Diameter: 118.0 mm / 4.65"
• Tweeter Installation Depth: 9.8 mm / 0.39"
• Midbass Installation Depth: 51.4 mm / 2.02"
• Crossover Dimensions: 103.3 x 50.4 x 25.0 mm / 4.07 x 1.98 x 0.98"
• Midbass Impedance: 3Ω
• Tweeter Impedance: 4Ω
• Tweeter Resonance Frequency: 2000 Hz
• Midbass Resonance Frequency: 88 Hz
• Total Q Factor (Qts): 0.88
• Equivalent Air Volume (Vas): 4.2 L
• Cone Area (Sd): 97 cm²
• Moving Mass (Mms): 10.1 g
• Voice Coil Diameter: 25 mm (midbass), 20 mm (tweeter)
• Max Linear Excursion (Xmax): ±2.5 mm
• Tweeter: Ultra compact, silk dome, neodymium magnet and FlexMount20
• Midbass: Injected polypropylene cone
• Crossover: Tweeter 12 dB highpass, protection and level adjustment


Compatibility:

• FlexMount20

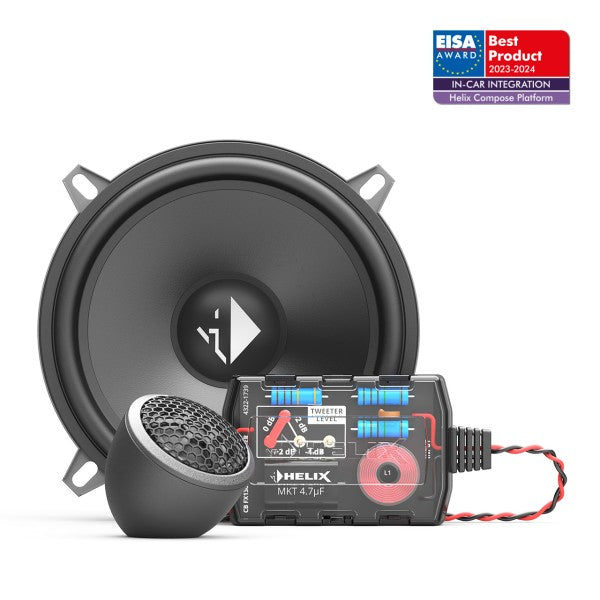

Scope of Delivery:

• 2 x Tweeter CB T20FM-S
• 2 x Midbass CB W130-S3
• 2 x Crossover CB FX130.2
• 2 x Tweeter mounting accessories
• 1 x Mounting material


Perfect for:

• Professional 5.25" component installations, factory upgrade projects, systems requiring tweeter level adjustment, FlexMount20 compatible vehicles, HELIX and MATCH amplifier systems, and any installation demanding high-quality component separation with enhanced bass response and vehicle-specific integration capabilities.
