CAC F7FD4 Double DIN Fascia Kit for Ford Ranger & Mazda BT-50 2006-2011

Replace your Ford Ranger or Mazda BT-50 factory dash panel with a professional silver fascia for seamless double-DIN headunit installation.

Product Overview

The F7FD4 Double DIN Fascia Kit provides a complete mounting solution for Ford Ranger PJ/PK and Mazda BT-50 owners (2006-2011) wanting to install a standard double-DIN aftermarket headunit. This precision-molded fascia panel converts your factory dash aperture to accommodate universal double-DIN headunits measuring 178mm x 101mm (without trim) or 173mm x 98mm (with trim), while maintaining the original visual appearance of your dashboard with factory-matched silver finish. Manufactured from high-quality ABS plastic for durability against Australian outback conditions, the kit includes all essential mounting components—fascia panel, trim ring, side brackets, rubber sealing ring, and fixing screws.

The OEM-design fascia ensures perfect fitment for both automatic and manual transmission variants, simplifying installation for DIY enthusiasts and professional installers working on Australia's popular workhorse utes. Minor trimming may be required depending on specific headunit dimensions, particularly for larger screen models.

Key Specifications

• Designed for Ford Ranger PJ/PK series 2006-2011 and Mazda BT-50 2006-2011 models
• Accommodates standard double-DIN aftermarket headunits
• Internal opening dimensions: 178mm x 101mm (without trim ring), 173mm x 98mm (with trim ring)
• High-quality ABS plastic construction with factory-matched silver finish

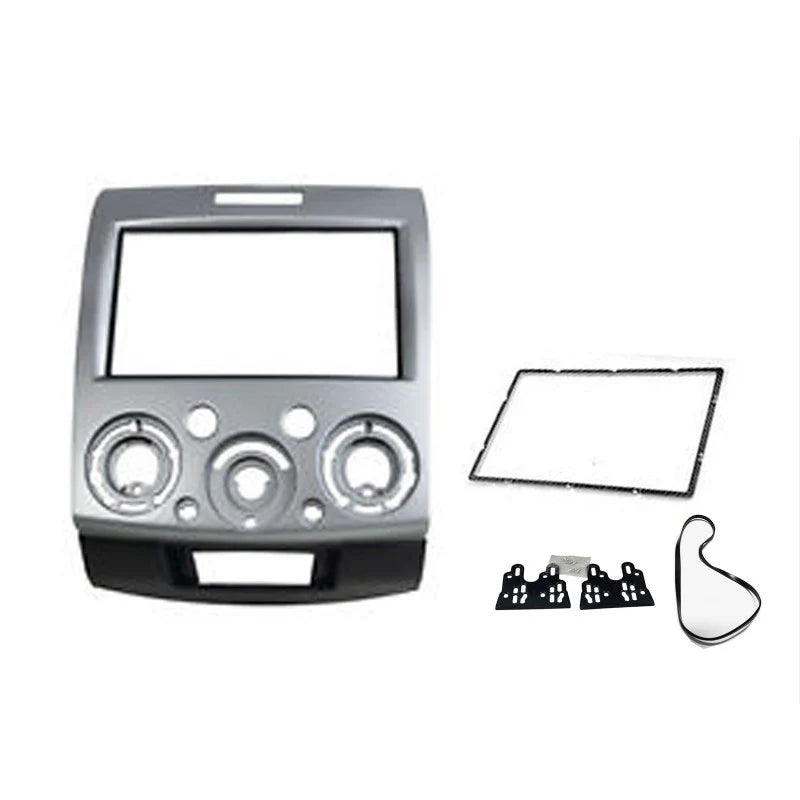

• Complete mounting hardware included: fascia panel, trim ring, side brackets, rubber ring, screws
• Compatible with both automatic and manual transmission vehicles
• OEM design for perfect dashboard integration
• May require minor trimming for some larger screen headunits

Features & Benefits

Dual Vehicle Compatibility – Engineered to fit both Ford Ranger PJ/PK (2006-2011) and Mazda BT-50 (2006-2011), ideal for fleet operators, trade businesses, and owners of these mechanically-related utes who need a reliable upgrade path to modern navigation and connectivity.

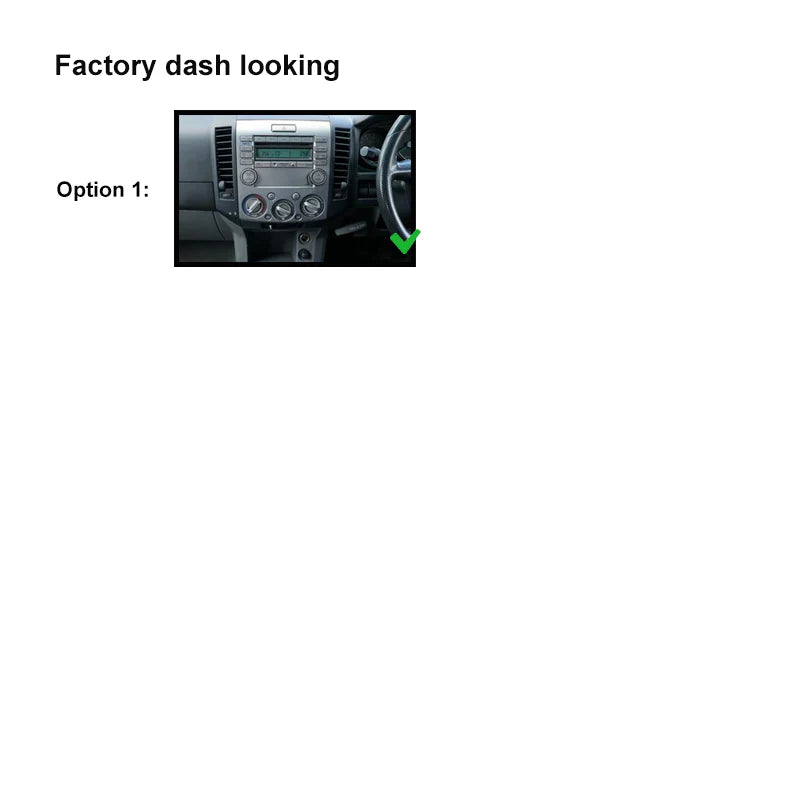

Factory-Matched Silver Finish – Precision-molded with silver ABS plastic that matches the original dashboard surround color found in Ranger and BT-50 models, ensuring a seamless OEM appearance that looks factory-installed rather than aftermarket.

Complete Mounting Solution – Includes fascia panel, trim ring, side mounting brackets, rubber sealing ring, and fixing screws in one package, eliminating the need to source additional mounting hardware or make multiple purchases for your ute upgrade.

Rubber Sealing Ring Included – Supplied rubber ring creates a weatherproof seal around the headunit, reducing dust and moisture ingress—critical for work utes operating in dusty construction sites, farms, and regional Australian conditions.

Universal Double-DIN Fitment – Accommodates any standard double-DIN aftermarket headunit up to 178mm x 101mm, giving you flexibility to choose budget-friendly models or premium touchscreen systems with Apple CarPlay, Android Auto, and off-road navigation capabilities.

Auto & Manual Transmission Compatible – Designed to fit both automatic and manual transmission variants of Ranger and BT-50, ensuring universal compatibility across all drivetrain configurations without requiring model-specific versions.

Durable ABS Construction – Precision-molded from high-quality ABS plastic engineered to withstand harsh Australian conditions including extreme heat, UV exposure, vibration from corrugated roads, and the demanding environments where work utes operate daily.

Technical Specs

• Product Code: F7FD4
• Fascia Type: Double-DIN (standard size)
• Vehicle Application: Ford Ranger PJ/PK 2006-2011, Mazda BT-50 2006-2011
• Internal Opening (without trim): 178mm (width) x 101mm (height)
• Internal Opening (with trim): 173mm (width) x 98mm (height)
• Included Components: Fascia panel, double-DIN trim ring, side mounting brackets, rubber sealing ring, fixing screws
• Material: High-quality ABS plastic
• Colour: Silver (factory-matched)
• Transmission Compatibility: Both automatic and manual variants
• Installation Method: Bracket-mounted with screws
• Installation Time: Approximately 20-40 minutes for DIY installation
• Modification: Minor trimming may be required for larger screen headunits

Compatible With / Goes Well With

Compatible Vehicles:

• Ford Ranger PJ Series (2006-2009) all variants
• Ford Ranger PK Series (2009-2011) all variants
• Mazda BT-50 (2006-2011) all variants
• Both automatic and manual transmission models

Compatible Headunit Types:

• Standard double-DIN aftermarket headunits (178mm x 101mm maximum)
• Touchscreen GPS navigation receivers
• Apple CarPlay/Android Auto double-DIN units
• Pioneer, Kenwood, Sony, Alpine, JVC double-DIN models
• Off-road navigation systems for 4WD touring
• Budget-friendly and premium double-DIN receivers

⚠️ Compatibility Note: This is a fascia panel only—wiring harnesses, antenna adapters, steering wheel control interfaces, and camera retention harnesses are NOT included and must be purchased separately. Minor trimming of the fascia opening may be required for headunits with screens larger than standard double-DIN dimensions. Always verify your headunit's exact dimensions before installation.

Works Well With:

• Ford Ranger/Mazda BT-50 wiring harness adapters
• Steering wheel control interface harnesses
• Reverse camera systems for tray and towing visibility
• Aftermarket antenna adapters
• Amplifier wiring kits for upgraded sound systems
• Speaker upgrade packages for Ranger/BT-50
• UHF radio integration for outback communication

Weight

Product weight: Not specified

Frequently Asked Questions

Does this fascia fit both Ford Ranger and Mazda BT-50?

Yes, this fascia is designed to fit both Ford Ranger PJ/PK series (2006-2011) and Mazda BT-50 (2006-2011), as these vehicles share the same dashboard architecture and mounting points.

Does this include wiring harnesses or adapters?

No, this is a fascia panel kit only. It includes the mounting panel, trim ring, brackets, rubber ring, and screws. Wiring harnesses, antenna adapters, and steering wheel control interfaces must be purchased separately.

Will this fit both automatic and manual transmission models?

Yes, the F7FD4 fascia is compatible with both automatic and manual transmission variants of Ford Ranger and Mazda BT-50 from the 2006-2011 model years.

What is the rubber ring included for?

The rubber sealing ring creates a weatherproof seal around the headunit, reducing dust and moisture ingress—important for work utes operating in dusty, muddy, or harsh Australian conditions.

Will I need to trim the fascia for my headunit?

Most standard double-DIN headunits fit without modification. However, headunits with screens slightly larger than standard double-DIN dimensions may require minor trimming of the fascia opening for proper fitment.
