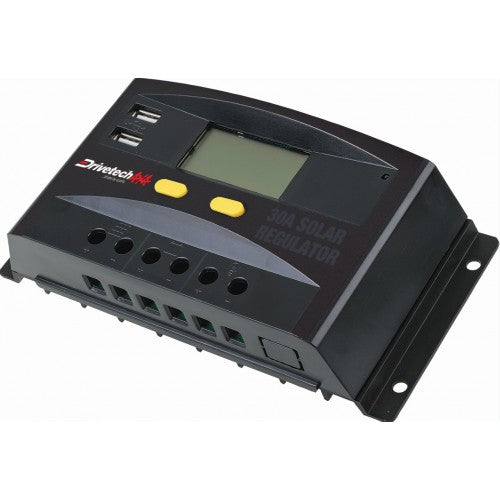

Drivetech 4x4 DTSR30 30A Solar Regulator and Monitor - Waterproof PWM Solar Charge Controller with Integrated LCD Battery Monitor Supporting up to 360W Solar Panels for 4WD, Caravan, and Marine Battery Charging Systems

Drivetech 4x4 DTSR30 30A Solar Regulator and Monitor - Waterproof PWM Solar Charge Controller with Integrated LCD Battery Monitor Supporting up to 360W Solar Panels for 4WD, Caravan, and Marine Battery Charging Systems

Manage your solar charging system with Drivetech 4x4 DTSR30 30A Solar Regulator and Monitor—featuring robust 30A PWM solar charge controller supporting solar panel arrays up to 360W capacity for comprehensive auxiliary battery charging, integrated LCD battery monitor displaying voltage, current, state of charge, and system diagnostics eliminating need for separate monitoring equipment, waterproof construction rated for under-bonnet installation, exposed mounting locations, and harsh marine environments withstanding moisture, dust, and temperature extremes, intelligent low voltage disconnect (LVD) protection automatically disconnecting loads at 10.7V (12V systems) or 21.4V (24V systems) preventing battery damage from excessive discharge, low voltage reconnection at 12.6V (12V) or 25.2V (24V) restoring power after adequate recharging, high voltage disconnect protecting batteries from overcharge damage during excessive solar input or charging system faults, open circuit voltage rating <50V accommodating standard 12V and 24V solar panels in various series/parallel configurations, PWM (Pulse Width Modulation) regulation providing reliable economical charging for lead-acid, AGM, and gel batteries with automatic multi-stage charging algorithm, fully automatic operation requiring no manual adjustment or monitoring after initial installation, LCD display showing real-time charging current from solar panels, battery voltage indicating state of charge and charging status, load current to connected equipment, and fault codes simplifying troubleshooting, suitable for comprehensive solar installations up to 360W total capacity including multiple panel arrays and high-output single panels, 12V and 24V automatic voltage detection enabling compatibility with passenger vehicles (12V) and commercial trucks (24V), protects both solar charging circuit and load circuit with independent disconnect thresholds, prevents reverse discharge at night automatically blocking current flow from battery to solar panel, temperature compensation adjusting charging voltage based on ambient temperature optimizing battery health in extreme climates, overcurrent protection preventing controller damage from short circuits and excessive load, ideal for 4WD dual battery systems with 200-360W solar arrays requiring comprehensive regulation and monitoring, caravan and motorhome installations managing house battery charging from roof-mounted solar panels, marine applications with waterproof controller requirements in exposed deck or engine room locations, off-grid cabin solar systems requiring reliable charge regulation and battery protection, and commercial vehicle auxiliary systems with extensive solar capacity, eliminates need for separate charge controller and battery monitor reducing equipment cost and installation complexity, waterproof design enables flexible mounting locations including under-bonnet, exterior panels, and weather-exposed compartments impossible for standard non-waterproof controllers, LCD display provides essential system visibility confirming solar charging operation and battery health without additional instrumentation, supports larger solar arrays than typical 10-20A controllers enabling comprehensive multi-panel installations, Drivetech 4x4 Australian designed for extreme outback conditions and harsh marine environments, 12-month or 20,000km warranty covering manufacturing defects, and providing essential solar charge regulation and monitoring solution for comprehensive permanent solar installations.

Product Overview

Drivetech 4x4 DTSR30 30A Solar Regulator and Monitor combines solar charge controller and battery monitor in single waterproof unit providing comprehensive solar system management. 30A capacity supports solar panel arrays up to 360W (12V systems) enabling multi-panel installations and high-output single panels beyond capabilities of typical 10-20A controllers. Integrated LCD battery monitor eliminates need for separate monitoring equipment—single unit provides both charging regulation and system monitoring reducing equipment cost, installation complexity, and panel space requirements.

PWM (Pulse Width Modulation) charge regulation provides reliable economical charging for lead-acid, AGM, and gel batteries. PWM technology matches panel voltage to battery voltage through high-frequency switching providing efficient charging for standard solar applications. Automatic multi-stage charging progresses through bulk (maximum current), absorption (tapering current), and float (maintenance) stages optimizing battery health and preventing overcharge. Temperature compensation adjusts charging voltage based on ambient temperature—critical for installations in extreme climates where standard fixed-voltage charging causes overcharge (hot climates) or undercharge (cold climates).

Waterproof construction enables installation in harsh environments impossible for standard charge controllers. Mount under vehicle bonnet near battery (withstanding engine heat and moisture), exterior panels exposed to weather, marine deck locations subject to water spray, and unprotected compartments in caravans and boats. Waterproof design provides installation flexibility positioning controller optimally for cable routing and accessibility rather than limiting to protected interior locations. Critical advantage for 4WD and marine applications where weather exposure unavoidable.

Integrated Battery Monitor LCD Display: Real-time display shows comprehensive system information. Battery voltage indicates state of charge and charging status—12.7V+ fully charged, 12.4V 75% charged, 12.2V 50% charged, 12.0V 25% charged. Charging current shows solar panel output verifying generation—0A at night, maximum current during noon sun, reduced current during clouds or shade. Load current displays power consumption from connected equipment identifying high-drain devices. Daily amp-hour generation tracks total energy produced confirming solar performance. Fault codes diagnose issues—overcharge, over-discharge, short circuit, overtemperature—simplifying troubleshooting without specialized equipment.

Low Voltage Disconnect Protection: Automatic LVD prevents battery damage from excessive discharge. Controller disconnects loads at 10.7V (12V systems) or 21.4V (24V systems) preventing discharge beyond safe limits—critical for lead-acid batteries suffering permanent capacity loss from deep discharge. Reconnects loads at 12.6V (12V) or 25.2V (24V) after solar charging restores adequate capacity. Protects batteries during extended cloudy periods when consumption exceeds generation—automatic load disconnect maintains battery above damage threshold. Particularly valuable for unattended installations (stored vehicles, remote cabins) where monitoring impossible and automatic protection essential.

30A Capacity for Large Solar Arrays: 30A rating supports comprehensive solar installations impossible with smaller controllers. Capacity examples: single 360W solar panel (12V system, 20A maximum output), dual 180W panels parallel-connected (20A combined), three 120W panels parallel (18A combined), quad 90W panels (18A combined). Enables professional multi-panel roof installations and comprehensive caravan solar systems without requiring multiple controllers. Single 30A controller manages entire solar array simplifying wiring and reducing equipment cost compared to multiple smaller controllers.

12V and 24V Automatic Detection: Controller automatically detects battery voltage configuring appropriate charging parameters. 12V systems common in passenger vehicles, caravans, and small boats—controller operates 12V charging algorithm. 24V systems common in commercial trucks, large boats, and some industrial applications—controller automatically switches to 24V operation. Automatic detection eliminates manual configuration preventing incorrect voltage settings causing battery damage. Single controller suitable for both voltage systems simplifying inventory for professional installers managing mixed vehicle fleets.

PWM vs MPPT Technology: DTSR30 uses PWM (Pulse Width Modulation) technology—economical reliable charging adequate for most solar applications. PWM matches solar panel voltage to battery voltage providing efficient charging when panel voltage moderately exceeds battery charging voltage. Alternative MPPT (Maximum Power Point Tracking) controllers extract 15-30% additional power but cost significantly more. For budget-conscious comprehensive solar installations, PWM provides excellent value—30A PWM controller costs 50-70% less than equivalent MPPT while providing reliable charging. Users requiring maximum efficiency from expensive solar arrays benefit from MPPT investment, users prioritizing value and reliability find PWM adequate for typical camping and touring applications.

Waterproof Construction Benefits: Waterproof design critical for mobile applications. Under-bonnet mounting positions controller near battery and starter battery minimizing cable length but exposing to engine heat, moisture from rain/washing, and vibration—waterproof construction withstands harsh environment. Marine deck mounting enables controller placement in accessible locations rather than buried in protected compartments—simplifies installation and maintenance. Caravan exterior panel mounting positions controller with solar panels on roof reducing cable length while withstanding weather exposure. Waterproof rating provides installation confidence regardless of mounting location environmental conditions.

Fully Automatic Operation: Controller operates automatically after initial installation requiring no adjustment or monitoring. Connect solar panels to controller solar input, battery to controller battery terminals, loads (if used) to controller load output—controller automatically detects voltage, begins charging, protects battery, and manages loads. LCD display provides monitoring capability but not required for operation—system functions reliably without user intervention. Particularly valuable for: infrequent users not wanting complex solar management, elderly users requiring simple reliable operation, remote installations where monitoring impractical, and applications prioritizing reliability over advanced features.

Supports Multiple Panel Configurations: 30A capacity and <50V open circuit voltage rating accommodate various solar panel configurations. Parallel connection (common): multiple 12V panels connected parallel maintaining 12V voltage while combining current—two 180W panels = 20A combined, within 30A capacity. Series-parallel configuration: pairs of panels series-connected (increasing voltage) then pairs parallel-connected (combining current)—enables higher voltage operation staying within 50V limit. Professional installers optimize panel configurations maximizing roof space utilization while maintaining controller voltage/current limits.

Drivetech 4x4 Quality and Support: Drivetech 4x4 Australian designed for extreme outback conditions and harsh marine environments. Components engineered for mobile installation vibration and environmental exposure. 12-month or 20,000km warranty providing peace of mind. Australian-based technical support assisting with installation, panel configuration, and system troubleshooting. Quality assurance for critical solar system components enabling extended off-grid adventures.

Technical Specifications

Frequently Asked Questions

Q: What size solar panel array can this 30A controller handle?

A: Maximum capacity depends on system voltage. 12V systems: up to 360W total solar capacity (30A × 12V = 360W), examples: single 360W panel, dual 180W panels parallel, three 120W panels parallel, four 90W panels parallel. 24V systems: up to 720W total (30A × 24V = 720W). Real-world recommendation: size solar array for 80-90% of controller capacity preventing overload during optimal conditions—12V systems 290-325W ideal, 24V systems 580-650W ideal. Verify solar panel specifications: calculate maximum current (Watts ÷ Voltage = Amps), ensure combined panel current stays within 30A limit. Example: four 100W 12V panels each generating 5.5A = 22A combined, within 30A capacity with comfortable margin.

Q: Can this controller work with lithium (LiFePO4) batteries?

A: Standard DTSR30 optimized for lead-acid, AGM, and gel batteries with charging profiles designed for these chemistries (14.4-14.8V absorption, 13.6-13.8V float). Lithium batteries require different charging profile (14.2-14.6V constant voltage, no float stage) and precise voltage regulation preventing overcharge. For lithium battery installations, verify controller lithium compatibility or select lithium-specific charge controller. Many users successfully charge lithium with lead-acid controllers accepting slightly non-optimal charging, but longevity concerns arise from imperfect voltage matching. Dedicated lithium controllers provide optimal charging ensuring maximum lithium battery lifespan. For lead-acid/AGM auxiliary battery systems (most common camping applications), DTSR30 provides optimal charging without compatibility concerns.

Q: Where should I mount this waterproof controller in my vehicle?

A: Waterproof construction enables flexible mounting. Common locations: under bonnet near auxiliary battery (short cable runs, withstands engine heat/moisture), interior cabin bulkhead (protected from extreme heat, accessible for monitoring), exterior panel near solar panel roof penetration (minimizes solar cable length), battery compartment (all connections centralized). Consider: cable length minimization (shorter cables reduce voltage drop and cost), accessibility for LCD display monitoring (visible location preferred for regular checking), temperature exposure (extreme heat reduces controller lifespan—avoid direct exhaust manifold proximity), and weatherproofing penetrations (seal cable entries preventing water ingress). Professional installers balance factors positioning controller optimally. Under-bonnet mounting most common for 4WD installations centralizing electrical components, caravan installations often use interior bulkhead mounting for protected accessible location.

Q: What's the difference between this and a basic PWM controller without monitoring?

A: DTSR30 combines charge controller and battery monitor in single unit. Basic PWM controller advantages: lower cost ($50-80 typical), simpler installation, adequate for users not requiring monitoring. DTSR30 advantages: integrated LCD display eliminates separate battery monitor ($100-200 value), real-time system visibility confirming solar operation and battery health, fault code diagnostics simplifying troubleshooting, waterproof construction enabling harsh environment installation, higher 30A capacity supporting larger solar arrays. Choose basic PWM for: budget-conscious installations, small solar arrays (under 200W), users not requiring monitoring, protected mounting locations. Choose DTSR30 for: comprehensive solar systems (200-360W), users wanting system visibility, harsh environment installations requiring waterproof construction, applications valuing integrated monitoring eliminating separate equipment.

Q: Does this controller prevent reverse discharge at night?

A: Yes, controller automatically prevents reverse discharge (battery powering solar panel at night). Blocking diode or electronic switching prevents current flow from battery back through solar panel during darkness. Without this protection, battery slowly discharges overnight through solar panel—typical loss 0.5-2Ah nightly wasting charging effort. Controller ensures solar only charges battery (daytime) never discharges battery (nighttime). Automatic operation requiring no manual switching—controller manages current direction transparently. Critical feature for reliable solar system operation preventing mysterious overnight battery discharge common with direct panel-to-battery connections without regulation.
