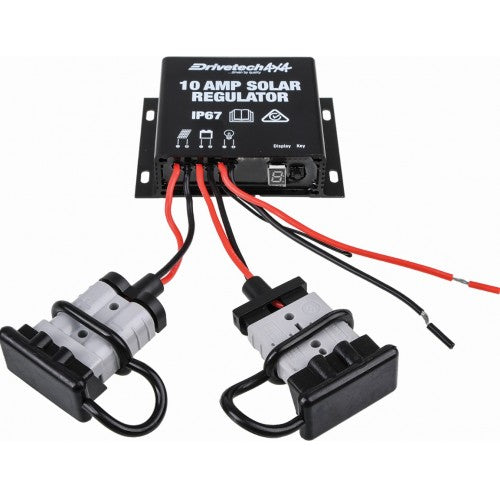

Drivetech 4x4 DTSR10 10A Solar Regulator - Waterproof PWM Solar Charge Controller with LED Indicators Supporting up to 120W Solar Panels for Entry-Level 4WD, Caravan, and Marine Wet Cell Battery Charging Systems

Drivetech 4x4 DTSR10 10A Solar Regulator - Waterproof PWM Solar Charge Controller with LED Indicators Supporting up to 120W Solar Panels for Entry-Level 4WD, Caravan, and Marine Wet Cell Battery Charging Systems

Regulate your entry-level solar charging system with Drivetech 4x4 DTSR10 10A Solar Regulator—featuring economical 10A PWM solar charge controller supporting solar panel arrays up to 120W capacity for budget-conscious auxiliary battery charging, waterproof construction rated for under-bonnet installation, exposed mounting locations, and harsh marine environments withstanding moisture, dust, and temperature extremes, intelligent low voltage disconnect (LVD) protection automatically disconnecting loads at 10.7V (12V systems) or 21.4V (24V systems) preventing battery damage from excessive discharge, low voltage reconnection at 12.6V (12V) or 25.2V (24V) restoring power after adequate recharging, float voltage 13.75V (12V) or 28V (24V) providing maintenance charging preventing overcharge, open circuit voltage rating <50V accommodating standard 12V and 24V solar panels, PWM (Pulse Width Modulation) regulation providing reliable economical charging specifically designed for wet cell rechargeable lead-acid batteries, fully automatic operation requiring no manual adjustment or monitoring after initial installation, LED indicator lights showing charging status, battery voltage level, and system faults eliminating need for separate monitoring equipment in basic installations, suitable for entry-level solar installations up to 120W including single panels and small multi-panel arrays, 12V and 24V automatic voltage detection enabling compatibility with passenger vehicles (12V) and commercial trucks (24V), protects solar charging circuit and battery with automatic disconnect thresholds, prevents reverse discharge at night automatically blocking current flow from battery to solar panel, extremely low no-load current draw (±25mA) preventing parasitic battery drain during non-charging periods, overcurrent protection preventing controller damage from short circuits, ideal for budget-conscious 4WD dual battery systems with 80-120W solar panels requiring basic regulation and protection, caravan and motorhome installations with single roof-mounted solar panel, marine applications with waterproof controller requirements in exposed locations, off-grid cabin solar systems requiring simple reliable charge regulation, and entry-level permanent solar installations prioritizing value over advanced features, eliminates need for expensive high-capacity controllers in applications with modest solar capacity, waterproof design enables flexible mounting locations including under-bonnet, exterior panels, and weather-exposed compartments impossible for standard non-waterproof controllers, LED indicators provide essential status visibility confirming solar charging operation and battery health without complex displays, perfect entry point to permanent solar charging providing professional-grade regulation at budget-friendly investment, important limitation: designed specifically for wet cell rechargeable lead-acid batteries only—not compatible with AGM, gel, or lithium batteries requiring different charging profiles, Drivetech 4x4 Australian designed for extreme outback conditions and harsh marine environments, 12-month or 20,000km warranty covering manufacturing defects, and providing essential budget-friendly solar charge regulation solution for entry-level permanent solar installations with wet cell batteries.

Product Overview

Drivetech 4x4 DTSR10 10A Solar Regulator provides economical solar charge regulation for entry-level permanent solar installations. 10A capacity supports solar panels up to 120W (12V systems) enabling single-panel installations and small multi-panel arrays perfect for weekend camping and recreational touring. Waterproof construction delivers professional-grade environmental protection matching premium controllers at budget-friendly price point—critical advantage for 4WD and marine applications requiring weather-resistant equipment without premium cost investment.

PWM (Pulse Width Modulation) charge regulation provides reliable economical charging specifically optimized for wet cell rechargeable lead-acid batteries. PWM technology matches panel voltage to battery voltage through high-frequency switching providing efficient charging for standard flooded lead-acid batteries. Automatic charging progresses through bulk phase (maximum current) and float phase (13.75V maintenance) preventing overcharge while maintaining battery capacity. Important limitation: controller designed specifically for wet cell batteries—AGM, gel, and lithium batteries require different charging voltages and algorithms not provided by DTSR10. Users with AGM/gel/lithium batteries should select controllers with appropriate chemistry settings (DTSR30 or equivalent).

Waterproof construction enables installation in harsh environments identical to premium controllers. Mount under vehicle bonnet near battery (withstanding engine heat and moisture), exterior panels exposed to weather, marine deck locations subject to water spray, and unprotected compartments in caravans and boats. Waterproof design provides installation flexibility positioning controller optimally for cable routing and accessibility rather than limiting to protected interior locations. Budget-friendly controller delivering professional installation capability without sacrificing environmental protection.

LED Indicator Status Display: Simple LED indicators show essential system information without expensive LCD display. Charging LED indicates solar panel generating power—illuminated during daytime charging, off at night. Battery voltage LEDs show approximate state of charge—green (fully charged), yellow (partially charged), red (low voltage requiring charging). Fault LED indicates system problems—short circuit, overload, reverse polarity. LED system provides adequate monitoring for basic installations where detailed numerical data unnecessary. Users requiring comprehensive monitoring (voltage/current readings, amp-hour tracking) should consider DTSR30 with integrated LCD display—LED indicators adequate for confirming charging operation and identifying obvious faults.

Low Voltage Disconnect Protection: Automatic LVD prevents battery damage from excessive discharge. Controller disconnects loads at 10.7V (12V systems) or 21.4V (24V systems) preventing discharge beyond safe limits—critical for wet cell lead-acid batteries suffering permanent capacity loss and plate sulfation from deep discharge. Reconnects loads at 12.6V (12V) or 25.2V (24V) after solar charging restores adequate capacity. Protects batteries during extended cloudy periods when consumption exceeds generation—automatic load disconnect maintains battery above damage threshold. Particularly valuable for unattended installations where monitoring impossible and automatic protection essential.

10A Capacity for Entry-Level Solar: 10A rating supports single solar panels and small arrays perfect for budget-conscious installations. Capacity examples: single 120W solar panel (12V system, 6-7A maximum output), single 100W panel (5-6A output), dual 60W panels parallel-connected (6-7A combined), single 80W panel (4-5A output). Adequate for: weekend camping maintaining single fridge, recreational caravan installations with basic power requirements, entry-level permanent solar replacing portable panels, small boats requiring battery maintenance charging. Insufficient for: comprehensive multi-panel arrays exceeding 120W, high-consumption applications requiring 160W+ panels, professional touring rigs with extensive solar capacity. Choose DTSR10 for modest solar requirements, upgrade to DTSR30 for comprehensive installations.

12V and 24V Automatic Detection: Controller automatically detects battery voltage configuring appropriate charging parameters. 12V systems common in passenger vehicles, caravans, and small boats—controller operates 12V charging algorithm (13.75V float). 24V systems common in commercial trucks and large boats—controller automatically switches to 24V operation (28V float). Automatic detection eliminates manual configuration preventing incorrect voltage settings causing battery damage. Single controller suitable for both voltage systems simplifying inventory for professional installers managing mixed vehicle fleets.

Extremely Low Parasitic Draw: ±25mA no-load current draw ensures controller doesn't drain battery during extended storage or non-use periods. Typical daily consumption from controller: 25mA × 24 hours = 0.6Ah—negligible for automotive batteries (50-100Ah capacity). Over one month storage: 18Ah consumed from controller operation—acceptable for maintained batteries, minimal concern for regularly-used vehicles. Significantly better than budget controllers drawing 50-100mA draining batteries during storage. Low parasitic draw critical for: seasonal vehicles stored months between use, boats winterized for off-season storage, caravans parked for extended periods, preventing battery discharge requiring jump-start or charging before use.

Wet Cell Battery Specific Design: Controller optimized specifically for flooded wet cell lead-acid batteries with appropriate voltage settings and charging algorithm. Float voltage 13.75V (12V systems) appropriate for wet cell maintenance preventing gassing and water loss while maintaining charge. AGM batteries require 13.6-13.8V float (lower than wet cell preventing excessive internal pressure), gel batteries require 13.5-13.7V float (lower voltage preventing gel damage), lithium requires 13.4-13.6V float or no float stage. DTSR10 wet cell-specific voltage settings may overcharge AGM/gel batteries reducing lifespan or undercharge/overcharge lithium batteries causing issues. Critical: verify battery chemistry before installation—wet cell batteries only, AGM/gel/lithium users require different controller.

Budget-Friendly Professional Quality: DTSR10 delivers professional-grade regulation at budget-conscious price point. Waterproof construction matches premium controllers, PWM technology provides reliable charging, automatic operation eliminates complexity, LED indicators confirm system operation. Sacrifices compared to premium controllers: 10A capacity vs 30A+ (adequate for entry-level applications), LED indicators vs LCD displays (sufficient for basic monitoring), wet cell specific vs multi-chemistry compatibility (acceptable for flooded battery users). Value proposition: budget price delivering 80% of premium controller functionality adequate for majority of entry-level solar installations. Users requiring advanced features justify premium controller investment, budget-conscious users with modest requirements find DTSR10 excellent value.

Fully Automatic Operation: Controller operates automatically after initial installation requiring no adjustment or monitoring. Connect solar panel to controller solar input, wet cell battery to controller battery terminals, loads (if used) to controller load output—controller automatically detects voltage, begins charging, protects battery, and manages loads. LED indicators provide status visibility but not required for operation—system functions reliably without user intervention. Particularly valuable for: infrequent users not wanting complex solar management, entry-level solar users prioritizing simplicity, remote installations where monitoring impractical, applications prioritizing reliability over advanced features.

Drivetech 4x4 Quality and Support: Drivetech 4x4 Australian designed for extreme outback conditions and harsh marine environments. Components engineered for mobile installation vibration and environmental exposure. 12-month or 20,000km warranty providing peace of mind. Australian-based technical support assisting with installation and system troubleshooting. Quality assurance for critical solar system components enabling extended off-grid adventures regardless of budget constraints.

Technical Specifications

Frequently Asked Questions

Q: Can I use this controller with AGM or gel batteries?

A: No, DTSR10 designed specifically for wet cell (flooded) rechargeable lead-acid batteries only. Controller float voltage 13.75V appropriate for wet cell maintenance but may overcharge AGM batteries (requiring 13.6-13.8V float) and gel batteries (requiring 13.5-13.7V float) potentially reducing battery lifespan through excessive internal pressure and electrolyte damage. Lithium batteries absolutely incompatible requiring different charging algorithm. For AGM, gel, or lithium batteries, select multi-chemistry controller with programmable battery type settings—DTSR30 or equivalent supporting multiple battery chemistries. Verify battery type before purchasing: flooded wet cell batteries (with removable caps for water addition) compatible with DTSR10, sealed AGM/gel/lithium batteries require different controller.

Q: What size solar panel can I connect to this 10A controller?

A: Maximum 120W solar panel for 12V systems (10A × 12V = 120W). Examples: single 120W panel (optimal), single 100W panel (ideal), single 80W panel (adequate headroom), dual 60W panels parallel (120W total). Do not exceed 120W—oversized panels during optimal conditions may overload controller causing shutdown or damage. Size recommendation: 80-110W solar panels provide optimal capacity utilization without overload risk. Calculate panel current: Watts ÷ Voltage = Amps, verify maximum current stays within 10A limit. Example: 120W panel ÷ 18V (typical panel voltage) = 6.7A maximum current, within 10A capacity. 24V systems support up to 240W (10A × 24V), but most 24V commercial applications require higher-capacity controllers for adequate charging.

Q: How does this compare to the DTSR30 30A Solar Regulator?

A: DTSR10 budget entry-level controller, DTSR30 premium comprehensive controller. DTSR10 advantages: lower cost ($50-80 vs $150-200 typical), adequate for small solar arrays (80-120W), LED indicators sufficient for basic monitoring. DTSR30 advantages: 30A capacity supporting 200-360W solar arrays, integrated LCD display with voltage/current/amp-hour monitoring, multi-chemistry battery compatibility (lead-acid, AGM, gel, calcium), temperature compensation for optimal charging. Choose DTSR10 for: budget-conscious installations, single 80-120W solar panel, wet cell battery users, basic monitoring requirements, entry-level permanent solar. Choose DTSR30 for: comprehensive solar systems (200-360W), AGM/gel battery installations, users requiring detailed monitoring, professional installations prioritizing maximum features.

Q: Where should I mount this waterproof controller?

A: Waterproof construction enables flexible mounting identical to premium controllers despite budget price. Common locations: under bonnet near battery (short cable runs, withstands engine heat/moisture despite being budget unit), interior cabin bulkhead (protected from extreme heat, accessible for LED indicator checking), battery compartment (centralized connections), exterior panel near roof solar penetration (minimizes solar cable length). Consider: LED indicator visibility (mount where LEDs viewable for status checking without disassembly), cable length minimization (shorter cables reduce voltage drop), temperature exposure (extreme heat reduces lifespan—avoid direct exhaust manifold proximity). Budget controller delivers professional waterproof construction enabling same mounting locations as premium units—no compromise in environmental protection despite lower cost.

Q: Does this controller work with lithium (LiFePO4) batteries?

A: No, absolutely not compatible with lithium batteries. DTSR10 designed exclusively for wet cell lead-acid batteries with 13.75V float voltage. Lithium batteries require significantly different charging profile: 14.2-14.6V constant voltage charging (vs 13.75V float), no float stage after full charge (lithium maintains voltage without trickle charging), precise voltage regulation preventing overcharge damage to lithium cells, BMS (Battery Management System) communication in advanced installations. Using DTSR10 with lithium risks: undercharging (13.75V float insufficient for complete lithium charging), incorrect charging algorithm (bulk/float stages inappropriate for lithium), potential BMS conflicts (lithium BMS may disconnect detecting improper charging). For lithium batteries, purchase lithium-compatible charge controller with appropriate voltage settings and charging algorithm—typically labeled "LiFePO4 compatible" or "lithium battery charging profile."
