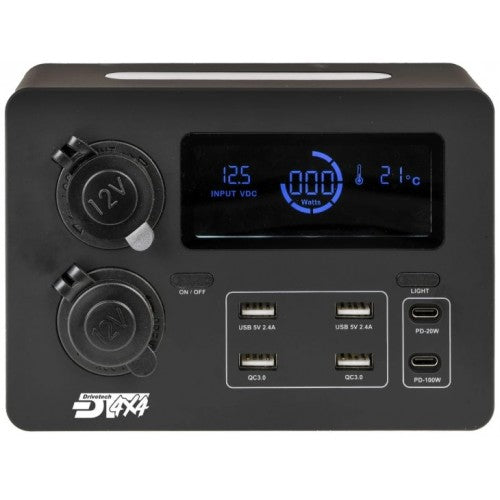

Drivetech 4x4 DT-02011 Power Distribution Box - 12V Multi-Port Power Hub with Anderson Outlets, USB-C PD 100W, QC3.0, LCD Display and LED Light

Drivetech 4x4 DT-02011 Power Distribution Box - 12V Multi-Port Power Hub with Anderson Outlets, USB-C PD 100W, QC3.0, LCD Display and LED Light

Simplify auxiliary battery power distribution with Drivetech 4x4 Power Distribution Box—featuring plug-and-play design enabling simultaneous operation of up to 13 appliances from single auxiliary battery connection, 4x 50A Anderson-style outlets including 1 battery input and 3 outputs for fridges, DC-DC chargers, solar panels, or Anderson-equipped accessories, 2x USB-A ports (2.4A) for standard device charging, 2x QC3.0 USB ports (18W) providing fast charging for compatible smartphones and tablets, 2x USB Type-C ports including 1x PD 20W and 1x PD 100W enabling rapid charging for laptops, modern smartphones, and USB-C devices, 2x cigarette socket ports (10A) for traditional 12V accessories, 2x DC barrel ports for specialized equipment, easy-to-read LCD display showing battery voltage and system status, built-in LED light providing illumination for nighttime use, integrated temperature sensor monitoring operating conditions, durable ABS plastic construction meeting UL 94V-0 flammability standard, recessed Anderson outlets minimizing damage risk from knocks and impacts, universal compatibility with all deep-cycle battery types including AGM, Lithium, Wet, Gel, and Calcium, compact 170mm x 120mm x 64mm dimensions suitable for space-constrained installations, designed for demanding 4WD, caravan, camping, and off-road applications, backed by Drivetech 4x4 12-month or 20,000km warranty, and eliminating messy wiring, multiple connection points, and inadequate power distribution common with basic auxiliary battery setups.

Product Overview

Drivetech 4x4 Power Distribution Box delivers professional-grade 12V power distribution combining multiple outlet types in compact plug-and-play package eliminating complex wiring and separate charging solutions. Single Anderson connection to auxiliary battery provides power to 13 simultaneous outputs—3x Anderson outlets for high-current equipment (fridges, inverters, chargers), 2x cigarette sockets for traditional accessories, 6x USB ports (standard, fast-charge, and high-power) covering modern device charging requirements, 2x DC barrel ports for specialized equipment, plus built-in LED light. Anderson outlets rated 50A continuous suitable for heavy-duty loads—connect portable fridges, portable solar panels for charging, DC-DC chargers as alternative charging input, portable power equipment, or any Anderson-equipped accessory common in 4WD market. USB charging capability eliminates need for separate USB adapters or cigarette socket converters—direct charging for phones, tablets, cameras, GPS units, drones, and laptops without additional accessories. USB-C PD 100W port provides laptop-class power delivery charging modern MacBooks, Windows laptops, and high-power devices impossible with standard 5V USB. QC3.0 fast charging ports reduce smartphone charging time significantly compared to standard USB. LCD display shows real-time battery voltage enabling monitoring of battery state and detecting charging issues or excessive discharge. Temperature sensor monitors operating conditions preventing overheating during high-load operation. LED light provides illumination for nighttime camping setup, emergency situations, or working in dark spaces eliminating separate lighting. Durable ABS plastic construction withstands harsh 4WD environments including vibration, impacts, temperature extremes, and moisture exposure. UL 94V-0 flammability rating ensures fire safety critical for enclosed vehicle installations. Recessed Anderson outlets protect connectors from accidental contact or damage during off-road use. Universal battery compatibility supports AGM, Lithium LiFePO4, traditional flooded, Gel, and Calcium batteries—works with any auxiliary battery chemistry. Compact dimensions fit console-mounted installations, under-seat mounting, canopy installations, or portable setups. Applications include 4WD touring rigs needing organized power distribution, caravan and motorhome auxiliary systems, camping setups powering multiple devices, work vehicles requiring tool charging, emergency equipment installations, and portable power stations. Drivetech 4x4 12-month or 20,000km warranty covers manufacturing defects providing peace of mind for demanding applications.

Key Features

4x 50A Anderson-Style Outlets: Heavy-duty Anderson-compatible outlets rated 50A continuous providing versatile power distribution. One Anderson input connects to auxiliary battery, three Anderson outputs power fridges, solar panels (charging input), DC-DC chargers, inverters, or Anderson-equipped accessories. Recessed design protects connectors from damage, genderless Anderson format prevents incorrect mating, spring-loaded contacts maintain reliable connection despite vibration.

Comprehensive USB Charging Ports: Six USB ports covering all modern charging requirements eliminating separate adapters. 2x USB-A (2.4A) for standard devices, 2x QC3.0 (18W) for fast smartphone/tablet charging, 1x USB-C PD 20W for modern phones, 1x USB-C PD 100W for laptops and high-power devices. Charges phones, tablets, cameras, GPS, drones, laptops, portable speakers, headphones, and USB-powered accessories simultaneously.

2x Cigarette Socket Ports (10A): Traditional 12V cigarette sockets providing 10A output for conventional accessories. Compatible with vast aftermarket 12V accessory market including air compressors, portable vacuum cleaners, dash cams, phone chargers, heated accessories, and legacy equipment. Dual sockets enable simultaneous operation of multiple cigarette-powered devices.

2x DC Barrel Ports: Specialized DC barrel jack outputs for equipment using barrel connector standard. Common on portable electronics, amateur radio equipment, LED lighting systems, and specialized 12V devices. Provides connectivity without adapters or modifications.

Easy-to-Read LCD Display: Clear LCD screen displaying real-time battery voltage enabling monitoring of auxiliary battery state. Identifies charging status (voltage rising during charging), excessive discharge (voltage dropping during use), or battery health issues. Visual feedback eliminates guesswork about power availability. Backlit display readable in all lighting conditions.

Built-in LED Light: Integrated LED light providing illumination for nighttime use. Useful for campsite setup after dark, emergency lighting, working on vehicle at night, or illuminating storage areas. Eliminates need for separate flashlight or camp light. Switch-activated enabling light only when needed conserving battery power.

Integrated Temperature Sensor: Built-in temperature monitoring protecting distribution box from overheating during high-load operation. Monitors internal temperature during heavy current draw from multiple outputs. Prevents thermal damage to electronics or wiring. Provides safety during extended high-power use common in camping or work applications.

Durable ABS Plastic Construction (UL 94V-0): Heavy-duty ABS plastic housing withstanding harsh 4WD environments. UL 94V-0 flammability rating indicates self-extinguishing plastic meeting strict fire safety standards—critical for vehicle electrical installations. Impact-resistant construction survives drops, vibration, temperature extremes (-20°C to +60°C typical), and moisture exposure. Suitable for permanent vehicle installation or portable use.

Recessed Anderson Outlets: Anderson connectors recessed into body protecting from accidental contact or impact damage. Prevents connector damage during off-road use, equipment loading, or transport. Reduces risk of short circuits from tools or metal objects contacting exposed terminals. Improves durability and safety compared to exposed connectors.

Universal Deep-Cycle Battery Compatibility: Compatible with all common auxiliary battery types: AGM (absorbed glass mat), Lithium LiFePO4, traditional flooded/wet cell, Gel, and Calcium. No battery-specific settings or configurations required—plug and play operation. Suitable for 12V nominal systems (10-15V operating range typical). Works with any auxiliary battery installation regardless of chemistry.

Compact Space-Saving Design: Dimensions 170mm x 120mm x 64mm suitable for console mounting, under-seat installation, canopy mounting, or portable setups. Compact footprint fits space-constrained 4WD installations where larger power distribution panels impossible. Mounting holes enable secure installation, or portable use without mounting. Organized outlet arrangement maximizes functionality in minimal space.

Drivetech 4x4 12-Month/20,000km Warranty: Comprehensive warranty covering manufacturing defects and workmanship for 12 months or 20,000km whichever occurs first. Drivetech 4x4 proven durability in demanding 4WD, commercial, and mining applications. Australian warranty support ensures local service availability. Quality construction designed for extreme outback conditions and punishing environments.

Technical Specifications

Frequently Asked Questions

Q: Can I connect this directly to my main starter battery or only auxiliary battery?

A: Designed for auxiliary battery connection only—not recommended for direct starter battery connection. Auxiliary battery systems prevent draining starter battery risking inability to start vehicle. Multiple high-current outputs could discharge starter battery if engine not running. Use with properly installed auxiliary battery system including isolator (VSR or DC-DC charger) protecting starter battery. Anderson input intended for dedicated auxiliary battery providing house loads.

Q: Can I use the Anderson outputs to charge my battery from solar or do they only output power?

A: Anderson outlets bi-directional—can function as either power output or charging input. Connect solar panel with Anderson connector to any of three output Anderson ports—power flows into battery charging it. Similarly connect DC-DC charger output to Anderson port. System simply distributes current—direction determined by voltage differential (higher voltage source charges lower voltage battery). Enables flexible system configuration using Anderson ports for both loads and charging sources.

Q: Will the USB-C 100W port charge my laptop?

A: Yes, USB-C PD 100W port provides sufficient power for most laptops including MacBook Pro, Dell XPS, HP Spectre, Lenovo ThinkPad, and other USB-C laptops requiring up to 100W. Check your laptop power requirements—most consumer laptops 45-65W, high-performance models 85-100W. Port supports USB Power Delivery (PD) standard ensuring compatibility. Reduces laptop charging time significantly compared to standard USB. Note: Some gaming laptops exceed 100W requiring dedicated AC power or higher-wattage charging solutions.

Q: How many devices can I realistically run simultaneously?

A: Up to 13 outlets available but practical limit depends on total current draw from auxiliary battery. Example realistic setup: portable fridge (4-5A), two smartphones charging via USB (combined 3A), laptop via USB-C (5A at 12V equivalent), dash cam via cigarette socket (1A), LED strip lights via DC barrel (2A) = approximately 15-16A total. Modern 100Ah auxiliary battery supports this for several hours. Monitor LCD voltage display—significant voltage drop indicates excessive load. Calculate total current draw ensuring it remains within battery discharge limits and wiring capacity.

Q: Is this waterproof for external mounting?

A: Not waterproof—designed for protected installation inside vehicle cabin, canopy, or covered area. ABS plastic construction moisture-resistant but LCD display, USB ports, and connectors not sealed for water immersion or direct rain exposure. Suitable for typical vehicle interior environments including temperature extremes, humidity, and incidental moisture. For external mounting, install in weatherproof enclosure or under canopy protection. Avoid direct water spray, rain, or submersion which could damage electronics.
