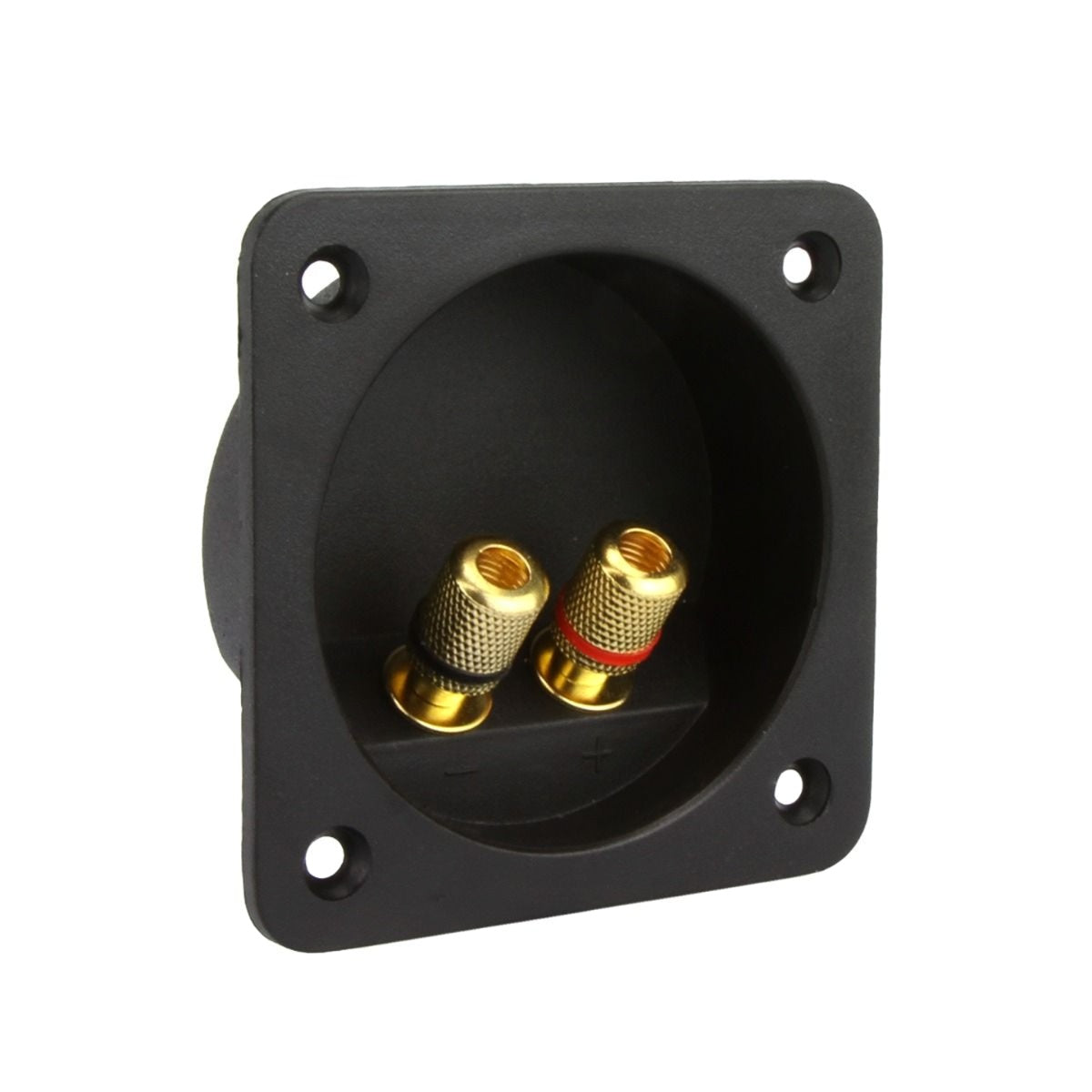

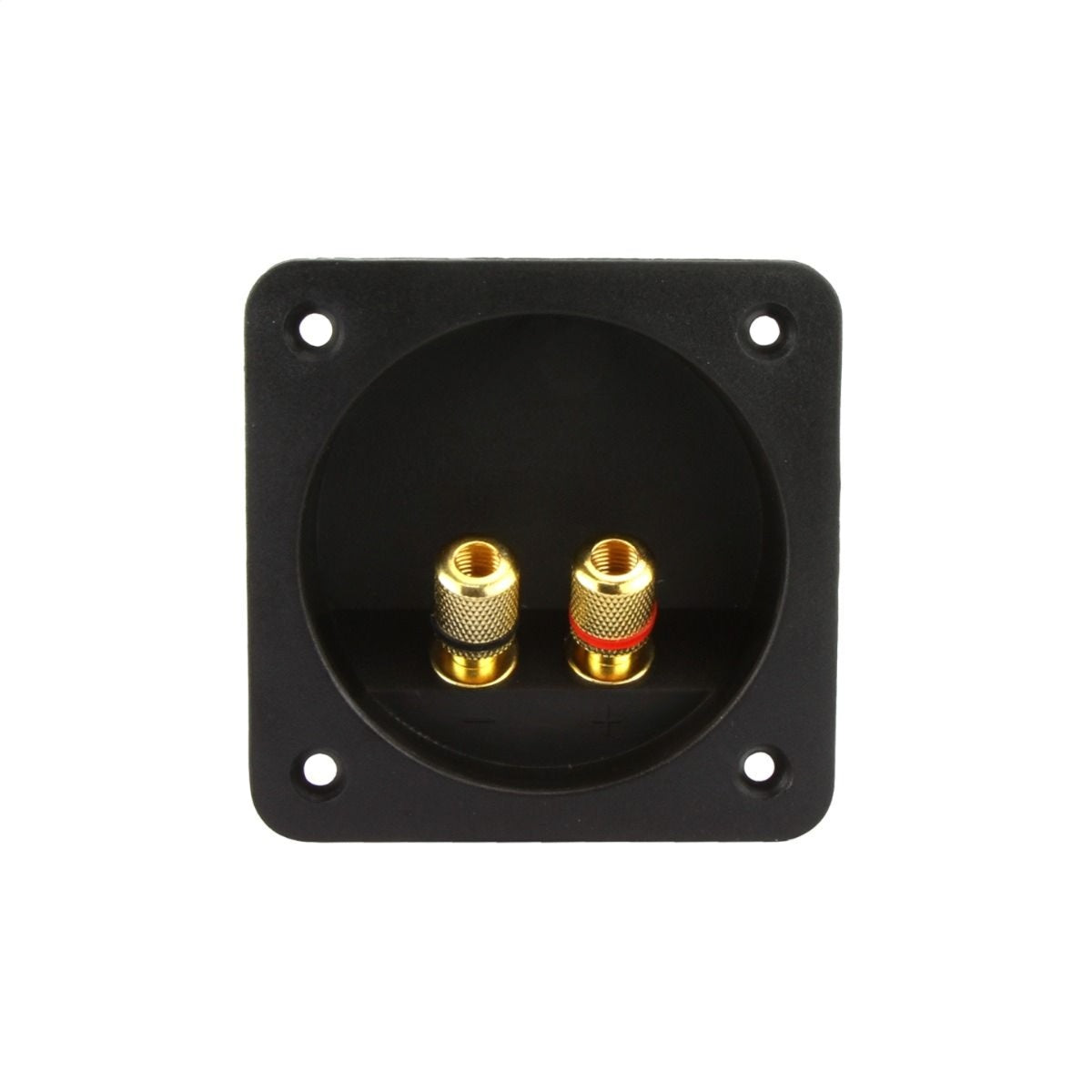

DNA WSC203 Rectangular Round Mount Plastic Speaker Terminal Plate - Professional Panel Mount Terminal with Gold Plated Snap Lock Connectors and Foam Gasket Seal

DNA WSC203 Rectangular Round Mount Plastic Speaker Terminal Plate - Professional Panel Mount Terminal with Gold Plated Snap Lock Connectors and Foam Gasket Seal

Professional-grade rectangular speaker terminal plate with round recessed panel mount design engineered for custom subwoofer enclosures, speaker boxes, amplifier installations, and professional audio applications requiring secure, accessible speaker wire connections through enclosure walls, equipment panels, or installation surfaces. The DNA WSC203 features color-coded gold plated snap lock terminals providing reliable electrical connection for speaker cables while enabling tool-free wire insertion and removal simplifying installation, maintenance, and equipment modifications common in custom car audio builds, home theater installations, and professional sound system deployments. Integrated foam gasket creates superior seal between terminal plate and mounting surface preventing air leaks critical in sealed subwoofer enclosures where even minor air gaps compromise acoustic performance degrading bass response, reducing output efficiency, and affecting overall sound quality expectations in high-performance audio installations. Round recessed design with 68mm diameter cutout requirement enables straightforward installation in enclosure panels, equipment racks, or mounting surfaces using standard hole saw or router equipment common in professional installation workshops and DIY audio enthusiast toolkits. Gold plated terminals resist corrosion ensuring long-term connection reliability in automotive environments exposed to temperature cycling, humidity, and vibration while maintaining low contact resistance critical for efficient power transfer in high-wattage subwoofer and amplifier applications where connection quality directly impacts system performance and reliability. Snap lock terminal design accommodates standard automotive and home audio speaker wire gauges enabling secure connection without soldering, crimping, or specialized tools reducing installation complexity and enabling field modifications or troubleshooting without permanent wire terminations. Rectangular plate format with round mount configuration provides professional finished appearance complementing custom enclosure aesthetics, equipment panel designs, and installation presentations where terminal accessibility and visual quality equally important in completed audio system deployments. Individual polybag packaging with barcode sticker facilitates inventory management, retail merchandising, and organized component storage in professional installation facilities managing multiple terminal types, connection hardware, and installation accessories across diverse audio projects. Perfect solution for custom subwoofer enclosure builders creating sealed or ported designs requiring external amplifier connections, car audio enthusiasts upgrading speaker systems with accessible wire termination points, home theater installers creating equipment racks with organized cable management, and professional audio technicians maintaining systems requiring frequent speaker cable modifications or troubleshooting access.

Product Overview

The DNA WSC203 addresses critical connection and sealing requirements in custom audio installations where speaker wire termination must occur through enclosure walls, equipment panels, or mounting surfaces while maintaining acoustic integrity, connection reliability, and professional appearance. Traditional installation approaches drilling holes for wire passage create problematic air leaks in sealed enclosures compromising acoustic performance, leave exposed wire connections susceptible to damage and short circuits, provide no strain relief protecting wire terminations from mechanical stress, and result in unprofessional appearance detracting from custom installation quality. Panel mount terminals like WSC203 solve these challenges by providing structured connection point maintaining enclosure seal integrity through foam gasket compression, protecting wire terminations within recessed housing preventing accidental contact or mechanical damage, offering strain relief reducing stress on wire connections during equipment movement or cable management, and creating finished professional appearance elevating overall installation presentation quality.

The round recessed design with 68mm cutout requirement represents optimal balance between installation accessibility and minimal enclosure modification enabling straightforward mounting in custom builds using common hole saw equipment while maintaining compact footprint minimizing enclosure panel space consumption. Recessed configuration protects terminal connections from accidental contact, provides clearance for wire routing behind mounting surface, and creates professional finished appearance where terminal plate sits flush with enclosure surface rather than protruding awkwardly. The 68mm cutout dimension accommodates standard hole saw sizes available at hardware retailers and commonly stocked in professional installation workshops eliminating need for specialized cutting tools or complex fabrication procedures. Color-coded terminals with red and black identification enable intuitive polarity management preventing connection errors that cause speaker phase issues, simplify troubleshooting when verifying connections, and support organized multi-speaker installations where maintaining proper polarity across multiple drivers critical for coherent sound reproduction and optimal system performance.

Key Features and Benefits

Gold Plated Snap Lock Terminal Design – Features color-coded gold plated snap lock terminals providing reliable electrical connection while enabling tool-free wire installation and removal. Gold plating resists corrosion and oxidation particularly important in automotive environments exposed to temperature extremes, humidity, and vibration ensuring long-term connection reliability without degradation affecting audio signal quality or power transfer efficiency. Snap lock mechanism accepts bare speaker wire allowing insertion without banana plugs, spade terminals, or soldering providing installation flexibility and enabling quick modifications. Terminal design accommodates common speaker wire gauges from typical 16AWG home audio cables through heavier 12AWG or 10AWG automotive installations ensuring compatibility across diverse audio applications from home theater through high-power car audio subwoofer systems.

Integrated Foam Gasket for Superior Acoustic Seal – Includes foam gasket creating compression seal between terminal plate and mounting surface preventing air leaks critical in sealed subwoofer enclosures where acoustic performance depends on maintaining airtight enclosure integrity. Even minor air gaps allow pressure equalization between enclosure interior and exterior environment compromising bass response, reducing output efficiency at low frequencies, and degrading overall subwoofer performance below design specifications. Foam gasket compression during installation creates reliable seal across uneven surfaces, accommodates minor surface irregularities common in MDF or plywood enclosure construction, and maintains seal integrity through vibration and temperature cycling encountered in automotive and home audio applications. Superior seal particularly critical in competition car audio installations and high-performance home theater systems where maximum acoustic output and precise frequency response require perfect enclosure sealing eliminating all air leak paths.

Round Recessed Panel Mount Configuration – Round recessed design with 68mm diameter cutout requirement enables professional installation in subwoofer enclosures, equipment panels, and mounting surfaces using standard hole saw equipment. Recessed configuration protects terminal connections from accidental contact preventing short circuits from metallic objects, tools, or conductive surfaces, provides clearance for wire routing behind mounting panel improving cable management aesthetics, and creates flush-mounted finished appearance where terminal plate integrates cleanly with enclosure surface rather than protruding awkwardly. Round format simplifies cutout creation compared to rectangular openings requiring precise corner cuts and multiple tool changes, accommodates standard hole saw sizes readily available at hardware retailers, and enables centered mounting with simple diameter measurement eliminating complex layout procedures required for multi-sided cutout shapes.

Color-Coded Terminals for Polarity Management – Red and black color-coded terminals provide intuitive polarity identification preventing connection errors that cause speaker phase issues affecting sound quality and system performance. Proper polarity maintenance critical in multi-speaker installations where phase coherence between drivers determines overall frequency response, imaging characteristics, and bass output particularly in systems utilizing multiple subwoofers or component speaker sets requiring matched polarity for optimal acoustic summation. Color coding simplifies installation reducing likelihood of reversed connections, facilitates troubleshooting when verifying system wiring, enables quick visual confirmation of proper polarity without multimeter testing, and supports organized installations where multiple terminal plates require consistent polarity management across complex audio system deployments.

Professional Finished Appearance for Custom Builds – Rectangular plate format with round mount configuration creates professional finished appearance elevating custom enclosure aesthetics and installation presentation quality. Clean terminal plate installation demonstrates attention to detail and professional craftsmanship distinguishing quality custom builds from amateur efforts with exposed wire connections, duct tape cable management, or holes drilled haphazardly through enclosure panels. Professional appearance particularly important in show vehicles, home theater installations visible to guests, and commercial audio deployments where equipment presentation reflects overall system quality and installer competence. Terminal plate finishing also protects enclosure edges around wire penetrations preventing MDF or plywood edge damage from wire abrasion, moisture intrusion, or repeated cable manipulation during maintenance or modifications.

Tool-Free Installation and Wire Connection – Snap lock terminal design enables tool-free speaker wire insertion and removal eliminating need for screwdrivers, Allen keys, or specialized tools during installation, maintenance, or troubleshooting. Simple press-to-insert and release-to-remove operation reduces installation time, prevents stripped terminal screws common with screw-type terminals, eliminates risk of over-tightening causing wire damage or terminal failure, and enables field modifications without tools facilitating quick amplifier swaps, speaker upgrades, or system troubleshooting common in car audio competition environments and evolving home theater installations. Tool-free operation particularly valuable for installers working in confined spaces like vehicle trunks or behind equipment racks where tool access limited and rapid connection changes required during system tuning or problem diagnosis.

Durable Plastic Construction for Long-Term Reliability – Plastic construction provides electrical insulation preventing short circuits between terminals and conductive mounting surfaces, resists impact damage from tools or equipment contact, withstands vibration in automotive installations without cracking or terminal loosening, and maintains structural integrity through temperature cycling in vehicle or home environments. Plastic material selection enables cost-effective manufacturing supporting competitive pricing for custom enclosure projects requiring multiple terminal plates while maintaining performance and reliability standards appropriate for high-quality audio installations. Construction durability ensures terminal plates survive rough handling during installation, resist damage from wire routing tools or equipment installation, and maintain functionality through years of service in demanding automotive and home audio applications.

Individual Polybag Packaging for Organization – Each terminal plate supplied in individual polybag with barcode sticker providing protected storage preventing terminal damage during shipping and handling, enabling organized inventory management in retail or installation facility environments, facilitating barcode scanning for point-of-sale systems or inventory tracking, and maintaining product cleanliness until installation preventing contamination of gold plated terminals or foam gasket adhesive surfaces. Professional packaging supports retail merchandising allowing display without exposing product to damage, enables efficient parts picking during installation preparation, and maintains product presentation quality important for professional installers managing customer perceptions and retail operations requiring organized inventory systems with scannable product identification.

Technical Specifications

Frequently Asked Questions

Q: Why is the foam gasket important for subwoofer enclosures?

A: Foam gasket creates airtight seal between terminal plate and enclosure surface preventing air leaks that significantly compromise subwoofer performance in sealed enclosures. Sealed subwoofer designs rely on precise air spring characteristics inside enclosure to achieve designed frequency response, damping characteristics, and output efficiency. Air leaks allow pressure equalization between enclosure interior and exterior environment effectively increasing enclosure volume beyond design specifications, reducing damping control over driver motion, degrading low frequency extension, and decreasing maximum output capability. Even small leaks around terminal mounting holes can cause audible performance degradation particularly noticeable at lowest frequencies where sealed enclosure performance most sensitive to air leakage. Professional subwoofer builders obsessively seal all enclosure penetrations including terminal plates, driver mounting flanges, and panel joints to achieve maximum performance from sealed designs. Foam gasket compression during WSC203 installation creates reliable seal across wood grain irregularities, surface texture, and minor imperfections common in MDF or plywood construction ensuring airtight enclosure integrity critical for optimal sealed subwoofer performance.

Q: What size hole saw do I need to install the WSC203?

A: WSC203 requires 68mm diameter cutout for installation. Standard hole saw kits typically include 68mm (2-11/16 inch) size, or you can purchase individual 68mm hole saw from hardware retailers. When cutting installation hole in subwoofer enclosure or equipment panel, ensure clean perpendicular cut for proper gasket sealing - angled or rough cuts compromise seal effectiveness. Mark center point accurately using template or measurement from enclosure edges ensuring terminal plate positioning appropriate for cable routing and aesthetic appearance. Use appropriate hole saw speed for material being cut - slower speeds for MDF preventing tear-out and overheating, moderate speeds for plywood. Support material on opposite side during cutting preventing breakout damage as hole saw exits material. Clean cutout edges removing splinters or rough spots that might prevent proper gasket compression. For best results, drill pilot hole first ensuring hole saw centers properly and cuts perpendicular to panel surface.

Q: Can I use these terminals for high-power subwoofer amplifier connections?

A: Yes, WSC203 snap lock terminals accept speaker wire gauges commonly used in high-power automotive and home audio installations including 12AWG and 10AWG cables appropriate for subwoofer amplifiers from moderate 500-watt systems through higher power 1500-2000 watt applications. Gold plated terminals provide low contact resistance ensuring efficient power transfer without excessive voltage drop or heat generation at connection point. However, verify your specific wire gauge fits terminal opening - extremely heavy gauge wire like 8AWG or 4AWG used in competition systems with multiple kilowatts power may exceed terminal capacity requiring larger terminal plates designed for extreme power applications. For typical aftermarket subwoofer systems, WSC203 provides adequate current handling capability with proper wire gauge selection matching amplifier power output and cable run length. Gold plating ensures connection reliability through vibration and temperature cycling common in automotive installations where inferior connections develop resistance over time degrading system performance and potentially creating safety hazards from excessive heat generation at poor connections.

Q: How do I ensure proper polarity when using color-coded terminals?

A: Follow consistent color convention throughout installation connecting positive (+) amplifier output and speaker connections to red terminals, negative (-) connections to black terminals. Most speaker wire features polarity identification through stripe marking, text printing, or conductor color difference enabling proper polarity tracking from amplifier through terminal plate to speaker. When connecting amplifier to WSC203 input side (inside enclosure or behind panel), connect amplifier's positive output to red terminal and negative output to black terminal. On output side (speaker connections), maintain same color convention connecting red terminal to speaker's positive terminal and black terminal to speaker's negative terminal. Consistent polarity critical in multi-subwoofer installations where reversed polarity on one subwoofer causes acoustic cancellation reducing output and creating frequency response irregularities. If uncertain about polarity, use multimeter continuity function tracing connections from amplifier through terminal plate to speaker, or use polarity tester confirming all speakers move in same direction when receiving identical signal. Document polarity during installation facilitating future troubleshooting or system modifications.

Q: Are these terminals suitable for outdoor or marine applications?

A: WSC203 designed primarily for automotive and home audio installations in controlled environments rather than direct outdoor or marine exposure. While gold plating provides corrosion resistance superior to bare metal terminals and plastic construction offers electrical insulation and moisture resistance, terminal plates lack weatherproof sealing or marine-grade materials required for prolonged exposure to rain, salt spray, or submersion environments common in boat audio installations or uncovered outdoor sound systems. For marine applications, specify terminal plates specifically rated for marine use featuring sealed enclosures, stainless steel hardware, and complete environmental protection preventing water intrusion and corrosion in harsh saltwater environments. For covered outdoor applications like patio entertainment systems with enclosures protected from direct weather exposure, WSC203 may provide adequate performance with additional sealing using marine sealant around terminal plate perimeter and regular inspection for moisture intrusion or corrosion signs. Always prioritize marine-rated components for boat audio installations ensuring long-term reliability in demanding saltwater environments where component failure risks equipment damage and potential safety hazards.
