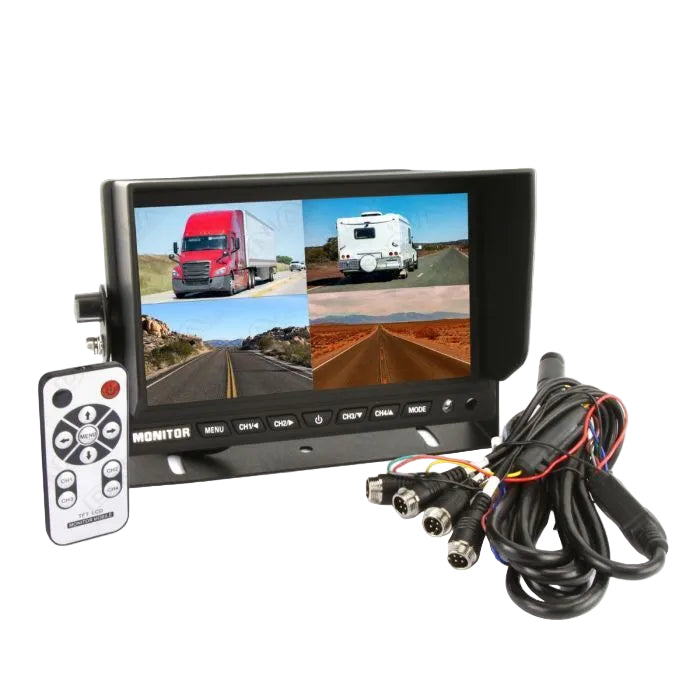

DNA RV74B-AHD 7 Inch AHD LCD 4 Channel Quad Rearview Screen

DNA RV74B-AHD 7 Inch AHD LCD 4 Channel Quad Rearview Screen

Professional 4-channel AHD monitor with quad display and multiple viewing modes for commercial applications

The DNA RV74B-AHD 7 Inch AHD LCD 4 Channel Quad Rearview Screen delivers professional multi-camera monitoring with high-resolution AHD compatibility supporting 720P, 960P, and 1080P video resolutions. This commercial-grade monitor features 11 different image viewing modes, from full screen to multiple split screen configurations, making it ideal for caravans, buses, trucks, and fleet applications requiring comprehensive camera coverage.

Engineered for 12V-24V commercial vehicle systems with dash-mountable U-bracket and large removable sun visor, this monitor provides reliable monitoring in demanding commercial environments. The illuminated touch panel controls and 4-pin water-resistant connections ensure professional installation standards.

DNA RV74B-AHD Key Features & Benefits:

• 4-Channel AHD Compatibility: Supports multiple HD resolutions including 720P, 960P, and 1080P for crystal-clear monitoring
• 11 Viewing Modes: Flexible display options from full screen to quad split screen for comprehensive monitoring
• Commercial Vehicle Ready: 12V-24V compatibility suits cars, trucks, buses, and heavy commercial applications
• Professional Installation: Dash-mountable U-bracket with large sun visor for optimal viewing in bright conditions
• Touch Panel Controls: Illuminated front panel buttons with IR remote for convenient operation
• Water-Resistant Connections: 4-pin lockable camera connections ensure reliable performance in harsh conditions

Technical Specifications:

• Model: DNA RV74B-AHD
• SKU: RV74B-AHD
• Screen Size: 7 inch AHD LCD display
• Aspect Ratio: 16:9 widescreen
• Resolution: 1024 (RGB) x 600 pixels
• Video System: AUTO PAL & NTSC
• Camera Inputs: 4 HD camera inputs with 4 triggered inputs
• AHD Support: 720P @ 25/30fps, 720P @ 50/60fps, 1080P @ 25/30fps
• Operating Voltage: 12V to 24V DC (+/-10%)
• Power Consumption: 5W
• Operating Temperature: 0°C to +60°C
• Dimensions: 180mm W x 121mm H x 24mm D
• Mounting: Dash-mountable with U-shaped bracket
• Controls: Touch front panel buttons, IR remote included
• Connections: 4-pin water-resistant lockable connectors

Display Features:

• Multiple View Modes: 11 different viewing configurations including single camera, dual split, quad split
• Image Adjustment: UP/Down and Left/Right mirror image control for each camera input
• Auto Switching: Triggered inputs automatically display specific cameras based on vehicle functions
• Sun Visor: Large removable visor for optimal viewing in bright sunlight conditions

Installation Applications:

• Commercial Trucks: Multi-camera monitoring for semi-trailers, delivery vehicles, and freight transport
• Buses & Coaches: Passenger safety monitoring with multiple interior and exterior camera angles
• Caravans & Motorhomes: Comprehensive monitoring for large recreational vehicles and touring applications
• Fleet Management: Professional monitoring systems for company vehicle fleets and government vehicles
• Industrial Vehicles: Heavy machinery and equipment requiring multiple camera perspective monitoring

Frequently Asked Questions

Can I use standard cameras with this AHD monitor? Yes, non-AHD cameras will work, but AHD cameras provide the best HD quality and will not work on non-AHD screens.

How many cameras can I connect? 4 cameras maximum, with individual triggered inputs for automatic switching based on vehicle functions.

Will this work in my truck? Yes, 12V-24V compatibility suits cars, trucks, buses, and commercial vehicles.

Can I view all cameras at once? Yes, multiple split screen modes including quad view allow simultaneous monitoring of all cameras.

Is professional installation required? Recommended for optimal camera positioning, trigger wire connections, and dash mounting setup.
