DNA RCS170A-HDTVI Heavy Duty Stalk Mount Reverse Camera - HD-TVI Compatible
Click to open expanded view
DNA logo

DNA RCS170A-HDTVI Heavy Duty Stalk Mount Reverse Camera - HD-TVI Compatible

SKU: RCS170AHDTVI
Sale price
$173.66
Regular price
$192.95
You save
10%
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

DNA RCS170A-HDTVI Heavy Duty Stalk Mount Reverse Camera - HD-TVI Compatible

Professional HD-TVI reverse camera with flexible stalk mount and selectable resolution options

The DNA RCS170A-HDTVI Heavy Duty Stalk Mount Reverse Camera delivers high-definition video with HD-TVI compatibility designed for professional installations requiring superior image quality. This advanced camera features flexible stalk mount design, zinc alloy housing, and selectable 1080p/720p resolution with customizable parking guidelines and image control options. The 170° ultra-wide view angle provides comprehensive rear coverage.

Engineered for HD-TVI compatible head units and monitoring systems, this camera offers professional-grade construction with IP68 waterproof rating and 360-degree rotation capability. Perfect for installers seeking OEM-quality installations with concealed wiring and adjustable positioning for optimal viewing angles in any vehicle configuration.

DNA RCS170A-HDTVI Key Features & Benefits:

  • HD-TVI High Definition: 1280x720 resolution with 30fps frame rate for crystal-clear video transmission
  • Selectable Resolution: Switch between 1080p/720p formats via purple wire cutting for system compatibility

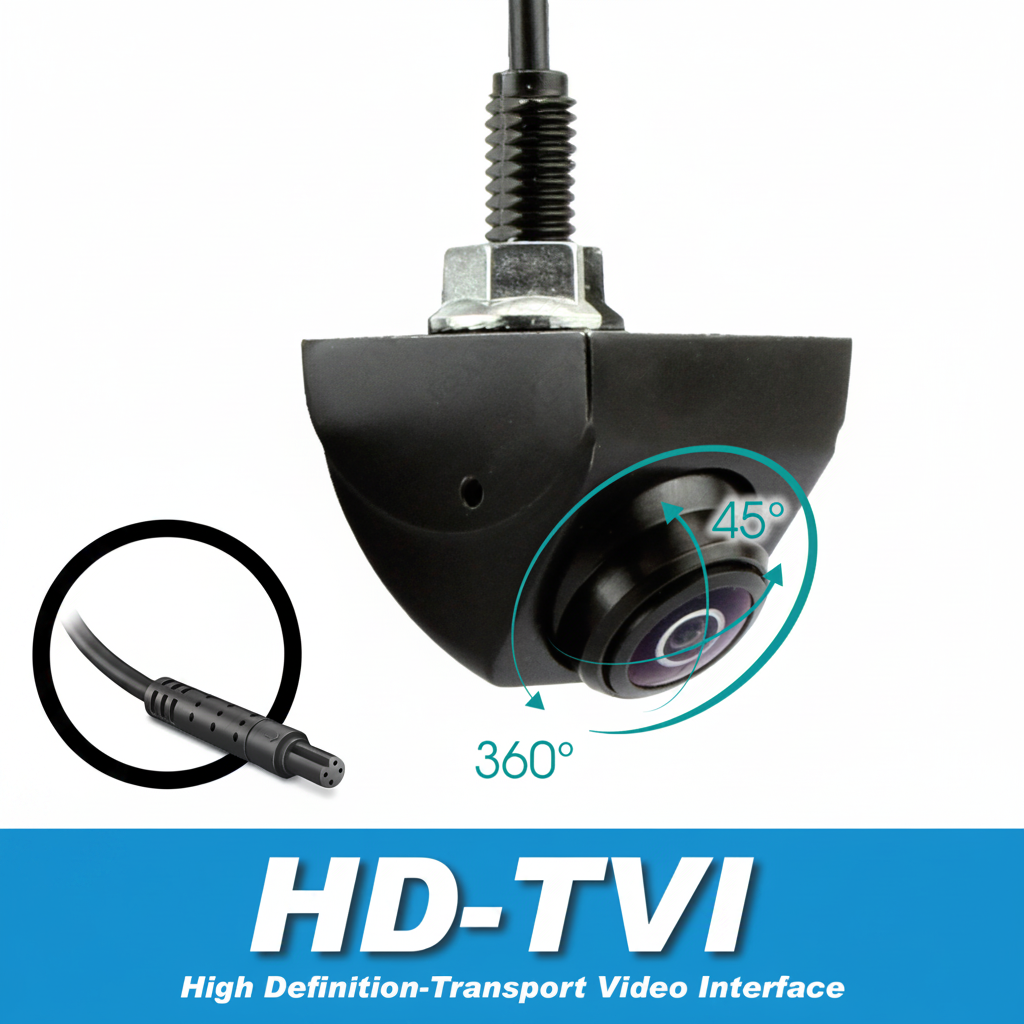

  • Flexible Stalk Mount: 45-degree adjustment in all directions plus 360-degree rotation for perfect positioning
  • Customizable Features: Parking guidelines and image control selectable via wire cutting options
  • Professional Construction: Zinc alloy housing with IP68 waterproof rating for extreme durability
  • Minimal Installation: Requires only 8mm mounting hole with concealed wiring capability

Technical Specifications:

  • Model: DNA RCS170A-HDTVI
  • SKU: RCS170A-HDTVI
  • Video System: HD-TVI format
  • Resolution: 1280(H) x 720(V) pixels
  • Frame Rate: 30fps (frames per second)
  • View Angle: 170° ultra-wide
  • Operating Voltage: DC 6V-15V±0.5V
  • Waterproof Rating: IP68 (fully submersible)
  • Camera Dimensions: 25mm W x 24mm H x 28mm D
  • Required Hole Size: 8mm diameter
  • Construction: Heavy-duty zinc alloy housing
  • Mount Type: Flexible stalk with butterfly mount
  • Packaging: Premium DNA gift box with sleeve

Selectable Options:

  • Resolution Control (Purple Wire): Default 1080p format - cut wire for 720p compatibility
  • Image Control (Green Wire): Default rear camera setup - cut wire for front camera installation
  • Parking Guidelines (White Wire): Default parking lines enabled - cut wire to disable guidelines

Installation Applications:

  • HD-TVI Systems: Professional installations with HD-TVI compatible head units and monitors
  • Commercial Vehicles: High-definition monitoring for trucks, buses, and fleet applications
  • OEM Replacements: Professional-grade camera upgrades maintaining factory appearance
  • Custom Installations: Applications requiring precise positioning and concealed wiring
  • Security Systems: HD-TVI surveillance applications requiring wide-angle coverage

Frequently Asked Questions

What head units are compatible with HD-TVI? Only head units specifically designed for HD-TVI format - check compatibility before purchase.

Can I adjust the camera angle after installation? Yes, stalk mount allows 45-degree adjustment in all directions plus 360-degree rotation.

How do I change from 1080p to 720p? Cut the purple wire to switch from default 1080p to 720p format.

Will this work with standard analogue systems? No, requires HD-TVI compatible head unit or monitor for proper operation.

Can I disable the parking guidelines? Yes, cut the white wire to turn off the default parking line display.
