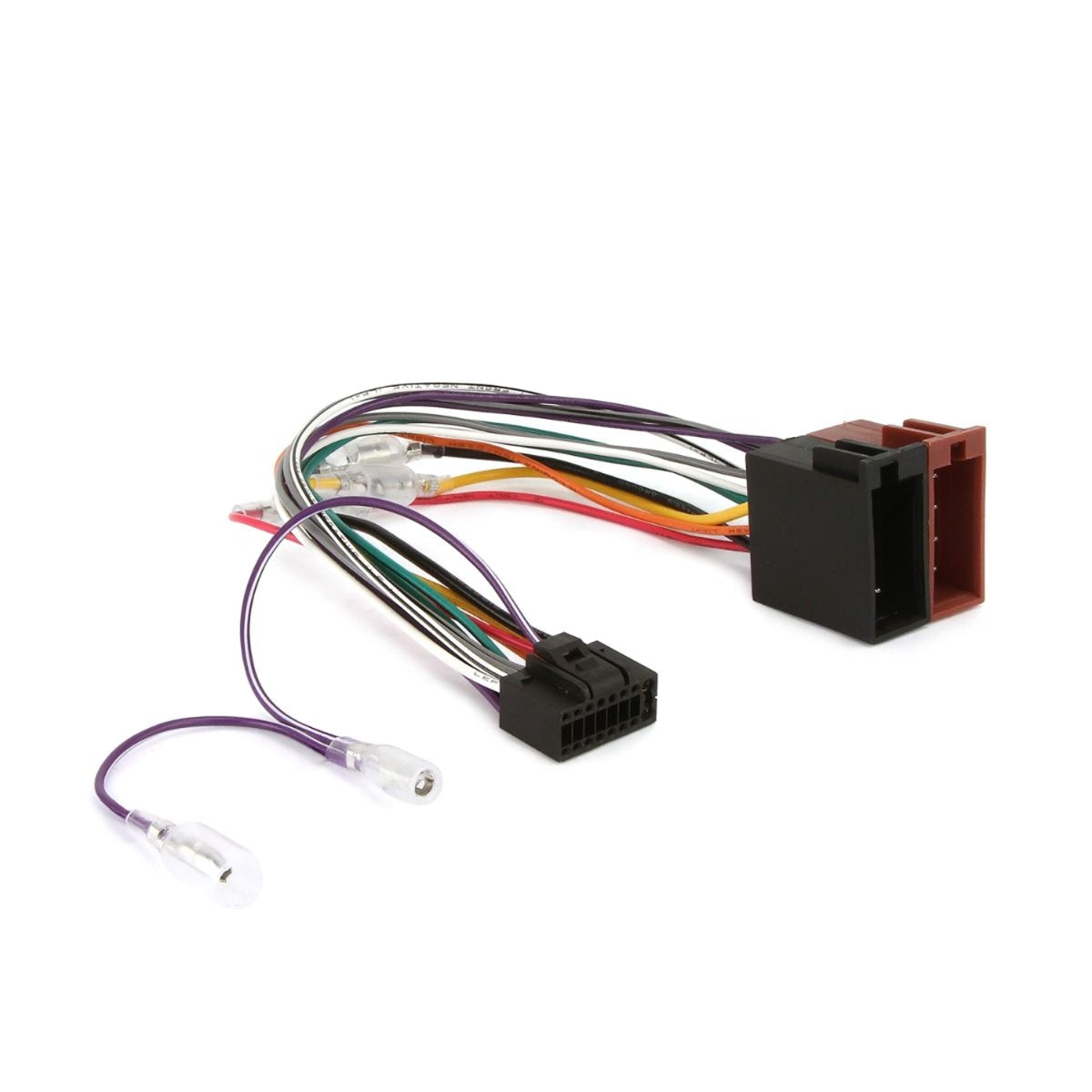

DNA AWHPIO9 ISO Harness Adapter for Pioneer 16-Pin Head Units - Professional Wiring Solution with Reverse Camera Trigger Integration

DNA AWHPIO9 ISO Harness Adapter for Pioneer 16-Pin Head Units - Professional Wiring Solution with Reverse Camera Trigger Integration

Professional-grade ISO harness adapter engineered specifically for Pioneer 16-pin head units with side tab connector configuration enabling seamless integration into ISO-based vehicle wiring systems and fascia kit installations including popular 9-inch applications. The AWHPIO9 converts Pioneer's proprietary 16-pin connector with side tab design to standard male ISO connector format facilitating straightforward installation into vehicles utilizing ISO wiring standards and enabling compatibility with comprehensive range of aftermarket integration harnesses, fascia kits, and steering wheel control adapters common in Australian automotive installations. Critical inclusion of dedicated reverse camera trigger wires enables proper backup camera integration maintaining automatic camera activation when transmission shifted to reverse position, essential feature for vehicles equipped with factory or aftermarket reverse cameras requiring trigger signal for display activation on Pioneer head unit screen. Designed specifically for Pioneer DMH-AP6650BT 9-inch head unit and compatible with other Pioneer models utilizing identical 16-pin side tab connector configuration, providing essential wiring conversion for large-screen Pioneer installations into vehicles with ISO wiring infrastructure. Professional packaging in sliding blister with hang hole card ensures retail-ready presentation, protected storage, and convenient identification for installers managing multiple harness types during complex vehicle integration projects. Manufactured to automotive-grade standards with proper gauge wiring, secure connector molding, color-coded conductors for simplified identification, and robust construction ensuring reliable electrical connections critical for head unit power delivery, speaker outputs, accessory functions, and camera trigger signal integrity. Perfect solution for professional installers and enthusiasts upgrading to Pioneer DMH-AP6650BT or similar 16-pin Pioneer head units in vehicles with ISO wiring where direct Pioneer-to-vehicle connection impossible without proper adapter harness converting between incompatible connector formats. Essential component in comprehensive 9-inch fascia kit installations where ISO-based integration harnesses require connection to Pioneer head units, eliminating need for cutting factory wiring or creating custom harness solutions risking electrical issues. The side tab designation distinguishes this harness from standard Pioneer connectors ensuring proper physical fit and electrical compatibility with specific Pioneer head unit models featuring side tab retention mechanism.

Product Overview

The AWHPIO9 addresses critical wiring conversion requirements when installing Pioneer 16-pin head units into vehicles utilizing ISO wiring standards, particularly common in comprehensive 9-inch fascia kit installations where ISO-based integration harnesses serve as foundation for complete vehicle feature retention including steering wheel controls, factory amplifier retention, camera integration, and accessory power management. Pioneer's proprietary 16-pin connector with side tab retention mechanism represents departure from universal ISO standard requiring dedicated adapter harness enabling connection between Pioneer head unit and ISO-based vehicle integration systems. The adapter's conversion from Pioneer 16-pin format to male ISO connector enables straightforward connection to female ISO harnesses supplied with fascia kits, vehicle-specific integration harnesses, or universal ISO wiring solutions eliminating need for custom wiring work, conductor splicing, or electrical modifications risking connection failures, short circuits, or improper feature operation during installation process.

The critical inclusion of reverse camera trigger wires represents essential functionality for modern head unit installations where backup camera integration required by safety regulations, user expectations, and practical visibility requirements particularly in large vehicles, family vehicles, or commercial applications where rear visibility compromised by vehicle design, cargo, or passenger configurations. Without proper trigger wire integration, aftermarket head units cannot receive signal indicating transmission position requiring camera display activation, resulting in non-functional backup camera systems despite proper video signal connection. The AWHPIO9's dedicated trigger wires enable proper connection to vehicle's reverse light circuit or trigger output from integration harness ensuring automatic camera activation synchronized with reverse gear engagement matching factory camera operation expectations. This functionality particularly critical in 9-inch Pioneer installations where large screen size makes backup camera display highly effective for parking operations, trailer hitching, or obstacle detection scenarios common in vehicles upgraded with large-screen head units.

Key Features and Benefits

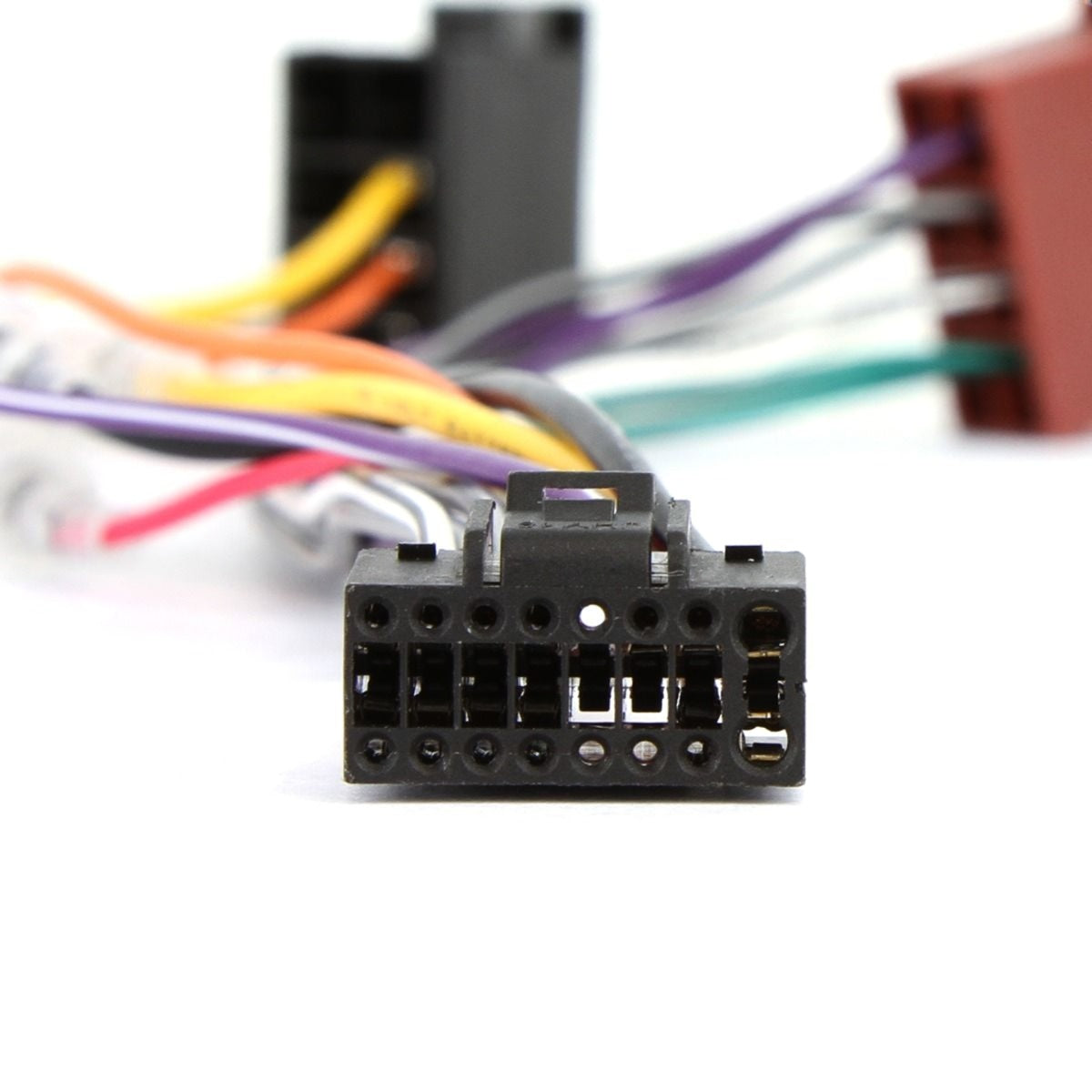

Pioneer 16-Pin Side Tab to ISO Conversion – Converts Pioneer's proprietary 16-pin connector with side tab retention to standard male ISO connector format enabling connection to ISO-based vehicle wiring systems, fascia kit harnesses, and aftermarket integration solutions. Side tab designation indicates specific Pioneer connector variant with physical retention tab ensuring secure connection and distinguishing from other Pioneer connector formats. ISO conversion enables compatibility with comprehensive range of vehicle-specific harnesses utilizing ISO standard including CAC fascia kits, Aerpro integration harnesses, and universal ISO solutions common in Australian automotive aftermarket. Eliminates need for custom wiring, conductor splicing, or electrical modifications that risk connection failures, introduce voltage drop, create potential short circuits, or void head unit warranties through improper electrical integration.

Dedicated Reverse Camera Trigger Wires – Includes essential reverse camera trigger wires enabling proper backup camera integration with automatic display activation when transmission shifted to reverse position. Trigger wires connect to vehicle's reverse light circuit or trigger output from vehicle-specific integration harness providing signal to Pioneer head unit indicating reverse gear engagement requiring camera display. Without proper trigger wire connection, backup cameras display video signal but lack automatic activation forcing manual switching or resulting in non-functional camera systems despite proper video connection. Trigger integration critical for safety compliance, user convenience, and professional installation quality matching factory camera operation expectations where camera automatically displays during parking operations without driver intervention required.

Pioneer DMH-AP6650BT Specific Compatibility – Engineered specifically for Pioneer DMH-AP6650BT 9-inch head unit featuring 16-pin side tab connector configuration common in Pioneer's large-screen multimedia receivers designed for comprehensive fascia kit installations. DMH-AP6650BT represents popular choice for 9-inch upgrades offering wireless Apple CarPlay, wireless Android Auto, Bluetooth connectivity, and modern infotainment features in vehicles compatible with 9-inch fascia solutions. Also compatible with other Pioneer head units utilizing identical 16-pin side tab connector format enabling adapter use across multiple Pioneer models sharing connector specification. Specific compatibility ensures proper pin assignments, correct power delivery, accurate speaker outputs, and reliable accessory connections critical for head unit functionality and vehicle integration.

Essential Component for 9-Inch Fascia Kit Installations – Serves as critical wiring component in comprehensive 9-inch fascia kit installations where ISO-based integration harnesses require connection to Pioneer head units lacking ISO connectors. Most vehicle-specific fascia kits including CAC F9 series and similar 9-inch solutions utilize ISO connector format on harness outputs expecting head units with ISO inputs, creating incompatibility with Pioneer units featuring proprietary 16-pin connectors. AWHPIO9 bridges this compatibility gap enabling Pioneer DMH-AP6650BT and similar models to integrate with ISO-based fascia systems maintaining complete feature retention including steering wheel controls, factory camera integration, USB functionality, and antenna connections essential for professional installation quality matching factory integration standards.

Automotive Grade Construction and Wiring – Manufactured to automotive electrical standards with proper gauge conductors ensuring adequate current carrying capacity for head unit power requirements, speaker outputs, and accessory connections without voltage drop or heat generation risking connection failure or component damage. Secure connector molding with proper retention mechanism ensures reliable physical connection between Pioneer head unit and ISO harness preventing intermittent connections, loose contacts, or connector separation during vehicle operation or temperature cycling. Color-coded conductors following automotive wiring conventions enable simplified identification during installation, troubleshooting, or modifications reducing installation errors and facilitating proper connections particularly important when integrating reverse camera triggers requiring specific wire identification and connection procedures.

Professional Packaging for Retail and Installation – Supplied in sliding blister packaging with hang hole card providing retail-ready presentation for parts counter sales, protected storage preventing connector damage and conductor tangling during handling and shipping, and convenient product identification for installers managing multiple harness types during complex integration projects. Professional packaging enables organized inventory management, prevents confusion with similar harnesses serving different applications, and maintains harness integrity ensuring connections remain clean and undamaged until installation. Sliding blister design allows product inspection while maintaining protection and hang hole enables display merchandising in retail or workshop environments.

Simplifies ISO-Based Integration Workflows – Enables straightforward installation workflow where vehicle-specific ISO harness connects to AWHPIO9 adapter which then connects to Pioneer head unit, creating complete electrical integration without custom wiring requirements. Simplified workflow reduces installation time, minimizes potential for wiring errors, eliminates need for multimeter testing of custom connections, and enables systematic troubleshooting if installation issues arise through clearly defined connection points and standardized wiring colors. Professional installers appreciate adapter's role in maintaining organized, repeatable installation procedures across multiple vehicles while DIY enthusiasts benefit from elimination of complex wiring work requiring electrical knowledge and specialized crimping tools.

Maintains Factory Wiring Integrity – Adapter approach preserves factory vehicle wiring without cutting, splicing, or permanent modifications maintaining vehicle electrical system integrity, preventing potential warranty issues, and enabling simple reversal to factory configuration if required for vehicle sale, lease return, or equipment changes. Non-destructive installation particularly important in modern vehicles with complex electrical systems where cutting factory harnesses can affect multiple vehicle functions, trigger electrical system warnings, or create difficult troubleshooting scenarios. Preservation of factory wiring also maintains vehicle resale value and prevents permanent modifications that might concern future buyers or lessors requiring factory configuration restoration.

Technical Specifications

Frequently Asked Questions

Q: Why do I need this adapter when installing a Pioneer DMH-AP6650BT with a CAC 9-inch fascia kit?

A: CAC 9-inch fascia kits and most vehicle-specific integration harnesses utilize ISO connector format as standard output expecting head units with ISO inputs. Pioneer DMH-AP6650BT and similar Pioneer head units feature proprietary 16-pin connector with side tab instead of ISO connectors, creating direct incompatibility between head unit and fascia kit harness. The AWHPIO9 adapter converts Pioneer's 16-pin format to male ISO connector enabling connection to female ISO output from fascia kit's integration harness. Without this adapter, you cannot connect Pioneer head unit to ISO-based fascia systems, would require custom wiring work cutting and splicing conductors between incompatible connector types, or would need to source entirely different head unit with ISO connectors. Adapter represents essential component enabling Pioneer compatibility with ISO-based integration solutions common in Australian 9-inch fascia kit installations.

Q: How do I connect the reverse camera trigger wires and why are they necessary?

A: Reverse camera trigger wires connect to vehicle's reverse light circuit or dedicated trigger output from vehicle-specific integration harness. Installation typically involves identifying reverse trigger wire from fascia kit harness (usually labeled or documented in installation instructions), connecting to corresponding trigger wire from AWHPIO9 adapter using proper connector or solder/heatshrink method, then connecting trigger input wire from adapter to Pioneer head unit's camera trigger input following head unit wiring diagram. Trigger wires necessary because head units require electrical signal indicating reverse gear engagement to automatically switch display from normal operation to camera view. Without trigger connection, camera video signal may reach head unit but automatic display activation won't occur, requiring manual switching to camera view or resulting in non-functional backup camera system. Proper trigger integration ensures camera automatically displays when shifting to reverse matching factory operation expectations and meeting safety requirements for backup camera functionality.

Q: Will this adapter work with other Pioneer head units besides the DMH-AP6650BT?

A: Yes, AWHPIO9 compatible with any Pioneer head unit utilizing 16-pin connector with side tab configuration. Many Pioneer multimedia receivers including various models in DMH series, floating screen designs, and large-format head units utilize this connector format. Critical requirement is confirming your specific Pioneer model features 16-pin connector with side tab - some Pioneer models use different connector formats including standard ISO connectors not requiring adapter. Verify connector type by examining head unit specifications, checking connector appearance on head unit rear panel, or consulting Pioneer documentation for your specific model. If head unit features different connector format such as standard 8-pin ISO, alternative adapter or direct connection method required. Contact Frankie's Auto Electrics with your specific Pioneer model number for confirmation of AWHPIO9 compatibility before purchase.

Q: Can I install this adapter myself or do I need professional installation?

A: Adapter installation straightforward for individuals comfortable with basic automotive electrical work involving connector identification and wire connections. Installation process involves connecting AWHPIO9's Pioneer 16-pin connector to head unit, connecting adapter's male ISO connector to female ISO output from fascia kit harness or vehicle-specific integration harness, and properly connecting reverse camera trigger wires to appropriate trigger source following wiring diagrams. Basic automotive electrical knowledge helpful for identifying wires, using proper connection methods (soldering with heatshrink or quality crimp connectors), and troubleshooting any connection issues. However, comprehensive 9-inch fascia kit installation typically involves significant dash disassembly, multiple harness connections, steering wheel control programming, and camera integration requiring professional installer experience for efficient, reliable completion. While adapter connection itself accessible to DIY enthusiasts, overall installation complexity of 9-inch systems often justifies professional installation ensuring proper function of all integrated features and avoiding potential issues from incorrect connections.

Q: What's the difference between this adapter and universal ISO harnesses available elsewhere?

A: AWHPIO9 specifically designed for Pioneer 16-pin side tab connector format with proper pin assignments matching Pioneer's electrical specifications, correct gauge wiring for Pioneer head unit current requirements, and dedicated reverse camera trigger wires essential for backup camera integration. Universal ISO harnesses may lack Pioneer-specific connector compatibility, feature incorrect pin assignments causing speaker phase issues or non-functional outputs, use inadequate wire gauge risking voltage drop or heat generation, or omit camera trigger wires requiring additional custom wiring work. Additionally, AWHPIO9's side tab designation ensures physical compatibility with Pioneer connectors featuring retention tab mechanism - standard connectors without proper tab design may not securely connect or could damage head unit connector. Using correct Pioneer-specific adapter ensures reliable electrical connections, proper feature operation, and professional installation quality avoiding issues from makeshift wiring solutions or incompatible universal harnesses lacking model-specific design considerations.
