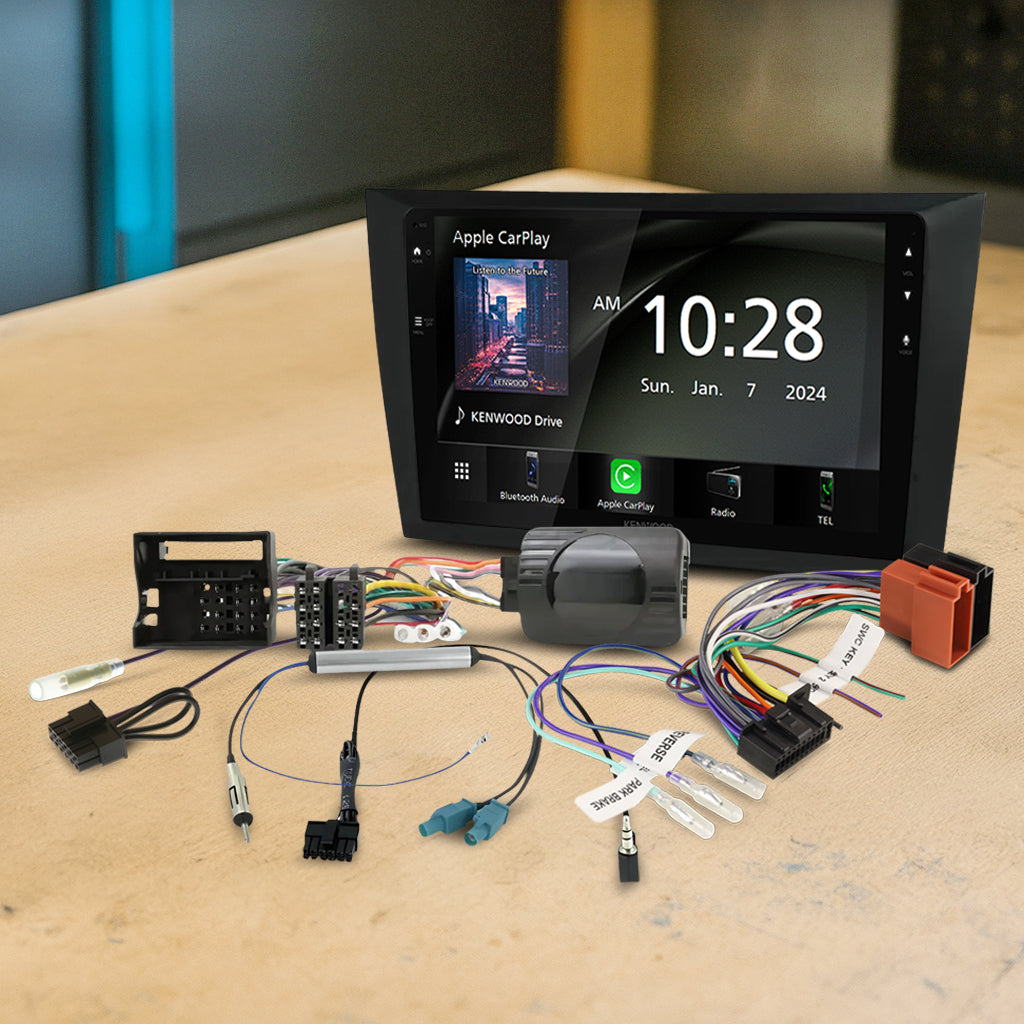

Kenwood DMX80AXS and HR9VW001 bundle parts laid out on a bench for the Volkswagen Golf 6 2009 to 2013
Kenwood DMX80AXS and HR9VW001 bundle parts laid out on a bench for the Volkswagen Golf 6 2009 to 2013

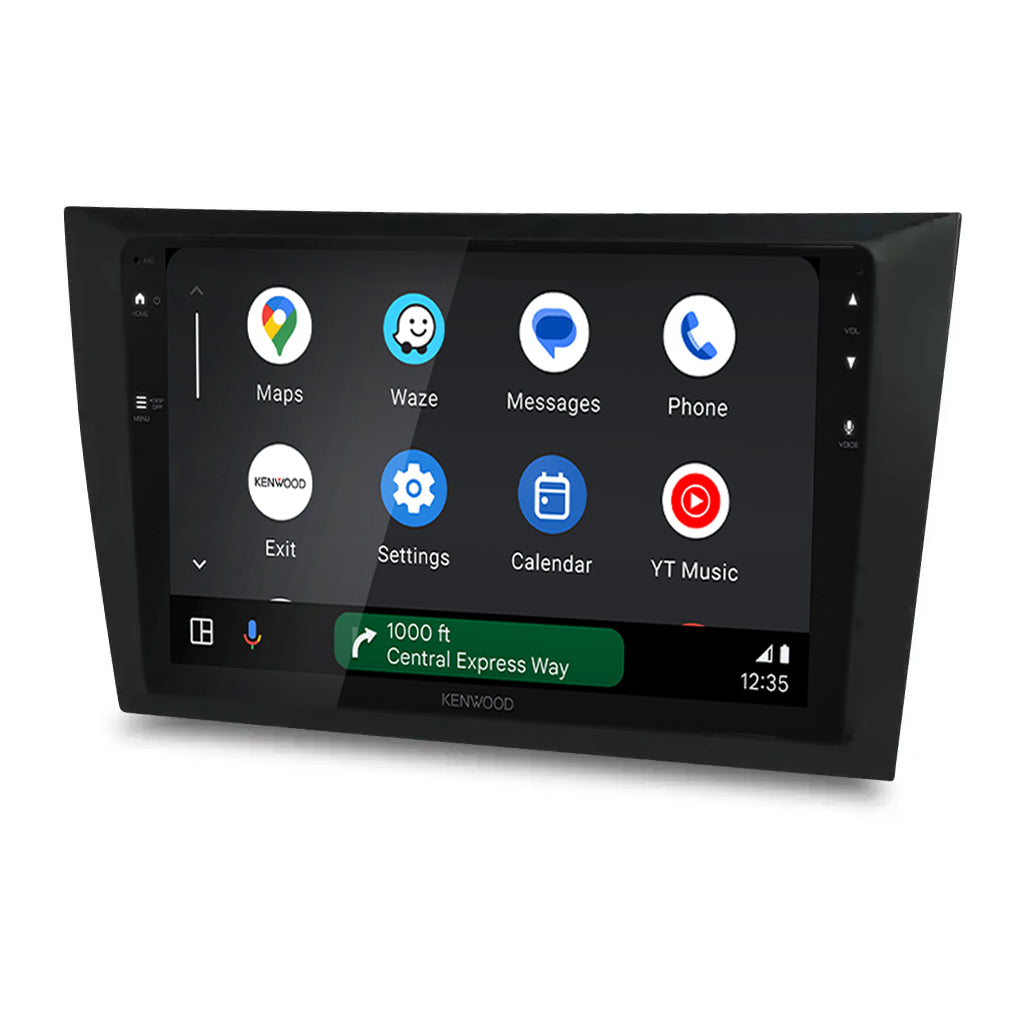

DMX80AXS showing Android Auto in the HR9VW001 panel for the Volkswagen Golf 6 2009 to 2013
DMX80AXS showing Android Auto in the HR9VW001 panel for the Volkswagen Golf 6 2009 to 2013

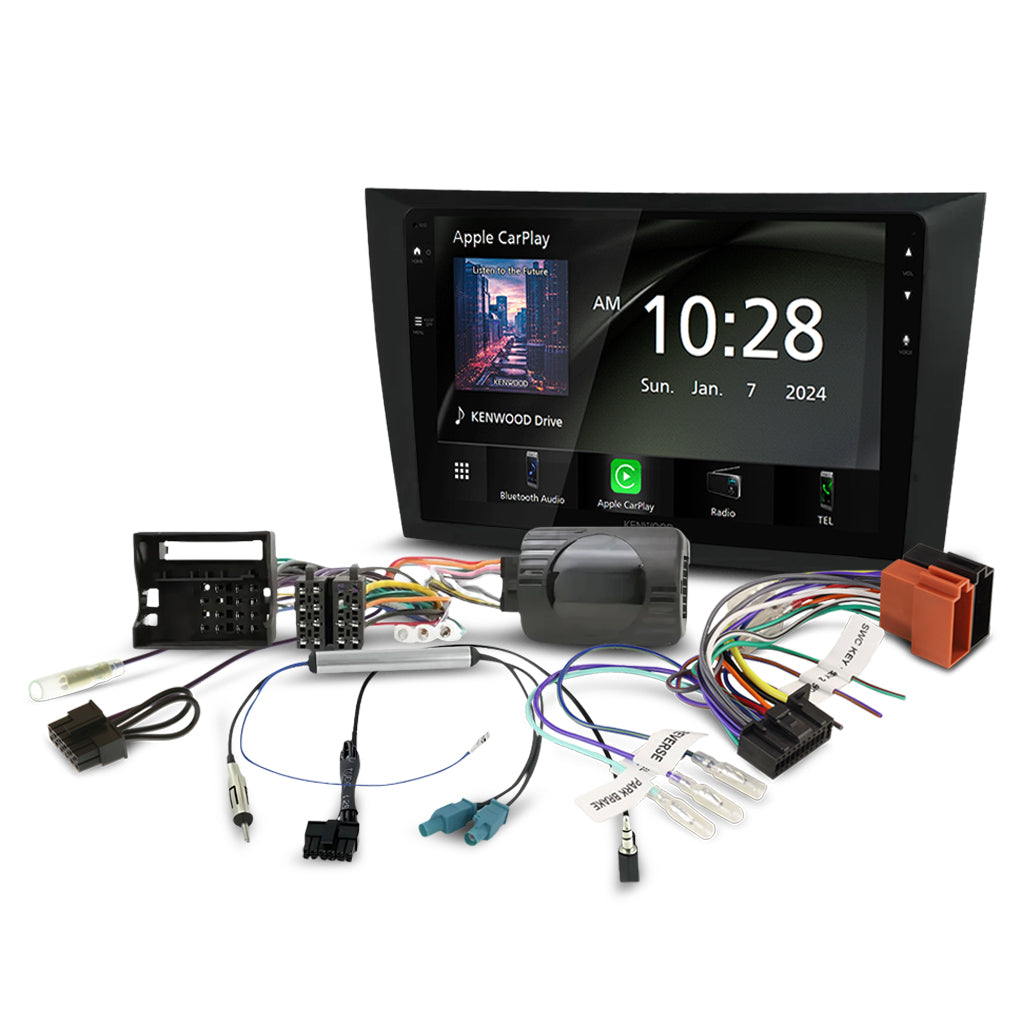

Kenwood DMX80AXS, HR9VW001 and harness parts on white for the Volkswagen Golf 6 2009 to 2013
Kenwood DMX80AXS, HR9VW001 and harness parts on white for the Volkswagen Golf 6 2009 to 2013
Click to open expanded view
KENWOOD logo

Kenwood DMX80AXS 9 Inch Bundle for Volkswagen Golf 6 2009 to 2013, without a factory amplifier, Stinger HR9VW001 Kit, APP8KE8 and APKWPL

SKU: HR9VW001-KEN9
Price
$1,175.08
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Not on our shelf right now. We order this one in from our supplier.
Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
Kenwood DMX80AXS and HR9VW001 bundle parts laid out on a bench for the Volkswagen Golf 6 2009 to 2013

Kenwood DMX80AXS 9 Inch Bundle for Volkswagen Golf 6 2009 to 2013, without a factory amplifier, Stinger HR9VW001 Kit, APP8KE8 and APKWPL

$1,175.08

Product features

Here the Kenwood DMX80AXS goes into the Volkswagen Golf 6 using the Stinger HR9-VW001, a kit that comes with 9 inch flush fit radio panel, SWC interface and patch lead and antenna adaptor, though Stinger lists the factory amplifier as not kept.

Problems it solves

  • No CarPlay or Android Auto: the DMX80AXS runs both
  • Wheel buttons after the swap: kept by the HR9-VW001
  • Factory wiring: the Aerpro APP8KE8 plugs into the HR9-VW001 loom

What is in the box

  • Head unit: Kenwood DMX80AXS 9 inch receiver
  • From the Stinger HR9-VW001 kit: 9 inch flush fit radio panel
  • From the Stinger HR9-VW001 kit: SWC interface and patch lead
  • From the Stinger HR9-VW001 kit: antenna adaptor
  • Aerpro APP8KE8: secondary ISO harness, 22 pin to double ISO
  • Aerpro APKWPL: Kenwood SWC patch lead

DMX80AXS features

  • Screen: 9 inch WSVGA capacitive touch panel, universal shape
  • Phone: wired and wireless Apple CarPlay and Android Auto
  • Mirroring: wireless mirroring for iPhone and Android
  • Sound: 13 band EQ and digital time alignment
  • Camera input: rear view camera input with parking guidelines
  • Bluetooth: built in
  • Outputs: 2 preouts at 2.5V plus a mono subwoofer output
  • Chassis: short chassis

Fitment

  • Stinger lists the HR9-VW001 for: Volkswagen Golf 2009 to 2013 (Golf 6)
  • Head unit list: DMX80AXS named by Stinger
  • Version: without a factory amplifier
  • Stinger note: it does not suit a Golf with a factory amplifier
  • Stinger note: the Golf uses a 40 pin Quadlock plug

What the HR9-VW001 keeps

  • Steering wheel controls: yes
  • Factory amplifier support: no

Install notes

The bundle also includes the Aerpro APKWPL Kenwood SWC patch lead; Aerpro designs it for its own interfaces and the HR9-VW001 has its own patch lead, so we confirm which lead your install uses.

  • Head unit plug: 22 pin, to double ISO via the Aerpro APP8KE8
  • Hard wiring: Aerpro says some cars need a little
  • Fitting: we recommend a professional installer

Warranty

Your rights under the Australian Consumer Law always apply. Keep your receipt and contact us first if anything goes wrong.

Shop the parts on their own: Stinger HR9-VW001 kit, Kenwood

FAQ

Will it fit my car?

Fitment depends on the vehicle. Contact the F.A.E. team with your make, model and year and we will confirm before you order.
