Kenwood DMX80AXS Bundle for Toyota Camry, Corolla, FJ Cruiser, Kluger, LandCruiser 200, RAV4 and Yaris 2002 to 2014 with HR9-TY001, APP8KE8 and APKWPL

One order covers the Toyota Camry 2002 to 2006 (XV30), Camry 2007 to 2011 (XV40), Corolla 2009 to 2012 (E120), FJ Cruiser 2010 to 2016, Kluger 2007 to 2013 (XU40, non navigation), LandCruiser 2008 to 2012 (200 Series), RAV4 2006 to 2011 (XA30) and Yaris 2012 to 2014 (XP90), each with the factory 200mm head unit: 9 inch flush fit radio panel and SWC interface and patch lead from Stinger, the 22 pin Aerpro APP8KE8, and the Kenwood DMX80AXS.

Problems it solves

• No CarPlay or Android Auto: the DMX80AXS runs both
• Wheel buttons after the swap: kept by the HR9-TY001
• Factory wiring: the Aerpro APP8KE8 plugs into the HR9-TY001 loom

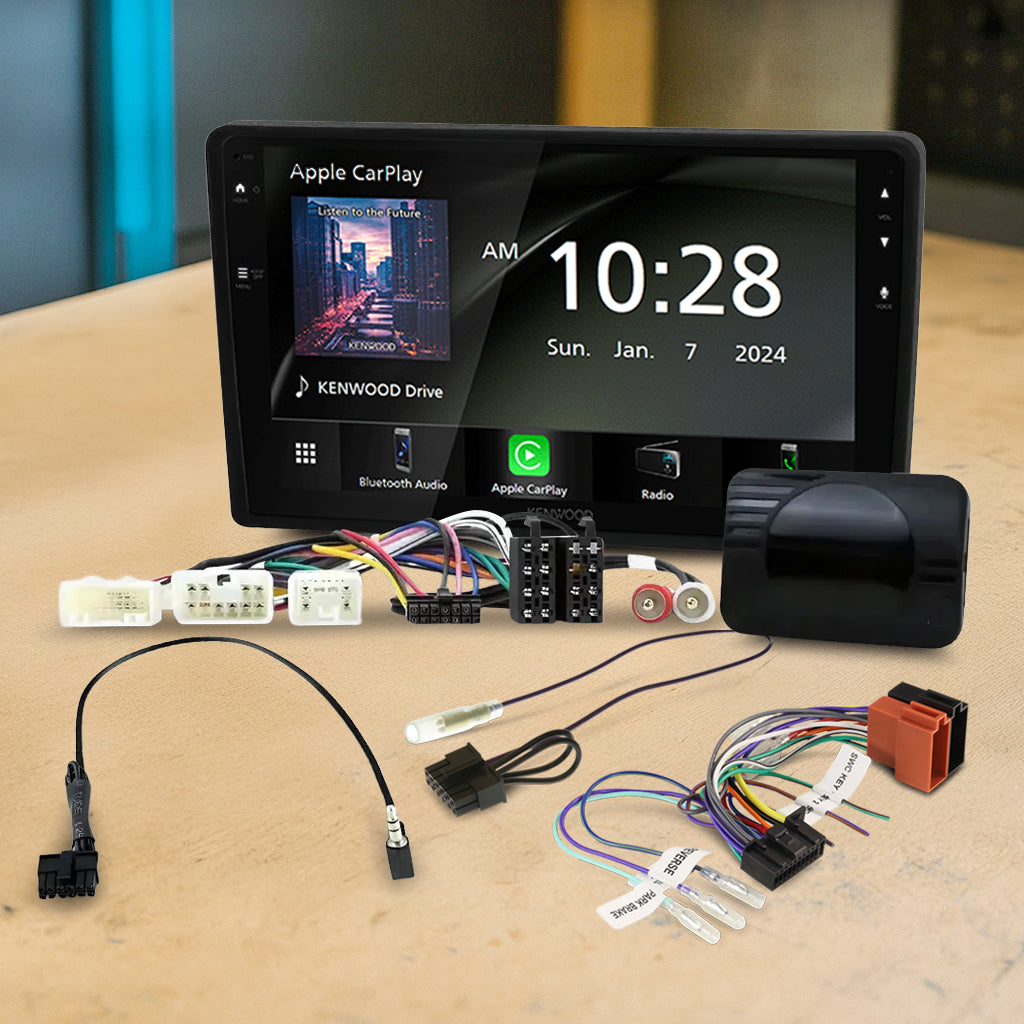

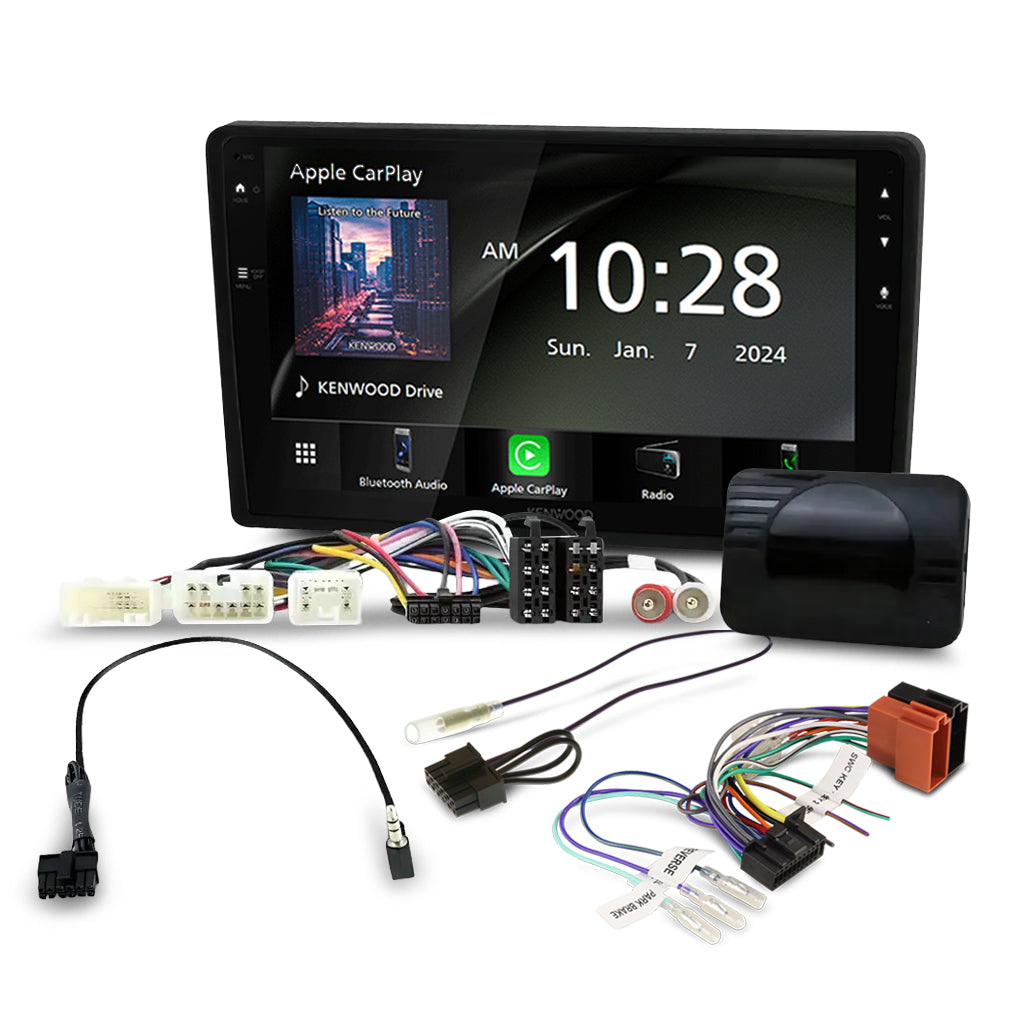

What is in the box

• Head unit: Kenwood DMX80AXS 9 inch receiver
• From the Stinger HR9-TY001 kit: 9 inch flush fit radio panel
• From the Stinger HR9-TY001 kit: SWC interface and patch lead
• Aerpro APP8KE8: secondary ISO harness, 22 pin to double ISO
• Aerpro APKWPL: Kenwood SWC patch lead

DMX80AXS features

• Screen: 9 inch WSVGA capacitive touch panel, universal shape
• Phone: wired and wireless Apple CarPlay and Android Auto
• Mirroring: wireless mirroring for iPhone and Android
• Sound: 13 band EQ and digital time alignment
• Camera input: rear view camera input with parking guidelines
• Bluetooth: built in
• Outputs: 2 preouts at 2.5V plus a mono subwoofer output
• Chassis: short chassis

Fitment

• Stinger lists the HR9-TY001 for: Toyota Camry 2002 to 2006 (XV30), Camry 2007 to 2011 (XV40), Corolla 2009 to 2012 (E120), FJ Cruiser 2010 to 2016, Kluger 2007 to 2013 (XU40, non navigation), LandCruiser 2008 to 2012 (200 Series), RAV4 2006 to 2011 (XA30) and Yaris 2012 to 2014 (XP90), each with the factory 200mm head unit
• Head unit list: DMX80AXS named by Stinger
• Stinger note: steering wheel control retention is for 20 pin models
• Stinger note: the brackets may need modifying
• Stinger note: the head unit sits forward of the dash

What the HR9-TY001 keeps

• Steering wheel controls: yes, 20 pin models
• Factory reverse camera: no

Install notes

The bundle also includes the Aerpro APKWPL Kenwood SWC patch lead; Aerpro designs it for its own interfaces and the HR9-TY001 has its own patch lead, so we confirm which lead your install uses.

• Head unit plug: 22 pin, to double ISO via the Aerpro APP8KE8
• Hard wiring: Aerpro says some cars need a little
• Fitting: we recommend a professional installer

Warranty

Your rights under the Australian Consumer Law always apply. Keep your receipt and contact us first if anything goes wrong.

Shop the parts on their own: Stinger HR9-TY001 kit, Kenwood

FAQ

Does the Kenwood DMX80AXS support Apple CarPlay and Android Auto?

Yes, both are supported, including wireless connection.

Does the Kenwood DMX80AXS have Bluetooth?

Yes. It has built in Bluetooth for phone calls and audio streaming.

Will it fit my car?

Fitment depends on the vehicle. Contact the F.A.E. team with your make, model and year and we will confirm before you order.
