Stinger HR9-TY001 | Radio Replacement Kit to Suit Pioneer DMH-AP6650BT 9" Head Unit for Select Toyota 2005-2012 Vehicles

SKU: HR9TY001
Sale price
$229.50
Regular price
$255
You save
10%
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Upgrade Your Older Toyota's Audio Clean 9" Fitment, Steering Wheel Controls Kept

Product Overview

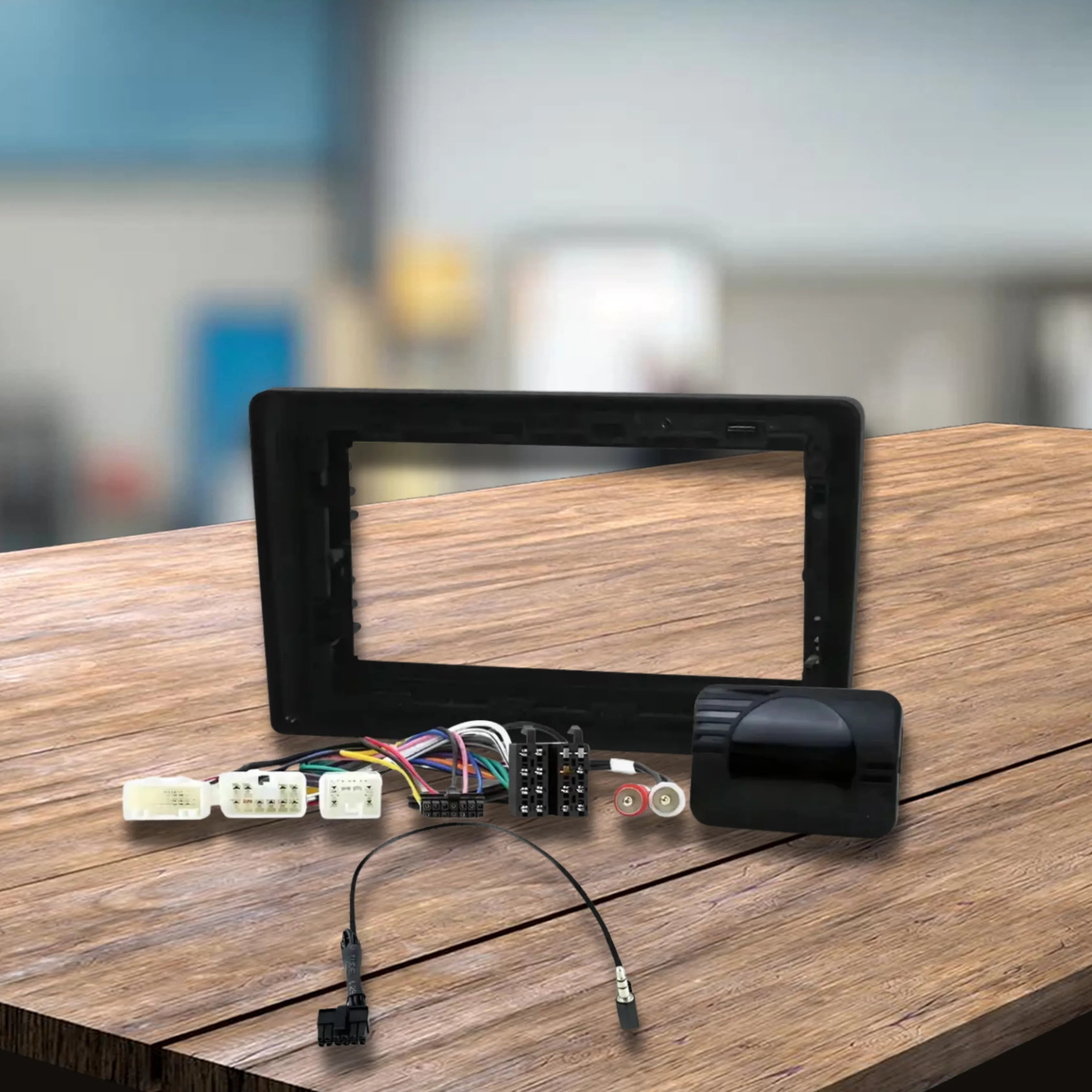

The Stinger HR9-TY001 is a radio replacement kit built for installing the Pioneer DMH-AP6650BT 9" head unit into a wide range of Toyota vehicles from 2005 to 2012 that feature a factory 200mm head unit opening. This bundle provides a flush-fit 9" fascia and a plug-and-play steering wheel control interface everything needed to get the Pioneer head unit seated cleanly in compatible Toyota dash openings.

The HR9-TY001 connects to Toyota's factory 20-pin + 10-pin + 6-pin connector configuration and converts to a standard ISO plug with no permanent wiring changes. The SWC interface retains audio button functions on models with the 20-pin connector and holds its programming through power loss. Please note: no antenna adaptor, USB retention, or reverse camera retention is included additional products may be required depending on your vehicle's configuration. The Pioneer DMH-AP6650BT head unit is not included.

Key Specifications

  • Manufacturer Part Number: HR9-TY001
  • Compatible head unit: Pioneer DMH-AP6650BT (9" display)
  • Vehicle compatibility: Select Toyota models 2005–2012 with factory 200mm head unit opening
  • Factory connector type: 20-pin + 10-pin + 6-pin Toyota style connectors
  • Output connector type: Standard ISO connector
  • Steering wheel audio control retention: Yes — models with 20-pin connector only
  • SWC memory retention: Yes — retained on power loss
  • Reverse camera retention: No — additional product may be required
  • Antenna adaptor: Not included
  • AUX/USB retention: Not specified
  • Factory amplifier retention: Not specified
  • Colour: Black
  • Plug & Play: Yes
  • Fascia bracket modification: May be required on some vehicles
  • Head unit fitment depth: May sit forward of factory dash panel

Features & Benefits

  • 9" Flush Fit Radio Panel — Designed around Toyota's 200mm factory opening, delivering a purpose-built result for the larger Pioneer screen across compatible older Toyota models.
  • Steering Wheel Audio Control Retention — Retains factory steering wheel audio buttons on models fitted with the 20-pin connector. The interface holds its programming even if battery power is lost, so a flat battery won't reset your setup.
  • Plug & Play Harness — Connects to Toyota's factory 20-pin + 10-pin + 6-pin loom and converts to standard ISO — no splicing, no soldering, fully reversible.
  • Memory Retention on Power Loss — The SWC interface stores its programming when disconnected from battery power, keeping settings intact through workshop visits and battery changes.

Technical Specs

Specification Detail
Part Number HR9-TY001
Brand Stinger
Colour Black
Vehicle Plug Style 20-pin + 10-pin + 6-pin Toyota connectors
Output Standard ISO connector
Fascia Size 9" flush fit
Factory Opening Required 200mm
Plug & Play Yes — factory to ISO, no splicing required
Steering Wheel Audio Controls Retained — 20-pin connector models only
SWC Memory Retained on power loss
Reverse Camera Retention Not included — additional product may be required
Antenna Adaptor Not included
AUX/USB Retention Not specified
Fascia Bracket Modification May be required on some vehicles
Head Unit Fitment Depth May sit forward of factory dash panel
Head Unit Compatibility Pioneer DMH-AP6650BT

Compatible With / Goes Well With

  • Select Toyota models 2005–2012 with factory 200mm head unit opening
  • Toyota vehicles fitted with 20-pin + 10-pin + 6-pin factory connector configuration
  • Pioneer DMH-AP6650BT 9" Digital Media Receiver (head unit not included)
  • Factory Toyota steering wheel audio controls — 20-pin connector models only

Frequently Asked Questions

Does the HR9-TY001 include the Pioneer DMH-AP6650BT head unit?

No — the Pioneer DMH-AP6650BT is sold separately. The HR9-TY001 is an installation kit providing the fascia and SWC interface needed to fit that head unit into compatible Toyota models with a 200mm factory opening.

Which Toyota models is the HR9-TY001 compatible with?

This kit suits select Toyota models from 2005 to 2012 with a factory 200mm head unit opening and the Toyota 20-pin + 10-pin + 6-pin connector configuration. Confirm your specific vehicle's factory opening size and connector type before purchase.

Will this kit retain my Toyota's factory steering wheel controls?

Yes — on models fitted with the 20-pin connector. The included SWC interface retains audio button functions with compatible aftermarket radios and holds its programming if battery power is lost.

Does this kit include an antenna adaptor or reverse camera retention?

No — neither an antenna adaptor nor a reverse camera retention interface is included with the HR9-TY001. If your vehicle requires an antenna adaptor or reverse camera integration, additional products will be needed.

Will the head unit sit flush with my dash after installation?

Not always — Stinger notes that on some vehicles the head unit will sit forward of the factory dash panel and fascia brackets may require modification. The extent varies by vehicle, and professional installation is recommended if you are unsure.
