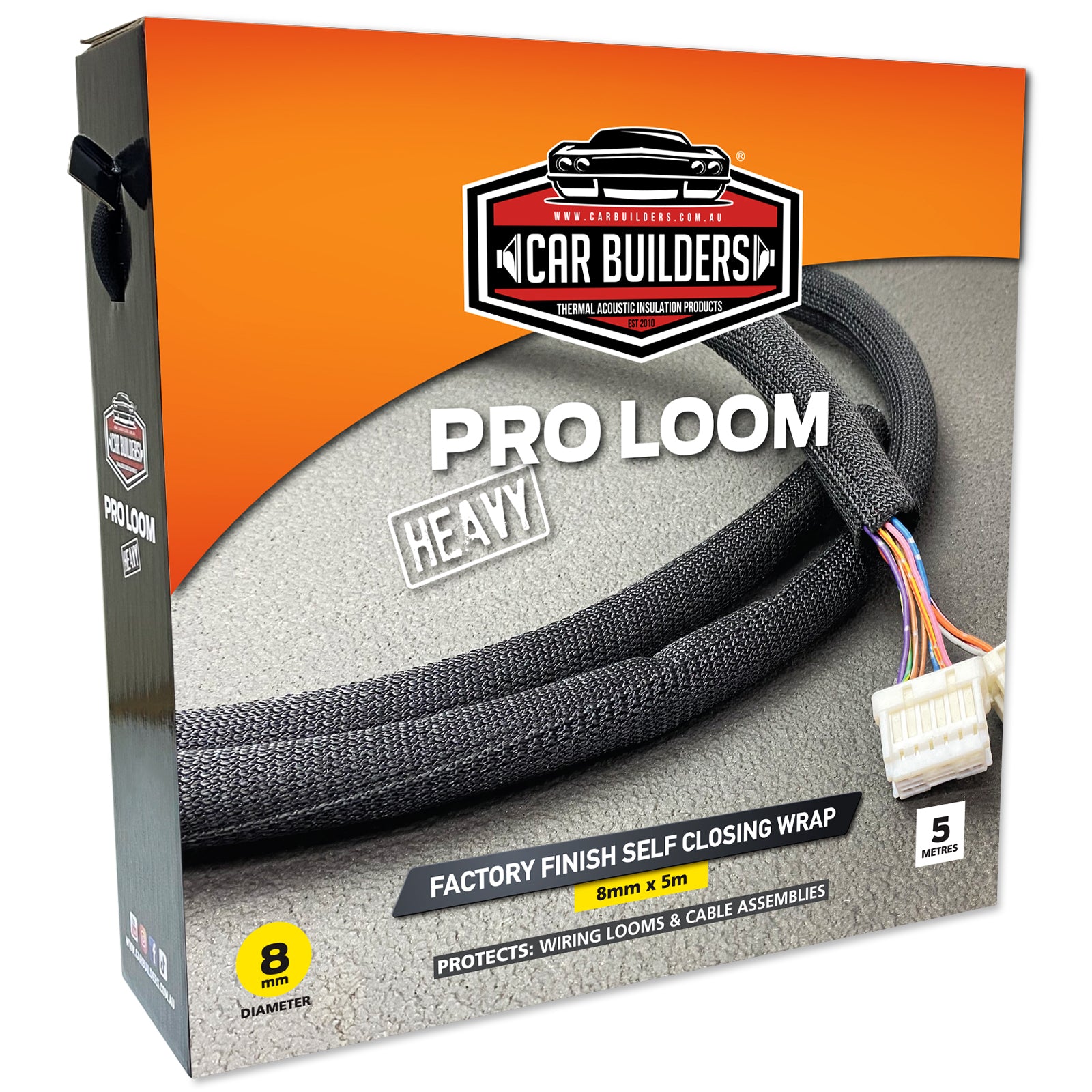

Car Builders Pro Loom Heavy retail box, 8mm x 5m
Car Builders Pro Loom Heavy retail box, 8mm x 5m

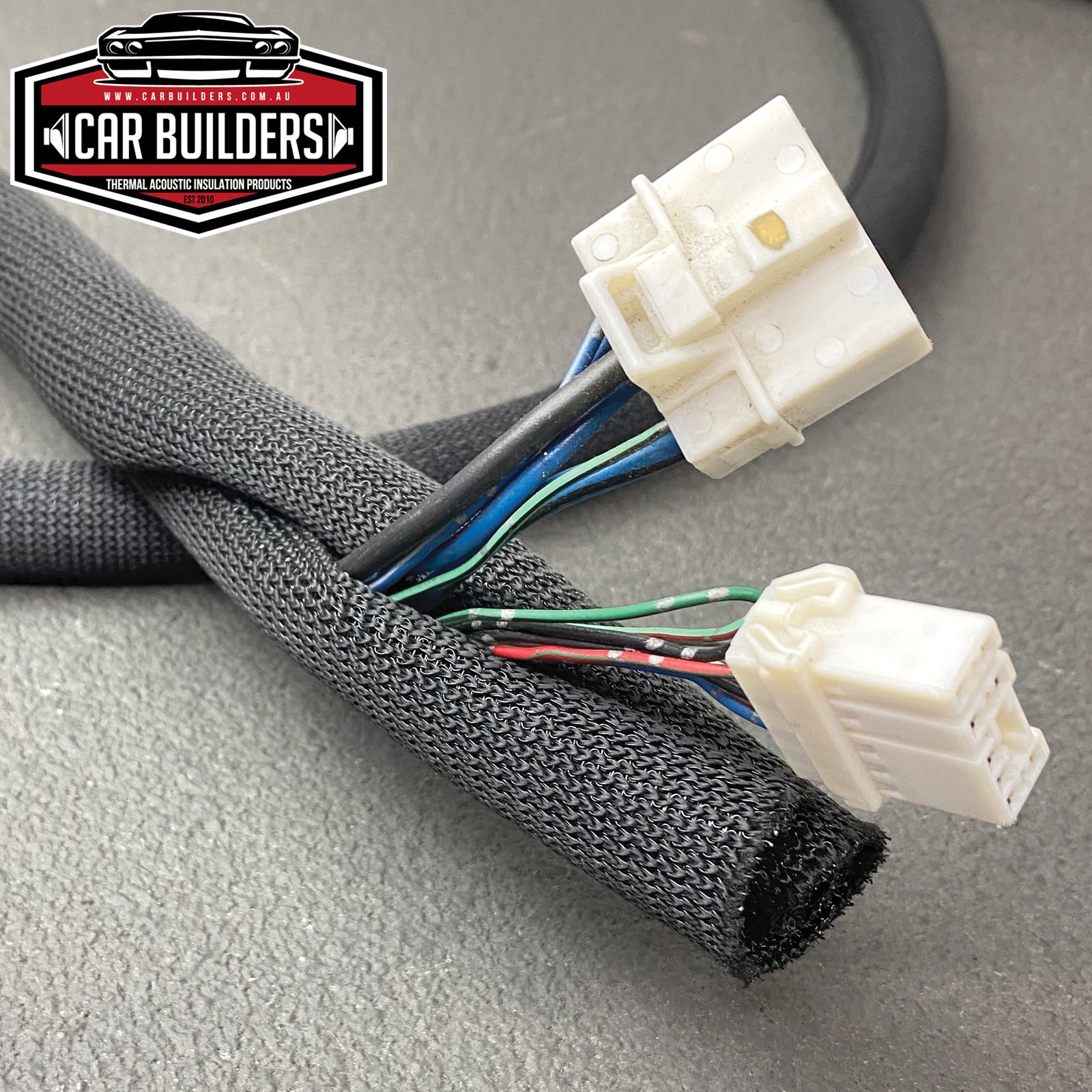

Pro Loom Heavy wrapped over a harness with plugs
Pro Loom Heavy wrapped over a harness with plugs

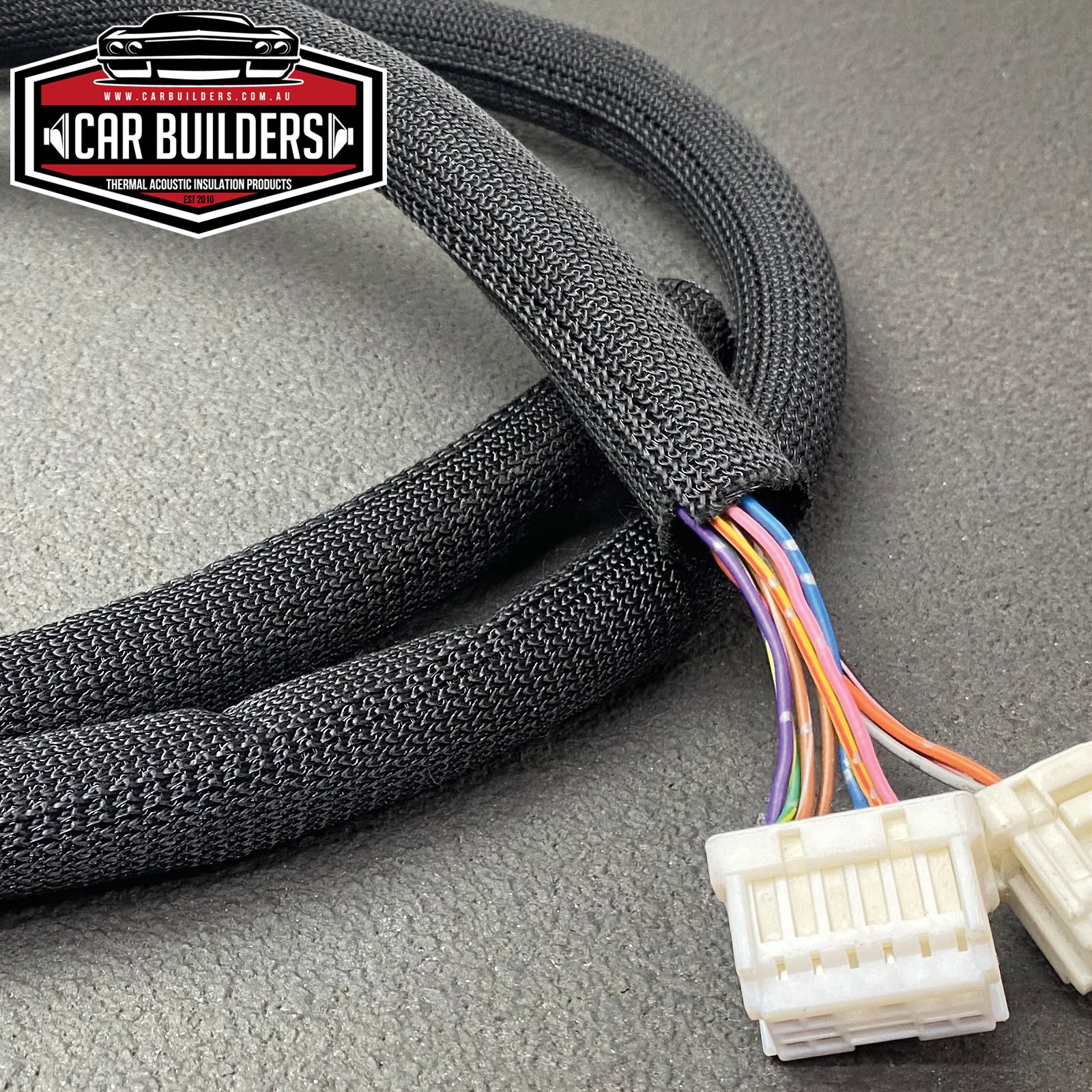

Pro Loom Heavy closing over coloured wires at a plug
Pro Loom Heavy closing over coloured wires at a plug

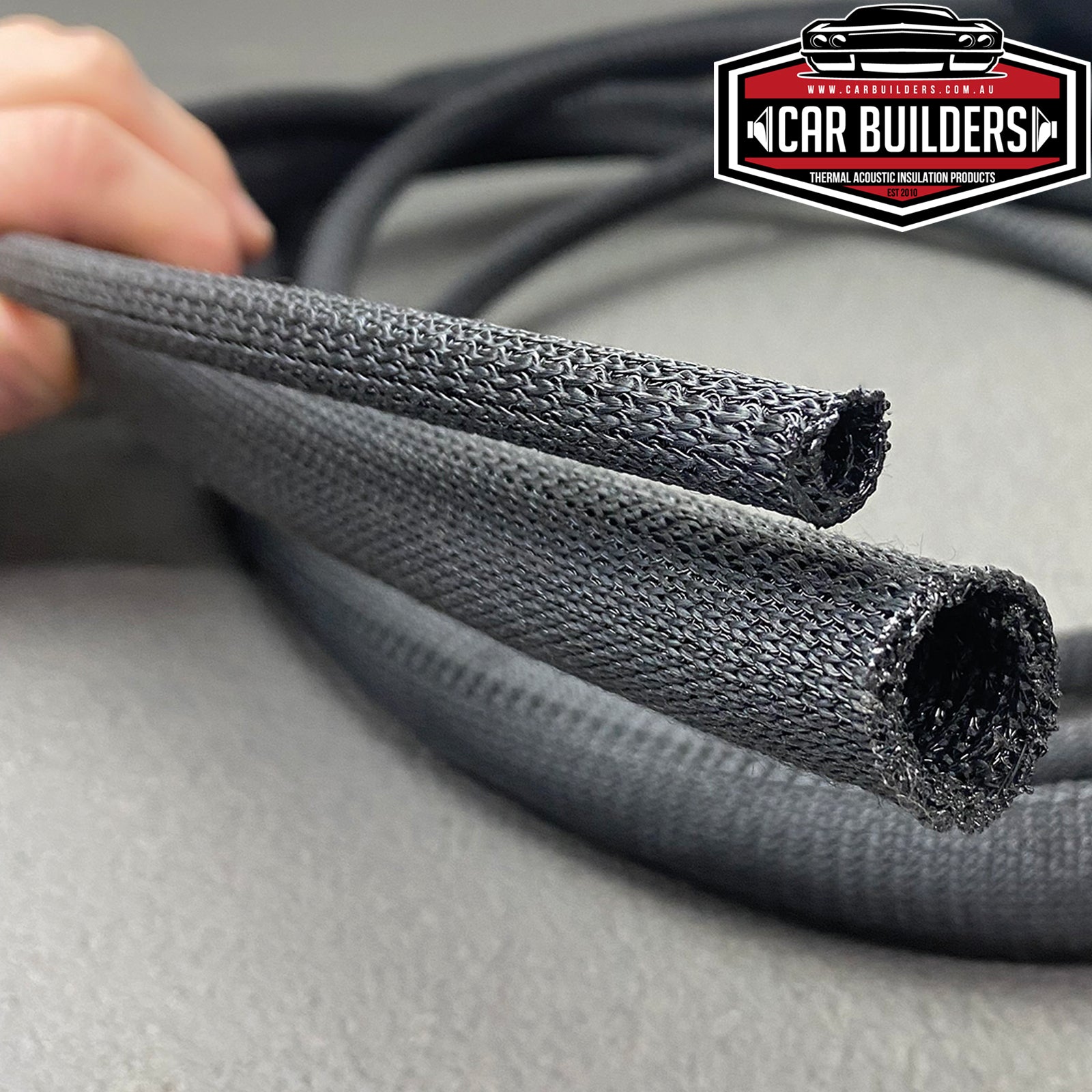

Two sizes of Pro Loom Heavy held side by side
Two sizes of Pro Loom Heavy held side by side

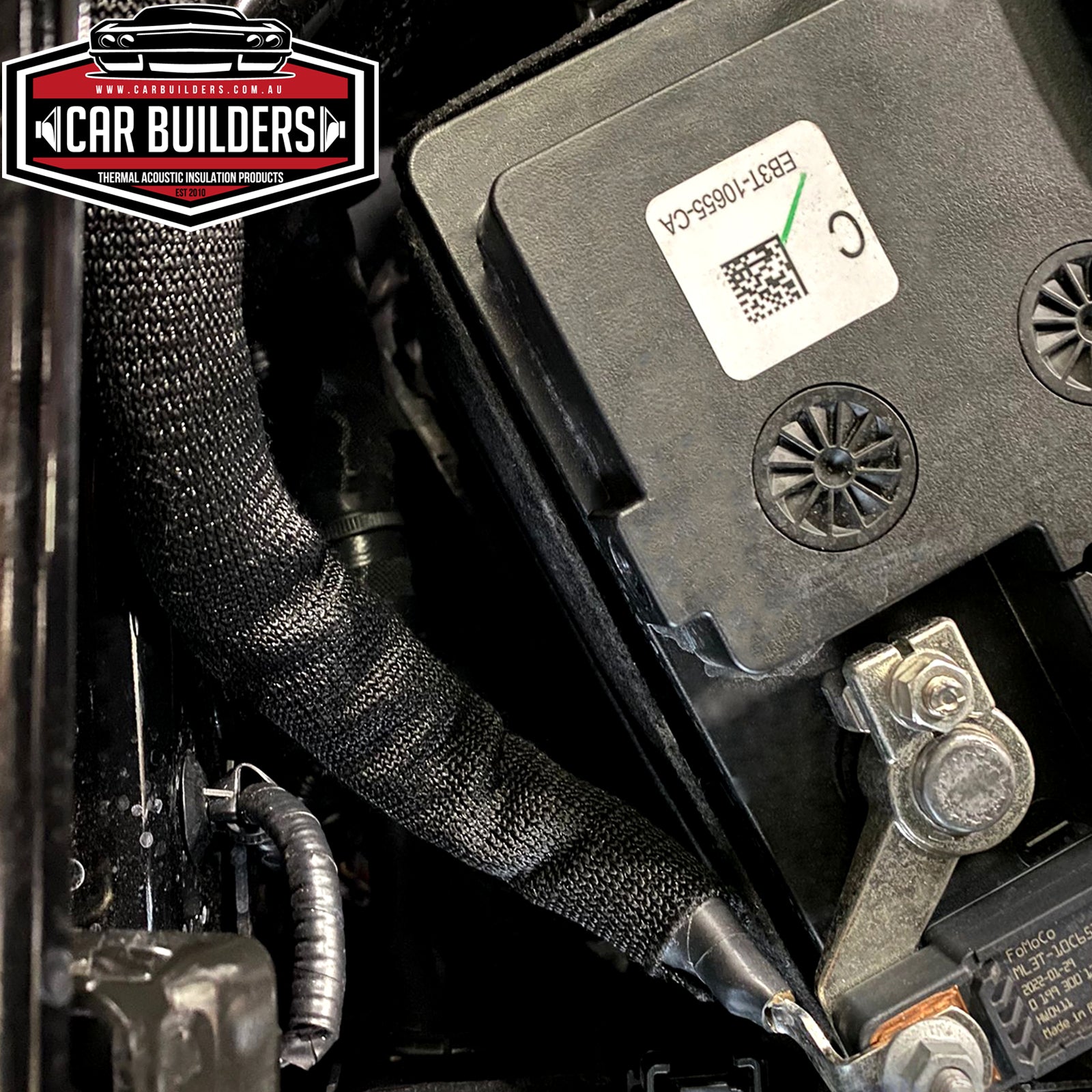

Pro Loom Heavy protecting a loom beside the battery
Pro Loom Heavy protecting a loom beside the battery
Click to open expanded view

Car Builders Pro Loom Heavy Self Closing Wiring Wrap

SKU: XLOOM08A
Price
$21.99
Size: 8mm
Roll length: 5m roll
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Quick answer: Pro Loom Heavy is the hard wearing version of Car Builders self closing loom wrap. Denser, thicker filaments give it more durability and abrasion resistance than Lite, for looms that rub on the chassis or live under the vehicle. It comes in 8mm to 29mm, on 5m or 25m rolls.

Loom damage problems Pro Loom Heavy stops

  • Harness insulation wearing through where it rubs. The thicker filament weave is built for durability and greater abrasion resistance.
  • Undercarriage looms exposed to grime and fluids. Heavy is abrasion and chemical resistant, made for harsh areas like undercarriages.
  • Cracked plastic corrugated conduit. This woven wrap stays soft on the hands and flexible along the run.
  • Re terminating a loom just to protect it. Open the split and lay it over the existing wiring.

How it works

Heavy uses a denser weave of larger filaments than Lite, which is where its extra toughness comes from. Like Lite, it is split along its length and closes on its own with a 25% overlap, so a single size covers a span of loom diameters.

What is in the box

  • 1 x Pro Loom Heavy roll in your chosen size and length

How much Heavy do I need? Size and roll length

Size it from the loom diameter using the table below. Buy the 5m roll for a patch repair or one run, or 25m when you are sleeving a whole harness.

Where Heavy earns its place

Car Builders list Heavy for wiring looms and cable assemblies in harsh spots. Car Builders name engine bays and undercarriages. If space is very tight, Lite is the thinner option.

Fitting Pro Loom Heavy

Difficulty: Easy. A pair of scissors is all you need.

  1. Measure the harness and match it to a Heavy size.
  2. Cut the wrap to length with sharp scissors.
  3. Spread the split and push the harness into it, plugs and all left connected.
  4. Work along the run so the wrap closes and overlaps itself.
  5. Secure the ends where wires break out so the sleeve cannot open.

Mistakes to avoid

  • Going a size too small so the overlap disappears.
  • Trying to force Heavy into a gap that only Lite will fit.

Specifications

Construction Dense, thick filament split sleeve that closes itself
8mm Wiring 5 to 12mm
13mm Wiring 10 to 15mm
19mm Wiring 13 to 21mm
25mm Wiring 19 to 27mm
29mm Wiring 26 to 31mm
Roll lengths 5m or 25m
Overlap 25%
Temperature, operating Minus 50°C to 150°C
Melting point 240°C and above
Flammability Meets UL94; FMVSS302 burn rate under 100mm per minute

FAQ

Do I have to unplug the harness?

No. The split design fits over an existing loom.

How do I pick a Heavy size?

Match the loom diameter to the size table. For example, 13mm covers wiring from 10 to 15mm across.

Can it live under the vehicle?

Yes. Car Builders made it for harsh environments such as undercarriages, and it is abrasion and chemical resistant.

What makes Heavy different from Lite?

Greater filament density and size. That gives more durability and abrasion resistance, while Lite is thinner and more flexible.

Warranty: Your rights under the Australian Consumer Law apply. Contact our team for warranty help.
