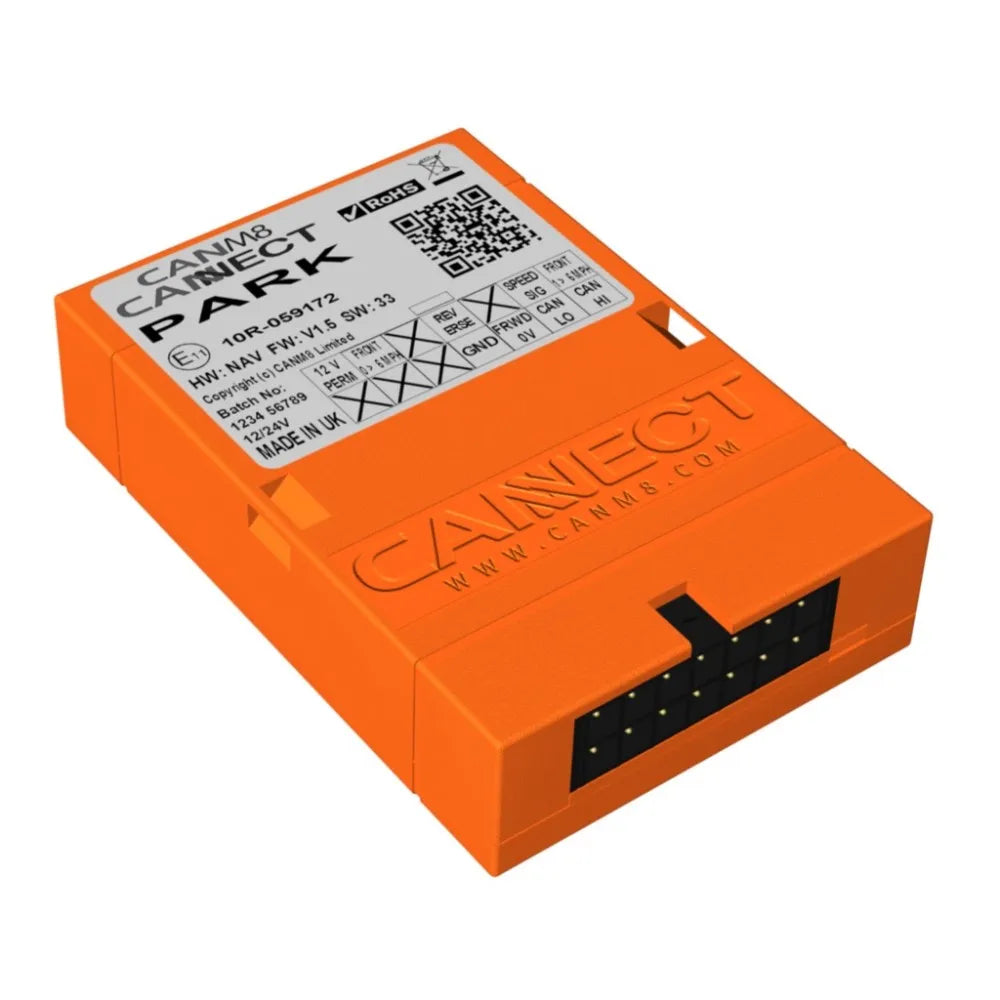

CANM8 CANNECT C8NECTPARK Multi Output Park Sensor Interface

CAN-BUS Multi Output Parking Sensor Control Interface

The CANM8 CANNECT PARK interface is a multi-output CAN Bus interface designed to provide a universal solution for installing after-market parking sensors to vehicles that feature CAN Bus wiring. In addition to the front parking sensor control features, the interface also provides a speed pulse output and a 12v / 24v output when the reverse gear is selected.

Outputs

• Speed Signal > 12v / 24v square pulsed output at approximately 1 pulse per 1 MPH.
• Speed > 12v / 24v (1A max) when the vehicle speed is 0 – 6 MPH.
• Speed > 12v / 24v (1A max) when vehicle speed is detected up to 6 MPH.
• Reverse > 12v / 24v (1A max) when reverse gear is selected.
• Forward Control > 0v (1A max) when reverse gear is NOT selected.

N.B. The speed output will turn off when the parking brake is applied to compatible vehicles.

Applications
The CANM8 CANNECT PARK is an ideal solution for use when installing after-market parking sensors. The interface provides 2 speed-dependent outputs, either of which can be utilised for controlling front parking sensors. A 12v / 24v output is generated by the interface as soon as speed is detected and switched off while the vehicle is above approximately 6 MPH. An alternative output provides power control from zero speed to 6 MPH.

The interface also provides a negative control output which can be used to power a front parking sensor system for forward motion only. This has the effect of disabling the front sensors while the vehicle is reversing so as not to create confusing tones from the front and rear sensors at the same time. This connection is optional and if the front parking sensors are preferred operational while the vehicle is reversing, the negative supply wire to the front parking sensor module should be connected to a permanent 0v point.

LED Status Details

Flashing Red: Searching for CAN information.

Solid Red: CAN Data was received but the vehicle has not yet been identified.

Solid Green: CAN Data received and vehicle type recognised.

Flashing Green: Vehicle speed detected.

Wiring Harness Details

• RED > Connect via a 5A fuse to a PERMANENT 12v / 24v supply.
• BLACK > Connect to a good chassis GROUND point.
• WHITE > CAN HI Connection: Vehicle CAN HI wire.
• BLUE > CAN LO Connection: Vehicle CAN LO wire.
• GREEN > Speed Signal Output: 12v / 24v pulsing (1 Hz = 1 MPH approx).
• PURPLE > Speed Dependent Output: 12v / 24v (1A max) when the vehicle speed is 0 – 6 MPH.
• ORANGE > Speed Dependent Output: 12v / 24v (1A max) when vehicle speed is detected up to 6 MPH.
• BROWN > Reverse Output: 12v / 24v (1A max) when reverse gear is selected.
• PINK > Forward Control Output: 0v (1A max) when reverse gear is NOT selected.

N.B. The speed output will turn off when the parking brake is applied to compatible vehicles.

Specifications:

• Manufacturer Part Number: CANM8-PARK
• Vehicle Note: Freelander II 2007 - 2011 (Suits Vehicles With Front & Rear Sensors Only)

Vehicle Compatibility:

• ALFA ROMEO 147 2000 - 2010 (937)
• ALFA ROMEO 156 2001 - 2007 (932)
• ALFA ROMEO 159 2005 - 2014 (939)
• ALFA ROMEO BRERA 2006 - 2011 (939)
• ALFA ROMEO GIULIETTA 2010 - 2014 (940)
• ALFA ROMEO GIULIETTA 2014 - 2015 (940)
• ALFA ROMEO GIULIETTA 2015 - 2019
• ALFA ROMEO GT 2004 - 2008 (937)
• ALFA ROMEO GT 2008 - 2010 (937)
• ALFA ROMEO MITO 2008 - 2014 (955)
• ALFA ROMEO MITO 2014 - 2015 (955)
• AUDI A1 2010 - 2018 (8X)
• AUDI A3 (INCL S3) 2004 - 2013 (8P)
• AUDI A3 (INCL S3) 2012 - 2019 (8V)
• AUDI A3 (INCL S3) 2020 - 2022 (8Y)
• AUDI A4 (INCL S4) 2001 - 2008 (B6-B7)
• AUDI A4 (INCL S4) 2009 - 2015 (B8)
• AUDI A4 (INCL S4) 2016 - 2022 (B9)
• AUDI A5 (INCL S5) 2007 - 2011 (8T3 - 8F7 - 8TA)
• AUDI A6 (INCL S6) 2005 - 2011 (4F)
• AUDI A6 (INCL S6) 2011 - 2019 (4G)
• AUDI A7 2011 - 2018 (4G)
• AUDI A8 (INCL S8) 2004 - 2009 (D3-4E)
• AUDI Q3 2011 - 2018 (8U)
• AUDI Q5 2009 - 2016 (8R)
• AUDI Q5 2017 - 2022 (FY)
• AUDI Q7 2006 - 2015 (4L)
• AUDI Q7 2015 - 2019 (4M)
• AUDI R8 2007 - 2015 (42)
• AUDI TT 1999 - 2005 (8N)
• AUDI TT 2006 - 2014 (8J)
• AUDI TT 2014 - 2022 (FV-8S)
• BMW 1 SERIES (INCL M1) 2004 - 2013 (E81-E82-E87-E88)
• BMW 2 SERIES 2015 - 2019 (F25)
• BMW 3 SERIES (INCL M3) 2005 - 2014 (E90)
• BMW 4 SERIES 2013 - 2019 (F32-F33)
• BMW 6 SERIES 2004 - 2011 (E63)
• BMW 6 SERIES 2011 - 2019 (F12-F13)
• BMW 7 SERIES 2001 - 2008 (E65-E66-E67-E68)
• BMW 7 SERIES 2008 - 2013 (F01-F02)
• BMW I3 2014 - 2019 (IO1)
• BMW X1 2009 - 2015 (E84)
• BMW X2 2016 - 2019 (F39)
• BMW X3 2003 - 2010 (E83)
• BMW X3 2011 - 2019 (F25)
• BMW X4 2014 - 2018 (F26)
• BMW X5 2000 - 2005 (E53)
• BMW X5 2006 - 2011 (E70)
• BMW X5 2013 - 2019 (F15)
• BMW X6 2008 - 2013 (E71)
• CHEVROLET CAMARO 2010 - 2015 (5TH GEN)
• CHRYSLER 300C 2005 - 2008 (FIRST GEN)
• CHRYSLER 300C 2009 - 2011 (SECOND GEN)
• CHRYSLER 300C 2011 - 2018 (THIRD GEN)
• CHRYSLER VOYAGER (INCL GRAND VOYAGER) 2008 - 2014 (5TH GEN)
• CITROEN BERLINGO 2003 - 2007 (FIRST GEN)
• CITROEN BERLINGO 2008 - 2015 (SECOND GEN)
• CITROEN C3 2002 - 2009 (FIRST GEN)
• CITROEN C3 2010 - 2016 (SECOND GEN)
• CITROEN C4 2004 - 2010 (FIRST GEN)
• CITROEN C4 2011 - 2018 (SECOND GEN)
• CITROEN C5 2004 - 2007 (DC-DE)
• CITROEN C5 2008 - 2013 (RD-TD)
• CITROEN DS3 2009 - 2016 (FIRST GEN)
• DODGE CALIBER 2006 - 2009 (FIRST GEN)
• DODGE CHALLENGER R/T 2008 - 2014 (THIRD GEN)
• FIAT 500 2008 - 2015 (SERIES 1 - SERIES 3)
• FIAT DUCATO 2006 - 2012 (THIRD GEN)
• FIAT DUCATO 2012 - 2014 (THIRD GEN)
• FIAT DUCATO 2015 - 2018 (FOURTH GEN)
• FIAT FREEMONT 2012 - 2015 (FIRST GEN)
• FIAT PUNTO 2005 - 2013 (THIRD GEN)
• FIAT SCUDO 2007 - 2011 (SECOND GEN)
• FORD ESCAPE 2006 - 2011 (2ND GEN)
• FORD F SERIES 2005 - 2008 (11TH GEN)
• FORD F SERIES 2009 - 2014 (12TH GEN)
• FORD F SERIES 2015 - 2019 (13TH GEN)
• FORD FIESTA 2002 - 2005 (WP)
• FORD FIESTA 2006 - 2008 (WQ)
• FORD FIESTA 2009 - 2016 (WS-WT-WZ)
• FORD FOCUS (INCL XR5) 2005 - 2007 (LS-LT)
• FORD FOCUS (INCL XR5) 2008 - 2011 (LV)
• FORD FOCUS (INCL XR5) 2012 - 2015 (LW)
• FORD FOCUS (INCL XR5) 2016 - 2019 (LW)
• FORD KA 1997 - 2011 (FIRST GEN)
• FORD KUGA 2011 - 2013 (1ST GEN)
• FORD KUGA 2013 - 2015 (2ND GEN)
• FORD MONDEO 2007 - 2014 (MB - MC)
• FORD MUSTANG 2005 - 2011 (5TH GEN)
• FORD MUSTANG 2010 - 2014 (5TH GEN)
• FORD RANGER 2011 - 2015 (PX MK1)
• FORD RANGER 2015 - 2019 (PX MK2)
• FORD RANGER 2019 - 2021 (PX MK3)
• FORD SUPER DUTY (F SERIES) 2008 - 2010 (2ND GEN)
• FORD SUPER DUTY (F SERIES) 2011 - 2016 (3RD GEN)
• FORD TRANSIT 2007 - 2014 (VM)
• FORD TRANSIT 2015 - 2017 (VO)
• FORD TRANSIT CUSTOM 2013 - 2016 (VN-EURO 5)
• HOLDEN ASTRA COUPE 2005 - 2009 (AH)
• HOLDEN ASTRA COUPE 2015 - 2018 (BK)
• HOLDEN ASTRA SEDAN 2005 - 2009 (AH)
• HOLDEN ASTRA SEDAN 2017 - 2018 (BL)
• HOLDEN ASTRA WAGON 2005 - 2009 (AH)
• HOLDEN ASTRA WAGON 2016 - 2018 (BK)
• HOLDEN CAPTIVA 5 (INCL MAXX) 2006 - 2015 (CG)
• HOLDEN COMBO 2002 - 2012 (XC)
• HOLDEN CRUZE 2008 - 2016 (J300)
• HOLDEN EPICA 2006 - 2011 (EP)
• HOLDEN TIGRA 2004 - 2009 (XC)
• HOLDEN VECTRA 2003 - 2011 (ZC)
• HONDA ACCORD 2003 - 2007 (7TH GEN)
• HONDA ACCORD 2008 - 2012 (8TH GEN)
• HONDA ACCORD 2013 - 2015 (9TH GEN)
• HONDA CIVIC HATCH 2006 - 2011 (8TH GEN)
• HONDA CIVIC HATCH 2012 - 2015 (9TH GEN)
• HONDA CIVIC HATCH 2015 - 2016 (9TH GEN)
• HONDA CIVIC HATCH 2016 - 2018 (10TH GEN)
• HONDA CRV 2007 - 2011 (RE)
• HONDA CRV 2012 - 2015 (RM)
• HONDA CRV 2015 - 2016 (RM)
• HONDA CRZ 2010 - 2014 (ZF)
• HONDA INSIGHT 2009 - 2013 (ZE)
• HONDA JAZZ 2008 - 2013 (GE)
• HONDA JAZZ 2014 - 2016 (GF)
• HONDA ODYSSEY 2004 - 2009 (3RD GEN (RB1 - RB2))
• HUMMER H2 2008 - 2011 (H2)
• HYUNDAI ACCENT 2006 - 2008 (MC)
• HYUNDAI I20 2010 - 2012 (PB)
• HYUNDAI I20 2012 - 2015 (PB)
• HYUNDAI I30 2007 - 2011 (FD)
• HYUNDAI I30 2012 - 2016 (GD-GD2)
• HYUNDAI I30 2017 - 2021 (PD)
• HYUNDAI I30 2021 - 2022 (PD)
• HYUNDAI I40 2012 - 2018 (VF-VF2-VF3)
• HYUNDAI ILOAD - IMAX 2008 - 2016 (TQ)
• HYUNDAI IX35 2010 - 2013 (LM)
• HYUNDAI KONA 2017 - 2019 (OS - OS2)
• HYUNDAI KONA 2021 - 2022 (OS)
• HYUNDAI SANTA FE 2007 - 2009 (CM)
• HYUNDAI SANTA FE 2009 - 2012 (CM)
• HYUNDAI SANTA FE 2012 - 2018 (DM)
• HYUNDAI SONATA 2006 - 2008 (NF)
• ISUZU D-MAX 2009 - 2011 (RA - RC)
• ISUZU D-MAX 2012 - 2016 (RT50 - RT85)
• IVECO DAILY 2007 - 2014 (5TH GEN)
• IVECO DAILY 2015 - 2017 (6TH GEN)
• IVECO DAILY 2018 - 2019 (6TH GEN)
• JAGUAR S-TYPE 2003 - 2008 (NO CHASSIS CODE)
• JAGUAR X-TYPE 2002 - 2015 (NO CHASSIS CODE)
• JAGUAR XJ8 2003 - 2008 (NO CHASSIS CODE)
• JEEP CHEROKEE 2001 - 2007 (KJ)
• JEEP CHEROKEE 2007 - 2012 (KK)
• JEEP COMMANDER 2005 - 2008 (XK)
• JEEP COMPASS 2007 - 2009 (MK)
• JEEP GRAND CHEROKEE 2005 - 2007 (WH-WK)
• JEEP GRAND CHEROKEE 2008 - 2011 (WH-WK)
• JEEP GRAND CHEROKEE 2012 - 2013 (WK2)
• JEEP PATRIOT 2007 - 2009 (MK)
• JEEP WRANGLER 2007 - 2018 (JK)
• KIA CARNIVAL (INCL GRAND) 2006 - 2015 (VQ)
• KIA CERATO 2004 - 2009 (LD)
• KIA MAGENTIS 2006 - 2010 (MG)
• KIA NERO 2017 - 2022 (DE)
• KIA OPTIMA 2006 - 2010 (MG)
• KIA OPTIMA 2010 - 2013 (TF1)
• KIA OPTIMA 2013 - 2015 (TF2)
• KIA OPTIMA 2016 - 2017 (JF)
• KIA PICANTO 2016 - 2017 (TA)
• KIA PICANTO 2017 - 2018 (JA)
• KIA PRO CEED 2014 - 2015 (JD)
• KIA RIO 2006 - 2009 (JB)
• KIA RIO 2010 - 2014 (UB)
• KIA SORENTO 2007 - 2008 (BL)
• KIA SORENTO 2009 - 2012 (XM)
• KIA SORENTO 2013 - 2015 (XM)
• KIA SORENTO 2015 - 2018 (UM)
• KIA SOUL 2009 - 2011 (AM)
• KIA SOUL 2011 - 2013 (AM)
• KIA SPORTAGE 2005 - 2009 (KM)
• KIA SPORTAGE 2010 - 2015 (SL)
• KIA SPORTAGE 2016 - 2018 (QL)
• KIA SPORTAGE 2018 - 2019 (QL)
• KIA SPORTAGE 2018 - 2020 (QL)
• KIA STONIC 2017 - 2022 (YB CUV)
• LAND ROVER DEFENDER 2008 - 2015 (NO CHASSIS CODE)
• LAND ROVER DISCOVERY III 2005 - 2010 (L319)
• LAND ROVER DISCOVERY IV 2010 - 2016 (L319)
• LAND ROVER EVOQUE 2011 - 2013 (L538)
• LAND ROVER FREELANDER 1997 - 2003 (L314)
• LAND ROVER FREELANDER 2004 - 2006 (L314)
• LAND ROVER FREELANDER II 2007 - 2011 (L359)
• LAND ROVER FREELANDER II 2012 - 2014 (L359)
• LAND ROVER RANGE ROVER (INCL HSE - VOGUE) 2002 - 2012 (L322)
• LAND ROVER RANGE ROVER SPORT 2005 - 2010 (L320)
• LAND ROVER RANGE ROVER SPORT 2010 - 2013 (L320)
• LAND ROVER RANGE ROVER SPORT 2013 - 2015 (L494)
• LEXUS CT 2011 - 2013 (C10)
• LEXUS CT 2014 - 2018 (A10)
• LEXUS IS 2006 - 2015 (XE20)
• LEXUS RX 2003 - 2008 (XU30)
• LEXUS RX 2010 - 2015 (AL10)
• MAZDA 2 2003 - 2007 (DY)
• MAZDA 2 2007 - 2015 (DE)
• MAZDA 2 2015 - 2019 (DJ)
• MAZDA 3 2004 - 2009 (BK)
• MAZDA 3 2009 - 2013 (BL)
• MAZDA 3 2013 - 2016 (BM) - WITH COLOR OEM RADIO
• MAZDA 3 2013 - 2016 (BM) - WITH MONOCHROME DISPLAY
• MAZDA 3 2016 - 2018 (BN)
• MAZDA 6 2003 - 2005 (GG)
• MAZDA 6 2005 - 2008 (GG)
• MAZDA 6 2008 - 2010 (GH)
• MAZDA 6 2010 - 2012 (GH)
• MAZDA 6 2013 - 2015 (GJ)
• MAZDA BT-50 2007 - 2011 (B SERIES)
• MAZDA BT-50 2012 - 2015 (B32Q)
• MAZDA CX-3 2015 - 2021
• MAZDA CX5 2012 - 2015 (KE)
• MAZDA CX5 2015 - 2017 (KE)
• MAZDA CX7 2006 - 2010 (ER)
• MAZDA CX7 2010 - 2011 (ER)
• MAZDA CX9 2006 - 2011 (TB)
• MAZDA CX9 2012 - 2015 (TB)
• MAZDA MPV 2000 - 2006 (LW)
• MAZDA MX5 2006 - 2008 (NC)
• MAZDA MX5 2009 - 2013 (ND)
• MAZDA RX8 2004 - 2008 (FE)
• MAZDA RX8 2008 - 2012 (FE)
• MERCEDES A CLASS 2005 - 2007 (W169)
• MERCEDES A CLASS 2007 - 2011 (W169)
• MERCEDES A CLASS 2013 - 2016 (W176)
• MERCEDES B CLASS 2005 - 2007 (W245)
• MERCEDES B CLASS 2007 - 2011 (W245)
• MERCEDES C CLASS 2000 - 2004 (W203)
• MERCEDES C CLASS 2005 - 2008 (W203)
• MERCEDES C CLASS 2008 - 2011 (W204)
• MERCEDES C CLASS 2011 - 2014 (W204)
• MERCEDES C CLASS 2014 - 2019 (W205)
• MERCEDES CLS 2005 - 2010 (W219)
• MERCEDES E CLASS 2002 - 2007 (W211)
• MERCEDES E CLASS 2008 - 2011 (W212)
• MERCEDES G CLASS 2006 - 2012 (W463)
• MERCEDES GL CLASS 2006 - 2012 (X164)
• MERCEDES M CLASS 1999 - 2004 (W163)
• MERCEDES M CLASS 2005 - 2011 (W164)
• MERCEDES R CLASS 2006 - 2012 (W251)
• MERCEDES S CLASS 2013 - 2019 (W222)
• MERCEDES SLK CLASS 2004 - 2011 (R171)
• MERCEDES SPRINTER 2000 - 2006 (W905)
• MERCEDES SPRINTER 2007 - 2018 (W906)
• MERCEDES SPRINTER 2019 - 2020 (907 - 910)
• MERCEDES VITO (INC VIANO OR VALENTE) 2004 - 2007 (W639)
• MERCEDES VITO (INC VIANO OR VALENTE) 2007 - 2015 (W639)
• MERCEDES VITO (INC VIANO OR VALENTE) 2015 - 2019 (W447)
• MITSUBISHI ASX 2010 - 2013 (XA)
• MITSUBISHI ASX 2013 - 2019 (XB - XC)
• MITSUBISHI COLT 2004 - 2007 (RG)
• MITSUBISHI COLT 2007 - 2011 (RZ)
• MITSUBISHI LANCER (INC EVOLUTION) 2007 - 2013 (CJ)
• MITSUBISHI LANCER (INC EVOLUTION) 2014 - 2018 (CF)
• MITSUBISHI OUTLANDER 2003 - 2006 (ZE-ZF)
• MITSUBISHI OUTLANDER 2007 - 2012 (ZG-ZH)
• MITSUBISHI OUTLANDER 2013 - 2021 (ZJ-ZK-ZL)
• MITSUBISHI PAJERO 2006 - 2015 (NS-NT-NW)
• MITSUBISHI PAJERO 2015 - 2021 (NT-NX)
• NISSAN ALTIMA 2013 - 2016 (L33)
• NISSAN CUBE 1998 - 2016 (Z11 - Z12)
• NISSAN ELGRAND 2001 - 2004 (E51)
• NISSAN ELGRAND 2005 - 2010 (E51)
• NISSAN JUKE 2013 - 2015 (F15)
• NISSAN JUKE 2016 - 2018 (F15)
• NISSAN MICRA 2003 - 2009 (K12)
• NISSAN MICRA 2010 - 2014 (K13)
• NISSAN MICRA 2015 - 2016 (K13)
• NISSAN MURANO 2005 - 2008 (Z50)
• NISSAN MURANO 2009 - 2011 (Z51)
• NISSAN MURANO 2012 - 2018 (Z51)
• NISSAN NAVARA 2005 - 2015 (D22-D40)
• NISSAN NAVARA 2015 - 2019 (D23 - NP300) RX-DX MODELS
• NISSAN NAVARA 2015 - 2019 (D23 - NP300) ST-STX-SL MODELS
• NISSAN NAVARA 2015 - 2019 (D23 - NP300) WITH 360 DEGREE CAMERA SYSTEM
• NISSAN NAVARA 2019 - 2020 (D23)
• NISSAN PATHFINDER 2005 - 2013 (R51)
• NISSAN PATHFINDER 2013 - 2015 (R52)
• NISSAN PULSAR 2013 - 2016 (C12)
• NISSAN QASHQAI 2014 - 2017 (J11)
• NISSAN QASHQAI 2014 - 2017 (J11) WITH 360 DEGREE CAMERA SYSTEM
• NISSAN QASHQAI 2017 - 2019 (J11)
• NISSAN QASHQAI 2017 - 2019 (J11) WITH 360 DEGREE CAMERA SYSTEM
• NISSAN TIIDA 2006 - 2011 (C2)
• NISSAN XTRAIL 2007 - 2013 (T31)
• NISSAN XTRAIL 2014 - 2017 (T32)
• NISSAN XTRAIL 2014 - 2017 (T32) WITH 360 DEGREE CAMERA SYSTEM
• NISSAN XTRAIL 2018 - 2019 (T32)
• NISSAN XTRAIL 2018 - 2019 (T32) WITH 360 DEGREE CAMERA SYSTEM
• NISSAN XTRAIL 2019 - 2020 (T32)
• OPEL INSIGNIA 2012 - 2014 (A - MK 1)
• PEUGEOT 206 2002 - 2010 (NO CHASSIS CODE)
• PEUGEOT 207 2006 - 2011 (A7)
• PEUGEOT 208 2012 - 2014 (A99)
• PEUGEOT 3008 2009 - 2015 (T8)
• PEUGEOT 307 2001 - 2012 (T5-T6-T7)
• PEUGEOT 308 2007 - 2014 (T7)
• PEUGEOT 308 2015 - 2016 (T9)
• PEUGEOT 4007 2009 - 2011 (NO CHASSIS CODE)
• PEUGEOT 4008 2010 - 2014 (NO CHASSIS CODE)
• PEUGEOT 4008 2014 - 2017 (NO CHASSIS CODE)
• PEUGEOT 508 2011 - 2014 (NO CHASSIS CODE)
• PEUGEOT 607 2005 - 2011 (NO CHASSIS CODE)
• PEUGEOT PARTNER 2002 - 2014 (B9P)
• PEUGEOT RCZ 2010 - 2015 (NO CHASSIS CODE)
• PORSCHE 911 2005 - 2012 (997)
• PORSCHE 911 2011 - 2016 (991)
• PORSCHE BOXSTER 2004 - 2012 (987)
• PORSCHE BOXSTER 2012 - 2016 (981)
• PORSCHE CAYENNE 2002 - 2012 (9PA)
• PORSCHE CAYENNE 2013 - 2018 (92A)
• PORSCHE CAYMAN 2005 - 2011 (987C)
• PORSCHE CAYMAN 2012 - 2016 (981)
• RAM 1500 2009 - 2012 (4TH GEN)
• RAM 1500 2013 - 2019 (4TH GEN DS-DJ-D2)
• RAM 1500 CLASSIC 2019 - 2022 (5TH GEN DT)
• RAM 2500 2013 - 2019 (4TH GEN DS-DJ-D2)
• RENAULT CLIO 2006 - 2011 (X85)
• RENAULT CLIO 2012 - 2014 (X85)
• RENAULT FLUENCE 2011 - 2013 (L38 (PHASE 1 - 2))
• RENAULT KANGOO 2000 - 2007 (I)
• RENAULT KANGOO 2008 - 2012 (F61)
• RENAULT KANGOO 2013 - 2017 (II (F61))
• RENAULT KOLEOS 2008 - 2015 (H45 PHASE 1 - 2 - 3)
• RENAULT LAGUNA 2007 - 2011 (III (B91))
• RENAULT MASTER 1997 - 2010 (X70)
• RENAULT MASTER 2011 - 2018 (X62)
• RENAULT MEGANE 2002 - 2006 (II (X64))
• RENAULT MEGANE 2007 - 2009 (II (B84))
• RENAULT MEGANE 2010 - 2011 (III (B95 - B35))
• RENAULT MEGANE 2012 - 2013 (III (B95 - B35))
• RENAULT SCENIC 2005 - 2011 (II (J84 PHASE 1 - 2))
• RENAULT TRAFIC 2002 - 2005 (X83)
• RENAULT TRAFIC 2005 - 2011 (X83)
• RENAULT TRAFIC 2011 - 2014 (X83)
• RENAULT TRAFIC 2015 - 2018 (X82)
• RENAULT TWINGO 2007 - 2011 (I)
• SAAB 93 2004 - 2014 (442)
• SAAB 95 2000 - 2005 (YS3E)
• SAAB 95 2005 - 2011 (YS3G)
• SAAB 97 2006 - 2011 (NO CHASSIS CODE)
• SKODA FABIA 2007 - 2015 (5J)
• SKODA FABIA 2015 - 2019 (NJ)
• SKODA OCTAVIA 2004 - 2008 (1U)
• SKODA OCTAVIA 2009 - 2012 (1Z)
• SKODA OCTAVIA 2013 - 2019 (NE - 5E)
• SKODA RAPID 2013 - 2015 (NH)
• SKODA ROOMSTER 2006 - 2011 (5J)
• SKODA SUPERB 2009 - 2015 (3T)
• SKODA SUPERB 2015 - 2019 (3V)
• SKODA YETI 2009 - 2019 (5L)
• SMART FOR FOUR 2004 - 2006 (W454)
• SMART FOR TWO 2008 - 2014 (451)
• SSANGYONG KORANDO 2011 - 2012 (C200)
• SSANGYONG KORANDO 2013 - 2015 (C200)
• SSANGYONG REXTON 2006 - 2011 (Y250)
• SSANGYONG REXTON 2011 - 2015 (Y285)
• SUBARU FORESTER 2007 - 2012 (SH)
• SUBARU FORESTER 2013 - 2014 (SJ)
• SUBARU FORESTER 2015 - 2018 (SJ)
• SUBARU IMPREZA (INC WRX) 2007 - 2012 (GE-GH-GR-GV)
• SUBARU IMPREZA (INC WRX) 2012 - 2014 (GP-GJ)
• SUBARU IMPREZA (INC WRX) 2015 - 2016 (GP-GJ)
• SUBARU LIBERTY (INC OUTBACK) 2004 - 2005 (BL-BP)
• SUBARU LIBERTY (INC OUTBACK) 2006 - 2008 (BL-BP)
• SUBARU LIBERTY (INC OUTBACK) 2009 - 2014 (BM-BR) WITH NAV
• SUBARU LIBERTY (INC OUTBACK) 2009 - 2014 (BM-BR) WITHOUT NAV
• SUBARU XV 2012 - 2014 (GP)
• SUBARU XV 2015 - 2016 (GP FACELIFT)
• SUZUKI ALTO 2009 - 2013 (GF)
• SUZUKI GRAND VITARA 2005 - 2014 (JB)
• SUZUKI GRAND VITARA 2015 - 2018 (JB)
• SUZUKI SWIFT 2006 - 2010 (RS416)
• SUZUKI SWIFT 2011 - 2016 (FZ)
• SUZUKI SWIFT 2017 - 2020 (AZ)
• SUZUKI SX4 (INCL S-CROSS) 2007 - 2011 (GYB - GYC)
• TESLA MODEL 3 2018 - 2021 (NO CHASSIS CODE)
• TOYOTA 86 2012 - 2017 (PRE-FACELIFT)
• TOYOTA 86 2017 - 2020 (POST-FACELIFT)
• TOYOTA AVENSIS VERSO 2005 - 2010 (ACM20 - ACM21R SERIES)
• TOYOTA C-HR 2017 - 2019 (AX10 SERIES)
• TOYOTA CAMRY 2007 - 2011 (XV40 SERIES)
• TOYOTA CAMRY 2012 - 2017 (XV50 SERIES)
• TOYOTA CAMRY 2018 - 2020 (XV70 SERIES)
• TOYOTA ESTIMA 2006 - 2016 (XR50 SERIES)
• TOYOTA FORTUNER 2015 - 2019 (AN150 - AN160 SERIES)
• TOYOTA HILUX 2015 - 2020 (AN120 - AN130 SERIES)
• TOYOTA HILUX 2020 - 2021 (AN120 - AN130 SERIES)
• TOYOTA LANDCRUISER 2008 - 2012 (200 SERIES)
• TOYOTA LANDCRUISER 2013 - 2015 (200 SERIES)
• TOYOTA LANDCRUISER 2016 - 2021 (200 SERIES)
• TOYOTA RAV4 2006 - 2011 (XA30 SERIES)
• TOYOTA RAV4 2012 - 2013 (XA40 SERIES)
• TOYOTA RAV4 2014 - 2018 (XA40 SERIES)
• TOYOTA TUNDRA 2007 - 2013 (XK50 SERIES)
• TOYOTA TUNDRA 2014 - 2017 (XK50 SERIES)
• TOYOTA YARIS 2005 - 2011 (XP90 SERIES)
• TOYOTA YARIS 2012 - 2014 (XP90 SERIES)
• VOLKSWAGEN AMAROK 2011 - 2015 (2H SERIES)
• VOLKSWAGEN AMAROK 2015 - 2020 (2H SERIES)
• VOLKSWAGEN BEETLE 2000 - 2011 (1Y SERIES)
• VOLKSWAGEN BEETLE 2013 - 2015 (1L SERIES)
• VOLKSWAGEN BEETLE 2016 - 2017 (A5 SERIES)
• VOLKSWAGEN CADDY 2005 - 2015 (2K SERIES)
• VOLKSWAGEN CADDY 2015 - 2019 (2K SERIES)
• VOLKSWAGEN CRAFTER 2007 - 2017 (2E - 2F SERIES)
• VOLKSWAGEN EOS 2005 - 2013 (1F)
• VOLKSWAGEN GOLF (INCL GTI) 2005 - 2013 (MK 5 - MK 6 (5K SERIES))
• VOLKSWAGEN GOLF (INCL GTI) 2014 - 2018 (MK 7 (5G SERIES))
• VOLKSWAGEN JETTA 2005 - 2015 (A5 - A6 SERIES)
• VOLKSWAGEN PASSAT 2005 - 2014 (B6 - B7 SERIES)
• VOLKSWAGEN POLO 2005 - 2009 (6Q - 9N - 9N3 SERIES)
• VOLKSWAGEN POLO 2010 - 2014 (6R SERIES)
• VOLKSWAGEN POLO 2014 - 2017 (6C)
• VOLKSWAGEN SCIROCCO 2008 - 2014 (3RD GENERATION)
• VOLKSWAGEN TIGUAN 2007 - 2016 (5N SERIES)
• VOLKSWAGEN TIGUAN 2017 - 2018 (5N SERIES)
• VOLKSWAGEN TOUAREG 2004 - 2010 (7L)
• VOLKSWAGEN TOUAREG 2011 - 2018 (7P)
• VOLKSWAGEN TRANSPORTER (INCL MULTIVAN OR CARAVELLE) 2004 - 2009 (T5 SERIES)
• VOLKSWAGEN TRANSPORTER (INCL MULTIVAN OR CARAVELLE) 2010 - 2015 (T5 SERIES)
• VOLKSWAGEN TRANSPORTER (INCL MULTIVAN OR CARAVELLE) 2015 - 2019 (T6 SERIES)
• VOLKSWAGEN TRANSPORTER (INCL MULTIVAN OR CARAVELLE) 2020 - 2021 (T6 SERIES)
• VOLKSWAGEN UP! 2013 - 2015 (1ST GENERATION)
• VOLVO C30 2007 - 2013 (1ST GENERATION)
• VOLVO C70 2005 - 2014 (2ND GENERATION)
• VOLVO S60 2001 - 2009 (1ST GENERATION)
• VOLVO S80 1998 - 2006 (1ST GENERATION)
• VOLVO V50 2004 - 2012 (1ST GENERATION)
• VOLVO V70 2004 - 2007 (2ND GENERATION)
• VOLVO V70 2008 - 2011 (3RD GENERATION)
• VOLVO XC70 2003 - 2007 (2ND GENERATION)
• VOLVO XC90 2002 - 2014 (1ST GENERATION)
