CAC HHY3K Wiring Harness - Plug-and-Play Integration Harness for Hyundai/Kia 2008-2018 with Steering Wheel Control Retention

CAC HHY3K Wiring Harness - Plug-and-Play Integration Harness for Hyundai/Kia 2008-2018 with Steering Wheel Control Retention

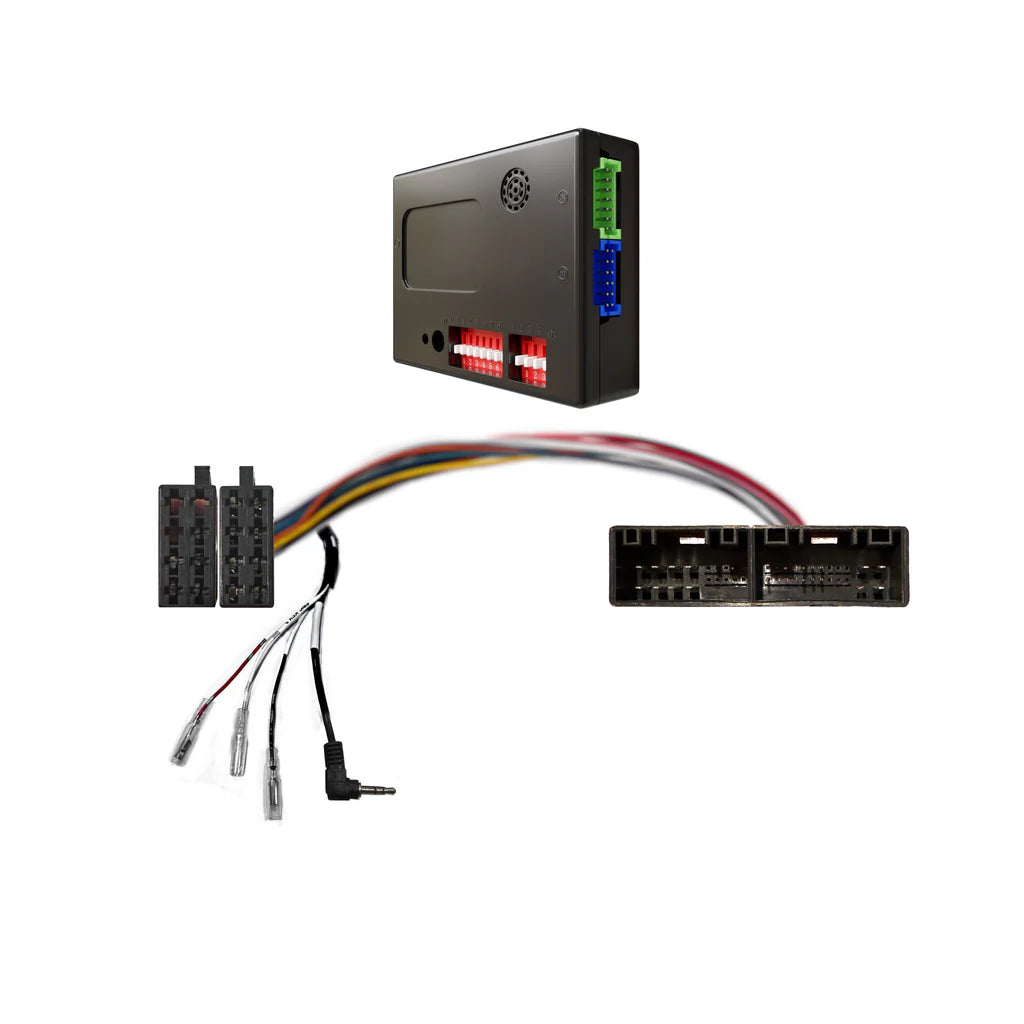

Upgrade your Hyundai or Kia head unit while retaining factory steering wheel controls with Car Audio Connect HHY3K Integration Harness—featuring comprehensive plug-and-play wiring system eliminating cutting, splicing, or modification to factory wiring, steering wheel control retention maintaining thumb control operation of volume, track, source, and phone functions, universal aftermarket head unit compatibility supporting Alpine, JVC, Kenwood, Nakamichi, Pioneer, Sony, and other major brands using ISO connector format, direct factory connector compatibility enabling DIY installation or simplified professional fitting, and extensive vehicle coverage spanning over 20 Hyundai and Kia models from 2008-2018 including Accent, Elantra, i30, i40, i45, iLoad, iMax, ix35, Santa Fe, Sonata, Cerato, Optima, Rio, Sorento, and Sportage across multiple dashboard configurations and trim variants. Complete wiring integration solution for mid-generation Hyundai/Kia vehicles transforming factory head unit replacement from complex custom wiring to simple plug-and-play connection while preserving steering wheel control convenience for modern multimedia receiver upgrades, Bluetooth connectivity, USB audio playback, Apple CarPlay/Android Auto integration, and enhanced features without sacrificing factory steering control safety in these 2008-2018 generation vehicles with specific dashboard and equipment configurations.

Product Overview

The Car Audio Connect HHY3K represents wiring solution specifically designed for mid-generation Hyundai and Kia vehicles from 2008-2018 era spanning extensive model range including compact cars, sedans, SUVs, and commercial vans. Traditional aftermarket head unit installation in these vehicles requires: identifying factory wire functions, cutting factory harnesses, splicing aftermarket connections, soldering/crimping individual wires—complex, time-consuming process risking electrical issues or permanent factory harness damage. HHY3K eliminates this complexity through plug-and-play design with factory-matched connectors on one end and standardized ISO connectors on other end compatible with major aftermarket brands.

Mid-generation vehicles from 2008-2018 era represent transitional period in automotive technology—more sophisticated than early 2000s vehicles but simpler than current generation models. HHY3K designed for specific vehicle configurations within this era: vehicles without factory cameras (noted as "No Fac Camera" on i30 models), vehicles without factory navigation (noted as "no fac nav" on ix35 models), non-amplified audio systems (noted on ix35 Dash 3), specific dashboard variants (Dash 1, 2, 3, 4 indicating different trim levels and equipment packages). This harness focuses on core wiring integration and steering wheel control retention without camera, USB, or antenna adapters—appropriate for vehicles configured without these features or where separate adapters required.

Steering wheel control retention maintains factory thumb controls operation with aftermarket head units—critical safety feature enabling volume adjustment, track control, and phone operation without removing hands from steering wheel. Interface translates factory steering wheel button signals (analog resistance or digital protocols used in 2008-2018 Hyundai/Kia vehicles) into universal format compatible with aftermarket head units supporting steering control input. Extensive compatibility notes throughout vehicle list indicate specific dashboard configurations, equipment packages, and chassis codes—critical to verify exact vehicle configuration matches listed specifications for proper functionality.

Extensive vehicle coverage requires careful compatibility verification: multiple dashboard configurations (Dash 1, 2, 3, 4), chassis codes (LM01, LM02, LM03, LF), equipment exclusions (no factory camera, no factory navigation, non-amplified), body style variants (iLoad/iMax AST vs standard). Single harness accommodates these diverse configurations when vehicle matches specific listed criteria. Plug-and-play design emphasizes DIY-friendly installation without electrical expertise. Reversible installation preserves factory harness integrity enabling future factory stereo reinstallation. Complete wiring integration solution for mid-generation Hyundai/Kia vehicles in specific configurations wanting modern head unit capabilities while maintaining steering wheel control convenience.

Steering Wheel Control Retention

Integrated steering wheel control interface maintains factory thumb controls operation with aftermarket head unit—volume up/down, track forward/back, source selection, phone answer/end, voice control activation, menu navigation. Hyundai/Kia steering wheels from 2008-2018 era feature multifunction button layouts providing comprehensive control functionality—interface translates factory button signals (analog resistance or digital CANbus protocols depending on vehicle year and model) into universal format compatible with aftermarket head units supporting steering control input. Most modern Alpine, JVC, Kenwood, Nakamichi, Pioneer, Sony head units include steering control compatibility—verify selected stereo specifications. Some head units require brief programming/learning procedure mapping button functions—consult head unit manual for steering control setup. Maintains factory safety and convenience without dashboard reaching, enables complete head unit control from steering wheel maintaining focus on road.

Plug-and-Play Installation

Direct factory connector compatibility eliminates cutting and splicing—harness plugs directly into factory wiring harness behind head unit, other end connects to aftermarket head unit via standard ISO connectors. Installation process: remove factory head unit (dashboard trim removal procedures vary significantly by model—Accent, Elantra, i30, i40, i45, iLoad, iMax, ix35, Santa Fe, Sonata, Cerato, Optima, Rio, Sorento, Sportage each have different dashboard designs), disconnect factory harness, connect factory harness to HHY3K input side, connect HHY3K output side to aftermarket head unit ISO connectors (or ISO adapter if head unit uses proprietary connectors), test functionality including steering wheel controls, secure head unit, reinstall dashboard trim. Typical DIY installation 30-60 minutes for wiring (additional time for fascia installation and dashboard reassembly). Reversible installation preserves factory harness—disconnect aftermarket head unit, reconnect factory stereo, no evidence of modification. No soldering, no crimping, no electrical expertise required—straightforward plug-and-play connection accessible to mechanically inclined owners.

Universal Aftermarket Head Unit Compatibility

Harness designed for universal compatibility with major aftermarket head unit brands using ISO connector standard—Alpine, JVC, Kenwood, Nakamichi, Pioneer, Sony, and other manufacturers. ISO connector format provides standardized connection: power connector (typically 8-pin), speaker connector (typically 8-pin), additional connections for steering wheel control interface. Most aftermarket head units include ISO connectors or ISO adapter harness—verify head unit packaging or specifications. Harness accommodates various head unit formats: single-DIN, double-DIN, flip-out screens, floating displays, modern multimedia receivers—harness connects electrically regardless of physical head unit size (fascia/mounting kit required separately for physical installation matching vehicle dashboard opening and configuration).

Extensive Hyundai/Kia Vehicle Coverage

Compatible with extensive Hyundai and Kia model range from 2008-2018 with specific dashboard and equipment configurations:

Hyundai Vehicles:

• Accent 2011-2015 (Dash 1)
• Elantra 2011-2013, 2013-2015 (Dash 1)
• i30 2012-2017 (Dash 1, 2 No Factory Camera)
• i40 2011+ (Dash 1)
• i45 2009-2012 (Dash 1)
• iLoad 2008-2010 (AST), 2010-2014
• iMax 2008-2010 (AST), 2010-2014
• ix35 2009-2013 (Dash 1 with 1 stacker, Dash 3 Non-Amplified LM01, Dash 4 LM02 no factory navigation), 2013-2015 (Dash 1 LM03 no factory navigation)
• Santa Fe 2013-2018 (Dash 1, 2)
• Sonata 2014-2017 (LF generation)

Kia Vehicles:

• Cerato 2013-2018 (Dash 1, 2)
• Optima 2010-2013 (Dash 1), 2014-2015 (Dash 1)
• Rio 2012-2014, 2015-2016 (Standard)
• Sorento 2013-2014 (Dash 1)
• Sportage 2010-2015 (Dash 1, 2)

Critical Compatibility Notes:

• Dashboard configurations (Dash 1, 2, 3, 4) indicate different trim levels and equipment packages—verify exact dashboard type
• Chassis codes (LM01, LM02, LM03 for ix35; LF for Sonata) indicate specific generation variants
• "No Fac Camera" (i30, ix35) indicates vehicles without factory cameras—harness designed for these configurations
• "No Fac Nav" (ix35) indicates vehicles without factory navigation—harness designed for these configurations
• "Non Amplified" (ix35 Dash 3) indicates standard audio system—amplified systems may require different harness
• "AST" (iLoad/iMax) indicates specific trim variant
• "1 stacker" (ix35 Dash 1) indicates single CD player configuration

Verify specific vehicle model year, dashboard configuration, chassis code, and equipment package before ordering. Contact supplier with VIN or detailed vehicle specifications for compatibility confirmation if uncertain.

Installation Requirements

Complete installation requires: HHY3K wiring harness (electrical connections and steering wheel control interface), vehicle-specific fascia kit matching model and head unit size (dashboard trim panel and mounting brackets sold separately), aftermarket head unit with ISO connectors and steering wheel control input support, basic hand tools (plastic trim removal tools, screwdrivers, socket set). Additional components may be required depending on vehicle equipment: separate antenna adapter if not included with harness (verify if needed), separate camera retention adapter if vehicle has factory camera (i30 "No Fac Camera" indicates harness designed for vehicles without cameras—camera-equipped variants may need additional adapter), separate USB retention adapter if factory USB present and retention desired. Fascia kits sold separately specific to vehicle model (Accent, Elantra, i30, i40, i45, iLoad, iMax, ix35, Santa Fe, Sonata, Cerato, Optima, Rio, Sorento, Sportage) and head unit size. Dashboard designs vary significantly across model range—verify fascia kit compatibility with specific vehicle. HHY3K provides core wiring integration and steering wheel control retention—additional components and fascia kit complete installation.

Technical Specifications

Frequently Asked Questions

Q: Why doesn't HHY3K include camera, USB, or antenna adapters?

A: HHY3K designed for specific mid-generation Hyundai/Kia vehicle configurations from 2008-2018 era: vehicles without factory cameras (noted as "No Fac Camera" on i30 models), vehicles without factory USB ports (predating widespread smartphone integration), specific dashboard configurations where these features not applicable. Compatibility list includes explicit notes indicating equipment exclusions—harness engineered for vehicles matching these specific configurations. Vehicles with factory cameras, USB ports, or requiring antenna adapters may need: different harness with integrated adapters (HHY22K1/K2 for newer vehicles with cameras and USB), separate camera adapter ordered additionally (CAMHY series or similar), separate antenna adapter if required, separate USB retention adapter if factory USB present. Verify your specific vehicle equipment and configuration—HHY3K provides core wiring integration and steering wheel control retention for listed configurations, additional components purchased separately if needed for features not included.

Q: How do I know which dashboard configuration my vehicle has?

A: Dashboard configuration (Dash 1, 2, 3, 4) indicates different trim levels, equipment packages, and factory head unit types. Verification methods: check existing factory head unit size and style (single-DIN, integrated touchscreen, basic display), verify trim level and equipment package from vehicle documentation, count CD/media players (ix35 "1 stacker" indicates single CD player), check for factory navigation (ix35 notes "no fac nav" for specific configurations), verify chassis code from compliance plate or VIN (LM01, LM02, LM03 for ix35; LF for Sonata). If uncertain about dashboard configuration: measure existing factory head unit, photograph dashboard and head unit, contact supplier with VIN, model year, trim level, and equipment details for compatibility confirmation. Using harness for wrong dashboard configuration results in incompatibility and non-functional installation—critical to verify before ordering.

Q: Will this work with my ix35 or i30 with factory camera?

A: Compatibility list specifically notes ix35 and i30 configurations: i30 2012-2017 Dash 1, 2 explicitly listed as "No Fac Camera" indicating harness designed for vehicles WITHOUT factory cameras. If your i30 has factory camera, HHY3K may not include camera retention functionality—separate camera adapter required or different harness needed. ix35 multiple configurations listed with various equipment exclusions—verify specific ix35 dashboard type, chassis code (LM01, LM02, LM03), and equipment (amplified vs non-amplified, navigation vs no navigation). Factory camera retention requires: camera retention adapter (separate purchase if not included in HHY3K), aftermarket head unit with reverse camera input, proper wiring connections. Contact supplier with specific vehicle details including VIN, model year, trim level, and equipment confirmation for correct harness and required additional components.

Q: What does "AST" mean for iLoad/iMax models?

A: "AST" indicates specific trim variant for Hyundai iLoad and iMax commercial vans from 2008-2010 period. iLoad/iMax offered in different trim levels and configurations—AST likely refers to specific equipment package or trim designation. Compatibility list shows: iLoad 2008-2010 (AST) and 2010-2014 (standard), iMax 2008-2010 (AST) and 2010-2014 (standard). Verify your iLoad/iMax model year and trim: 2008-2010 AST trim uses HHY3K, 2008-2010 non-AST trim may require verification, 2010-2014 models use HHY3K. If uncertain about AST designation: check vehicle compliance plate, review purchase documentation, verify trim level, contact supplier with VIN and specific vehicle details. Commercial van configurations often have equipment variations—proper harness matching critical for functional installation.

Q: Will my steering wheel controls work with any aftermarket head unit?

A: Steering wheel control retention depends on aftermarket head unit supporting external steering control input—most modern Alpine, JVC, Kenwood, Nakamichi, Pioneer, Sony head units include this feature. HHY3K provides steering wheel control interface translating factory button signals into format compatible with aftermarket head units. Some head units require brief programming/learning procedure: press buttons on steering wheel, head unit learns button functions. Consult aftermarket head unit manual for steering control setup instructions. Budget or very basic head units may lack steering control support—verify head unit specifications include "steering wheel control ready," "SWC input," or similar feature before purchasing. Quality multimedia receivers from major brands typically include comprehensive steering control compatibility suitable for 2008-2018 Hyundai/Kia vehicles.

Q: Do I need a fascia kit or just this harness?

A: HHY3K provides only wiring integration—vehicle-specific fascia kit required separately for physical head unit mounting and dashboard integration. Complete installation requires: HHY3K wiring harness (electrical connections and steering wheel control), fascia kit matching specific vehicle model and head unit size (dashboard trim panel and mounting brackets), aftermarket head unit with ISO connectors and steering control input, additional components if needed (antenna adapter, camera adapter, USB adapter depending on vehicle equipment). Fascia kits sold separately specific to each vehicle model (20+ different models in compatibility list) and head unit size/format. Dashboard designs vary significantly across Accent, Elantra, i30, i40, i45, iLoad, iMax, ix35, Santa Fe, Sonata, Cerato, Optima, Rio, Sorento, Sportage—verify fascia kit compatibility with specific vehicle model, year, and dashboard configuration. HHY3K handles wiring integration—fascia kit completes physical installation.
