CAC HHY22K1 Wiring Harness - Complete Plug-and-Play Integration Harness for Hyundai/Kia with Steering Wheel Control, Camera Retention, USB, and Antenna

CAC HHY22K1 Wiring Harness - Complete Plug-and-Play Integration Harness for Hyundai/Kia with Steering Wheel Control, Camera Retention, USB, and Antenna

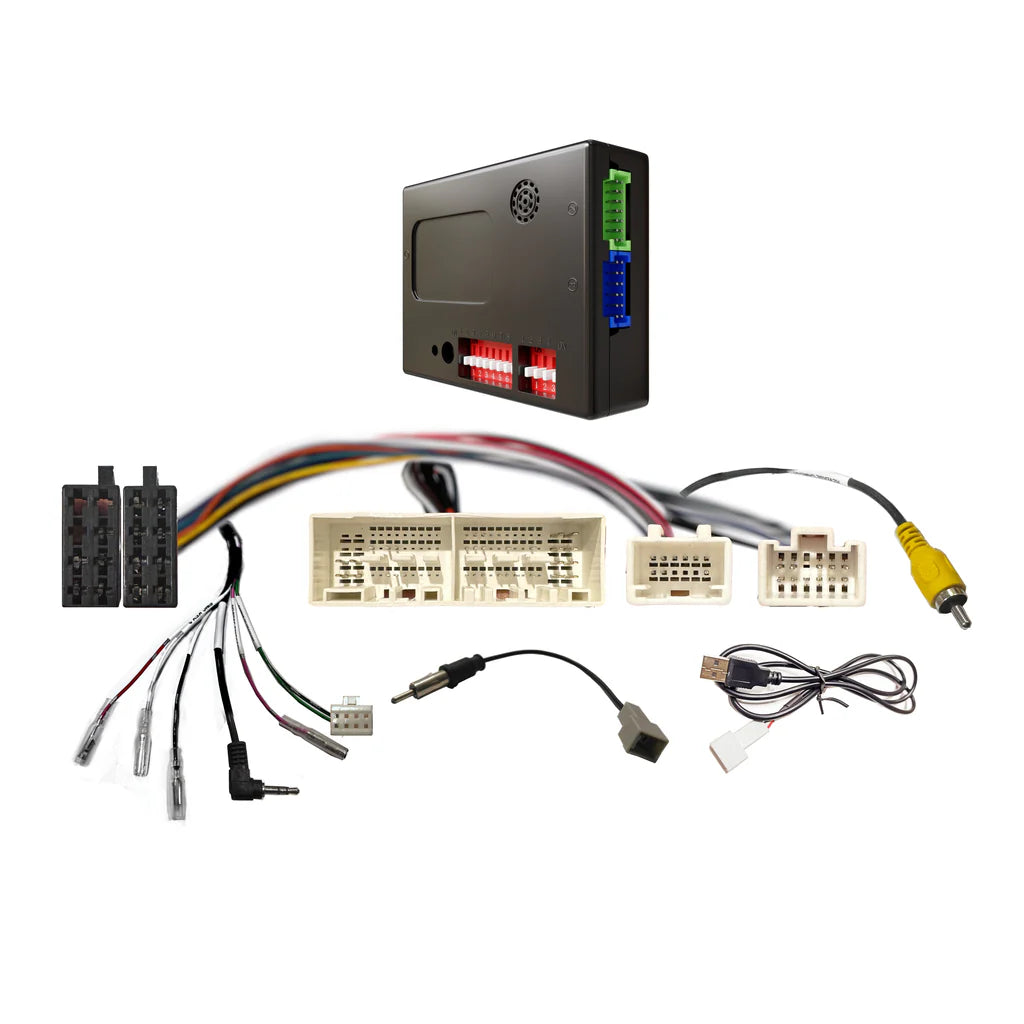

Upgrade your Hyundai or Kia head unit while retaining all factory features with Car Audio Connect HHY22K1 Complete Integration Harness—featuring comprehensive plug-and-play wiring system eliminating cutting, splicing, or modification to factory wiring, steering wheel control retention maintaining thumb control operation of volume, track, source, and phone functions, factory reverse camera retention preserving OEM backup camera functionality with aftermarket head unit display, factory USB retention maintaining original USB port for device charging and audio playback, radio antenna adapter ensuring FM/AM reception continuity, universal aftermarket head unit compatibility supporting Alpine, JVC, Kenwood, Nakamichi, Pioneer, Sony, and other major brands, direct factory connector compatibility enabling DIY installation or simplified professional fitting, and extensive vehicle coverage including Hyundai i30 (2017-2023), iLoad (2018+), iMax (2018+), Kona (2017-2022 Standard), Tucson (2018-2020), and Kia Cerato (2019-2021), Rio (2017-2023), Soul (2015+ Standard), Sportage (2015-2021 Standard). Complete wiring integration solution for standard non-amplified audio systems transforming factory head unit replacement from complex custom wiring to simple plug-and-play connection while preserving steering controls, backup camera, USB functionality, and antenna operation for modern multimedia receiver upgrades, Apple CarPlay/Android Auto integration, navigation systems, and enhanced audio without sacrificing factory convenience features.

Product Overview

The Car Audio Connect HHY22K1 represents universal wiring solution for Hyundai and Kia vehicles requiring head unit upgrades while maintaining factory feature integration. Traditional aftermarket head unit installation requires: identifying factory wire functions, cutting factory harnesses, splicing aftermarket connections, soldering/crimping individual wires, heat-shrinking connections—complex, time-consuming, error-prone process risking electrical issues or permanent factory harness damage. HHY22K1 eliminates this complexity through plug-and-play design with factory-matched connectors on one end and standardized ISO connectors on other end compatible with major aftermarket brands.

Comprehensive feature retention through integrated adapters: steering wheel control harness translates factory button signals for aftermarket head unit compatibility, camera retention adapter converts factory camera signal to standard composite video, USB retention adapter maintains factory USB port functionality, antenna adapter converts factory antenna connector to standard aftermarket format. Single harness solution replacing multiple separate adapters simplifying parts management and installation. Universal aftermarket compatibility supports Alpine, JVC, Kenwood, Nakamichi, Pioneer, Sony, and other brands using standard ISO connector format—verify head unit includes ISO connectors or ISO adapter harness.

Extensive vehicle coverage spans multiple Hyundai and Kia models from 2015-2023 including popular vehicles: Hyundai i30, iLoad, iMax, Kona, Tucson, and Kia Cerato, Rio, Soul, Sportage. Designed specifically for standard non-amplified audio systems—amplified systems require different harnesses with amplifier integration. Plug-and-play design emphasizes DIY-friendly installation without electrical expertise—connect factory harness to HHY22K1, connect HHY22K1 to aftermarket head unit, no cutting or splicing required. Reversible installation preserves factory harness integrity enabling future factory stereo reinstallation. Complete wiring integration solution for owners wanting modern head unit capabilities while maintaining factory feature integration and avoiding custom wiring complexity.

Steering Wheel Control Retention

Integrated steering wheel control interface maintains factory thumb controls operation with aftermarket head unit—volume up/down, track forward/back, source selection, phone answer/end, voice control activation. Interface translates factory steering wheel button signals (typically analog resistance or digital CANbus signals) into universal format compatible with aftermarket head units supporting steering control input. Most modern Alpine, JVC, Kenwood, Nakamichi, Pioneer, Sony head units include steering control compatibility—verify selected stereo specifications. Some head units require brief programming procedure mapping button functions—consult head unit manual for steering control setup. Maintains factory safety and convenience without dashboard reaching for volume adjustment, convenient track control during driving, hands-free phone operation.

Factory Reverse Camera Retention

Camera retention adapter converts factory backup camera signal to standard composite video format compatible with aftermarket head units—preserving parking safety and obstacle detection. Reversing engages automatic camera view on aftermarket head unit display maintaining OEM functionality. Most aftermarket multimedia receivers include reverse camera input (typically yellow RCA connector)—adapter enables plug-and-play connection. Backup camera retention essential for parking safety, reversing confidence, and preserving complete vehicle safety systems especially on vehicles where backup cameras are mandatory equipment. Camera quality depends on factory camera specification and aftermarket head unit display resolution.

Factory USB and Antenna Retention

USB retention adapter maintains factory USB port operation—preserves original USB location and functionality for device charging and audio playback (if supported by aftermarket head unit). USB functionality depends on head unit capabilities: some support USB audio playback through factory port, others charging only. Factory USB port convenience eliminates dashboard cable clutter and maintains OEM integration appearance. Radio antenna adapter converts Hyundai/Kia factory antenna connector to standard aftermarket head unit antenna input (typically Motorola/ISO style)—ensures FM/AM radio reception continuity. Maintains factory radio functionality for news, talk radio, local stations, and emergency broadcasts.

Plug-and-Play Installation

Direct factory connector compatibility eliminates cutting and splicing—harness plugs directly into factory wiring harness behind head unit, other end connects to aftermarket head unit via standard ISO connectors. Installation process: remove factory head unit, disconnect factory harness, connect factory harness to HHY22K1 input side, connect HHY22K1 output side to aftermarket head unit ISO connectors (or ISO adapter if head unit uses proprietary connectors), test functionality, secure head unit. Typical installation 30-60 minutes for DIY, faster with professional installation. Reversible installation preserves factory harness—disconnect aftermarket head unit, reconnect factory stereo, no evidence of modification. No soldering, no crimping, no electrical expertise required—straightforward plug-and-play connection accessible to mechanically inclined owners.

Universal Aftermarket Head Unit Compatibility

Harness designed for universal compatibility with major aftermarket head unit brands using ISO connector standard—Alpine, JVC, Kenwood, Nakamichi, Pioneer, Sony, and other manufacturers. ISO connector format provides standardized connection: power connector (typically 8-pin), speaker connector (typically 8-pin), additional connections for steering wheel control, reverse camera, illumination. Most aftermarket head units include ISO connectors or ISO adapter harness—verify head unit packaging or specifications. Harness not compatible with proprietary connector formats without appropriate ISO adapter. Universal design accommodates single-DIN, double-DIN, flip-out, floating screen, and other aftermarket head unit formats—harness connects electrically regardless of physical head unit size (fascia/mounting kit required separately for physical installation).

Extensive Vehicle Coverage

Compatible with multiple Hyundai and Kia models spanning 2015-2023: Hyundai i30 2017-2023 (Dash 1, 2, 3), Hyundai iLoad 2018+, Hyundai iMax 2018+, Hyundai Kona 2017-2022 (Dash 1, 2 Standard non-amplified), Hyundai Tucson 2018-2020 (Dash 1), Kia Cerato 2019-2021 (Dash 1, 2), Kia Rio 2017-2023 (Dash 1, 2), Kia Soul 2015+ (Standard non-amplified), Kia Sportage 2015-2018 and 2019-2021 (Standard non-amplified, note: factory dash button functions will change). Designed specifically for standard non-amplified audio systems—vehicles with premium amplified systems require different harnesses with amplifier integration. Verify vehicle compatibility carefully: model year, dashboard configuration (Dash 1/2/3), audio system type (standard vs amplified). Contact supplier with specific vehicle details for compatibility confirmation if uncertain.

Technical Specifications

Frequently Asked Questions

Q: Will this harness work with my vehicle's amplified audio system?

A: No, HHY22K1 designed specifically for standard non-amplified audio systems. Amplified systems (premium audio with factory amplifier) require different harnesses with amplifier integration maintaining factory amplifier operation. Using standard harness on amplified system results in poor sound quality, non-functional speakers, or potential amplifier damage. Verify your vehicle audio system: premium audio badges (Infinity, Harman Kardon), superior sound quality, amplifier location behind head unit or under seats indicates amplified system requiring specialized harness. Standard audio systems without premium badges use HHY22K1. Contact supplier with specific vehicle details including trim level and audio system for correct harness recommendation if uncertain.

Q: What does "factory dash button functions will change" mean for Kia Sportage?

A: Kia Sportage 2015-2021 models feature factory dashboard buttons integrated with factory head unit controlling audio/climate functions. Installing aftermarket head unit changes or disables some dashboard button functionality—buttons may control different functions or become non-functional depending on aftermarket head unit capabilities. Most users accept this trade-off for modern head unit features (Apple CarPlay, Android Auto, navigation, larger screens). Alternative: Sportage-specific head units maintaining dashboard button integration (higher cost, limited selection). Standard aftermarket head units provide touchscreen control replacing dashboard buttons. Climate control buttons typically remain functional—primarily audio-related dashboard buttons affected.

Q: Do I need a fascia kit or just this harness?

A: HHY22K1 provides only wiring integration—fascia kit required separately for physical head unit mounting and dashboard integration. Complete installation requires: HHY22K1 wiring harness (electrical connections), fascia kit matching vehicle and head unit size (dashboard trim panel and mounting brackets), aftermarket head unit. Fascia kits sold separately specific to vehicle model and head unit size (single-DIN, double-DIN, 9", 10", etc.). Some vehicles require additional components: steering wheel control modules, CANbus adapters depending on specific configuration. HHY22K1 handles core wiring integration—fascia kit completes physical installation. Search for vehicle-specific fascia kits matching your head unit size.

Q: Will my steering wheel controls work with any aftermarket head unit?

A: Steering wheel control retention depends on aftermarket head unit supporting external steering control input—most modern Alpine, JVC, Kenwood, Nakamichi, Pioneer, Sony head units include this feature. HHY22K1 provides steering wheel control interface translating factory button signals into format compatible with aftermarket head units. Some head units require brief programming/learning procedure: press buttons on steering wheel, head unit learns button functions. Consult aftermarket head unit manual for steering control setup instructions. Budget or older head units may lack steering control support—verify head unit specifications before purchasing. Quality multimedia receivers from major brands typically include comprehensive steering control compatibility.

Q: Can I install this myself or need professional installation?

A: Plug-and-play design enables DIY installation for mechanically inclined owners—no cutting wires, no soldering, no electrical expertise required. Installation process straightforward: remove factory head unit (dashboard trim removal), disconnect factory harness, connect factory harness to HHY22K1, connect HHY22K1 to aftermarket head unit, test functionality, secure head unit, reinstall dashboard trim. Typical DIY installation 30-60 minutes for wiring (additional time for fascia installation and dashboard reassembly). Online installation guides and videos available for most vehicles. Basic hand tools sufficient: trim removal tools, screwdrivers, socket set. Professional installation recommended if: uncomfortable with dashboard disassembly, uncertain about connection procedures, wanting warranty on installation work. Professional car audio shops install these harnesses routinely—typically under 1 hour labor charges.

Q: What if my aftermarket head unit doesn't have ISO connectors?

A: Many aftermarket head units (especially brand-specific models) use proprietary connectors but include ISO adapter harness converting proprietary to ISO format. Check head unit packaging or specifications for "ISO harness included" or "ISO adapter included." If head unit uses proprietary connectors without ISO adapter, purchase brand-specific ISO adapter separately (typically $10-30). Alternatively, some harnesses use direct brand-specific connections—verify HHY22K1 compatibility or consider brand-specific harnesses. Most universal multimedia receivers use ISO standard directly. Contact head unit manufacturer or retailer to confirm ISO compatibility or adapter availability before purchasing.
