CAC HGM3K Wiring Harness - Plug-and-Play Integration Harness for Holden 2009-2018 with SWC, Camera Retention, and Antenna

CAC HGM3K Wiring Harness - Plug-and-Play Integration Harness for Holden 2009-2018 with SWC, Camera Retention, and Antenna

Upgrade your Holden head unit while retaining factory features with Car Audio Connect HGM3K Integration Harness—featuring comprehensive plug-and-play wiring system eliminating cutting, splicing, or modification to factory wiring, steering wheel control retention maintaining thumb control operation of volume, track, source, and phone functions on Holden multifunction steering wheel, reverse camera retention maintaining factory backup camera functionality with aftermarket head unit display (selected models), factory radio antenna adapter ensuring FM/AM radio reception continuity with aftermarket head unit, universal aftermarket head unit compatibility supporting Alpine, JVC, Kenwood, Nakamichi, Pioneer, Sony, and other major brands using ISO connector format, direct factory connector compatibility enabling DIY installation or simplified professional fitting, and specific vehicle coverage for Holden Barina (2011-2016 Dash 1, 2), Colorado (2014-2016 Mylink), Cruze (2009-2016 Dash 1, 2), Trax (2013-2017), and Commodore VF (2013-2018 Dash 1) with standard audio systems. Complete wiring integration solution for mid-generation Holden vehicles transforming factory head unit replacement from complex custom wiring to simple plug-and-play connection while preserving steering wheel control convenience, camera functionality (where equipped), and antenna operation for modern multimedia receiver upgrades, Bluetooth connectivity, USB audio playback, Apple CarPlay/Android Auto integration, and enhanced features without sacrificing Holden factory integration quality in these 2009-2018 generation vehicles (note: Cruze Dash 2 and Commodore VF Dash 1 require separate camera adapter—order separately if vehicle equipped with factory camera).

Product Overview

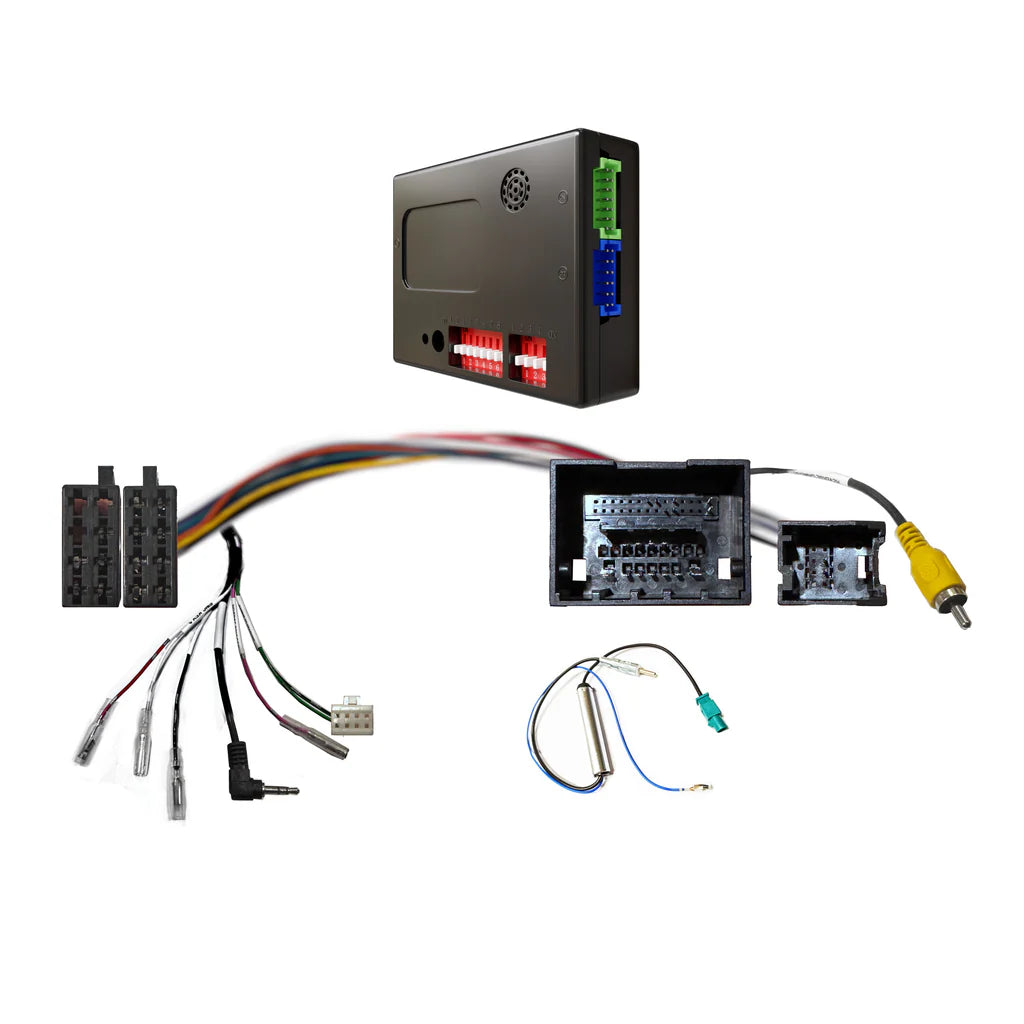

The Car Audio Connect HGM3K represents comprehensive wiring solution specifically engineered for mid-generation Holden vehicles from 2009-2018 spanning popular models including Barina, Colorado, Cruze, Trax, and Commodore VF with standard audio systems. HGM3K eliminates complex aftermarket installation through plug-and-play design with Holden factory-matched connectors on one end and standardized ISO connectors on other end compatible with major aftermarket brands—maintaining factory steering wheel controls, camera retention (selected models), and antenna reception through integrated harness solution designed for Australian-market Holden vehicles including Mylink infotainment system compatibility on Colorado models.

Key Features

Steering Wheel Control Retention - Integrated steering wheel control interface maintains Holden factory steering wheel control operation with aftermarket head unit—volume up/down, track forward/back, source selection, phone answer/end, voice control activation. Interface translates Holden-specific button signals (resistance-based or CANbus protocols in 2009-2018 vehicles) into universal format compatible with aftermarket head units supporting steering control input. Most modern Alpine, JVC, Kenwood, Nakamichi, Pioneer, Sony head units include steering control compatibility—verify selected stereo specifications. Some head units require brief programming procedure mapping button functions—consult head unit manual for steering control setup. Holden multifunction steering wheels feature comprehensive button layouts providing extensive control functionality maintaining driver-focused controls.

Factory Reverse Camera Retention (Selected Models) - Factory reverse camera retention adapter converts Holden factory camera signal to standard composite video format compatible with aftermarket head unit camera inputs—maintains automatic camera activation when shifting to reverse gear displaying camera image on aftermarket head unit screen. Critical safety feature preservation—backup cameras functionally essential for safe reversing in modern vehicles. Camera retention selective on specific models: Barina, Colorado Mylink, Cruze Dash 1, and Trax include integrated camera retention through HGM3K harness. Important compatibility notes: Cruze Dash 2 and Commodore VF Dash 1 require separate camera adapter (order separately if vehicle equipped with factory camera). Aftermarket head unit must include rear camera input—most modern multimedia receivers include camera compatibility as standard feature.

Factory Antenna Adapter - Integrated antenna adapter converts Holden proprietary antenna connector to standard aftermarket head unit antenna input format (typically Motorola/ISO style)—ensures FM/AM radio reception continuity. Holden vehicles use manufacturer-specific antenna connector formats incompatible with standard aftermarket antenna inputs—adapter eliminates need for separate antenna adapter purchase simplifying installation parts management. Maintains factory radio functionality for news, talk radio, local stations, emergency broadcasts. Single integrated solution combining wiring harness, steering wheel control interface, camera retention (selected models), and antenna adapter reducing installation complexity and parts count compared to purchasing separate components.

Holden 2009-2018 Vehicle Coverage - Compatible with multiple Holden models spanning 2009-2018: Barina 2011-2016 (Dash 1, 2—compact hatchback/sedan), Colorado 2014-2016 (Mylink infotainment system—midsize ute/pickup), Cruze 2009-2016 (Dash 1 with integrated camera retention, Dash 2 requires separate camera adapter—compact sedan/hatchback), Trax 2013-2017 (compact crossover SUV), Commodore VF 2013-2018 (Dash 1 requires separate camera adapter—full-size sedan/wagon final generation). Dash configuration critical for compatibility—verify specific dashboard type matching vehicle year and trim level. Mylink system compatibility on Colorado models ensures proper integration with General Motors infotainment platform. Single harness solution accommodating diverse Holden lineup from compact cars to full-size sedans and utes representing Australian-market vehicles from late 2000s to late 2010s.

Plug-and-Play Installation - Direct Holden factory connector compatibility eliminates cutting and splicing—harness plugs directly into factory wiring harness behind head unit, other end connects to aftermarket head unit via standard ISO connectors. Installation process: remove factory Holden head unit (dashboard trim removal procedures vary by model—Barina, Colorado, Cruze, Trax, Commodore each have different dashboard designs), disconnect factory harness, antenna, and camera connections (if equipped), connect factory harness to HGM3K input side, connect factory antenna to HGM3K antenna adapter, connect factory camera to camera retention adapter (if integrated or add separate adapter for Cruze Dash 2/Commodore VF Dash 1), connect HGM3K output side to aftermarket head unit ISO connectors, test functionality including steering wheel controls, camera display, and radio reception, secure head unit, reinstall dashboard trim. Reversible installation preserves factory harness integrity enabling future factory stereo reinstallation maintaining vehicle value.

Technical Specifications

Frequently Asked Questions

Q: Does my vehicle require a separate camera adapter?

A: Camera retention varies by model and dash configuration. Integrated camera retention (included in HGM3K): Barina 2011-2016 Dash 1, 2, Colorado 2014-2016 Mylink, Cruze 2009-2016 Dash 1, Trax 2013-2017. Separate camera adapter required (order separately): Cruze 2009-2016 Dash 2, Commodore VF 2013-2018 Dash 1. If your Cruze has Dash 2 configuration or Commodore VF has Dash 1 configuration AND vehicle equipped with factory camera, order separate camera adapter in addition to HGM3K harness. Contact supplier for correct camera adapter part number matching your specific vehicle and dash configuration. Vehicles without factory camera do not require camera adapter regardless of dash configuration.

Q: Will this work with my Holden Colorado with Mylink system?

A: Yes, HGM3K specifically designed for Holden Colorado 2014-2016 with Mylink infotainment system. Mylink represents General Motors' advanced infotainment platform featuring touchscreen interface, voice recognition, smartphone integration. HGM3K maintains steering wheel control functionality and camera retention with Mylink-equipped Colorado models enabling aftermarket head unit installation while preserving factory integration. Aftermarket head unit must support steering wheel control input and camera input for complete functionality. Mylink dashboard removal requires careful attention to trim clips and connector locations—professional installation recommended for Mylink systems ensuring proper disassembly and reassembly without damage to complex dashboard components.

Q: What's the difference between Cruze Dash 1 and Dash 2?

A: Holden Cruze 2009-2016 available with two different dashboard configurations depending on factory equipment level and production year. Dash 1 features integrated camera retention through HGM3K harness—no separate camera adapter required. Dash 2 features different electrical architecture requiring separate camera adapter purchased separately for camera retention functionality. Verify your Cruze dash configuration: check dashboard design, factory head unit size and style, or contact supplier with vehicle year, trim level, and VIN for dash configuration verification. Using incorrect dash configuration specification results in incomplete feature retention requiring additional adapter purchase. Camera retention critical safety feature—verify correct dash configuration and camera adapter requirements before ordering.

Q: Does HGM3K work with amplified Commodore VF models?

A: HGM3K designed for standard non-amplified audio systems. Holden Commodore VF 2013-2018 offered both standard audio and premium amplified systems depending on trim level (SS, SV6, SSV models often included upgraded audio). Verify your Commodore has standard audio system through: absence of premium audio badges on speakers/dashboard, standard audio quality compared to premium models, vehicle specifications documentation. Vehicles with premium amplified systems require different harness with amplifier integration capabilities. Contact supplier for correct harness recommendation if Commodore VF equipped with amplified audio system. Using standard harness on amplified vehicle results in no audio output or bypassed amplifier losing audio quality. Important: Commodore VF Dash 1 requires separate camera adapter regardless of audio system type.

Q: Can I install HGM3K myself or do I need professional installation?

A: DIY installation possible for mechanically inclined owners comfortable with Holden dashboard procedures—typical installation 1-2 hours depending on model complexity. Installation requires: removing factory head unit (dashboard trim removal varies by model—clips and screws), connecting harness correctly to factory wiring and aftermarket head unit, adding separate camera adapter if Cruze Dash 2 or Commodore VF Dash 1, configuring aftermarket stereo for steering wheel controls and camera trigger, testing all features. Professional installation recommended for: Colorado Mylink systems (complex dashboard requiring careful disassembly), first-time installers unfamiliar with Holden dashboard procedures, vehicles requiring separate camera adapter integration. Professional car audio shops experienced with Holden installations ensure: correct harness connections, proper camera adapter integration where required, steering wheel control programming, complete feature testing, proper dashboard reassembly. Professional installation provides warranty on work ensuring optimal functionality.
