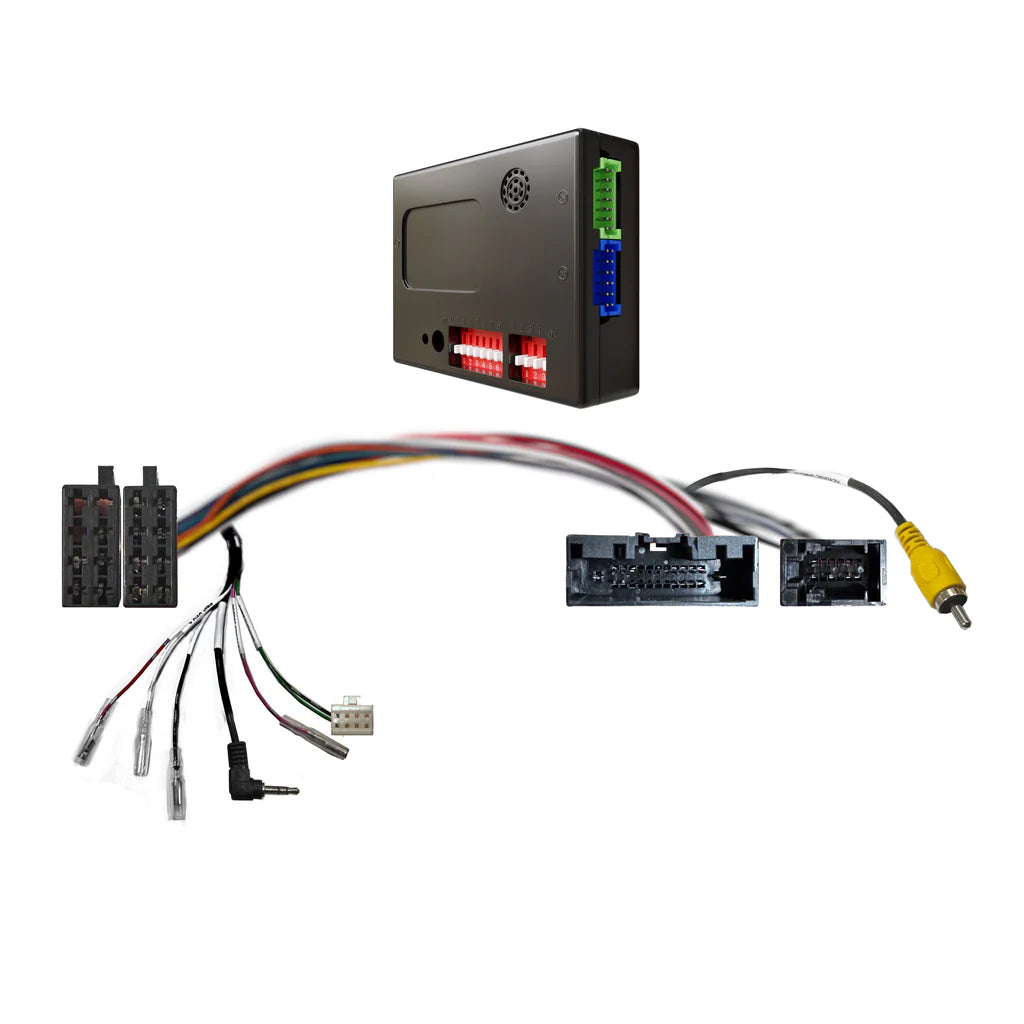

CAC HFD2K Wiring Harness for Ford and Mazda Vehicles

CAC HFD2K Wiring Harness for Ford and Mazda Vehicles

Professional-grade wiring harness enabling aftermarket head unit installation with full steering wheel control retention including Bluetooth buttons and factory reverse camera functionality for Ford and Mazda vehicles 2012-2019. The Car Audio Connect CAC HFD2K harness is specifically designed for comprehensive vehicle integration across Ford Ecosport, Focus, Kuga, Ranger, Transit, and Mazda BT-50 models providing seamless plug-and-play connection between factory wiring and aftermarket head units from Alpine, JVC, Kenwood, Nakamichi, Pioneer, Sony, and other major brands. This versatile integration harness maintains essential factory functions including complete steering wheel control operation with Bluetooth button functionality, factory reverse camera retention (2015-2018 Ford Ranger), and time setting capability from factory steering wheel controls on selected models eliminating feature loss during head unit upgrades. The plug-and-play design eliminates complex wiring modifications through direct connection to factory harnesses ensuring reliable operation and professional installation results across diverse Ford and Mazda vehicle applications without cutting factory wires or requiring specialized electronics knowledge.

Product Overview

Car Audio Connect CAC harness is designed to suit a range of vehicles. Upgrade your head unit without losing factory functions. Plug and Play connect directly to factory wiring with easy installation. Suits Alpine, JVC, Kenwood, Nakamichi, Pioneer, Sony and other brand stereos.

Comprehensive Vehicle Compatibility:

This harness provides extensive coverage across multiple Ford and Mazda model ranges including Ford Ecosport 2013-2017, Focus 2012-2018, Kuga 2013+, Ranger 2012-2018, Transit Custom 2013-2017, Transit VO 2014-2017, and Mazda BT-50 2012-2019. The dash configuration-specific design accommodates various factory wiring architectures ensuring proper functionality across different dash variations within compatible model years.

Essential Feature Retention:

The HFD2K harness maintains critical factory functions including steering wheel controls with Bluetooth button operation, factory reverse camera display (2015-2018 Ford Ranger MKII Dash 1), and time setting from factory via steering wheel controls on selected models. This comprehensive feature retention ensures aftermarket head unit installations maintain factory convenience and safety features without requiring additional adapters or complex programming.

Features & Benefits

Complete Steering Wheel Control Retention

Advanced steering wheel control integration maintains full factory steering wheel button functionality including volume control, track navigation, source selection, and Bluetooth button operation across all compatible Ford and Mazda models. This comprehensive SWC retention ensures convenient driver-focused control during aftermarket head unit operation without compromising safety or ergonomics enabling hands-free phone operation and audio control without reaching for head unit touchscreen.

Factory Reverse Camera Retention

Integrated camera retention capability maintains factory reverse camera functionality on 2015-2018 Ford Ranger MKII Dash 1 models ensuring continuous rear visibility assistance and parking safety during aftermarket head unit installation. The camera retention function provides seamless video signal integration with compatible aftermarket head units featuring camera input capability maintaining original equipment safety features and driver assistance functionality crucial for truck maneuvering and trailer operations.

Universal Aftermarket Head Unit Compatibility

Comprehensive head unit brand compatibility ensures reliable operation with Alpine, JVC, Kenwood, Nakamichi, Pioneer, Sony, and other major aftermarket head unit manufacturers. The standardized output connection accommodates various head unit wiring configurations eliminating compatibility concerns during installation ensuring successful integration across diverse aftermarket head unit selections from budget-friendly models to premium navigation and multimedia systems.

Plug-and-Play Installation

Streamlined installation process eliminates complex wiring modifications through direct plug-and-play connection to factory harnesses. The harness connects between factory vehicle wiring and aftermarket head unit harness without cutting factory wires maintaining ability to return to factory configuration if needed. This non-destructive installation approach ensures professional results without requiring specialized electronics knowledge or custom wiring fabrication.

Time Setting Function from Factory Controls

Selected compatible models support automatic time setting through factory steering wheel controls enabling time synchronization without manual head unit menu navigation. This convenient feature maintains factory-style time adjustment capability ensuring accurate clock display across daylight saving changes and time zone transitions without requiring head unit touchscreen access particularly beneficial during driving when menu navigation is unsafe.

Dash Configuration Specific Design

Precision-engineered harness design accommodates specific dash configurations across compatible Ford and Mazda models ensuring proper feature retention and functionality. The dash-specific architecture addresses wiring variations between different factory dash configurations within same model years ensuring reliable operation across Dash 1, Dash 2, and other configuration variants without compatibility issues or feature loss.

Technical Specifications

Compatible With

Ford Vehicle Compatibility:

• Ford Ecosport 2013-2017 (All variants)
• Ford Focus 2012-2014 Dash 1 and Dash 2
• Ford Focus 2015-2018 Dash 1
• Ford Kuga 2013+ (All variants)
• Ford Ranger 2012-2015 (All variants)
• Ford Ranger 2015-2018 MKII Dash 1
• Ford Transit Custom 2013-2017
• Ford Transit VO 2014-2017

Mazda Vehicle Compatibility:

• Mazda BT-50 2012-2018 Dash 1
• Mazda BT-50 2018-2019 Dash 1 Alpine 7"

Aftermarket Head Unit Compatibility:

• Alpine Head Units (all models with SWC input)
• JVC Head Units (all models with SWC input)
• Kenwood Head Units (all models with SWC input)
• Nakamichi Head Units (all models with SWC input)
• Pioneer Head Units (all models with SWC input)
• Sony Head Units (all models with SWC input)
• Other Major Brand Head Units with steering wheel control input capability

Camera Retention Compatibility:

• 2015-2018 Ford Ranger MKII Dash 1 (factory reverse camera retention)
• Aftermarket head units with camera input capability required

Important Compatibility Notes:

• Verify specific dash configuration before purchase
• Camera retention function specific to 2015-2018 Ford Ranger MKII Dash 1 only
• Time setting function available on selected models only
• SWC functionality requires aftermarket head unit with steering wheel control input

Frequently Asked Questions

Q: Does the CAC HFD2K harness retain steering wheel controls including Bluetooth buttons?

Yes, the CAC HFD2K harness retains full factory steering wheel control functionality including volume control, track navigation, source selection, and Bluetooth button operation across all compatible Ford and Mazda models. The comprehensive SWC integration ensures convenient driver-focused control during aftermarket head unit operation maintaining hands-free phone capability and audio control without compromising safety or ergonomics. SWC functionality requires aftermarket head unit with steering wheel control input capability.

Q: Which vehicles support factory reverse camera retention with this harness?

Factory reverse camera retention is specifically supported on 2015-2018 Ford Ranger MKII Dash 1 models only. Other compatible Ford and Mazda models listed do not include camera retention functionality through this harness. For camera retention on 2015-2018 Ranger MKII Dash 1, the aftermarket head unit must have camera input capability to display factory camera feed during reverse gear engagement. Contact us to verify camera retention compatibility for your specific vehicle configuration.

Q: Will this harness work with any aftermarket head unit brand?

Yes, the CAC HFD2K harness is designed for universal compatibility with Alpine, JVC, Kenwood, Nakamichi, Pioneer, Sony, and other major aftermarket head unit brands. The standardized output connection accommodates various head unit wiring configurations ensuring reliable operation across budget-friendly models to premium navigation and multimedia systems. The head unit must have steering wheel control input capability to utilize SWC retention functionality, and camera input capability if using camera retention on compatible Ranger models.

Q: Does installation require cutting factory wires or is it truly plug-and-play?

The CAC HFD2K features true plug-and-play installation connecting directly between factory vehicle wiring and aftermarket head unit harness without cutting factory wires. This non-destructive installation approach maintains ability to return to factory configuration if needed ensuring professional results without requiring specialized electronics knowledge or custom wiring fabrication. Simply disconnect factory head unit, connect HFD2K harness to factory connectors, then connect aftermarket head unit to HFD2K output ensuring proper installation sequence.

Q: What is the time setting function and which models support it?

The time setting function enables automatic time adjustment through factory steering wheel controls on selected compatible models eliminating need for manual head unit menu navigation during time synchronization. This factory-style convenience feature maintains familiar time adjustment method particularly beneficial during daylight saving changes and time zone transitions. Time setting function availability varies by specific vehicle model and dash configuration. Contact us to verify time setting function compatibility for your specific Ford or Mazda vehicle before purchase.
