CAC FXMA22K2 9/10 Inch Fascia Kit - Mazda CX-5 2015-2017 Dash 1 & 2 Integration Kit

CAC FXMA22K2 9/10 Inch Fascia Kit - Mazda CX-5 2015-2017 Dash 1 & 2 Integration Kit

Complete 9 or 10-inch fascia installation kit for Mazda CX-5 with Dash 1 or Dash 2 configuration, including OEM-style fascia panel, steering wheel control harness, radio antenna adapter, and factory camera retention for seamless aftermarket head unit integration.

Product Overview

The Car Audio Connect FXMA22K2 9/10 Inch Fascia Kit is a comprehensive installation solution specifically designed for Mazda CX-5 vehicles with Dash 1 or Dash 2 configuration from 2015-2017, providing everything needed to upgrade to a modern 9-inch or 10-inch aftermarket head unit with OEM-style integration and comprehensive factory feature retention. This complete kit includes a precision-molded fascia panel that accommodates both 9-inch and 10-inch trapezoid head units and matches factory dashboard aesthetics, plus steering wheel control harness with Bluetooth button retention, radio antenna adapter, and factory camera retention for complete functionality preservation. Designed specifically for universal trapezoid 9-inch or 10-inch stereos, the FXMA22K2 works seamlessly with Alpine AW409S, AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Nakamichi Android systems, and other aftermarket Android stereos, providing flexibility in head unit selection while maintaining professional OEM appearance. The kit retains full steering wheel control functionality including the Bluetooth button for hands-free calling, allowing drivers to maintain safe, convenient access to audio functions without taking hands off the wheel. Factory center console control retention supports volume up/down, mute, track backward/forward functions, with other buttons functioning as MODE for additional control options. Factory reverse camera functionality is preserved, ensuring continued use of the existing backup camera system for safe reversing with compatible aftermarket head units. The included factory radio antenna adapter maintains AM/FM reception quality. For vehicles equipped with factory BOSE premium audio systems, this kit is fully compatible when used with the HEXT3 adapter (ordered separately) to retain factory amplifier functionality and maintain optimal sound quality. The plug-and-play design with included harnesses and adapters means no cutting or splicing of factory wiring is required, preserving the vehicle's electrical system integrity and resale value while enabling straightforward installation. Engineered specifically for Mazda CX-5 models from 2015-2017 with Dash 1 or Dash 2 configuration, the FXMA22K2 ensures proper fitment, connector compatibility, and signal integration for reliable operation. Feature retention will depend on the specific aftermarket radio model selected, with compatible head units providing full functionality. Professional-grade construction with high-quality materials ensures reliable operation and longevity in the demanding automotive environment.

Features & Benefits

Dual Size Compatibility: Accommodates both 9-inch and 10-inch universal trapezoid stereos, providing maximum flexibility in head unit selection for modern large-screen infotainment systems with enhanced display sizes and features.

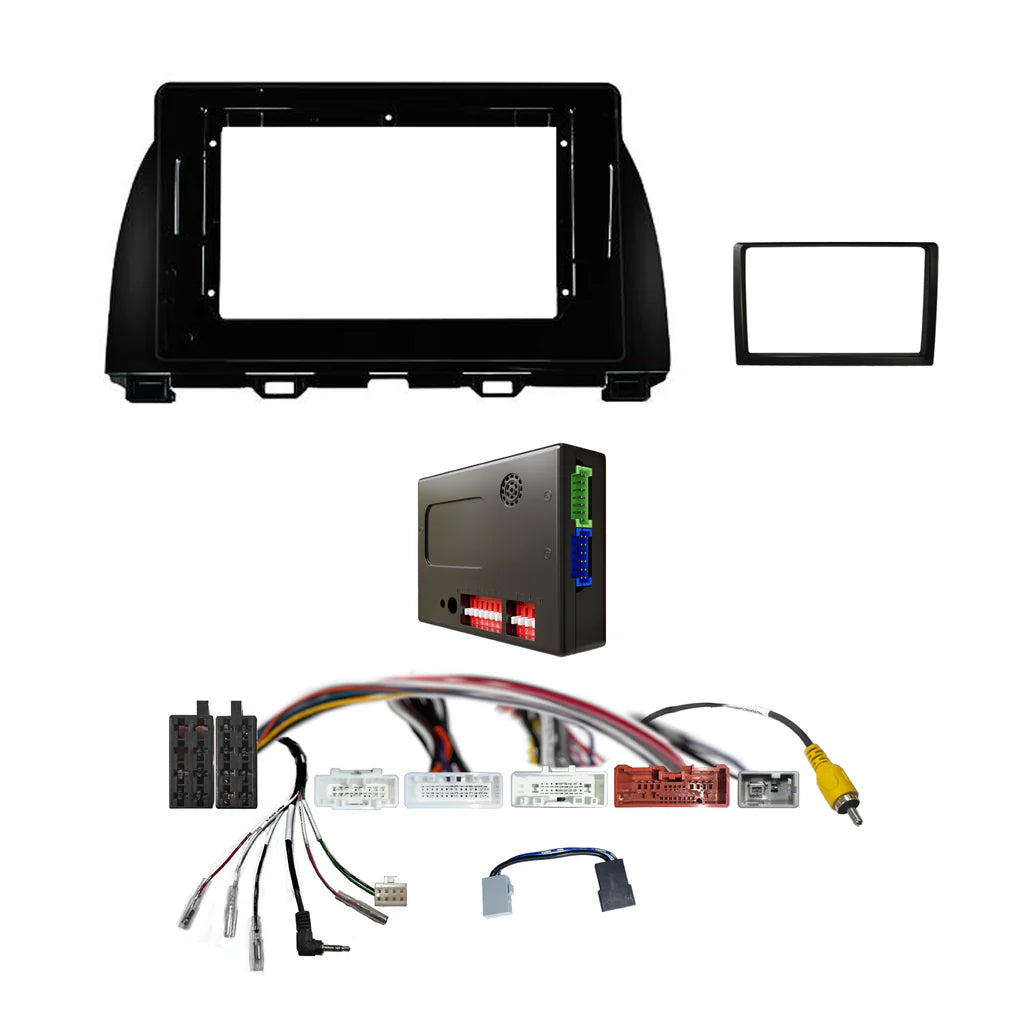

Complete Integration Solution: Includes precision-molded fascia panel, steering wheel control harness with BT button retention, radio antenna adapter, and factory camera retention—everything needed for professional OEM-style installation.

OEM-Style Fascia Design: Precision-molded fascia panel matches factory Mazda CX-5 dashboard aesthetics for professional appearance that looks like it came from the factory, enhancing vehicle interior while accommodating modern large-screen head units.

Comprehensive Feature Retention: Preserves steering wheel controls including Bluetooth button, factory center console controls (volume +/-, mute, track backward/forward, MODE), factory reverse camera, and radio antenna for complete functionality.

Wide Head Unit Compatibility: Works with Alpine AW409S, AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Nakamichi Android systems, and other aftermarket trapezoid 9/10-inch stereos for maximum flexibility in head unit selection.

BOSE System Compatible: Fully compatible with factory BOSE premium audio systems when used with HEXT3 adapter (ordered separately), maintaining optimal sound quality and factory amplifier functionality without expensive amplifier replacement.

Universal Dash Configuration Support: Designed for both Dash 1 and Dash 2 configurations in Mazda CX-5 2015-2017 models, providing broad compatibility across different trim levels and equipment packages within the specified model years.

Technical Specifications

Compatible With

The CAC FXMA22K2 9/10 Inch Fascia Kit is specifically compatible with Mazda CX-5 vehicles manufactured from 2015-2017 with either Dash 1 or Dash 2 configuration. Works with universal trapezoid 9-inch or 10-inch aftermarket head units including Alpine AW409S, Alpine AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Nakamichi Android stereos, and other aftermarket Android stereos with trapezoid form factor. Retains steering wheel controls including Bluetooth button, factory center console controls, factory reverse camera, and factory radio antenna. For vehicles equipped with factory BOSE premium audio systems, use with HEXT3 adapter (ordered separately) to maintain factory amplifier functionality. Not suitable for Mazda CX-5 vehicles outside the 2015-2017 model years, other Mazda models, or standard-size (single DIN/double DIN) head units. Ideal for Mazda CX-5 owners upgrading to modern large-screen head units with features like Apple CarPlay, Android Auto, Bluetooth, navigation, or enhanced audio capabilities while maintaining factory system integration and OEM appearance.

Frequently Asked Questions

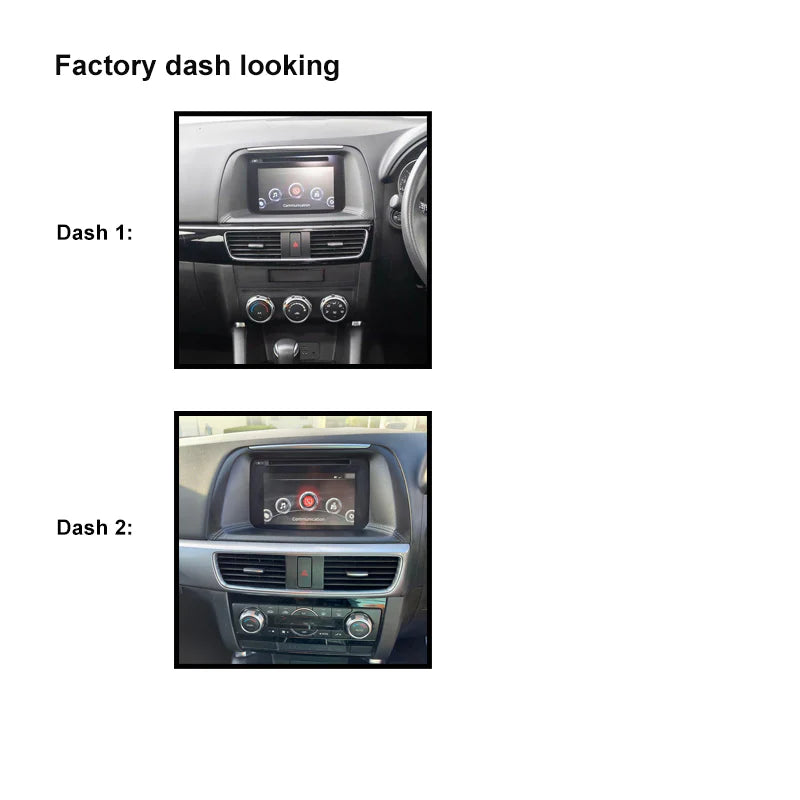

What is the difference between Dash 1 and Dash 2 configuration? Dash 1 and Dash 2 refer to different dashboard designs or trim levels used in Mazda CX-5 2015-2017 models. The FXMA22K2 is designed to accommodate both configurations, providing universal compatibility across different CX-5 variants within the specified model years without requiring separate kits.

Can I use either a 9-inch or 10-inch head unit with this kit? Yes, the FXMA22K2 fascia panel is designed to accommodate both 9-inch and 10-inch universal trapezoid stereos, giving you flexibility to choose the screen size that best suits your preferences and budget while maintaining proper fitment and professional appearance.

What's included in the complete fascia kit? The FXMA22K2 includes a 9/10-inch fascia panel, steering wheel control harness with Bluetooth button retention, radio antenna adapter for AM/FM reception, and factory camera retention for backup camera functionality. This is everything needed for complete integration with compatible head units.

Will this kit work with my factory BOSE system? Yes, the FXMA22K2 is fully compatible with factory BOSE premium audio systems when used with the HEXT3 adapter, which must be ordered separately. The combination maintains factory amplifier functionality and optimal sound quality without requiring amplifier replacement.

What steering wheel control functions are retained? The FXMA22K2 retains all steering wheel control functions including the Bluetooth button for hands-free calling, volume up/down, track selection, source switching, and other audio controls. Center console controls support volume +/-, mute, track backward/forward, with other buttons functioning as MODE.
