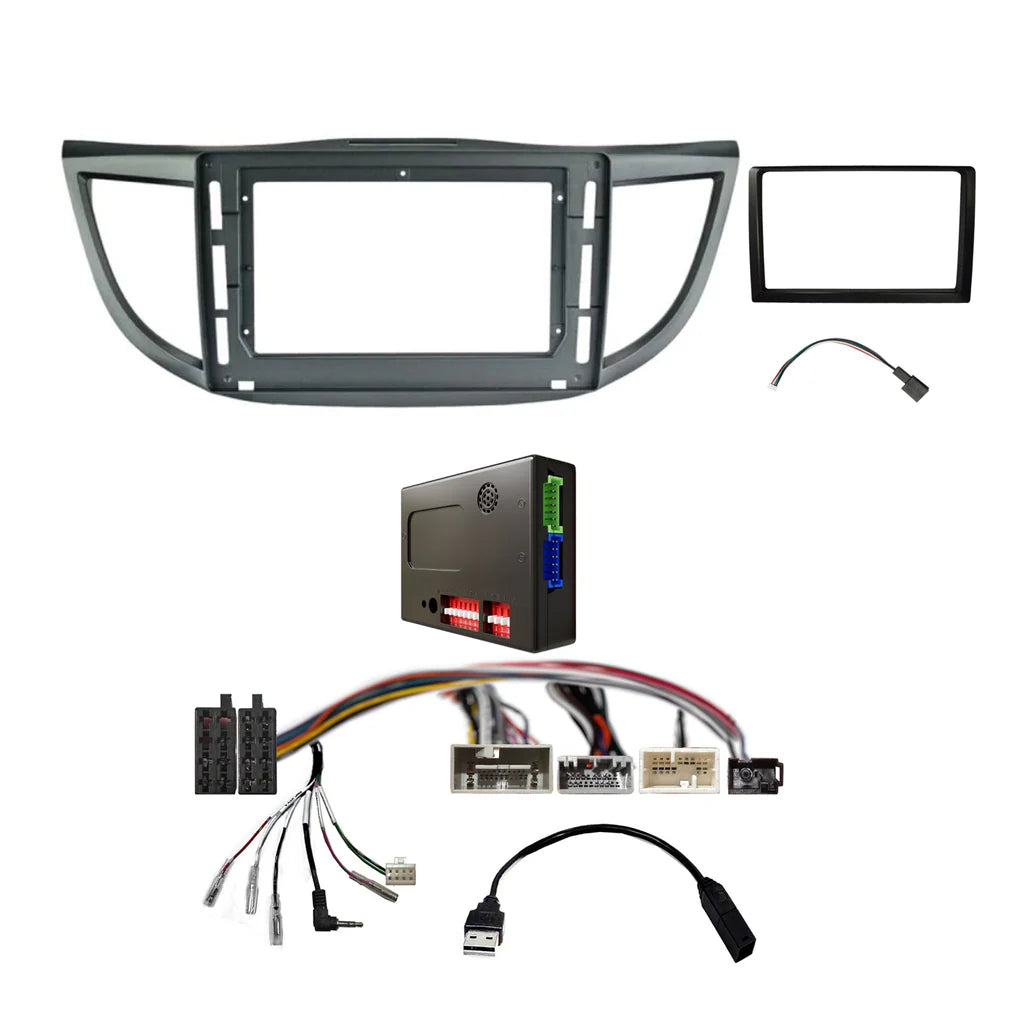

CAC FXHD7K1 - 9 Inch Fascia Kit with Harness for Honda CR-V 2012-2017 Dash 1
Complete 9 inch fascia integration kit for Honda CR-V 2012-2017 Dash 1 enabling large-screen aftermarket head unit installation while retaining steering wheel controls including Bluetooth buttons, USB connectivity, and antenna connection. The Car Audio Connect CAC FXHD7K1 fascia kit is specifically designed for Honda CR-V 2012-2017 Dash 1 configuration providing OEM-style professional mounting solution for universal trapezoid 9 inch or 10 inch aftermarket head units with seamless plug-and-play connection to factory wiring systems. This integration kit includes steering wheel control harness, radio antenna adapter, and USB adapter enabling functionality preservation during head unit upgrades. Compatible with Alpine AW409S/AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Nakamichi Android systems, and aftermarket Android stereos featuring universal trapezoid mounting format, this fascia kit eliminates complex installation modifications through direct plug-and-play connection enabling professional OEM-style appearance.
Product Overview
Car Audio Connect CAC 9 Inch Fascia Kit is designed to suit a range of vehicles. Upgrade your head unit with OEM style. Plug and Play connect directly to factory wiring with easy installation.
Important Installation Requirements:
Suits universal trapezoid 9 inch or 10 inch stereo only. Work with Alpine AW409S, AX809, Pioneer DMH-AP6650BT, Nakamichi Canbus System. Feature retention will depend on the radio model.
Suit Headunit:
- Alpine AW409S, AX809
- Kenwood DMX80AXS
- Pioneer DMH-AP6650BT
- Nakamichi Android Stereo
- Aftermarket Android Stereo
Compatible With:
- Honda CR-V 2012-2017 Dash 1
Important Notes:
Universal Trapezoid Format Required: Designed ONLY for universal trapezoid 9" or 10" head units, not standard DIN sizes.
Dash 1 Configuration Specific: For CR-V 2012-2017 Dash 1 configuration only without factory camera systems.
Feature Retention Depends on Head Unit: Canbus-equipped head units offer best feature retention capabilities.
Basic Integration Kit: Includes steering wheel control harness, antenna adapter, and USB adapter.
Head Unit NOT Included: Fascia kit with harness only, head unit sold separately.
Key Features
Complete Integration Kit: Includes fascia panel, steering wheel control harness, antenna adapter, and USB adapter.
Steering Wheel Control Retention: Retains full factory steering wheel control functionality including Bluetooth buttons.
Bluetooth Buttons Support: Maintains factory Bluetooth buttons on steering wheel for hands-free calling.
Factory USB Port Retention: Retains factory USB port functionality (selected models).
Factory Antenna Adapter: Includes antenna adapter for proper FM/AM radio reception.
OEM-Style Professional Appearance: Matches factory dashboard contours and finish.
Universal Trapezoid Head Unit Compatible: For Alpine, Kenwood, Pioneer, Nakamichi, and aftermarket Android stereos.
Plug-and-Play Installation: Direct connection to factory wiring without cutting or splicing.
Dash 1 Specific Design: Engineered specifically for CR-V 2012-2017 Dash 1 configuration.
Base Model Integration: Designed for entry-level CR-V configurations.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | 9 Inch Fascia Kit with Integration Harness |
| Fascia Size | Universal Trapezoid 9" or 10" |
| Vehicle Compatibility | Honda CR-V 2012-2017 Dash 1 |
| Dash Configuration | Dash 1 Only |
| Steering Wheel Control Retention | Yes - Full Functionality Including BT Buttons |
| Bluetooth Buttons Retention | Yes |
| USB Port Retention | Yes (Selected Models) |
| Antenna Adapter | Included - Factory to Aftermarket |
| Head Unit Compatibility | Alpine AW409S/AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Nakamichi Android, Aftermarket Android |
| Mounting Format | Universal Trapezoid Only |
| Installation Type | Plug-and-Play Connection |
| Harness Included | Steering Wheel Control with BT Buttons, USB Adapter, Antenna Adapter |
| OEM Integration | Factory-Matched Appearance |
| Manufacturer | Car Audio Connect (CAC) |
Frequently Asked Questions
Q: Does this fascia kit include the aftermarket head unit, or do I need to purchase it separately?
A: This is a fascia kit with wiring harness only - the aftermarket head unit is NOT included and must be purchased separately. Choose from compatible Alpine AW409S/AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Nakamichi Android systems, or aftermarket Android stereos featuring universal trapezoid 9 inch or 10 inch mounting format. The fascia kit provides the mounting solution and wiring integration to install your chosen aftermarket head unit in your Honda CR-V 2012-2017 Dash 1.
Q: What is the difference between FXHD7K1 (Dash 1), FXHD7K2 (Dash 2), and FXHD7K3 (Dash 3) fascia kits?
A: The FXHD7K1 is designed for Dash 1 configuration (base model) and includes steering wheel controls with Bluetooth buttons, USB retention (selected models), and antenna adapter only. The FXHD7K2 is for Dash 2 and additionally includes reverse camera retention and time setting support. The FXHD7K3 is for Dash 3 and includes reverse camera with 3-angle adjustment and time setting support. You must verify your vehicle's specific dash configuration before purchase. Contact us to confirm the correct fascia kit for your CR-V's configuration.
Q: What size aftermarket head unit will fit this fascia kit - can I use standard double-DIN units?
A: This fascia kit is designed ONLY for universal trapezoid 9 inch or 10 inch aftermarket head units. Standard single-DIN or double-DIN head units will NOT fit this fascia kit. The universal trapezoid format is a specific mounting standard used by Alpine AW409S/AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Nakamichi Android systems, and many aftermarket Android stereos. Verify your chosen head unit uses the universal trapezoid mounting format before purchase.
Q: Does this kit support factory camera systems or time setting features?
A: No, the FXHD7K1 is a basic integration kit designed for Honda CR-V 2012-2017 Dash 1 configurations (base model) which do not have factory camera systems or advanced time setting features. This kit includes steering wheel control harness with Bluetooth buttons, USB adapter (selected models), and antenna adapter only. If your CR-V has factory reverse camera (Dash 2 or Dash 3 configurations), you'll need either the FXHD7K2 or FXHD7K3 fascia kit. Always verify your exact factory equipment and dash configuration before ordering.
Q: Will all factory features work with any aftermarket head unit, or does it depend on which head unit I choose?
A: While this fascia kit includes harness adapters for steering wheel controls (including Bluetooth buttons), USB (selected models), and antenna, the actual feature retention capabilities depend significantly on your chosen aftermarket head unit model. Canbus-equipped head units like Alpine AW409S/AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, and Nakamichi Android systems offer the most comprehensive feature retention including full steering wheel control functionality with Bluetooth buttons and proper USB integration. Basic aftermarket Android stereos may offer limited feature retention depending on their Canbus capabilities. For maximum feature retention, we recommend Canbus-equipped head units from Alpine, Kenwood, Pioneer, or Nakamichi.
