CAC FXHD22K2 - 9 Inch Fascia Kit with Harness for Honda CRV 2017+ Dash 2 With Side Camera

CAC FXHD22K2 - 9 Inch Fascia Kit with Harness for Honda CRV 2017+ Dash 2 With Side Camera

Complete 9 inch fascia integration kit for Honda CRV 2017+ Dash 2 with factory side camera enabling large-screen aftermarket head unit installation while retaining steering wheel controls including Bluetooth buttons, factory side camera with blinker and button activation, factory reverse camera with 3-angle adjustment, USB connectivity, antenna connection, and time setting support. The Car Audio Connect CAC FXHD22K2 fascia kit is specifically designed for Honda CRV 2017+ Dash 2 with factory side camera system providing OEM-style professional mounting solution for universal trapezoid 9 inch or 10 inch aftermarket head units with seamless plug-and-play connection to factory wiring systems. This comprehensive integration kit includes steering wheel control harness, factory side camera retention adapter with blinker and button activation, factory reverse camera retention adapter, radio antenna adapter, and USB adapter enabling complete functionality preservation during head unit upgrades including factory side camera button function, reverse camera with 3-angle adjustment functionality, and time setting support via steering wheel controls. Compatible with Alpine AW409S/AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Nakamichi Android systems, and aftermarket Android stereos featuring universal trapezoid mounting format, this versatile fascia kit eliminates complex installation modifications through direct plug-and-play connection enabling professional OEM-style appearance.

Product Overview

Car Audio Connect CAC 9 Inch Fascia Kit is designed to suit a range of vehicles. Upgrade your head unit with OEM style. Plug and Play connect directly to factory wiring with easy installation.

Important Installation Requirements:

Suits universal trapezoid 9 inch or 10 inch stereo only. Work with Alpine AW409S, AX809, Pioneer DMH-AP6650BT, Nakamichi Canbus System. Feature retention will depend on the radio model.

Suit Headunit:

• Alpine AW409S, AX809
• Kenwood DMX80AXS
• Pioneer DMH-AP6650BT
• Nakamichi Android Stereo
• Aftermarket Android Stereo

Compatible With:

• Honda CRV 2017+ Dash 2 With Side Camera

Important Notes:

Universal Trapezoid Format Required: Designed ONLY for universal trapezoid 9" or 10" head units, not standard DIN sizes.

Dash 2 With Side Camera Specific: For Honda CRV 2017+ Dash 2 with factory side camera only. Verify your dash type and side camera equipment before ordering.

Not Compatible With Factory Amplified System: This kit is NOT compatible with Honda CRV vehicles equipped with factory amplified audio systems.

Feature Retention Depends on Head Unit: Canbus-equipped head units offer best feature retention capabilities.

Side Camera Button and Blinker Function: Retains factory side camera button activation and automatic blinker activation.

Reverse Camera 3-Angle Adjustment: Retains factory reverse camera with adjustable 3-angle rearview functionality.

Time Setting Support: Supports time setting from factory via steering wheel controls.

Head Unit NOT Included: Fascia kit with harness only, head unit sold separately.

Key Features

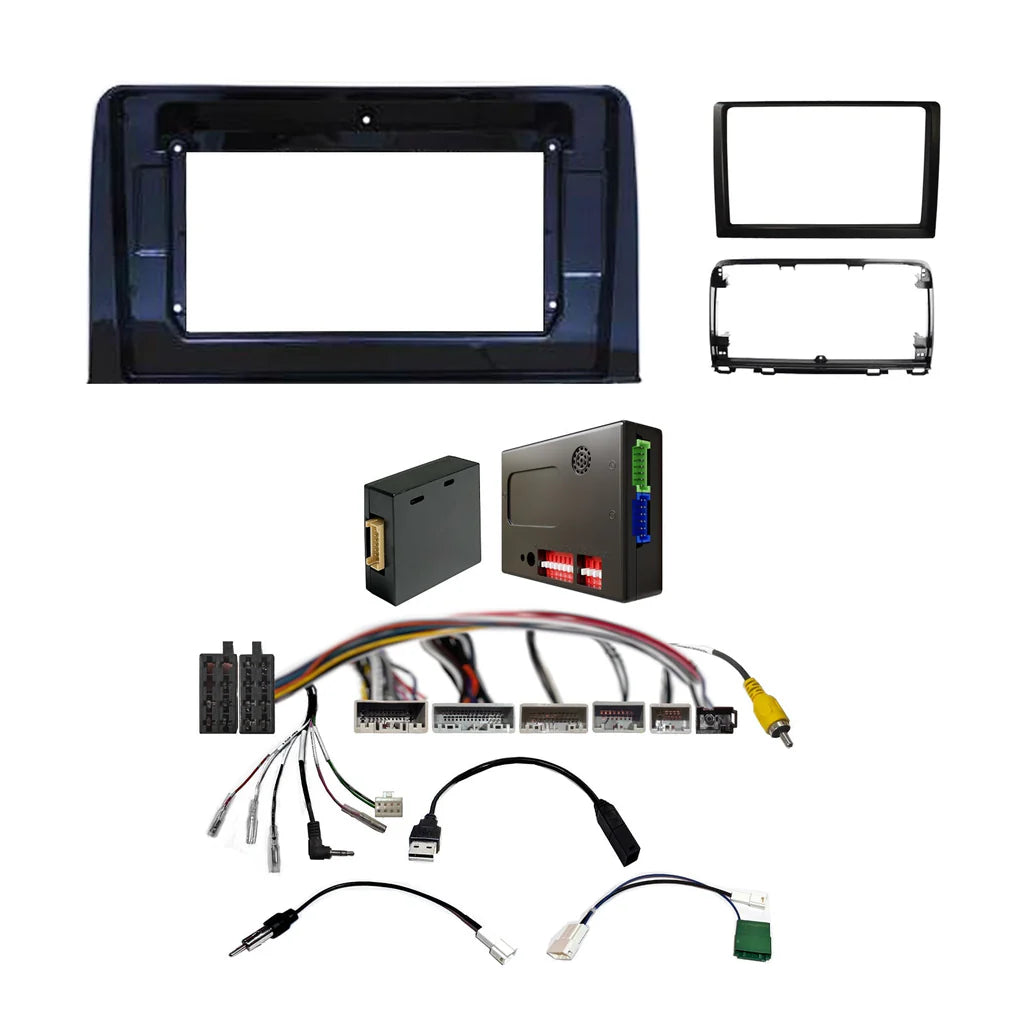

Complete Integration Kit: Includes fascia panel, steering wheel control harness, side camera retention adapter, reverse camera retention adapter, antenna adapter, and USB adapter.

Steering Wheel Control Retention: Retains full factory steering wheel control functionality including Bluetooth buttons.

Bluetooth Buttons Support: Maintains factory Bluetooth buttons on steering wheel for hands-free calling.

Side Camera Retention: Retains factory side camera with button and blinker activation functionality.

Side Camera Button Function: Factory side camera button continues to function normally for manual activation.

Blinker Activation: Side camera automatically activates when turn signal is engaged.

Reverse Camera Retention: Maintains factory reverse camera with adjustable 3-angle rearview functionality.

3-Angle Rearview Adjustment: Retains factory ability to adjust reverse camera viewing angles.

Time Setting Support: Supports time setting from factory via steering wheel controls.

Factory USB Port Retention: Retains factory USB port functionality (selected models).

Factory Antenna Adapter: Includes antenna adapter for proper FM/AM radio reception.

OEM-Style Professional Appearance: Matches factory dashboard contours and finish.

Universal Trapezoid Head Unit Compatible: For Alpine, Kenwood, Pioneer, Nakamichi, and aftermarket Android stereos.

Plug-and-Play Installation: Direct connection to factory wiring without cutting or splicing.

Technical Specifications

Frequently Asked Questions

Q: Does this fascia kit include the aftermarket head unit, or do I need to purchase it separately?

A: This is a fascia kit with wiring harness only - the aftermarket head unit is NOT included and must be purchased separately. Choose from compatible Alpine AW409S/AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Nakamichi Android systems, or aftermarket Android stereos featuring universal trapezoid 9 inch or 10 inch mounting format. The fascia kit provides the mounting solution and wiring integration to install your chosen aftermarket head unit in your Honda CRV 2017+ Dash 2 with side camera.

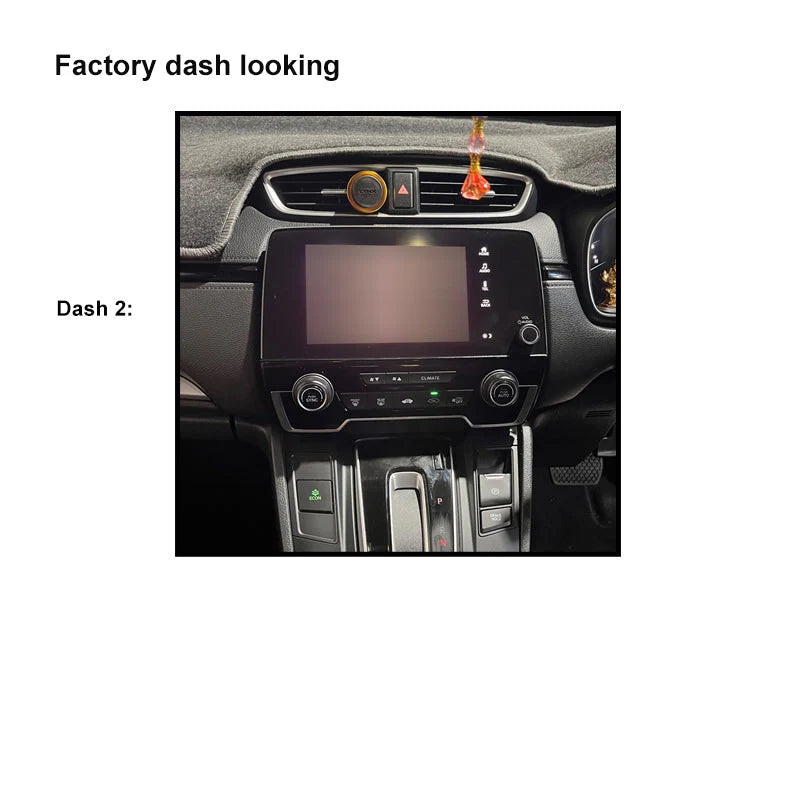

Q: How do I know if my Honda CRV has Dash 2 configuration and side camera?

A: Honda CRV 2017+ models may have different dash configurations and camera equipment options. Dash 2 refers to a specific factory dashboard layout, and the side camera is typically mounted on the passenger side mirror. The best way to verify your dash configuration and side camera equipment is to contact Frankie's Auto Electrics directly with your vehicle's year and model details, or compare your dashboard and mirror setup against reference photos. Using the wrong fascia kit for your dash configuration will result in improper fitment.

Q: Will this kit work with my Honda CRV if it has a factory amplified audio system?

A: No, this FXHD22K2 fascia kit is NOT compatible with Honda CRV vehicles equipped with factory amplified audio systems. Factory amplified systems require specialized integration adapters for proper signal processing and impedance matching. If your CRV has a factory amplified system, you must use a different fascia kit designed specifically for amplified systems. Contact Frankie's Auto Electrics to determine the correct fascia kit for your CRV with factory amplified audio.

Q: How does the side camera function work after installing the aftermarket head unit?

A: The FXHD22K2 fascia kit retains full factory side camera functionality. The side camera will automatically activate when you engage the turn signal (blinker) on the passenger side, just as it did with the factory head unit. Additionally, the factory side camera button continues to function normally, allowing you to manually activate the side camera view at any time. This advanced feature integration requires Canbus-equipped head units like Alpine, Kenwood, Pioneer, or Nakamichi for proper operation.

Q: Will all factory features work with any aftermarket head unit, or does it depend on which head unit I choose?

A: While this fascia kit includes all necessary harness adapters for steering wheel controls (including Bluetooth buttons), side camera retention (button and blinker activation), reverse camera retention (with 3-angle adjustment), USB (selected models), time setting, and antenna, the actual feature retention capabilities depend significantly on your chosen aftermarket head unit model. Canbus-equipped head units like Alpine AW409S/AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, and Nakamichi Android systems offer the most comprehensive feature retention including full steering wheel control functionality with Bluetooth buttons, proper side camera integration with button and blinker activation, reverse camera integration with 3-angle adjustment, time setting support, and USB functionality. Basic aftermarket Android stereos may offer limited feature retention depending on their Canbus capabilities. For maximum feature retention, we recommend Canbus-equipped head units from Alpine, Kenwood, Pioneer, or Nakamichi.
