CAC F9TY66K2 - 9 Inch Fascia Kit with Harness for Toyota Rav 4 2013-2018 Dash 4 With Factory JBL or Amplified 360° Camera

CAC F9TY66K2 - 9 Inch Fascia Kit with Harness for Toyota Rav 4 2013-2018 Dash 4 With Factory JBL or Amplified 360° Camera

Complete 9 inch fascia integration kit for Toyota Rav 4 2013-2018 Dash 4 with factory JBL amplified audio system and 360° camera enabling large-screen aftermarket head unit installation while retaining steering wheel controls, factory 360° camera system with adjustable button function, USB connectivity, and antenna connection. The Car Audio Connect CAC F9TY66K2 fascia kit is specifically designed for Toyota Rav 4 2013-2018 Dash 4 with factory JBL amplified system and 360° camera providing OEM-style professional mounting solution for universal trapezoid 9 inch aftermarket head units with seamless plug-and-play connection to factory wiring systems. This comprehensive integration kit includes steering wheel control harness, factory 360° camera retention adapter with button function, radio antenna adapter, and USB adapter enabling complete functionality preservation during head unit upgrades including factory 360° camera button function with adjustable views through steering wheel controls. Compatible with Alpine AW409S/AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Nakamichi Android systems, and aftermarket Android stereos featuring universal trapezoid mounting format, this versatile fascia kit eliminates complex installation modifications through direct plug-and-play connection enabling professional OEM-style appearance while maintaining factory JBL amplified audio system performance.

Product Overview

Car Audio Connect CAC 9 Inch Fascia Kit is designed to suit a range of vehicles. Upgrade your head unit with OEM style. Plug and Play connect directly to factory wiring with easy installation.

Important Installation Requirements:

Suits universal trapezoid 9 inch stereo only. Work with Alpine AW409S, AX809, Pioneer DMH-AP6650BT, Nakamichi Canbus System. Feature retention will depend on the radio model.

Suit Headunit:

• Alpine AW409S, AX809
• Kenwood DMX80AXS
• Pioneer DMH-AP6650BT
• Nakamichi Android Stereo
• Aftermarket Android Stereo

Compatible With:

• Toyota Rav 4 2013-2018 Dash 4 With Factory JBL or Amplified 360° Camera

Important Notes:

Universal Trapezoid Format Required: Designed ONLY for universal trapezoid 9" head units, not standard DIN sizes or 10" units.

Dash 4 With JBL Amplified and 360° Camera: For Toyota Rav 4 2013-2018 Dash 4 with factory JBL or amplified audio system and 360° camera. Verify your dash type, amplified system, and 360° camera equipment before ordering.

Feature Retention Depends on Head Unit: Canbus-equipped head units offer best feature retention capabilities.

360° Camera Button and Adjustable Views: Retains factory 360° camera button activation and adjustable viewing angles through steering wheel controls.

JBL Amplified System Compatibility: Specifically designed for vehicles with factory JBL or amplified audio systems.

Head Unit NOT Included: Fascia kit with harness only, head unit sold separately.

Key Features

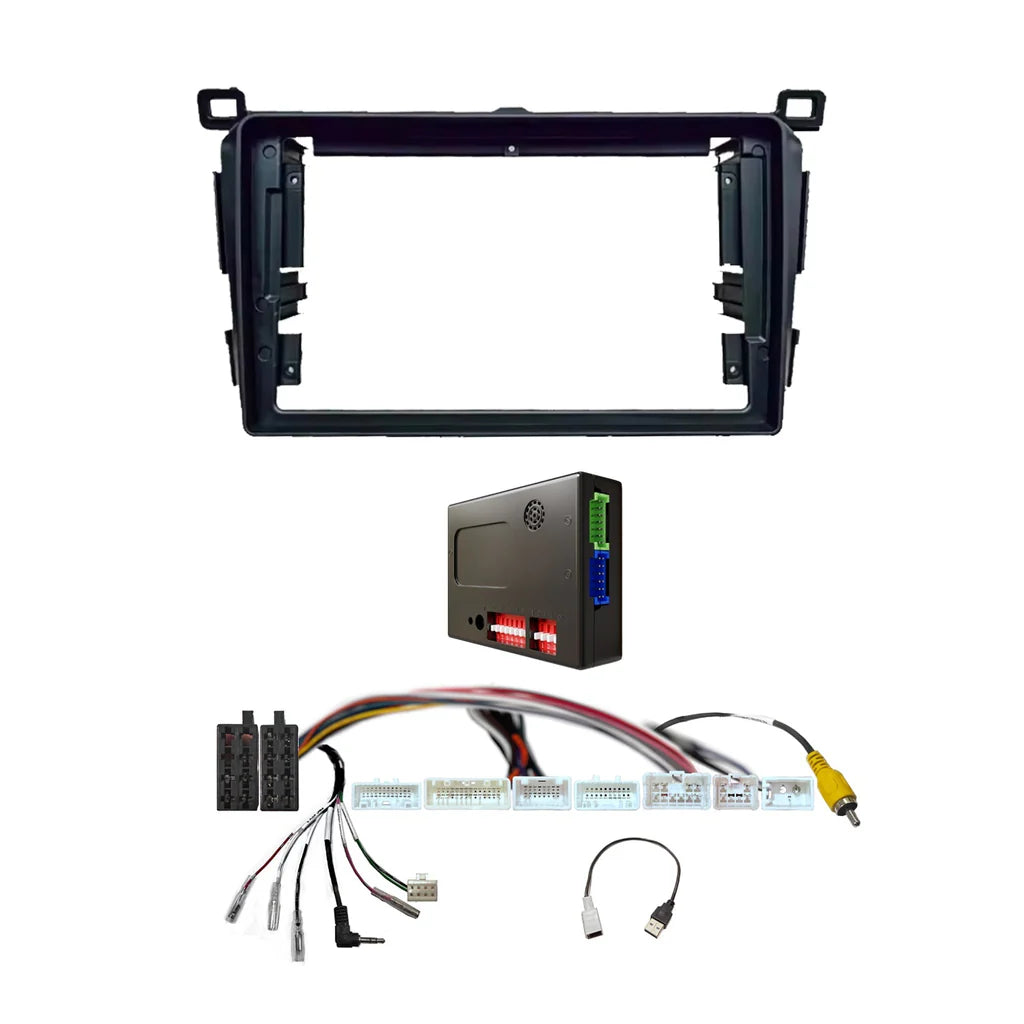

Complete Integration Kit: Includes fascia panel, steering wheel control harness, 360° camera retention adapter, antenna adapter, and USB adapter.

Steering Wheel Control Retention: Retains full factory steering wheel control functionality.

360° Camera System Retention: Maintains factory 360° camera system with button function and adjustable views.

360° Camera Button Function: Factory 360° camera button continues to function normally for manual activation.

Adjustable Camera Views: 360° camera view angles adjustable through steering wheel control buttons.

Reverse Camera Retention: Maintains factory reverse camera including 360° camera system (selected models).

JBL Amplified System Compatibility: Compatible with factory JBL or amplified audio systems maintaining proper signal levels.

Factory USB Port Retention: Retains factory USB port functionality (selected models).

Factory Antenna Adapter: Includes antenna adapter for proper FM/AM radio reception.

OEM-Style Professional Appearance: Matches factory dashboard contours and finish.

Universal Trapezoid Head Unit Compatible: For Alpine, Kenwood, Pioneer, Nakamichi, and aftermarket Android stereos.

Plug-and-Play Installation: Direct connection to factory wiring without cutting or splicing.

Technical Specifications

Frequently Asked Questions

Q: Does this fascia kit include the aftermarket head unit, or do I need to purchase it separately?

A: This is a fascia kit with wiring harness only - the aftermarket head unit is NOT included and must be purchased separately. Choose from compatible Alpine AW409S/AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Nakamichi Android systems, or aftermarket Android stereos featuring universal trapezoid 9 inch mounting format. Note that this kit is designed for 9 inch head units only, not 10 inch units. The fascia kit provides the mounting solution and wiring integration to install your chosen aftermarket head unit in your Toyota Rav 4 2013-2018 Dash 4 with factory JBL amplified system and 360° camera.

Q: How do I know if my Toyota Rav 4 has Dash 4 configuration with JBL amplified system and 360° camera?

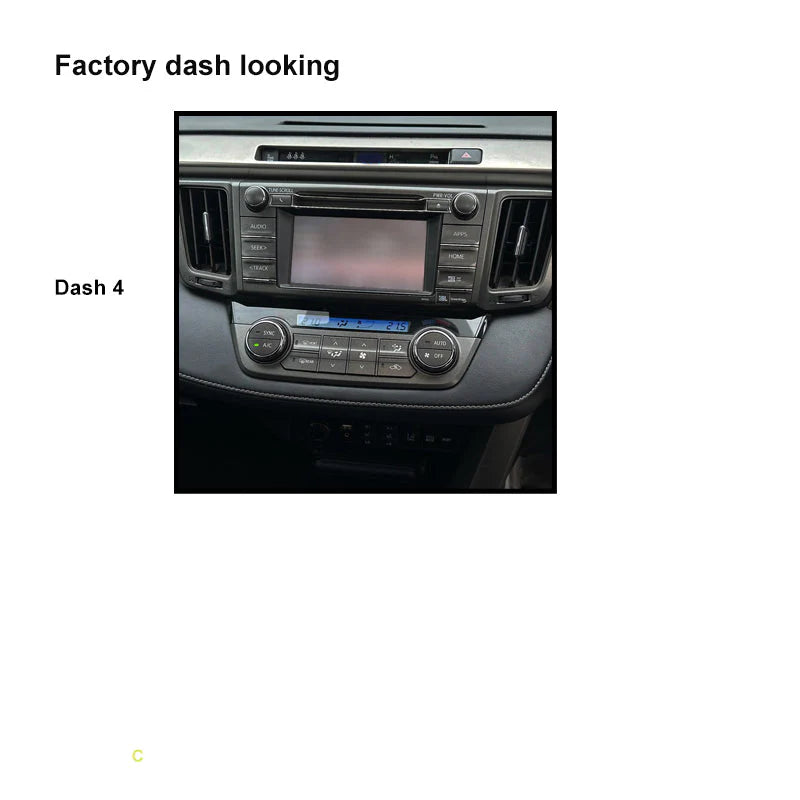

A: Toyota Rav 4 2013-2018 models may have different dash configurations and equipment levels. Dash 4 refers to a specific factory dashboard layout. The JBL amplified system is typically identified by JBL branding on speakers or head unit, while the 360° camera system includes multiple cameras providing surround view. The best way to verify your dash configuration, JBL amplified system, and 360° camera equipment is to contact Frankie's Auto Electrics directly with your vehicle's year, model, and trim level details. Using the wrong fascia kit will result in improper fitment or loss of audio functionality.

Q: How does the 360° camera function work after installing the aftermarket head unit?

A: The F9TY66K2 fascia kit retains full factory 360° camera functionality. The factory 360° camera button continues to function normally, allowing you to manually activate the 360° camera view at any time. Additionally, the camera view angles are adjustable through your steering wheel control buttons, just as with the factory head unit. This advanced feature integration requires Canbus-equipped head units like Alpine, Kenwood, Pioneer, or Nakamichi for proper operation.

Q: Will this kit work with my Toyota Rav 4 if it has a factory JBL amplified system?

A: Yes! This F9TY66K2 fascia kit is specifically designed for Toyota Rav 4 vehicles equipped with factory JBL or amplified audio systems. The integration adapter maintains proper signal levels and impedance matching for the factory amplifier ensuring optimal audio performance. This kit is required for JBL-equipped vehicles as standard non-amplified harnesses are not compatible and may result in no audio or distorted sound. Standard Rav 4 models without JBL amplified systems require a different fascia kit.

Q: Will all factory features work with any aftermarket head unit, or does it depend on which head unit I choose?

A: While this fascia kit includes all necessary harness adapters for steering wheel controls, 360° camera retention (with button function and adjustable views), USB (selected models), and antenna, the actual feature retention capabilities depend significantly on your chosen aftermarket head unit model. Canbus-equipped head units like Alpine AW409S/AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, and Nakamichi Android systems offer the most comprehensive feature retention including full steering wheel control functionality, proper 360° camera integration with button function and adjustable views through steering wheel controls, USB functionality, and antenna reception. Basic aftermarket Android stereos may offer limited feature retention depending on their Canbus capabilities. For maximum feature retention including full 360° camera system functionality, we recommend Canbus-equipped head units from Alpine, Kenwood, Pioneer, or Nakamichi.
