CAC F9TY2K1 9 Inch Fascia Kit Compatible with Toyota 86 2012-2015 Dash 1

CAC F9TY2K1 9 Inch Fascia Kit Compatible with Toyota 86 2012-2015 Dash 1

Complete 9 inch fascia integration kit for Toyota 86 2012-2015 Dash 1 enabling large-screen aftermarket head unit installation while retaining steering wheel controls, factory reverse camera, and antenna connection. The Car Audio Connect CAC F9TY2K1 fascia kit is specifically designed for Toyota 86 2012-2015 Dash 1 models providing OEM-style professional mounting solution for universal trapezoid 9 inch aftermarket head units with comprehensive plug-and-play connection to factory wiring systems. This integration kit includes steering wheel control harness, factory camera retention adapter, and radio antenna adapter enabling essential functionality preservation during head unit upgrades. Compatible with Alpine AW409S/AX809, Pioneer DMH-AP6650BT, Nakamichi Android systems, and aftermarket Android stereos featuring universal trapezoid mounting format, this versatile fascia kit eliminates complex installation modifications through direct plug-and-play connection enabling professional OEM-style appearance.

Product Overview

Car Audio Connect CAC 9 Inch Fascia Kit is designed to suit a range of vehicles. Upgrade your head unit with OEM style. Plug and Play connect directly to factory wiring with easy installation.

Important Installation Requirements:

Suits universal trapezoid 9 inch stereo only. Work with Alpine AW409S, AX809, Pioneer DMH-AP6650BT, Nakamichi Canbus System. Feature retention will depend on the radio model.

Suit Headunit:

• Alpine AW409S, AX809 (Back DIN requires vertical install. Mount bracket FDINM2 need order separate)
• Pioneer DMH-AP6650BT (Back DIN requires vertical install. Mount bracket FDINM2 need order separate)
• Nakamichi Android Stereo (Back DIN requires vertical install. Mount bracket FDINM2 need order separate)
• Aftermarket Android Stereo (Back DIN requires vertical install. Mount bracket FDINM2 need order separate)

Compatible With:

• Toyota 86 2012-2015 Dash 1

Important Notes:

Universal Trapezoid Format Required: Designed ONLY for universal trapezoid 9" head units, not standard DIN sizes or 10" units.

Back DIN Mounting Requirement: Head units with back DIN connections require vertical installation. Mount bracket FDINM2 must be ordered separately for proper installation.

Dash 1 Specific: For Toyota 86 2012-2015 Dash 1 configuration only. Verify your dash type before ordering.

Feature Retention Depends on Head Unit: Canbus-equipped head units offer best feature retention capabilities.

Reverse Camera Retention (Selected Models): Camera retention available for vehicles equipped with factory reverse cameras.

Head Unit NOT Included: Fascia kit with harness only, head unit sold separately.

Additional Bracket May Be Required: FDINM2 mount bracket required for back DIN head units (sold separately).

Key Features

2012-2015 Dash 1 Specific Design: Fits Toyota 86 2012-2015 Dash 1 models.

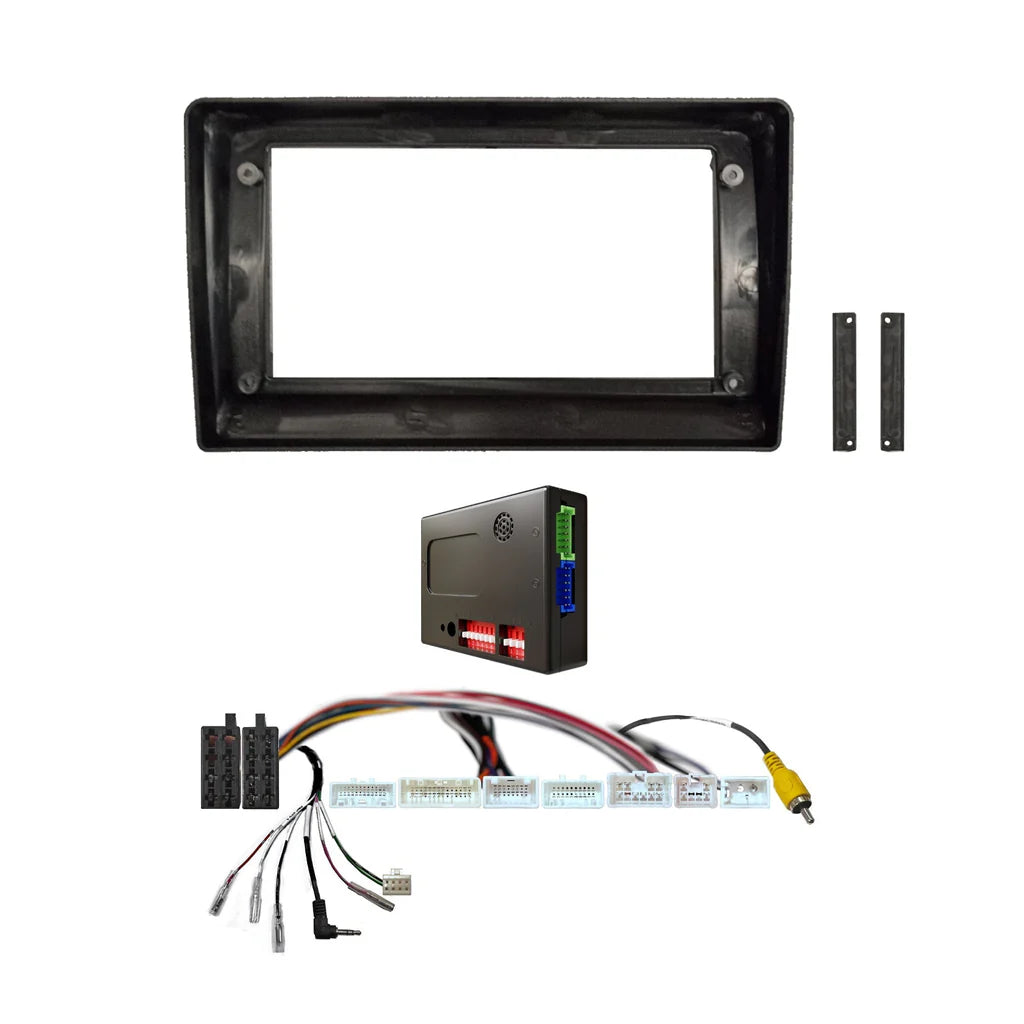

Complete Integration Kit: Includes fascia panel, steering wheel control harness, camera retention adapter, and antenna adapter.

Steering Wheel Control Retention: Retains full factory steering wheel control functionality.

Reverse Camera Retention: Maintains factory reverse camera functionality (selected models with factory cameras).

Factory Antenna Adapter: Includes antenna adapter for proper FM/AM radio reception.

OEM-Style Professional Appearance: Matches factory dashboard contours and finish.

Universal Trapezoid Head Unit Compatible: For Alpine, Kenwood, Pioneer, Nakamichi, and aftermarket Android stereos.

Plug-and-Play Installation: Direct connection to factory wiring without cutting or splicing.

Technical Specifications

Frequently Asked Questions

Q: Does this fascia kit include the aftermarket head unit, or do I need to purchase it separately?

A: This is a fascia kit with wiring harness only - the aftermarket head unit is NOT included and must be purchased separately. Choose from compatible Alpine AW409S/AX809, Pioneer DMH-AP6650BT, Nakamichi Android systems, or aftermarket Android stereos featuring universal trapezoid 9 inch mounting format. Note that this kit is designed for 9 inch head units only, not 10 inch units. The fascia kit provides the mounting solution and comprehensive wiring integration to install your chosen aftermarket head unit in your Toyota 86 2012-2015 Dash 1.

Q: What is the FDINM2 mount bracket and do I need it?

A: The FDINM2 mount bracket is required for head units with back DIN connections that need vertical installation. This includes Alpine AW409S/AX809, Pioneer DMH-AP6650BT, Nakamichi Android systems, and many aftermarket Android stereos. The FDINM2 bracket is NOT included with this fascia kit and must be ordered separately. Contact Frankie's Auto Electrics to verify if your selected head unit requires the FDINM2 bracket and to order it along with this fascia kit.

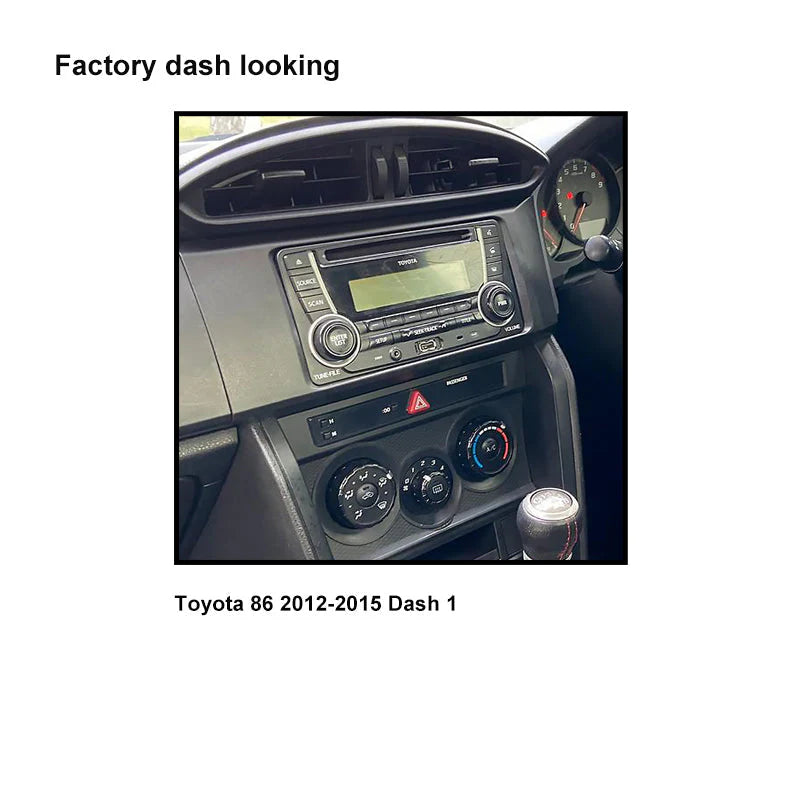

Q: What is the difference between Dash 1 and Dash 2 for Toyota 86?

A: Toyota 86 2012-2015 models have different dashboard configurations (Dash 1 and Dash 2) depending on trim level and factory equipment. This F9TY2K1 fascia kit is designed specifically for Dash 1 configuration. If you have a 2012-2015 Dash 2 or 2016+ model, you will need the F9TY2K2 fascia kit instead. To verify your dash type, contact Frankie's Auto Electrics with your vehicle's year, trim level, and VIN for accurate compatibility confirmation.

Q: Will this kit retain my factory reverse camera?

A: This fascia kit includes a camera retention adapter for vehicles equipped with factory reverse cameras. If your Toyota 86 came with a factory reverse camera, this kit will retain that functionality by converting the factory camera signal to work with your aftermarket head unit's camera input. The camera retention feature only works if your vehicle has a factory-installed reverse camera. If your vehicle does not have a factory camera, you can install an aftermarket reverse camera system separately, as all compatible head units include reverse camera inputs.

Q: Will my steering wheel controls work with an aftermarket head unit?

A: Yes, this fascia kit includes a steering wheel control harness that retains full factory steering wheel control functionality. Most modern aftermarket head units (Alpine, Kenwood, Pioneer, Nakamichi) feature automatic SWC detection and will recognize steering wheel button presses immediately after installation with no programming required. Some head units may require brief manual SWC learning where you press each steering wheel button to assign functions.

Q: Can I use a 10 inch head unit with this fascia kit?

A: No, this fascia kit is designed specifically for universal trapezoid 9 inch head units only. It will NOT accommodate 10 inch head units. The mounting aperture and fascia dimensions are specifically sized for 9 inch screens. If you require a 10 inch head unit installation, you will need a different fascia kit designed for 10 inch mounting. Verify your chosen head unit is a 9 inch universal trapezoid format before purchase.

Q: Why is vertical installation required for back DIN head units?

A: The Toyota 86's dashboard design requires certain head units with back DIN connections to be mounted vertically for proper fitment and cable management. The FDINM2 mount bracket enables this vertical installation configuration. This is a vehicle-specific requirement due to the 86's unique dash geometry and does not affect the front appearance or functionality of the installed head unit.
