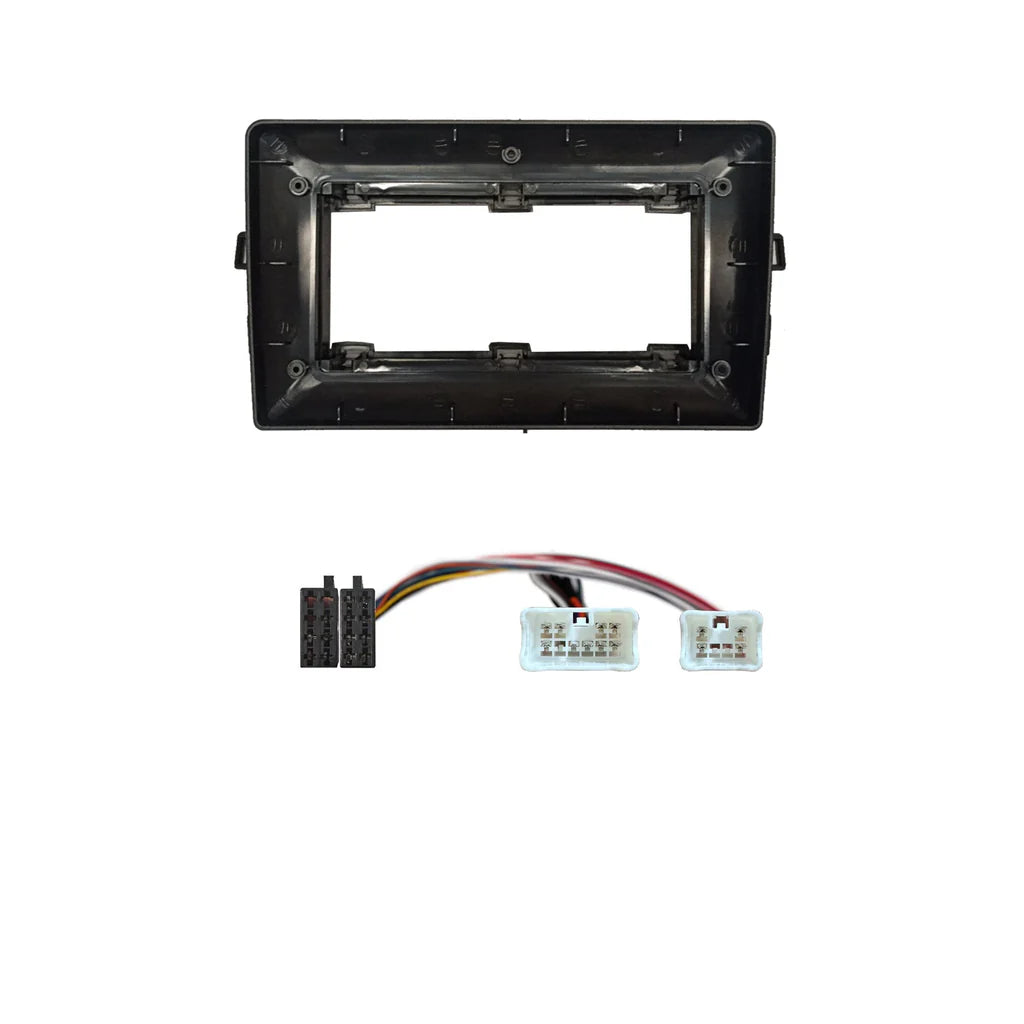

CAC F9TY24K1 9 Inch Fascia Kit Compatible with Toyota Corolla 2007-2011 Dash 1 No SWC

CAC F9TY24K1 9 Inch Fascia Kit Compatible with Toyota Corolla 2007-2011 Dash 1 No SWC

Complete 9 inch fascia integration kit for Toyota Corolla 2007-2011 Dash 1 without steering wheel controls enabling large-screen aftermarket head unit installation with seamless plug-and-play connection to factory wiring systems. The Car Audio Connect CAC F9TY24K1 fascia kit is specifically designed for Toyota Corolla 2007-2011 Dash 1 models without factory steering wheel controls providing OEM-style professional mounting solution for universal trapezoid 9 inch aftermarket head units. This integration kit includes fascia panel and wiring harness enabling straightforward head unit upgrades without complex modifications. Compatible with Alpine AW409S/AX809, Pioneer DMH-AP6650BT, Nakamichi Android systems, and aftermarket Android stereos featuring universal trapezoid mounting format, this versatile fascia kit delivers direct plug-and-play connection for professional OEM-style appearance.

Product Overview

Car Audio Connect CAC 9 Inch Fascia Kit is designed to suit a range of vehicles. Upgrade your head unit with OEM style. Plug and Play connect directly to factory wiring with easy installation.

Important Installation Requirements:

Suits universal trapezoid 9 inch stereo only. Work with Alpine AW409S, AX809, Pioneer DMH-AP6650BT, Nakamichi Canbus System. Feature retention will depend on the radio model.

Suit Headunit:

• Alpine AW409S, AX809 (Back DIN requires vertical install. Mount bracket FDINM2 need order separate)
• Pioneer DMH-AP6650BT (Back DIN requires vertical install. Mount bracket FDINM2 need order separate)
• Nakamichi Android Stereo (Back DIN requires vertical install. Mount bracket FDINM2 need order separate)
• Aftermarket Android Stereo (Back DIN requires vertical install. Mount bracket FDINM2 need order separate)

Compatible With:

• Toyota Corolla 2007-2011 Dash 1 No SWC

Important Notes:

Universal Trapezoid Format Required: Designed ONLY for universal trapezoid 9" head units, not standard DIN sizes or 10" units.

Back DIN Mounting Requirement: Head units with back DIN connections require vertical installation. Mount bracket FDINM2 must be ordered separately for proper installation.

Dash 1 No SWC Specific: For Toyota Corolla 2007-2011 Dash 1 models without factory steering wheel controls. Verify your dash type and SWC equipment before ordering.

Feature Retention Depends on Head Unit: Canbus-equipped head units offer best feature retention capabilities.

No Steering Wheel Control Support: This kit does NOT support steering wheel controls.

Head Unit NOT Included: Fascia kit with harness only, head unit sold separately.

Additional Bracket May Be Required: FDINM2 mount bracket required for back DIN head units (sold separately).

Key Features

2007-2011 Dash 1 No SWC Design: Fits Toyota Corolla 2007-2011 Dash 1 without steering wheel controls.

9" Fascia with Harness: Complete fascia panel and integration wiring harness included.

OEM-Style Professional Appearance: Matches factory dashboard contours and finish.

Universal Trapezoid Head Unit Compatible: For Alpine, Kenwood, Pioneer, Nakamichi, and aftermarket Android stereos.

Plug-and-Play Installation: Direct connection to factory wiring without cutting or splicing.

Technical Specifications

Frequently Asked Questions

Q: Does this fascia kit include the aftermarket head unit, or do I need to purchase it separately?

A: This is a fascia kit with wiring harness only - the aftermarket head unit is NOT included and must be purchased separately. Choose from compatible Alpine AW409S/AX809, Pioneer DMH-AP6650BT, Nakamichi Android systems, or aftermarket Android stereos featuring universal trapezoid 9 inch mounting format. Note that this kit is designed for 9 inch head units only, not 10 inch units. The fascia kit provides the mounting solution and wiring integration to install your chosen aftermarket head unit in your Toyota Corolla 2007-2011 Dash 1 without steering wheel controls.

Q: What is the FDINM2 mount bracket and do I need it?

A: The FDINM2 mount bracket is required for head units with back DIN connections that need vertical installation. This includes Alpine AW409S/AX809, Pioneer DMH-AP6650BT, Nakamichi Android systems, and many aftermarket Android stereos. The FDINM2 bracket is NOT included with this fascia kit and must be ordered separately. Contact Frankie's Auto Electrics to verify if your selected head unit requires the FDINM2 bracket and to order it along with this fascia kit.

Q: How do I know if my Corolla has steering wheel controls and which dash type?

A: Toyota Corolla 2007-2011 models have different dashboard configurations (Dash 1, Dash 2, Dash 3) and may or may not have factory steering wheel controls depending on trim level. This F9TY24K1 fascia kit is specifically designed for Dash 1 configuration WITHOUT steering wheel controls. Check your steering wheel for audio control buttons. If your Corolla has steering wheel controls, you will need the F9TY24K2 fascia kit (With SWC version) instead. To verify your dash type, contact Frankie's Auto Electrics with your vehicle's year, trim level, and VIN.

Q: Can I use a 10 inch head unit with this fascia kit?

A: No, this fascia kit is designed specifically for universal trapezoid 9 inch head units only. It will NOT accommodate 10 inch head units. The mounting aperture and fascia dimensions are specifically sized for 9 inch screens. If you require a 10 inch head unit installation, you will need a different fascia kit designed for 10 inch mounting. Verify your chosen head unit is a 9 inch universal trapezoid format before purchase.

Q: Will all factory features work with any aftermarket head unit, or does it depend on which head unit I choose?

A: While this fascia kit includes the necessary wiring harness for basic integration, the actual feature retention capabilities depend significantly on your chosen aftermarket head unit model. Canbus-equipped head units like Alpine AW409S/AX809, Pioneer DMH-AP6650BT, and Nakamichi Android systems offer the most comprehensive feature retention. Basic aftermarket Android stereos may offer limited feature retention depending on their Canbus capabilities. For maximum feature retention, we recommend Canbus-equipped head units from Alpine, Kenwood, Pioneer, or Nakamichi.

Q: Why is vertical installation required for back DIN head units?

A: Some Toyota Corolla dashboard designs require certain head units with back DIN connections to be mounted vertically for proper fitment and cable management. The FDINM2 mount bracket enables this vertical installation configuration. This is a vehicle-specific requirement due to the Corolla's dash geometry and does not affect the front appearance or functionality of the installed head unit.
