CAC F9SR4K1 9 Inch Fascia Kit Subaru Forester Levorg Impreza XV

Upgrade your latest-generation Subaru Forester, Levorg, Impreza, or XV with a modern 9-inch headunit that preserves your steering wheel controls and factory reverse camera.

Product Overview

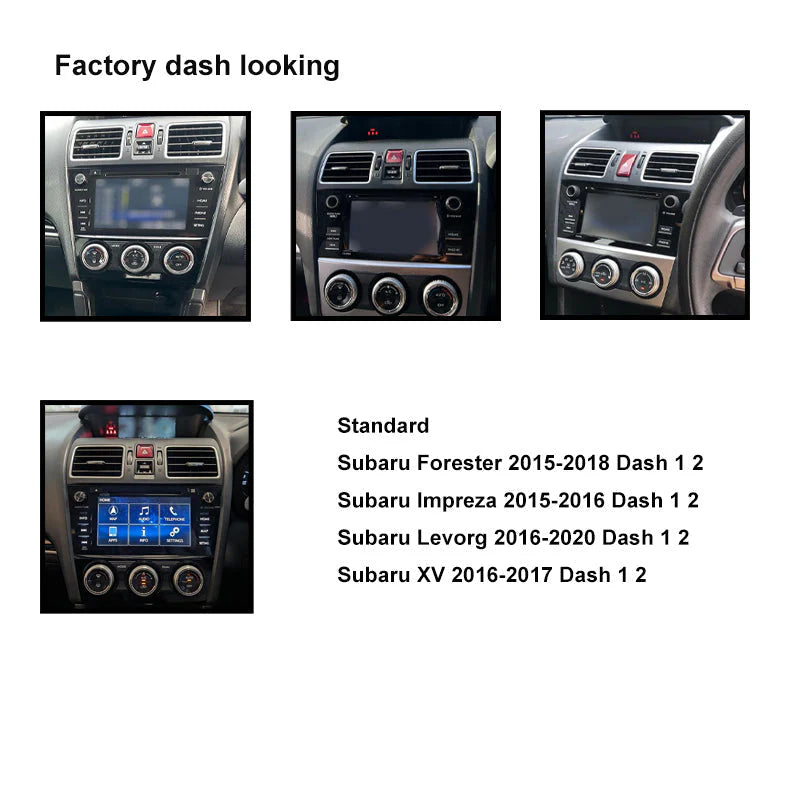

The CAC F9SR4K1 is a vehicle-specific 9-inch fascia integration kit engineered for latest-generation Subaru AWD models including Forester (2015-2018), Levorg (2016-2020), Impreza (2015-2016), and XV (2016-2017) in Dash 1 and Dash 2 Standard configurations. This comprehensive installation solution connects aftermarket trapezoid-style 9-inch headunits to your factory wiring harness while preserving steering wheel control functionality, factory rear camera integration, and maintaining proper antenna signal transfer through the included factory radio antenna adapter. The kit supports popular 9-inch headunits from Alpine (AW409S, AX809), Kenwood (DMX80AXS), Pioneer (DMH-AP6650BT), Nakamichi CANbus systems, and universal aftermarket Android units, delivering professional-grade integration specifically engineered for Subaru's latest-generation platform architecture including the distinctive Levorg touring wagon.

Key Specifications

• Fitment: Subaru Forester 2015-2018 (Dash 1 & 2 Standard), Subaru Levorg 2016-2020 (Dash 1 & 2 Standard), Subaru Impreza 2015-2016 (Dash 1 & 2 Standard), Subaru XV 2016-2017 (Dash 1 & 2 Standard)
• Screen size accommodation: Universal trapezoid 9-inch headunits only

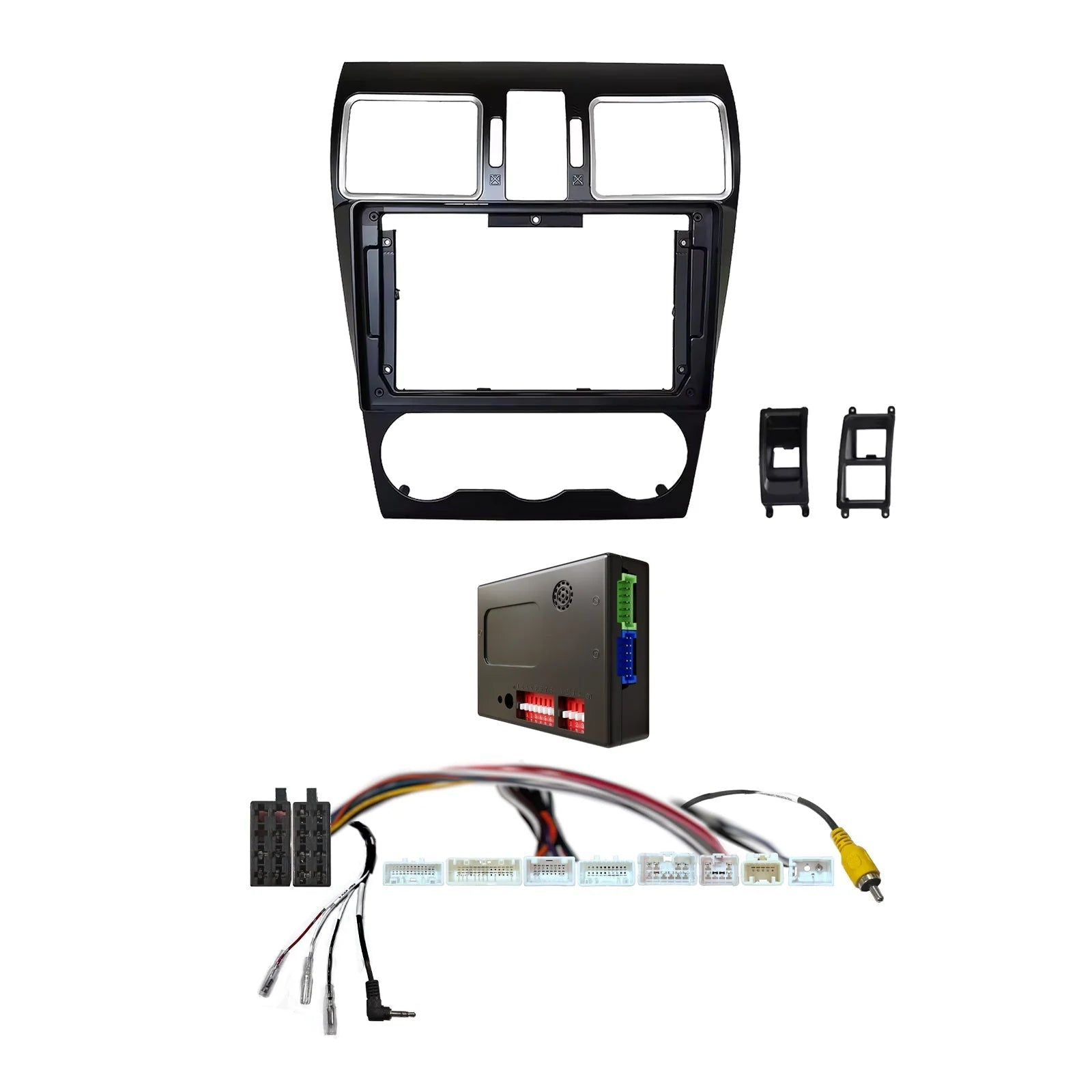

• Included components: 9" fascia panel, steering wheel control harness, factory camera retention adapter, factory radio antenna adapter
• Feature retention: Steering wheel controls, factory rear camera
• USB compatibility: Not compatible with factory USB
• Installation type: Plug-and-play with factory wiring (no cutting or splicing required)
• Compatible headunit brands: Alpine, Kenwood, Pioneer, Nakamichi, aftermarket Android systems
• Platform: Subaru latest-generation AWD platform (SJ Forester, VM Levorg, GK Impreza, GP XV)

Features & Benefits

Latest-Generation Four-Vehicle Coverage: Engineered to fit four latest-generation Subaru AWD models including the distinctive Levorg touring wagon—Forester (2015-2018), Levorg (2016-2020), Impreza (2015-2016), and XV (2016-2017). Critical for professional installations where Subaru's updated platform architecture across the 2015-2020 generation allows a comprehensive solution serving family SUVs, touring wagons, compact sedans, and adventure crossovers with a single kit.

Factory Rear Camera Retention: The integrated camera retention adapter preserves your existing rear camera connection to the new headunit, maintaining critical parking safety features without the cost and complexity of installing a new camera system. Essential for latest-generation Subaru models where the camera assists with urban parking, tight mountain trail navigation, and reversing in confined spaces with all-around visibility.

Levorg Touring Wagon Coverage: Uniquely includes compatibility with the Levorg (2016-2020), Subaru's distinctive touring wagon combining performance DNA with practical load-carrying capability. Critical for Levorg owners seeking modern connectivity for their sport-oriented family hauler popular with touring enthusiasts and performance wagon aficionados.

Complete Steering Wheel Control Retention: The included SWC harness preserves all steering wheel-mounted controls including volume, track selection, and phone functions. Essential for Subaru owners who value hands-on-wheel convenience during spirited driving, family adventures, or daily commuting where maintaining control inputs improves both safety and driving engagement across diverse vehicle types.

Factory Antenna Integration Maintained: The included antenna adapter ensures proper connection between your factory radio antenna and the new aftermarket headunit, maintaining strong AM/FM radio reception without signal loss. Critical for mountain driving, regional adventures, and daily commuting where radio provides traffic updates, weather warnings, and entertainment across diverse Australian conditions.

Modern Connectivity for Latest-Gen AWD: Brings contemporary features including Apple CarPlay, Android Auto, Bluetooth streaming, and GPS navigation to these 2015-2020 Subaru models while retaining factory camera safety and steering wheel controls. Transforms practical AWD vehicles into fully connected platforms with seamless hands-free operation and maintained parking visibility perfect for mountain adventures, touring expeditions, urban commuting, and adventure driving across varied terrain.

Technical Specs

• Product code: F9SR4K1
• Manufacturer: Car Audio Connect (CAC)
• Fascia dimensions: 9-inch trapezoid opening (universal 9" aftermarket headunit standard)
• Harness type: Vehicle-specific plug-and-play wiring harness with SWC adapter
• SWC compatibility: Full steering wheel control retention
• Camera adapter: Factory rear camera retention (analog video passthrough)
• USB compatibility: Not compatible with factory USB (aftermarket headunit USB only)
• Antenna adapter: Factory radio antenna to aftermarket headunit (standard antenna connection)
• Materials: ABS plastic fascia panel
• Colour: Black (OEM-matched texture)
• Installation difficulty: Moderate (requires dash panel removal, camera connection, and basic electrical connection)
• Compatible model years: Forester 2015-2018, Levorg 2016-2020, Impreza 2015-2016, XV 2016-2017
• Platform generation: SJ (Forester), VM (Levorg), GK (Impreza), GP (XV)
• Warranty: Refer to manufacturer warranty terms

Frequently Asked Questions

Will this work with my 2019 Forester or 2017 Impreza?

No, 2019+ Forester and 2017+ Impreza represent newer generations requiring different fascia kits. This kit covers Forester through 2018, Impreza through 2016, XV through 2017, and Levorg through 2020. Always verify your specific model year before purchasing.

What is the Subaru Levorg?

The Levorg is Subaru's sport touring wagon combining WRX-inspired performance with practical load-carrying capability. Based on the Impreza platform with turbo power and a wagon body, it's popular with touring enthusiasts and performance wagon aficionados seeking both capability and practicality.

Why is this kit not compatible with factory USB?

This latest-generation platform uses a different USB integration architecture that is not compatible with this fascia kit. You'll use your aftermarket headunit's USB port for smartphone connectivity instead of the factory USB port. This allows full Apple CarPlay and Android Auto functionality through the headunit's USB connection.

Will the rear camera display properly on all aftermarket headunits?

The camera retention adapter provides video passthrough. Most modern 9-inch headunits from Alpine, Kenwood, and Pioneer support rear camera inputs with automatic switching when reverse gear is engaged. Confirm camera input capability with your headunit supplier before purchasing.

What additional parts might I need for installation?

The kit includes the fascia, SWC harness, camera adapter, and antenna adapter. Depending on your chosen headunit, you may need additional items such as a GPS antenna adapter or specific CANbus interface for optimal functionality. You'll use the headunit's USB port for smartphone connections.

Compatible With / Goes Well With

Confirmed Compatible Vehicles:

• Subaru Forester 2015-2018 (SJ generation, Dash 1 and Dash 2 Standard)
• Subaru Levorg 2016-2020 (VM generation, Dash 1 and Dash 2 Standard)
• Subaru Impreza 2015-2016 (GK generation, Dash 1 and Dash 2 Standard)
• Subaru XV 2016-2017 (GP generation, Dash 1 and Dash 2 Standard)

Confirmed Compatible Headunits:

• Alpine AW409S, Alpine AX809
• Kenwood DMX80AXS
• Pioneer DMH-AP6650BT
• Nakamichi Android stereos with CANbus integration
• Universal aftermarket Android headunits (9" trapezoid form factor with SWC and camera input support)

Installation Note: This kit covers four latest-generation Subaru models from 2015-2020 in Dash 1 and Dash 2 Standard configurations. For earlier models (2012-2015), use the F9SR3K1, F9SR3K2, or F9SR3K3 kits. For 2019+ Forester, 2017+ Impreza/XV, you'll need different fascia kits designed for the newest generations. This kit is NOT compatible with factory USB systems—you'll use the aftermarket headunit's USB for smartphone connectivity. Always verify your vehicle's model year and dash configuration before purchasing. Contact us with your VIN if uncertain.
