CAC F9SR2K2 9 Inch Fascia Kit Subaru Dash 3 Factory Navigation

Upgrade your factory navigation-equipped Subaru Forester, Impreza, or WRX with a modern 9-inch headunit while preserving your steering wheel controls across the AWD platform.

Product Overview

The CAC F9SR2K2 is a vehicle-specific 9-inch fascia integration kit engineered for factory navigation-equipped Subaru AWD models including Forester (2008-2012), Impreza (2007-2011), and WRX (2007-2014) in Dash 3 configuration. This complete installation solution connects aftermarket trapezoid-style 9-inch headunits to your factory wiring harness while preserving steering wheel control functionality and maintaining proper antenna signal transfer through the included factory radio antenna adapter. The kit supports popular 9-inch headunits from Alpine (AW409S, AX809), Kenwood (DMX80AXS), Pioneer (DMH-AP6650BT), Nakamichi CANbus systems, and universal aftermarket Android units, delivering professional-grade integration specifically engineered for Dash 3 configuration found on higher-specification Subaru models equipped with factory navigation systems.

Key Specifications

• Fitment: Subaru Forester 2008-2012 (Dash 3 with factory navigation), Subaru Impreza 2007-2011 (Dash 3 with factory navigation), Subaru WRX 2007-2014 (Dash 3 with factory navigation)
• Screen size accommodation: Universal trapezoid 9-inch headunits only

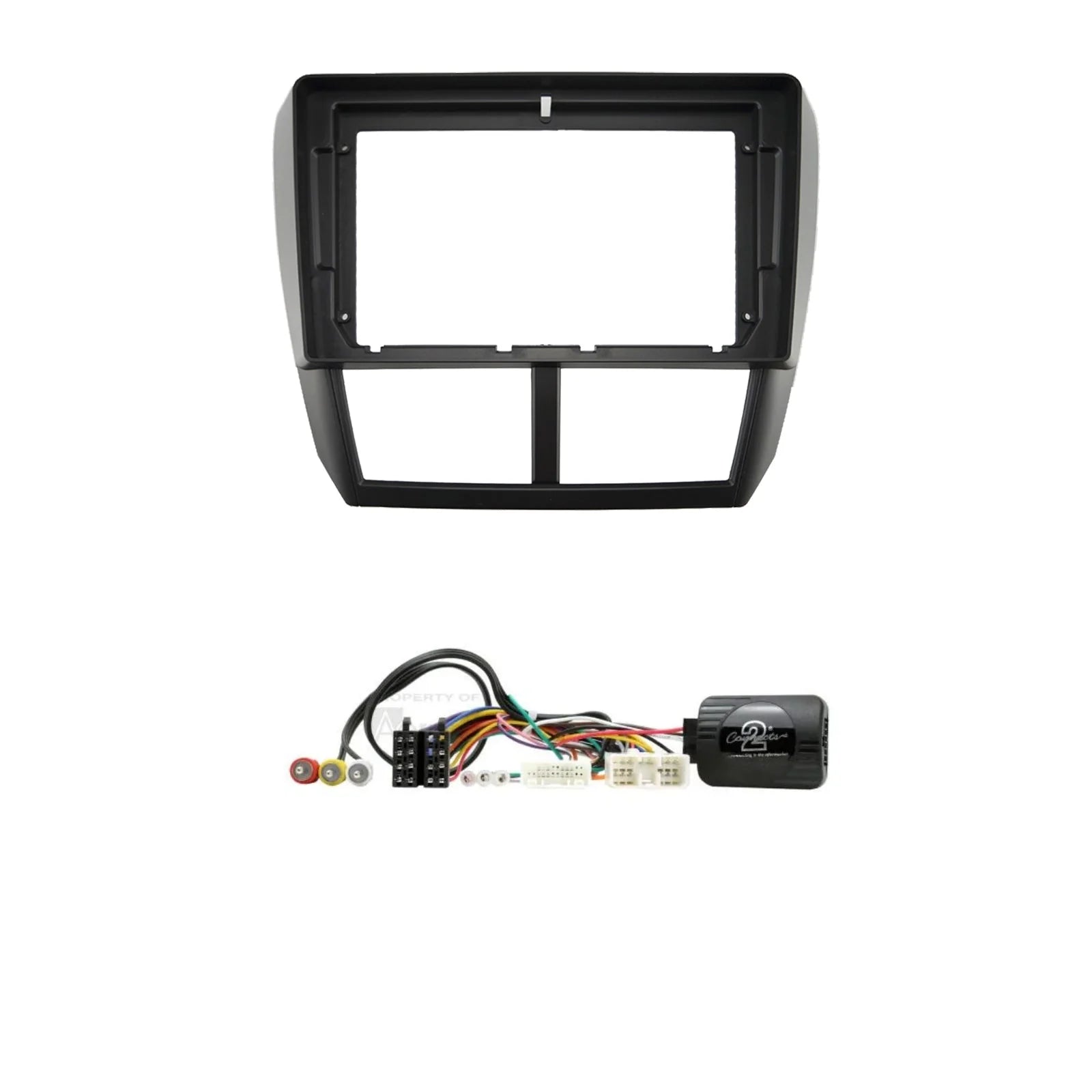

• Included components: 9" fascia panel, steering wheel control harness, factory radio antenna adapter
• Feature retention: Steering wheel controls
• Installation type: Plug-and-play with factory wiring (no cutting or splicing required)
• Compatible headunit brands: Alpine, Kenwood, Pioneer, Nakamichi, aftermarket Android systems
• Platform: Subaru AWD platform (GH Impreza/WRX, SH Forester generations, Dash 3 configuration)

Features & Benefits

Factory Navigation Model Coverage: Specifically engineered for Dash 3 configuration found on Subaru models equipped with factory navigation systems—Forester (2008-2012), Impreza (2007-2011), and WRX (2007-2014). Critical for professional installations where higher-specification Subaru models with factory nav require Dash 3 configuration components that differ significantly from non-nav Dash 1, 2, and 4 configurations.

Complete Steering Wheel Control Retention: The included SWC harness preserves all steering wheel-mounted controls including volume, track selection, and phone functions. Essential for Subaru owners who value hands-on-wheel convenience during spirited driving, family adventures, or daily commuting where maintaining control inputs improves both safety and driving engagement.

Factory Antenna Integration Maintained: The included antenna adapter ensures proper connection between your factory radio antenna and the new aftermarket headunit, maintaining strong AM/FM radio reception without signal loss. Critical for mountain driving, regional adventures, and daily commuting where radio provides traffic updates, weather warnings, and entertainment across diverse Australian conditions.

Multi-Vehicle AWD Platform Solution: Covers three popular Subaru AWD models across multiple years in Dash 3 configuration. Critical for professional installations where Subaru's platform-sharing architecture and consistent factory navigation integration allow a single solution across the higher-specification AWD family, serving daily drivers, adventure vehicles, and performance enthusiasts with nav systems.

True Plug-and-Play Installation: All harnesses including the SWC adapter connect directly to factory plugs without any wire cutting, stripping, or soldering required. Reduces installation time in busy workshops and eliminates wiring errors that cause comebacks, particularly important for enthusiast vehicles where electrical reliability supports both daily driving and spirited weekend adventures.

Modern Navigation for AWD Adventures: Brings contemporary features including updated offline GPS navigation, Apple CarPlay, Android Auto, Bluetooth streaming, and smartphone integration to replace aging factory navigation systems. Transforms practical AWD vehicles into connected platforms with modern mapping, real-time traffic, and seamless hands-free operation perfect for mountain adventures, track days, family road trips, and daily commuting across varied terrain.

Technical Specs

• Product code: F9SR2K2
• Manufacturer: Car Audio Connect (CAC)
• Fascia dimensions: 9-inch trapezoid opening (universal 9" aftermarket headunit standard)
• Harness type: Vehicle-specific plug-and-play wiring harness with SWC adapter
• SWC compatibility: Full steering wheel control retention
• Antenna adapter: Factory radio antenna to aftermarket headunit (standard antenna connection)
• Materials: ABS plastic fascia panel
• Colour: Black (OEM-matched texture)
• Installation difficulty: Moderate (requires dash panel removal and basic electrical connection)
• Compatible model years: Forester 2008-2012, Impreza 2007-2011, WRX 2007-2014
• Platform generation: GH (Impreza/WRX), SH (Forester), Dash 3 configuration with factory navigation
• Warranty: Refer to manufacturer warranty terms

Frequently Asked Questions

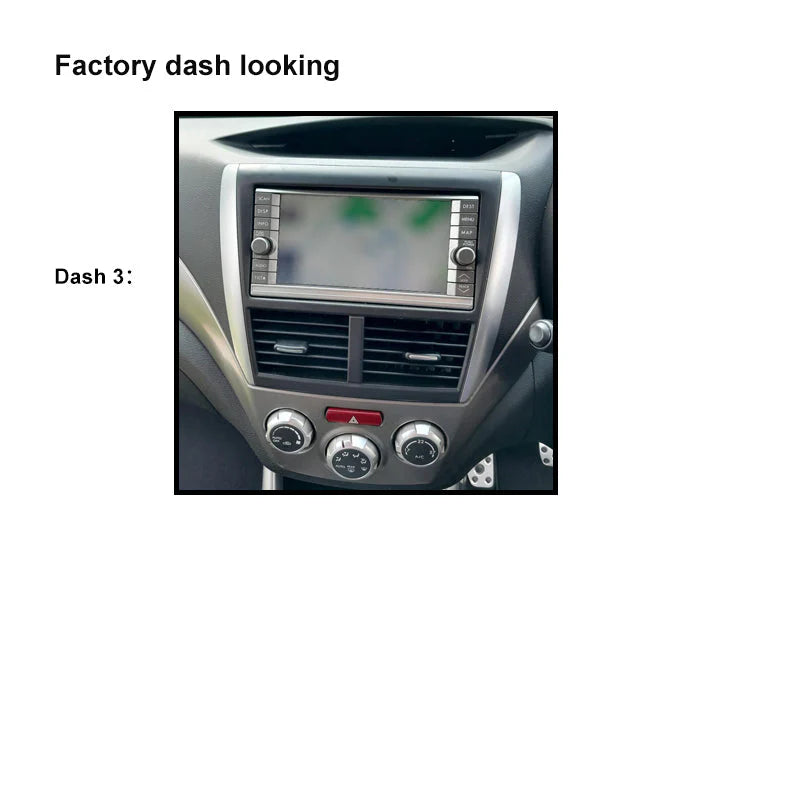

How do I know if my Subaru has Dash 3 configuration?

Dash 3 is typically found on Subaru models equipped with factory navigation systems. If your Forester, Impreza, or WRX has a factory navigation screen, you likely have Dash 3. Check manufacturer compatibility photos or contact us with your VIN for confirmation.

What's the difference between this and the F9SR2K1 kit?

The F9SR2K1 is for Dash 1, 2, and 4 configurations (non-navigation models). The F9SR2K2 is exclusively for Dash 3 configuration found on factory navigation-equipped models. Choose based on whether your Subaru has factory navigation.

Will this work if my factory navigation system is broken?

Yes, this kit is designed to replace the factory navigation system with a modern aftermarket headunit. If your factory nav is non-functional, this upgrade brings contemporary navigation capabilities with updated maps and features.

Can I use a 10-inch headunit with this fascia?

No, this fascia is engineered exclusively for universal trapezoid 9-inch headunits. 10-inch units require different mounting dimensions and will not fit the fascia opening designed for these Subaru models.

What additional parts might I need for installation?

The kit includes the fascia, SWC harness, and antenna adapter. Depending on your vehicle's features and chosen headunit, you may need additional items such as a reverse camera, GPS antenna adapter, or specific CANbus interface for optimal SWC functionality.

Compatible With / Goes Well With

Confirmed Compatible Vehicles:

• Subaru Forester 2008-2012 (SH generation, Dash 3 configuration with factory navigation)
• Subaru Impreza 2007-2011 (GH generation, Dash 3 configuration with factory navigation)
• Subaru WRX 2007-2014 (GH generation, Dash 3 configuration with factory navigation)

Confirmed Compatible Headunits:

• Alpine AW409S, Alpine AX809
• Kenwood DMX80AXS
• Pioneer DMH-AP6650BT
• Nakamichi Android stereos with CANbus integration
• Universal aftermarket Android headunits (9" trapezoid form factor with SWC support)

Installation Note: This kit is exclusively for Dash 3 configuration found on factory navigation-equipped Subaru models. If your vehicle does NOT have factory navigation and has Dash 1, 2, or 4 configuration, you'll need the F9SR2K1 kit instead. For 2015+ WRX, 2013+ Forester, or 2012+ Impreza, you'll need different fascia kits designed for the newer generations. Always verify your vehicle's dash configuration against manufacturer compatibility photos before purchasing. Contact us with your VIN if uncertain.
