CAC F9NS4K2 9 Inch Fascia Kit Nissan Juke 2010-2018 Camera USB

Upgrade your camera-equipped Nissan Juke with a premium 9-inch headunit that preserves your factory reverse camera (standard or 360°), steering wheel controls, and USB connectivity.

Product Overview

The CAC F9NS4K2 is a vehicle-specific 9-inch fascia integration kit engineered for 2010-2018 Nissan Juke models (F15 generation) in Dash 2 and Dash 3 configurations equipped with factory camera systems (standard reverse or 360° surround-view). This comprehensive installation solution connects aftermarket trapezoid-style 9-inch headunits to your factory wiring harness while preserving steering wheel control functionality, factory camera systems (both standard reverse and 360° cameras), factory USB port retention, and maintaining proper antenna signal transfer. The kit supports popular 9-inch headunits from Alpine (AW409S, AX809), Kenwood (DMX80AXS), Pioneer (DMH-AP6650BT), Nakamichi CANbus systems, and universal aftermarket Android units, delivering professional-grade integration specifically engineered for higher-specification F15 Juke models across both pre-facelift (2010-2013) and facelift (2014-2018) variants.

Key Specifications

• Fitment: Nissan Juke 2010-2013 (Dash 2), Nissan Juke 2014-2018 (Dash 2 and Dash 3), with factory camera systems
• Screen size accommodation: Universal trapezoid 9-inch headunits only

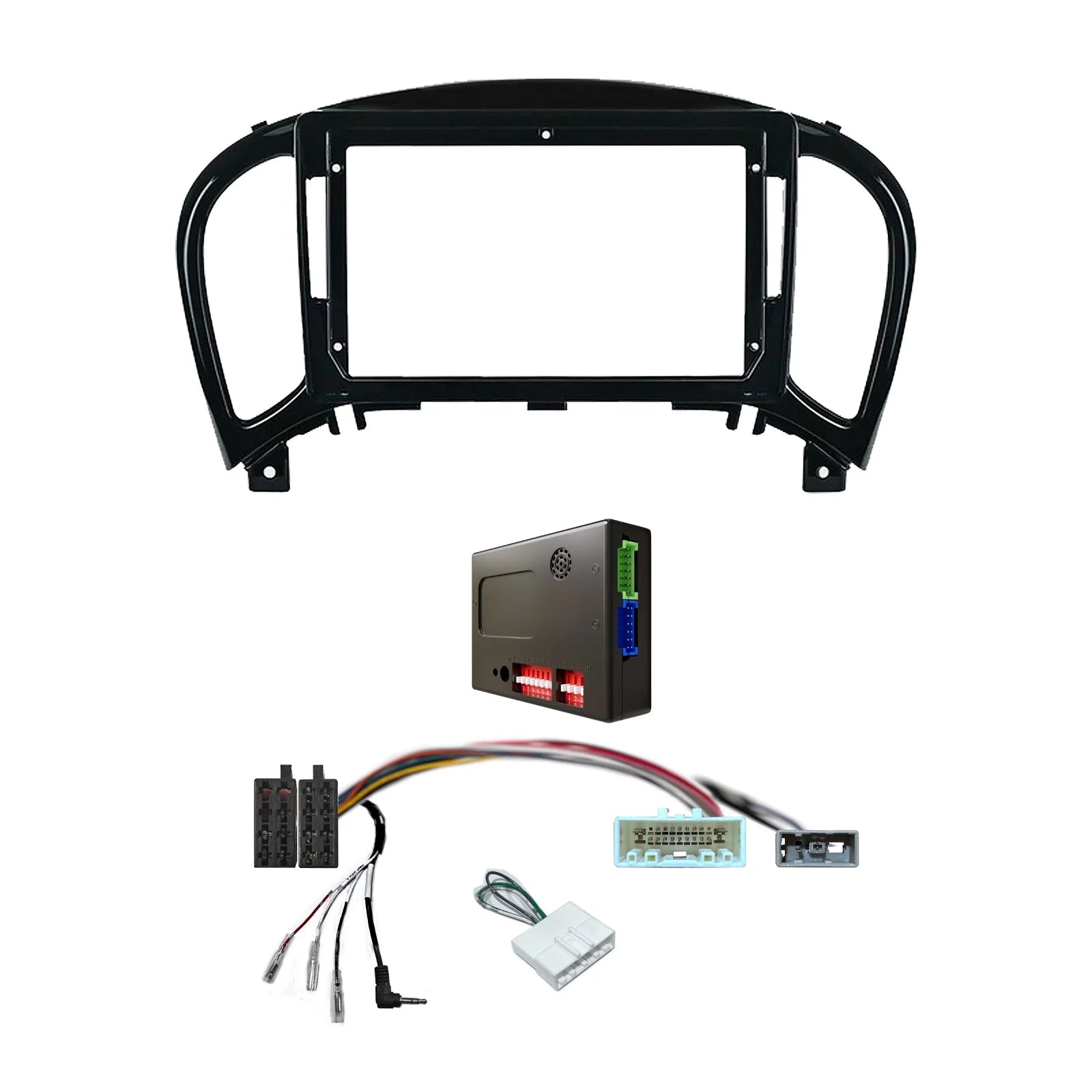

• Included components: 9" fascia panel, steering wheel control harness, factory camera retention adapter (standard or 360°), factory radio antenna adapter, USB adapter
• Feature retention: Steering wheel controls, factory reverse camera or 360° camera, factory USB port, time setting via SWC (selected models)
• Installation type: Plug-and-play with factory wiring (no cutting or splicing required)
• Compatible headunit brands: Alpine, Kenwood, Pioneer, Nakamichi, aftermarket Android systems
• Platform generation: F15 (first-generation Juke, camera-equipped variants)

Features & Benefits

Factory Camera System Retention (Standard or 360°): The integrated camera retention adapter preserves either your factory standard reverse camera or advanced 360° surround-view camera system, maintaining critical parking safety features without the cost and complexity of installing a new camera system. Essential for urban crossover applications where cameras assist with tight city parking, parallel parking in busy streets, and navigating confined car parks with all-around visibility.

Factory USB Port Functionality Preserved: The included USB adapter retains your factory USB port operation for smartphone charging and data transfer, maintaining the convenient factory-positioned connection without unsightly aftermarket cables running through the compact cabin. Critical for maintaining the clean, modern interior appearance expected in higher-specification Juke models while supporting contemporary connectivity needs.

Complete Steering Wheel Control Integration: The included SWC harness preserves all steering wheel-mounted controls including volume, track selection, phone functions, and advanced features like time setting (on selected models). Essential for urban crossover driving where maintaining hands on the wheel during city commuting and dynamic driving ensures safe operation.

Wide Camera-Equipped Configuration Coverage: Engineered to fit Dash 2 configuration on 2010-2013 models and both Dash 2 and Dash 3 configurations on 2014-2018 facelift models, accommodating various camera-equipped specifications across the F15 generation. Critical for professional installations where higher-specification Jukes with factory cameras require configuration-specific components for proper fitment.

True Plug-and-Play Installation: All harnesses including SWC adapter, camera retention adapter, and USB adapter connect directly to factory plugs without any wire cutting, stripping, or soldering required. Dramatically reduces installation time and eliminates wiring errors, particularly important for camera-equipped vehicles where incorrect wiring can damage expensive camera and USB systems.

Premium Connectivity with Safety Retention: Brings contemporary features including Apple CarPlay, Android Auto, enhanced Bluetooth streaming, and GPS navigation to the 2010-2018 Juke while retaining factory parking safety (standard or 360° camera), USB convenience, and complete steering wheel control functionality. Transforms the stylish urban crossover into a fully connected, safety-enhanced city vehicle with seamless hands-free operation perfect for dynamic urban driving.

Technical Specs

• Product code: F9NS4K2
• Manufacturer: Car Audio Connect (CAC)
• Fascia dimensions: 9-inch trapezoid opening (universal 9" aftermarket headunit standard)
• Harness type: Vehicle-specific plug-and-play wiring harness with SWC adapter
• SWC compatibility: Full steering wheel control retention with time setting support (selected models)
• Camera adapter: Factory reverse camera or 360° camera retention (multi-channel video passthrough)
• USB adapter: Factory USB port retention
• Antenna adapter: Factory radio antenna to aftermarket headunit (standard antenna connection)
• Materials: ABS plastic fascia panel
• Colour: Black (OEM-matched texture)
• Installation difficulty: Moderate to advanced (requires dash panel removal, camera connection, USB connection, and basic electrical connection)
• Compatible model years: 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
• Platform generation: F15 (first-generation Juke, Dash 2 and Dash 3 configurations)
• Warranty: Refer to manufacturer warranty terms

Frequently Asked Questions

What's the difference between this and the F9NS4K1 kit?

The F9NS4K1 is for Dash 1 configuration without cameras. The F9NS4K2 is for Dash 2/Dash 3 configurations with factory camera systems (standard reverse or 360°) and includes USB retention. If your Juke has a factory camera, you need this kit (F9NS4K2).

Will this work with both standard reverse cameras and 360° cameras?

Yes, the camera retention adapter supports both standard factory reverse cameras and advanced 360° surround-view camera systems. However, 360° camera display functionality depends on your chosen headunit's multi-camera input capabilities—confirm with your headunit supplier.

Does the USB adapter support smartphone data transfer?

The USB adapter maintains factory USB port functionality. However, actual data transfer capabilities depend on your chosen headunit's USB implementation and how it processes signals from the factory USB connection.

What is the time setting feature via steering wheel controls?

Selected Juke models allow setting the headunit's clock time using factory steering wheel controls. This feature depends on both your vehicle's factory wiring and your chosen headunit's compatibility with this function.

What additional parts might I need for installation?

The kit includes the fascia, SWC harness, camera adapter, USB adapter, and antenna adapter. Depending on your chosen headunit, you may need additional items such as a GPS antenna adapter or specific CANbus interface for optimal functionality with 360° cameras.

Compatible With / Goes Well With

Confirmed Compatible Vehicles:

• Nissan Juke 2010-2013 (F15 generation pre-facelift, Dash 2 configuration with factory camera)
• Nissan Juke 2014-2018 (F15 generation facelift, Dash 2 and Dash 3 configurations with factory standard or 360° camera)

Confirmed Compatible Headunits:

• Alpine AW409S, Alpine AX809
• Kenwood DMX80AXS
• Pioneer DMH-AP6650BT
• Nakamichi Android stereos with CANbus integration
• Universal aftermarket Android headunits (9" trapezoid form factor with camera input and USB support)

Installation Note: This kit is specifically designed for camera-equipped F15 generation Juke models from 2010-2018 in Dash 2 and Dash 3 configurations. If your Juke doesn't have a factory camera and has Dash 1 configuration, you'll need the F9NS4K1 kit instead. For 360° camera systems, ensure your chosen headunit supports multi-camera inputs. Always verify your exact dash type and camera system against manufacturer compatibility photos before purchasing. Contact us with your VIN if uncertain about your vehicle's configuration.
