Professional 9-inch fascia kit specifically engineered for Mercedes-Benz M-Class 2005-2011 and GL-Class 2006-2010 Dash 1 configuration luxury SUV vehicles enabling seamless installation of universal trapezoid 9-inch aftermarket head units into factory dashboard openings. Manufactured from premium high-quality materials ensuring structural integrity and long-term durability matching factory dashboard materials with OEM style upgrade appearance. The kit includes 9-inch fascia panel, steering wheel control harness, and radio antenna adapter for plug-and-play installation connecting directly to factory wiring with easy installation process. Designed to suit universal trapezoid 9-inch stereo head units including Alpine AW409S AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Nakamichi Android stereo systems, and aftermarket Android stereo receivers. Black finish coordinates with Mercedes-Benz ML and GL interior trim maintaining cohesive dashboard aesthetics across luxury SUV configurations. Feature retention includes steering wheel controls and factory radio antenna with feature retention depending on specific radio model selected. Accommodates various 9-inch trapezoid format aftermarket receivers providing modern connectivity for premium luxury SUV applications. Precision-engineered for Mercedes-Benz M-Class W164 2005-2011 and GL-Class X164 2006-2010 Dash 1 applications delivering professional installation results maintaining factory appearance quality standards with OEM style integration across both luxury SUV platforms.

Product Overview

The CAC F9MB7K1 solves the fundamental installation challenge facing Mercedes-Benz M-Class and GL-Class luxury SUV owners from mid-2000s production seeking to upgrade factory audio systems with modern 9-inch trapezoid format aftermarket head units featuring large touchscreen displays and advanced connectivity features. This precision-engineered vehicle-specific fascia kit converts factory dashboard openings to accommodate universal trapezoid 9-inch stereo dimensions providing significantly larger display area compared to traditional double-DIN installations while maintaining Mercedes-Benz premium quality standards.

Mercedes-Benz M-Class (W164 chassis designation, 2005-2011) and GL-Class (X164 chassis designation, 2006-2010) represent second generation M-Class and first generation GL-Class luxury SUV platforms sharing substantial dashboard architecture and interior design elements. Both platforms feature distinctive Mercedes-Benz premium SUV dashboard design requiring specific fascia solutions for aftermarket head unit installation. The "Dash 1" designation indicates specific dashboard configuration used across certain trim levels and production periods within these model ranges requiring verification before purchase to ensure compatibility with your specific vehicle configuration.

The shared platform architecture between M-Class W164 and GL-Class X164 enables single fascia kit compatibility across both luxury SUV lines simplifying aftermarket head unit installation for Mercedes SUV owners from this generation. The M-Class served as Mercedes-Benz's mid-size luxury SUV offering five-passenger seating, while GL-Class provided three-row seven-passenger luxury SUV capability built on extended M-Class platform. Despite size differences, both models utilize compatible dashboard architecture within Dash 1 configuration enabling universal fascia kit application.

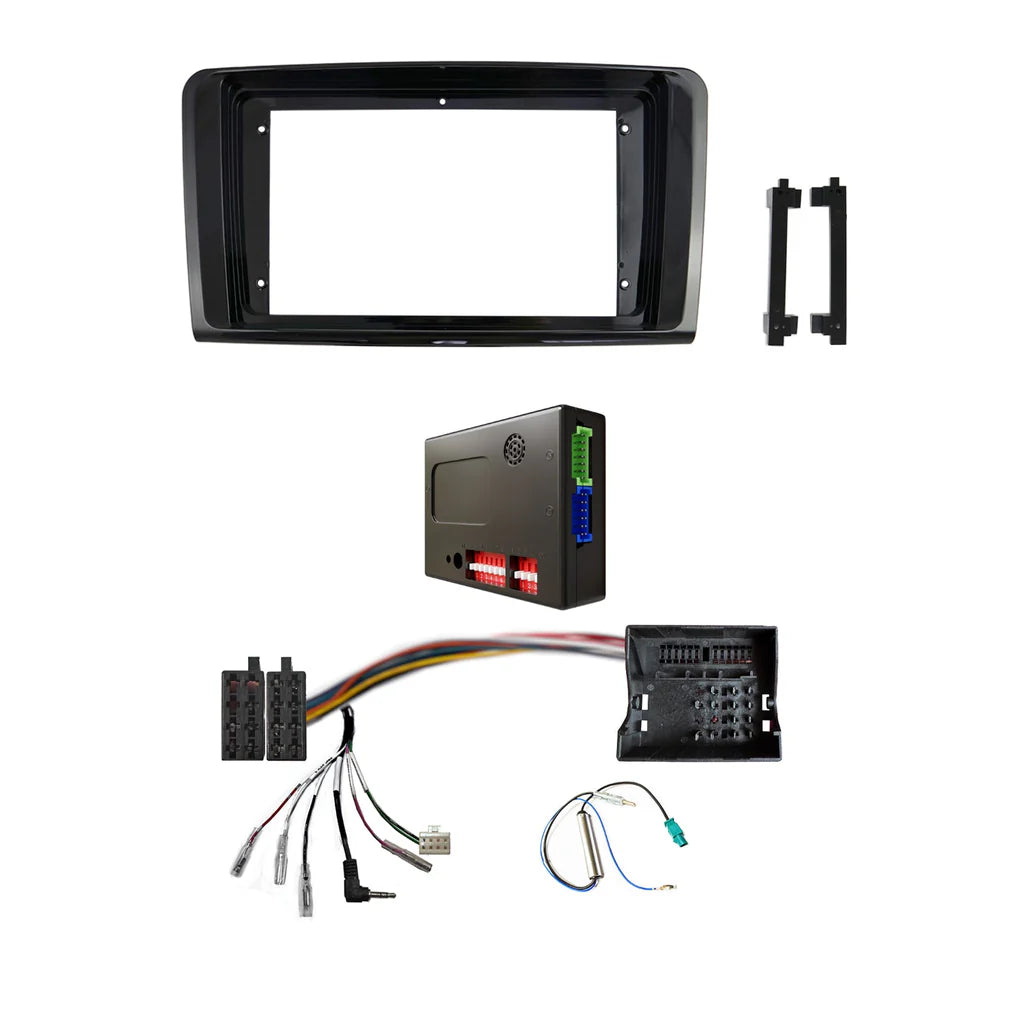

The kit provides complete installation solution including all necessary integration components for professional results. Steering wheel control harness enables retention of factory steering wheel audio controls allowing drivers to maintain convenient control functionality without sacrificing modern head unit features. Factory radio antenna adapter ensures proper FM/AM radio reception after aftermarket head unit installation maintaining audio quality comparable to factory systems. Direct factory wiring connection eliminates need for cutting or splicing vehicle wiring preserving electrical system integrity and enabling future reversibility if needed.

OEM Style Dashboard Integration Across ML and GL Platforms – Precision-engineered fascia panel matches factory dashboard contours and finish maintaining Mercedes-Benz quality appearance standards across both M-Class and GL-Class luxury SUV platforms. The black finish coordinates with Mercedes interior trim ensuring cohesive aesthetics across dashboard surfaces without aftermarket appearance compromise.

Dual Platform Compatibility – Single fascia kit accommodates both Mercedes M-Class W164 2005-2011 and GL-Class X164 2006-2010 vehicles with Dash 1 configuration. This dual compatibility simplifies parts selection for Mercedes SUV owners and installers working across both luxury SUV platforms sharing dashboard architecture.

Universal 9-Inch Trapezoid Compatibility – Accommodates various aftermarket head unit brands and models using universal trapezoid 9-inch format. Compatible head units include Alpine AW409S and AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Nakamichi Android systems, and other aftermarket Android stereo receivers enabling flexibility in feature selection and price points.

Steering Wheel Control Retention – Included steering wheel control harness maintains factory steering wheel audio control functionality. Mercedes-Benz M-Class and GL-Class steering wheel controls typically include volume adjustment, track skip, source selection, and phone controls depending on trim level. Retention capability depends on selected aftermarket head unit's steering wheel control compatibility and programming.

Factory Antenna Integration – Radio antenna adapter connects factory Mercedes-Benz antenna to aftermarket head unit ensuring proper FM and AM radio reception. Mercedes vehicles use specific antenna connection standards requiring proper adapter for signal transmission without interference or reception quality degradation.

Plug-and-Play Installation – Direct connection to factory wiring harness eliminates complex wiring modifications. Installation process involves removing factory head unit, connecting integration harnesses, installing aftermarket head unit into fascia kit, and securing complete assembly into dashboard opening maintaining clean professional appearance.

Large Display Accommodation – Enables installation of modern 9-inch touchscreen displays providing enhanced visibility navigation capabilities and multimedia functionality compared to traditional smaller head unit formats particularly beneficial in larger luxury SUV applications where visibility and screen size enhance usability.

Mid-2000s Mercedes Luxury SUV Platform – Accommodates Mercedes-Benz vehicles from mid-2000s production period representing second generation M-Class and first generation GL-Class requiring modern audio upgrades while maintaining factory appearance quality across premium luxury SUV applications.

Technical Specifications

Frequently Asked Questions

Q: What does "Dash 1" mean for Mercedes M-Class and GL-Class compatibility?

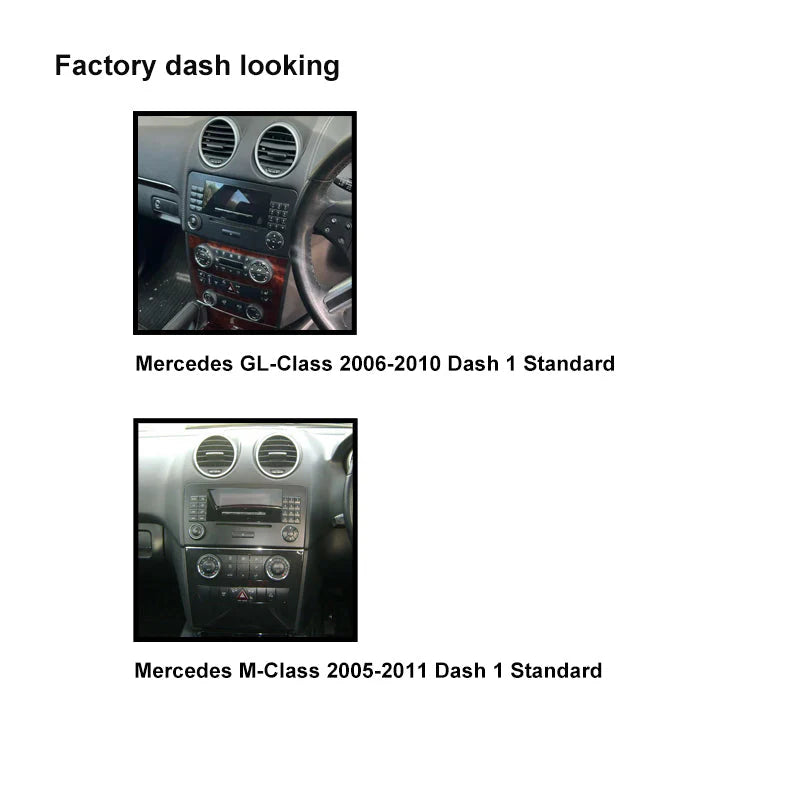

A: "Dash 1" refers to a specific dashboard configuration used in certain Mercedes-Benz M-Class W164 (2005-2011) and GL-Class X164 (2006-2010) models. Both luxury SUV platforms featured different dashboard designs across various trim levels, production years, and equipment packages. The Dash 1 designation helps identify which specific dashboard architecture your Mercedes SUV has to ensure proper fascia kit fitment. Before purchasing, verify your M-Class or GL-Class dashboard configuration by checking compatible dash photos on the Car Audio Connect website or contacting the supplier with photos of your specific dashboard to confirm you have the Dash 1 configuration rather than alternative dashboard designs that may require different fascia kits.

Q: Will this fit both my Mercedes ML350 and my GL450, or do I need different kits?

A: If both vehicles are within the specified model year ranges (M-Class 2005-2011, GL-Class 2006-2010) and both have Dash 1 configuration, this single F9MB7K1 fascia kit is compatible with both vehicles. The M-Class W164 and GL-Class X164 platforms share dashboard architecture despite differences in vehicle size and seating capacity. However, you must verify both vehicles have Dash 1 configuration as some M-Class and GL-Class models may have different dashboard configurations requiring alternative fascia kits. Check dashboard photos on caraudioconnect.com.au for both vehicles before purchase to confirm compatibility.

Q: Do I need any additional parts besides this fascia kit to install a 9-inch head unit in my Mercedes ML or GL?

A: This fascia kit includes the essential components for physical installation and basic feature retention (fascia panel, steering wheel control harness, radio antenna adapter). However, you may need additional components depending on your M-Class or GL-Class equipment: a vehicle-specific wiring harness adapter to connect the aftermarket head unit to factory wiring (if not included with your chosen head unit), a reverse camera retention adapter if your ML or GL has factory reverse camera or factory navigation with camera, and potentially a CANBUS interface for advanced feature integration. If your vehicle has factory amplified audio system (such as Harman Kardon premium sound), you may need amplifier integration adapters for proper audio output. Consult with professional installers experienced with Mercedes M-Class and GL-Class audio systems to determine complete requirements for your specific vehicle configuration.

Q: Is this compatible with 2012 or newer M-Class or 2011 or newer GL-Class models?

A: No, this fascia kit is designed specifically for M-Class 2005-2011 and GL-Class 2006-2010 (Dash 1 configuration only). The 2012+ third generation M-Class (W166) and 2013+ second generation GL-Class (X166) feature completely redesigned dashboard architecture requiring different fascia kits. Additionally, even within the specified model years, vehicles with different dashboard configurations (not Dash 1) require alternative fascia solutions. Always verify your specific Mercedes SUV generation, model year, and dashboard configuration by checking compatible dash photos on the Car Audio Connect website before purchasing to ensure proper fitment.

Q: Will this work with my M-Class or GL-Class if it has the factory COMAND navigation system?

A: This fascia kit can physically accommodate 9-inch aftermarket head units in vehicles equipped with factory COMAND navigation systems, however additional considerations apply. Vehicles with COMAND navigation may have factory reverse cameras, amplified audio systems, and additional vehicle integration features requiring specialized retention adapters beyond what's included in this fascia kit. You will likely need reverse camera retention adapter, and potentially amplifier retention interface if equipped with premium sound package. Some COMAND-specific vehicle functions may be lost when replacing factory navigation unless aftermarket head unit includes compatible CANBUS integration. Consult with professional installers experienced with Mercedes COMAND system replacement to ensure proper feature retention and functionality before purchase.
