CAC F9MA5K2 9 Inch Fascia Kit - Mazda 2 & CX-3 2014+ Dash 2 Integration Kit

CAC F9MA5K2 9 Inch Fascia Kit - Mazda 2 & CX-3 2014+ Dash 2 Integration Kit

Complete 9-inch fascia installation kit for Mazda 2 and CX-3 with Dash 2 configuration, including OEM-style fascia panel, steering wheel control harness, radio antenna adapter, and factory camera retention for seamless aftermarket head unit integration.

Product Overview

The Car Audio Connect F9MA5K2 9 Inch Fascia Kit is a comprehensive installation solution specifically designed for Mazda 2 and Mazda CX-3 vehicles with Dash 2 configuration from 2014 onwards, providing everything needed to upgrade to a modern 9-inch aftermarket head unit with OEM-style integration and comprehensive factory feature retention. This complete kit includes a precision-molded 9-inch fascia panel that matches factory dashboard aesthetics, plus steering wheel control harness with Bluetooth button retention, radio antenna adapter, and factory camera retention for complete functionality preservation. Designed specifically for universal trapezoid 9-inch stereos, the F9MA5K2 works seamlessly with Alpine AW409S, AX809, Pioneer DMH-AP6650BT, Nakamichi Android systems, and other aftermarket Android stereos, providing flexibility in head unit selection while maintaining professional OEM appearance. Important installation note: The back DIN requires vertical installation for compatible head units, necessitating the FDINM2 mount bracket which must be ordered separately for proper head unit mounting. The kit retains full steering wheel control functionality including the Bluetooth button for hands-free calling, allowing drivers to maintain safe, convenient access to audio functions without taking hands off the wheel. Factory center console control retention supports volume up/down, mute, track backward/forward functions, with other buttons functioning as MODE for additional control options. Factory reverse camera functionality is preserved, ensuring continued use of the existing backup camera system for safe reversing with compatible aftermarket head units. The included factory radio antenna adapter maintains AM/FM reception quality. For vehicles equipped with factory BOSE premium audio systems, this kit is fully compatible when used with the HEXT3 adapter (ordered separately) to retain factory amplifier functionality and maintain optimal sound quality. The plug-and-play design with included harnesses and adapters means no cutting or splicing of factory wiring is required, preserving the vehicle's electrical system integrity and resale value while enabling straightforward installation. Engineered specifically for Mazda 2 and CX-3 models from 2014 onwards with Dash 2 configuration, the F9MA5K2 ensures proper fitment, connector compatibility, and signal integration for reliable operation. Feature retention will depend on the specific aftermarket radio model selected, with compatible head units providing full functionality. Professional-grade construction with high-quality materials ensures reliable operation and longevity in the demanding automotive environment.

Features & Benefits

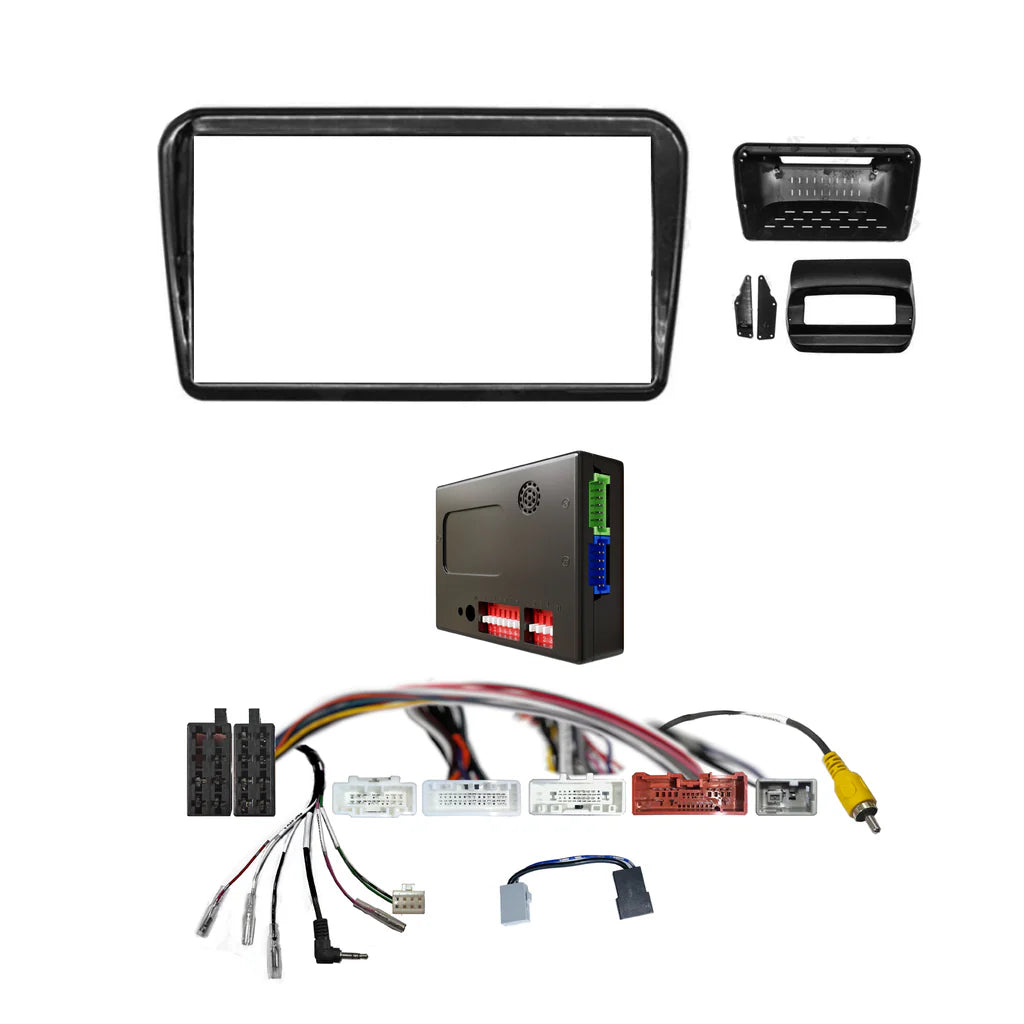

Complete 9-Inch Integration Solution: Includes precision-molded fascia panel, steering wheel control harness with BT button retention, radio antenna adapter, and factory camera retention—everything needed for professional OEM-style installation of 9-inch aftermarket head units.

OEM-Style Fascia Design: Precision-molded 9-inch fascia panel matches factory dashboard aesthetics for professional appearance that looks like it came from the factory, enhancing vehicle interior while accommodating modern large-screen head units.

Comprehensive Feature Retention: Preserves steering wheel controls including Bluetooth button, factory center console controls (volume +/-, mute, track backward/forward, MODE), factory reverse camera, and radio antenna for complete functionality without additional adapters.

Universal 9-Inch Head Unit Compatibility: Works with Alpine AW409S, AX809, Pioneer DMH-AP6650BT, Nakamichi Android systems, and other aftermarket trapezoid 9-inch stereos, providing flexibility in head unit selection (requires FDINM2 bracket for vertical DIN installation - sold separately).

BOSE System Compatible: Fully compatible with factory BOSE premium audio systems when used with HEXT3 adapter (ordered separately), maintaining optimal sound quality and factory amplifier functionality without expensive amplifier replacement.

Factory Camera & Center Console Control Retention: Maintains factory reverse camera for safe backing and center console controls supporting volume +/-, mute, track backward/forward with MODE functionality, preserving convenience and safety features.

Plug & Play Installation: Included harnesses and adapters connect directly to factory wiring with no cutting or splicing required, preserving vehicle electrical system integrity and enabling straightforward installation for Dash 2 configuration vehicles.

Technical Specifications

Compatible With

The CAC F9MA5K2 9 Inch Fascia Kit is specifically compatible with Mazda 2 vehicles manufactured from 2014 onwards with Dash 2 configuration and Mazda CX-3 vehicles from 2014 onwards with Dash 2 configuration. Works with universal trapezoid 9-inch aftermarket head units including Alpine AW409S, Alpine AX809, Pioneer DMH-AP6650BT, Nakamichi Android stereos, and other aftermarket Android stereos with trapezoid form factor. Compatible head units require vertical back DIN installation using the FDINM2 mount bracket (ordered separately). Retains steering wheel controls including Bluetooth button, factory center console controls, factory reverse camera, and factory radio antenna. For vehicles equipped with factory BOSE premium audio systems, use with HEXT3 adapter (ordered separately) to maintain factory amplifier functionality. Not suitable for Mazda 2 or CX-3 vehicles with Dash 1 configuration, other Mazda models, or standard-size (single DIN/double DIN) head units. Ideal for Mazda 2 and CX-3 owners with Dash 2 configuration upgrading to modern large-screen head units with features like Apple CarPlay, Android Auto, Bluetooth, navigation, or enhanced audio capabilities while maintaining factory system integration and OEM appearance.

Frequently Asked Questions

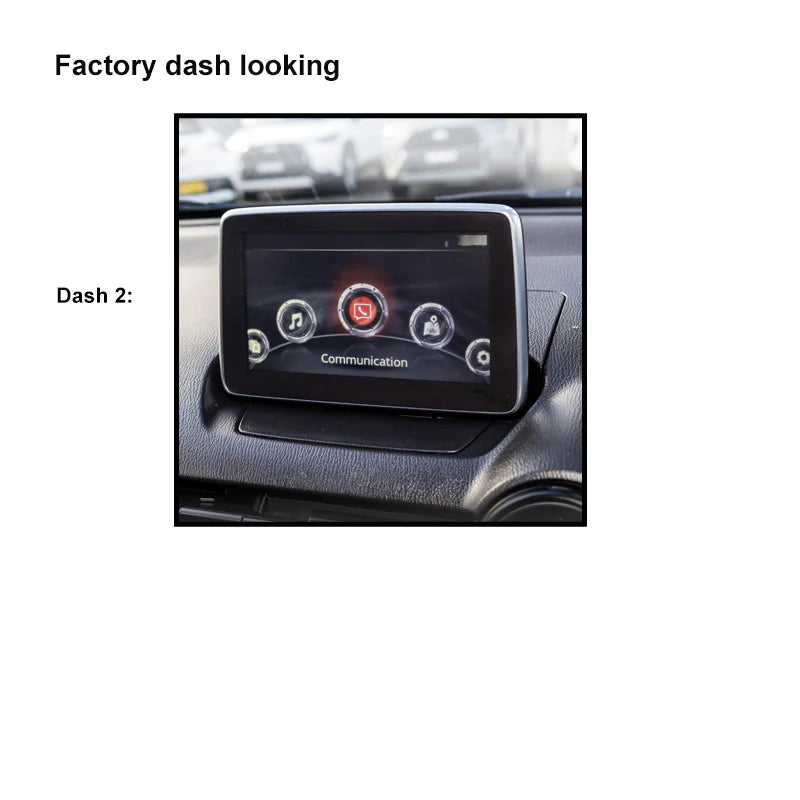

What is Dash 2 configuration and how do I know if my vehicle has it? Dash 2 refers to the second-generation dashboard design used in Mazda 2 (2014+) and CX-3 (2014+) models. If you're unsure about your vehicle's dash configuration, check the original fascia opening size or consult with a Car Audio Connect specialist to confirm compatibility before purchase.

Do I need any additional components for installation? Yes, compatible head units (Alpine AW409S, AX809, Pioneer DMH-AP6650BT, Nakamichi, and aftermarket Android stereos) require vertical back DIN installation using the FDINM2 mount bracket, which must be ordered separately. Additionally, vehicles with BOSE systems require the HEXT3 adapter (ordered separately) for factory amplifier retention.

Will this kit work with my factory BOSE system? Yes, the F9MA5K2 is fully compatible with factory BOSE premium audio systems when used with the HEXT3 adapter, which must be ordered separately. The combination maintains factory amplifier functionality and optimal sound quality without requiring amplifier replacement.

What steering wheel control functions are retained? The F9MA5K2 retains all steering wheel control functions including the Bluetooth button for hands-free calling, volume up/down, track selection, source switching, and other audio controls. Center console controls support volume +/-, mute, track backward/forward, with other buttons functioning as MODE.

Will my factory reverse camera continue to work? Yes, the F9MA5K2 includes factory reverse camera retention functionality, ensuring your existing backup camera system continues to function properly with compatible aftermarket head units that support reverse camera input for safe backing maneuvers.
