CAC F9KA8K2 9 Inch Fascia Kit Compatible with Kia Optima 2016-2020 Dash 3 Harman Kardon - Complete OEM Style Installation Kit with SWC, Camera, USB

CAC F9KA8K2 9 Inch Fascia Kit Compatible with Kia Optima 2016-2020 Dash 3 Harman Kardon - Complete OEM Style Installation Kit with SWC, Camera, USB

Professional 9-inch fascia kit engineered specifically for Kia Optima 2016-2020 vehicles with Dash 3 configuration and Harman Kardon premium audio system enabling installation of universal trapezoid 9-inch aftermarket head units with complete OEM-style integration maintaining factory appearance and functionality. The Car Audio Connect F9KA8K2 comprehensive installation solution includes fascia panel, steering wheel control harness, factory camera retention adapter, radio antenna adapter, USB adapter, and necessary mounting hardware creating complete plug-and-play installation package eliminating need for multiple separate component purchases. Compatible with popular 9-inch head units including Alpine AW409S and AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Nakamichi Android systems, and various aftermarket Android stereos featuring universal trapezoid 9-inch form factor. Comprehensive feature retention includes steering wheel control integration, factory reverse camera retention, factory USB port functionality, radio antenna connectivity, air conditioning information display integration, and compatibility with factory Harman Kardon amplified audio system ensuring professional installation maintaining all essential vehicle functions. Important installation consideration: factory dash buttons will change function after installation as original head unit controls become integrated into new 9-inch display requiring familiarization with revised button assignments. Certain head units including Alpine, Pioneer, Nakamichi, and aftermarket Android systems require vertical DIN mounting installation with provided mount bracket accommodating specific head unit chassis designs. Perfect for Kia Optima owners seeking dramatic infotainment upgrade from factory 7-8 inch displays to modern 9-inch screens with enhanced Apple CarPlay, Android Auto, navigation, and multimedia capabilities while maintaining factory-quality appearance and complete feature integration. Professional installation recommended given complexity of 9-inch installations, air conditioning display integration requirements, and Harman Kardon audio system compatibility considerations. Manufactured by Car Audio Connect, Australian specialists in automotive integration solutions ensuring quality construction and comprehensive compatibility appropriate for demanding Korean vehicle applications.

Product Overview

The CAC F9KA8K2 addresses growing demand for large-screen aftermarket head unit installations in Kia Optima vehicles where factory 7-8 inch displays increasingly feel dated compared to modern 9-10 inch screens standard in newer vehicles. The 9-inch upgrade represents significant visual and functional enhancement providing larger display area for navigation maps, improved touchscreen usability, better media viewing, and more impressive appearance matching premium vehicle expectations. However, 9-inch installations present substantially greater complexity compared to standard double-DIN upgrades requiring specialized fascia solutions accommodating larger screen dimensions, modified mounting approaches, air conditioning display integration maintaining climate control visibility, and comprehensive electrical integration preserving all factory functions. The F9KA8K2 provides complete installation solution bundling all required components eliminating need for customers sourcing separate fascia, harnesses, adapters, and brackets from multiple suppliers risking compatibility issues or missing components. The Dash 3 Harman Kardon specification indicates specific Kia Optima configuration with particular dash design and premium Harman Kardon amplified audio system requiring specialized integration approach - verification of exact vehicle configuration critical as different dash designs or audio systems within Kia Optima model range require different fascia solutions. The inclusion of Harman Kardon compatibility addresses premium audio integration challenge where factory amplifier must receive proper signal-level inputs from aftermarket head unit maintaining audio quality expectations of premium system. The air conditioning information display integration represents sophisticated feature maintaining climate control visibility on aftermarket head unit screen, important consideration in 9-inch installations where large screen may physically relocate or replace factory climate control display areas requiring electronic integration preserving HVAC information accessibility.

Key Features and Benefits

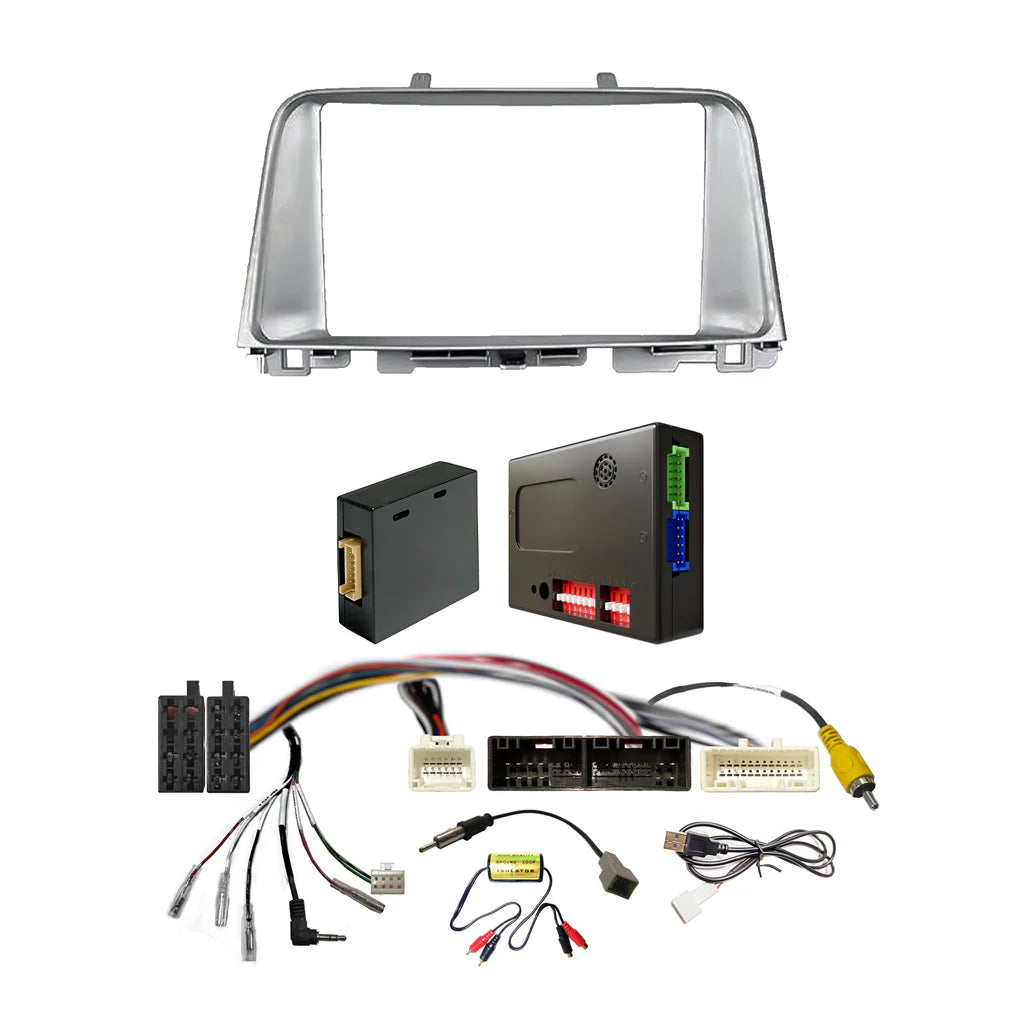

Complete 9-Inch Installation Package – Comprehensive kit includes all essential components for complete installation: 9-inch fascia panel creating OEM-style finished appearance, steering wheel control harness preserving factory audio controls, factory camera retention adapter maintaining backup camera functionality, radio antenna adapter ensuring broadcast reception, USB adapter preserving factory USB ports, and necessary mounting brackets accommodating specific head unit requirements. Complete package approach eliminates component sourcing challenges, ensures compatibility between all components, reduces installation complexity through integrated solution, and prevents mid-installation discoveries of missing parts. Single-source complete kit particularly valuable for DIY installers or professional shops requiring reliable turnkey solutions.

Universal Trapezoid 9-Inch Head Unit Compatibility – Designed for universal trapezoid 9-inch head units including popular models: Alpine AW409S and AX809 (vertical DIN mounting with included bracket), Kenwood DMX80AXS, Pioneer DMH-AP6650BT (vertical DIN with included bracket), Nakamichi Android systems (vertical DIN with included bracket), and various aftermarket Android stereos (vertical DIN with included bracket). Universal compatibility enables user choice in head unit selection based on desired features, budget, brand preference, or specific functionality requirements. Important note: certain head units require vertical DIN chassis mounting rather than traditional horizontal mounting - included mount bracket accommodates vertical installation requirements ensuring proper fit for compatible units.

Harman Kardon Amplified System Compatibility – Specifically engineered for Kia Optima vehicles equipped with premium Harman Kardon factory amplified audio systems maintaining proper signal integration with factory amplifier. Premium audio system compatibility critical as amplified systems require specific signal-level inputs, proper impedance matching, and appropriate voltage levels ensuring factory amplifier operates correctly with aftermarket head unit. Without proper integration, amplified systems may experience poor audio quality, insufficient volume, distortion, or complete non-functionality. Harman Kardon compatibility ensures premium audio investment preserved after head unit upgrade maintaining sound quality expectations of factory premium system.

Comprehensive Feature Retention – Maintains essential factory functions including: steering wheel controls enabling continued operation of audio and phone functions from factory multi-function steering wheel, factory reverse camera maintaining critical backup camera functionality on new 9-inch display, factory USB ports preserving convenient charging and connectivity, radio antenna ensuring AM/FM reception, and air conditioning information display integration showing HVAC settings and controls on aftermarket head unit screen. Comprehensive feature retention ensures professional installation matching factory integration quality without sacrificing convenience or safety features. Feature retention particularly critical in premium vehicles like Optima with Harman Kardon where owner expectations include complete functionality preservation.

Air Conditioning Information Display Integration – Sophisticated integration maintains air conditioning system information visibility on aftermarket head unit display showing climate control settings, temperatures, fan speeds, and HVAC modes. Climate display integration particularly important in 9-inch installations where large screen may occupy space previously used by separate climate control display requiring electronic integration preserving HVAC visibility. Without proper climate integration, drivers lose convenient visibility into air conditioning settings requiring physical inspection of controls or memorization of settings. Integration ensures modern functionality without sacrificing practical climate control awareness important for driving comfort.

OEM-Style Factory Appearance – Professional fascia panel design creates factory-quality finished appearance integrating seamlessly with Kia Optima dashboard styling, trim materials, and color matching. OEM-style appearance important for premium vehicles where aftermarket installations should enhance rather than detract from interior quality and aesthetics. Quality fascia construction with proper material selection, precise molding, appropriate finish, and thoughtful design details creates installations indistinguishable from factory equipment maintaining vehicle value and owner satisfaction. Professional appearance particularly valued in Optima with premium interiors where crude aftermarket installations would compromise perceived vehicle quality.

Factory Dash Button Function Changes – Important installation consideration: factory dash buttons will change function after 9-inch head unit installation as original button assignments tied to factory head unit being replaced. New button functions depend on chosen aftermarket head unit's button mapping and may require familiarization period learning revised assignments. Common changes include previous audio source buttons becoming programmable shortcuts, volume controls potentially relocating to touchscreen, or climate controls integrating differently with new display. Kit includes guidance on anticipated button function changes, and most users adapt quickly to new arrangements. Button function changes represent necessary compromise in 9-inch upgrades enabling dramatic screen size increase and functionality enhancement.

Professional Mounting Solutions Included – Includes necessary mounting brackets and hardware accommodating specific head unit chassis designs including vertical DIN mounting requirements for certain models. Vertical DIN mounting (chassis rotated 90 degrees) sometimes necessary for 9-inch units with deep chassis depths or specific internal component arrangements fitting better in vehicle dash when oriented vertically. Included mounting solutions eliminate need for custom fabrication or modification ensuring secure proper head unit mounting maintaining stability, preventing rattles, and creating professional installation quality. Mount brackets designed specifically for compatible head units ensuring proper fit and reliable long-term mounting.

Technical Specifications

Frequently Asked Questions

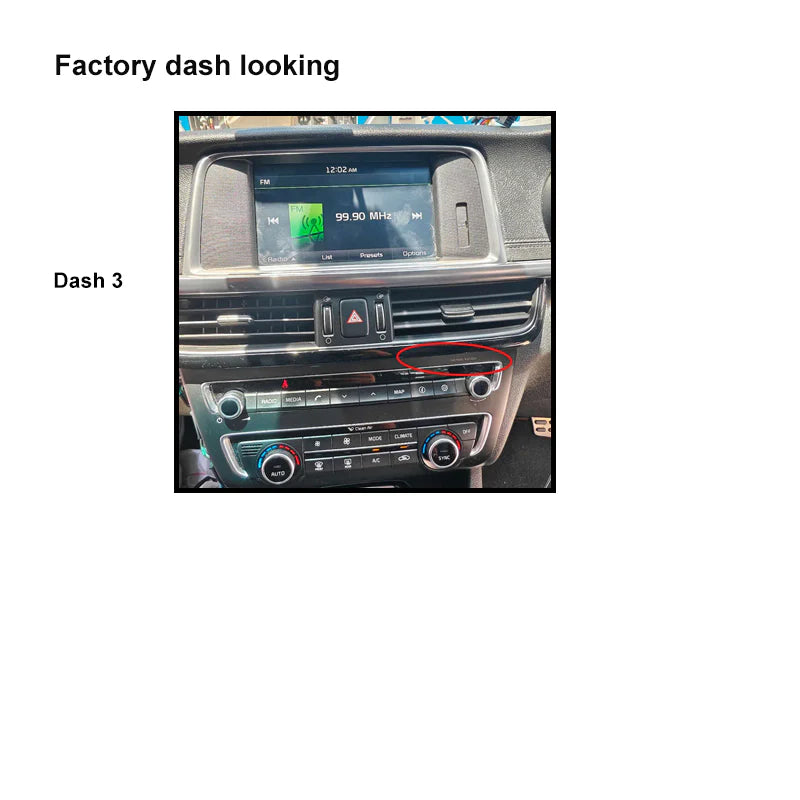

Q: How do I know if my Kia Optima has Dash 3 configuration with Harman Kardon?

A: Dash 3 configuration refers to specific factory dash and head unit design within Kia Optima 2016-2020 model range. Harman Kardon system identifiable by Harman Kardon branding on speakers or factory head unit, premium audio package designation in vehicle documentation, or separate amplifier visible in trunk. For definitive confirmation, contact Frankie's Auto Electrics with your vehicle year, trim level, VIN, and photos of factory dash and speakers. Using incorrect fascia kit for different dash configuration or non-Harman Kardon audio system may result in incompatible installation, non-functional amplifier integration, or missing components. Verification critical before purchase ensuring F9KA8K2 matches your specific vehicle configuration avoiding costly returns or installation complications.

Q: What does vertical DIN mounting mean and why is it required for some head units?

A: Vertical DIN mounting means head unit chassis rotates 90 degrees (portrait orientation) rather than traditional horizontal (landscape) mounting. Some 9-inch head units including Alpine AW409S/AX809, Pioneer DMH-AP6650BT, and various Android systems use chassis designs that fit better in Kia Optima dash when mounted vertically due to chassis depth, internal component arrangement, or connector positioning. Included mounting bracket accommodates vertical installation requirements ensuring proper fit. Screen itself remains in landscape orientation (horizontal) - only internal chassis rotates. Vertical mounting sometimes necessary in 9-inch installations accommodating larger screens in limited dash depth. Bracket included specifically designed for vertical mounting eliminating need for custom fabrication or modification.

Q: Will factory climate controls still work after 9-inch head unit installation?

A: Yes, factory climate controls remain fully functional. However, climate control information display integration changes - instead of separate factory climate display or original head unit showing HVAC settings, air conditioning information now displays on new 9-inch aftermarket head unit screen. Physical climate control buttons, knobs, or touchscreen controls (depending on Optima configuration) continue operating normally. The integration ensures you can see current climate settings, temperatures, and modes on new larger display maintaining convenience and functionality. Some factory dash buttons may change function after installation as noted in specifications, potentially affecting how you interact with certain climate features, but core HVAC functionality remains intact.

Q: Can I install this myself or should I use professional installation?

A: Professional installation strongly recommended for 9-inch fascia kits given significant complexity compared to standard double-DIN installations. Challenges include: complex Kia Optima dash disassembly procedures, large fascia and head unit installation in restricted dash space, proper integration of air conditioning display requiring electronic connections, Harman Kardon amplified system integration ensuring proper signal levels, steering wheel control programming, camera retention verification, and potential vertical DIN mounting requirements. Professional installers experienced with 9-inch Kia installations typically complete work in 3-5 hours ensuring proper function of all integrated systems. DIY installation possible for highly experienced enthusiasts with Kia-specific knowledge, appropriate tools, and comfort with complex electronic integration, but most customers benefit from professional installation avoiding potential complications. Installation typically costs $400-700 depending on complexity and location.

Q: What happens to factory dash buttons and how will I know new functions?

A: Factory dash buttons physically remain in place but functions change after installation because original button assignments tied to factory head unit being replaced. New functions depend on chosen aftermarket head unit's programming and button mapping capabilities. Common scenarios: previous audio source buttons may become programmable shortcuts for navigation, phone, or apps; volume controls may integrate differently with touchscreen control; mode buttons may access different menus on new head unit. Most aftermarket head units include documentation explaining button assignments, and installers typically provide guidance on revised functions. Users generally adapt within days to new button arrangements. If specific button functions critical to your usage, verify chosen head unit's button mapping capabilities before purchase ensuring acceptable button assignment options available.
