CAC F9KA8K1 9 Inch Fascia Kit Compatible with Kia Optima 2016-2020 Dash 1 2 Universal Trapezoid 9" Stereo Dash Plate with Steering Wheel Control Harness - Black

CAC F9KA8K1 9 Inch Fascia Kit Compatible with Kia Optima 2016-2020 Dash 1 2 Universal Trapezoid 9" Stereo Dash Plate with Steering Wheel Control Harness - Black

Professional 9-inch fascia kit specifically engineered for Kia Optima 2016-2020 Dash 1 2 configuration fourth generation mid-size sedan vehicles enabling seamless installation of universal trapezoid 9-inch aftermarket head units into factory dashboard openings. Manufactured from premium high-quality materials ensuring structural integrity and long-term durability matching factory dashboard materials with OEM style upgrade appearance. The comprehensive kit includes 9-inch fascia panel, steering wheel control harness, factory camera retention adapter, radio antenna adapter, USB adapter, and vertical mount bracket for complete plug-and-play installation connecting directly to factory wiring with easy installation process. Designed to suit universal trapezoid 9-inch stereo head units including Alpine AW409S AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Nakamichi Android stereo systems, and aftermarket Android stereo receivers. Important installation specification requires back DIN vertical installation configuration with included mount bracket for proper head unit positioning. Black finish coordinates with Kia Optima interior trim maintaining cohesive dashboard aesthetics across mid-size sedan configurations. Feature retention includes steering wheel controls, factory reverse camera, factory radio antenna, and factory USB with feature retention depending on specific radio model selected. Accommodates various 9-inch trapezoid format aftermarket receivers providing modern connectivity for mid-size sedan applications. Precision-engineered for Kia Optima fourth generation Dash 1 2 applications delivering professional installation results maintaining factory appearance quality standards with OEM style integration.

Product Overview

The CAC F9KA8K1 solves the fundamental installation challenge facing Kia Optima 2016-2020 Dash 1 2 owners seeking to upgrade factory audio systems with modern 9-inch trapezoid format aftermarket head units featuring large touchscreen displays and advanced connectivity features. This precision-engineered vehicle-specific fascia kit converts factory dashboard openings to accommodate universal trapezoid 9-inch stereo dimensions providing significantly larger display area compared to traditional double-DIN installations. The OEM design specification ensures perfect fit matching original equipment manufacturer standards maintaining factory dashboard aesthetics integration quality throughout fourth generation Kia Optima platform 2016-2020 models specifically configured with Dash 1 2 specifications covering multiple dashboard configuration variants. The comprehensive installation kit includes 9-inch fascia panel, steering wheel control harness enabling retention of factory steering wheel audio controls, factory camera retention adapter maintaining reverse camera functionality, radio antenna adapter ensuring proper AM FM reception, USB adapter preserving factory USB port functionality, and vertical mount bracket essential for proper back DIN head unit installation. Plug-and-play design connects directly to factory wiring simplifying installation process without requiring extensive electrical modifications. Critical installation specification requires back DIN vertical installation configuration for Alpine AW409S AX809, Pioneer DMH-AP6650BT, Nakamichi Android stereo systems, and aftermarket Android stereo receivers with included mount bracket facilitating proper vertical mounting orientation. Compatible with specific premium aftermarket head unit brands including Alpine AW409S AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Nakamichi Android stereo systems, and aftermarket Android stereo receivers utilizing universal trapezoid 9-inch format. Feature retention capabilities include steering wheel controls factory reverse camera factory radio antenna and factory USB with feature retention depending on specific radio model selected. Professional installation recommended for optimal fitment proper vertical mount bracket installation proper feature integration and alignment with surrounding dashboard components ensuring clean professional appearance after 9-inch head unit installation completion. Dashboard photograph verification recommended by checking compatible dash photo on manufacturer website or contacting supplier for confirmation ensuring proper fitment for specific Dash 1 2 vehicle configuration.

Key Features

Kia Optima 2016-2020 Dash 1 2 Specific Design – Engineered exclusively for Kia Optima fourth generation 2016-2020 Dash 1 2 configuration covering multiple dashboard layout variants ensuring precise fitment to Kia-specific dashboard architecture.

Universal Trapezoid 9-Inch Format – Accommodates universal trapezoid 9-inch stereo head units providing significantly larger display area compared to traditional double-DIN installations enabling modern touchscreen navigation and multimedia interfaces.

OEM Style Upgrade – Delivers original equipment manufacturer style appearance maintaining factory dashboard aesthetics integration quality while accommodating modern 9-inch touchscreen technology.

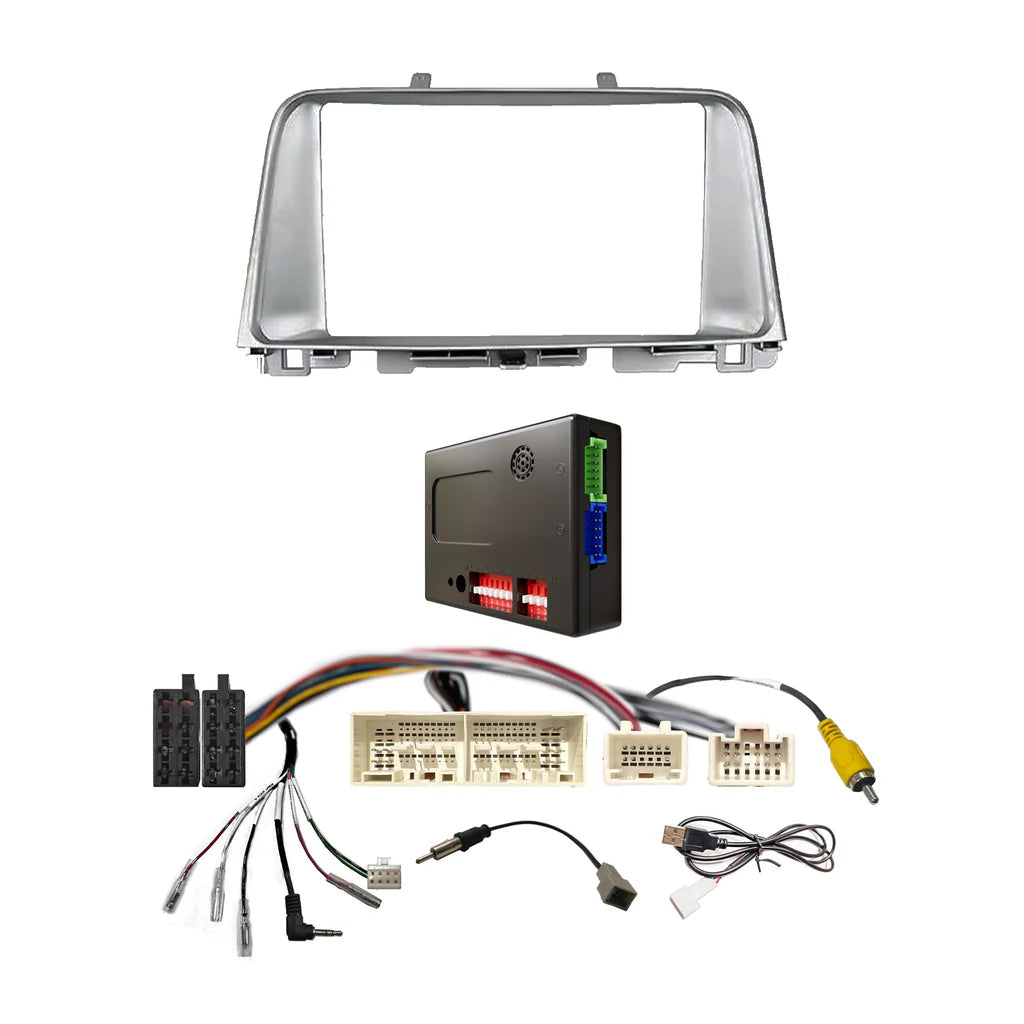

Comprehensive Plug-and-Play Kit – Includes 9-inch fascia panel, steering wheel control harness, factory camera retention adapter, radio antenna adapter, USB adapter, and vertical mount bracket providing complete installation solution connecting directly to factory wiring.

Vertical Mount Bracket Included – Critical installation component includes vertical mount bracket essential for proper back DIN head unit installation enabling vertical mounting configuration required for Alpine Pioneer Nakamichi and aftermarket Android stereos.

Back DIN Vertical Install Configuration – Important specification requiring back DIN vertical installation for proper head unit positioning with included mount bracket facilitating correct mounting orientation for compatible head units.

Steering Wheel Control Retention – Maintains factory steering wheel audio control functionality through included steering wheel control harness enabling volume adjustment track selection and mode control from steering wheel mounted buttons.

Factory Reverse Camera Retention – Preserves factory reverse camera functionality through included camera retention adapter ensuring continued parking assistance and safety features.

Factory Radio Antenna Adapter – Includes radio antenna adapter ensuring proper AM FM reception maintaining factory antenna connection to aftermarket head unit.

Factory USB Adapter – Retains factory USB port functionality through included USB adapter preserving convenient smartphone charging and data connections in factory locations.

Premium Brand Compatibility – Works with Alpine AW409S AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Nakamichi Android stereo systems, and aftermarket Android stereo receivers utilizing universal trapezoid 9-inch format.

Easy Installation Process – Plug-and-play design connects directly to factory wiring simplifying installation without requiring extensive electrical modifications though vertical mount bracket installation required.

Feature Retention Flexibility – Feature retention capabilities depend on specific radio model selected enabling maximum compatibility with various aftermarket head unit feature sets including steering wheel controls reverse camera antenna and USB.

Dash 1 2 Configuration Coverage – Designed specifically for Kia Optima Dash 1 2 dashboard configurations covering multiple dashboard layout variants within fourth generation platform requiring verification of specific vehicle dash type.

Fourth Generation Optima Platform – Designed specifically for fourth generation Kia Optima 2016-2020 representing specific model years within JF platform generation with particular dashboard architecture.

Mid-Size Sedan Application – Specifically designed for Kia Optima mid-size sedan applications requiring quality aftermarket audio solutions maintaining refined vehicle appearance standards.

Factory Wiring Integration – Connects directly to factory wiring harnesses eliminating need for wire splicing or permanent electrical modifications maintaining reversible installation capability where possible.

Technical Specifications

Frequently Asked Questions

Q: What does "Back DIN requires vertical install" mean?

A: "Back DIN requires vertical install" refers to the physical orientation and mounting configuration of the aftermarket head unit's rear section (back DIN) within the dashboard cavity. Unlike traditional horizontal mounting, this installation requires the head unit to be mounted in a vertical orientation due to the specific dashboard depth and configuration of the 2016-2020 Kia Optima. The included vertical mount bracket facilitates this orientation ensuring proper fitment within the available dashboard space. This vertical mounting configuration is necessary for Alpine, Pioneer, Nakamichi, and aftermarket Android stereos to fit properly in this vehicle.

Q: Will the included mount bracket work with any 9-inch trapezoid head unit?

A: The included vertical mount bracket is specifically designed to work with universal trapezoid 9-inch head units from compatible brands: Alpine AW409S/AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Nakamichi Android stereos, and aftermarket Android stereos. However, always verify your specific head unit's dimensions and mounting requirements match this configuration. The bracket facilitates vertical mounting orientation required for proper fitment in the Kia Optima 2016-2020 dashboard cavity. Professional installation is recommended to ensure proper bracket installation and head unit mounting.

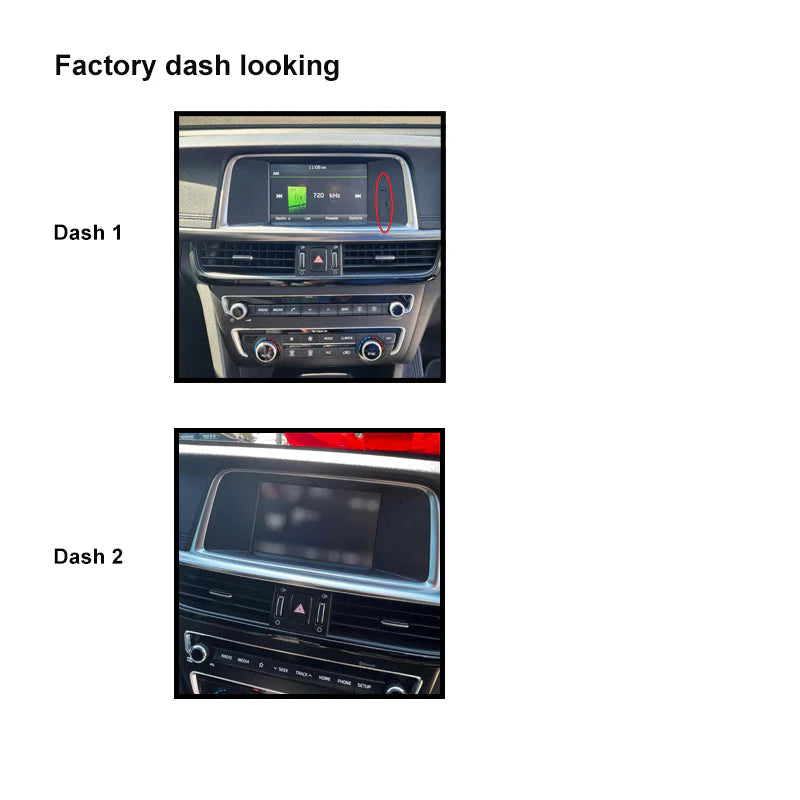

Q: What's the difference between Dash 1 and Dash 2 configurations?

A: Dash 1 and Dash 2 refer to different dashboard layout configurations used in 2016-2020 Kia Optima models. These variations can include different button placements, climate control configurations, or overall dashboard design elements. This F9KA8K1 fascia kit is designed to accommodate both Dash 1 and Dash 2 configurations within the 2016-2020 model years. Verify your specific dashboard configuration by checking compatible dash photos on the Car Audio Connect website or contacting the supplier with photos of your current dashboard to ensure proper compatibility.

Q: Do I need any additional parts besides this fascia kit?

A: This comprehensive kit includes most components necessary for installation: fascia panel, steering wheel control harness, camera retention adapter, antenna adapter, USB adapter, and vertical mount bracket. However, depending on your specific vehicle configuration and chosen head unit, you may need additional components such as specific wiring adapters for vehicles with factory amplified systems, additional interface modules for advanced feature integration, or head unit-specific accessories. Professional installation is recommended to ensure optimal integration particularly with the vertical mount bracket configuration.

Q: Is this compatible with 2014-2015 or 2021+ Kia Optima models?

A: No, this fascia kit is designed exclusively for Kia Optima 2016-2020 Dash 1 2 configurations only. The 2014-2015 third generation Optima requires different fascia kits such as the F9KA7K2 for specific configurations. The 2021+ fifth generation Optima features completely different dashboard architecture requiring different fascia kits. Always verify your specific Optima generation and model year falls within the 2016-2020 fourth generation range before purchasing to ensure proper fitment.
