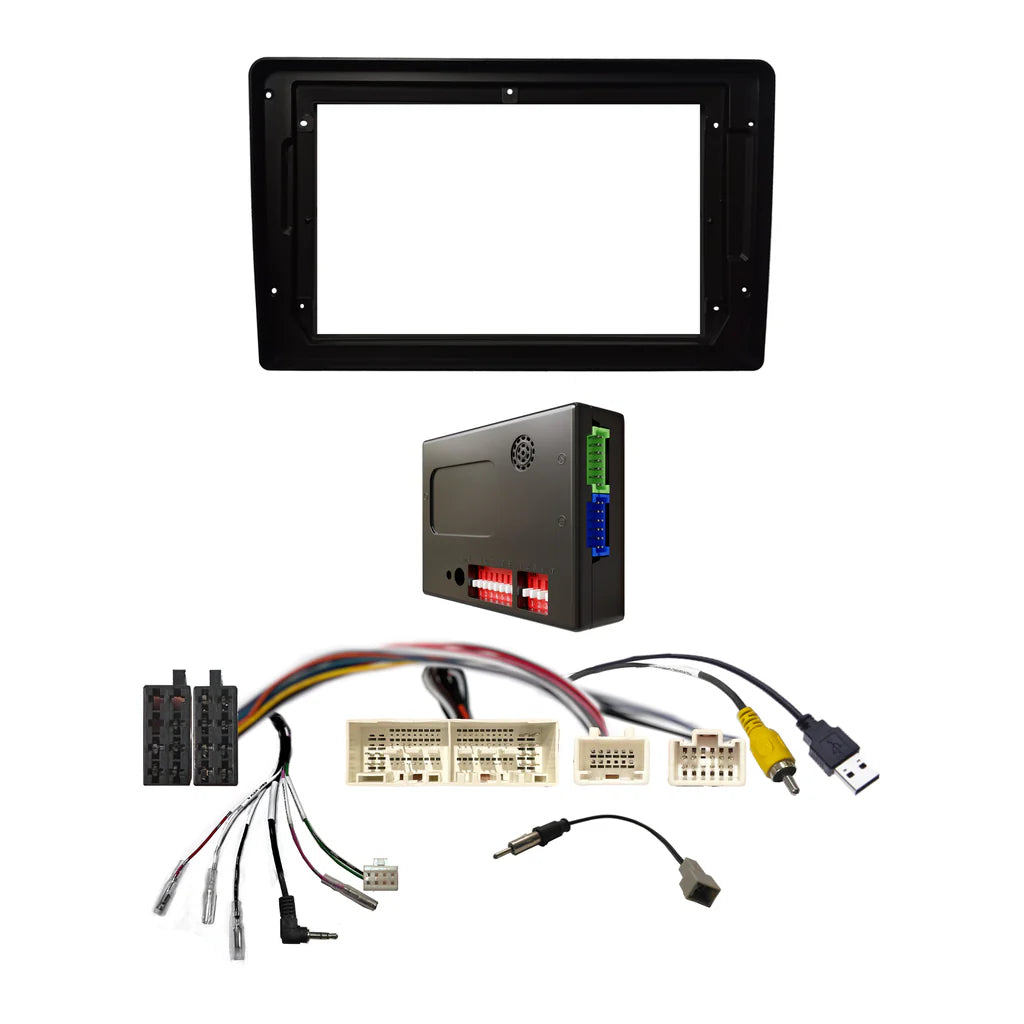

CAC F9KA2K1 9 Inch Fascia Kit Compatible with Kia Carnival 2015-2020 Dash 2 - Complete OEM Style Installation Kit with SWC, Camera, USB, and Air Con Display

CAC F9KA2K1 9 Inch Fascia Kit Compatible with Kia Carnival 2015-2020 Dash 2 - Complete OEM Style Installation Kit with SWC, Camera, USB, and Air Con Display

Professional 9-inch fascia kit engineered specifically for Kia Carnival 2015-2020 vehicles with Dash 2 configuration enabling installation of universal trapezoid 9-inch aftermarket head units with complete OEM-style integration maintaining factory appearance and functionality. The Car Audio Connect F9KA2K1 comprehensive installation solution includes fascia panel, steering wheel control harness, factory camera retention adapter, radio antenna adapter, USB adapter, and necessary mounting hardware creating complete plug-and-play installation package eliminating need for multiple separate component purchases. Compatible with popular 9-inch head units including Alpine AW409S and AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Nakamichi Android systems, and various aftermarket Android stereos featuring universal trapezoid 9-inch form factor. Comprehensive feature retention includes steering wheel control integration, factory standard reverse camera retention, factory USB port functionality, radio antenna connectivity, and sophisticated air conditioning information display integration showing HVAC settings on aftermarket head unit screen. Important installation consideration: factory dash buttons will change function after installation as original head unit controls become integrated into new 9-inch display requiring familiarization with revised button assignments. Perfect for Kia Carnival owners with Dash 2 configuration seeking dramatic infotainment upgrade to modern 9-inch screens with enhanced Apple CarPlay, Android Auto, navigation, and multimedia capabilities while maintaining professional factory-quality appearance and complete feature integration essential for family vehicle applications. The Dash 2 designation distinguishes this fascia from other Kia Carnival configurations - proper identification of your specific Carnival dash configuration critical before purchase. Professional installation recommended given complexity of 9-inch installations, air conditioning display integration requirements, and comprehensive feature retention considerations. Manufactured by Car Audio Connect, Australian specialists in automotive integration solutions ensuring quality construction and comprehensive compatibility appropriate for demanding family vehicle applications where safety features like backup cameras are critical.

Product Overview

The CAC F9KA2K1 addresses infotainment upgrade requirements specifically for Kia Carnival vehicles with Dash 2 configuration where upgrade to modern 9-inch screens represents significant enhancement in functionality, usability, and visual impact for family vehicle applications. The 9-inch upgrade provides larger display area for navigation during family road trips, improved touchscreen usability for driver and passenger interaction, better media viewing for rear seat entertainment monitoring, and more impressive appearance matching modern people-mover expectations. The Dash 2 configuration designation indicates specific factory dash and head unit design within Kia Carnival 2015-2020 model range requiring dedicated fascia and integration solution - verification of exact dash configuration critical as different dash designs within model range require different fascia kits. The F9KA2K1 provides complete installation solution specifically engineered for Dash 2 configuration bundling all required components including sophisticated air conditioning information display integration maintaining climate control visibility on aftermarket head unit screen, essential feature in family vehicles where convenient HVAC monitoring important for passenger comfort during extended travel. The comprehensive feature retention including steering wheel controls, backup camera, USB ports, and climate display integration ensures professional installation matching factory integration quality without sacrificing convenience or safety features critical in family vehicle applications transporting children and passengers. The explicit disclosure of factory dash button function changes represents important transparency enabling users to understand installation will modify button assignments requiring familiarization period, trade-off most users find acceptable for substantial functionality and screen size improvements.

Key Features and Benefits

Complete 9-Inch Installation Package for Dash 2 Configuration – Comprehensive kit specifically designed for Dash 2 configuration includes all essential components: 9-inch fascia panel creating OEM-style finished appearance, steering wheel control harness preserving factory audio and phone controls, factory camera retention adapter maintaining backup camera functionality, radio antenna adapter ensuring broadcast reception, USB adapter preserving factory USB ports, air conditioning display integration components, and necessary mounting hardware. Complete package approach eliminates component sourcing challenges, ensures compatibility between all components specifically for Dash 2 configuration, reduces installation complexity through integrated solution, and prevents mid-installation discoveries of missing parts critical for complete functional installation.

Universal Trapezoid 9-Inch Head Unit Compatibility – Designed for universal trapezoid 9-inch head units including popular models: Alpine AW409S and AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Nakamichi Android systems, and various aftermarket Android stereos. Universal compatibility enables user choice in head unit selection based on desired features (Apple CarPlay, Android Auto, navigation), budget considerations, brand preference, or specific functionality requirements without fascia compatibility constraints. Standardized trapezoid format ensures wide selection of compatible head units accommodating diverse user requirements from basic connectivity through advanced multimedia capabilities valued in family vehicle applications.

Comprehensive Feature Retention – Maintains essential factory functions including: steering wheel controls enabling continued operation of audio and phone functions from factory multi-function steering wheel, factory standard reverse camera maintaining critical backup camera functionality on new 9-inch display, factory USB ports preserving convenient charging and connectivity for family device requirements, radio antenna ensuring AM/FM reception, and air conditioning information display integration showing HVAC settings on aftermarket head unit screen. Comprehensive feature retention ensures professional installation matching factory integration quality without sacrificing convenience or safety features essential in family vehicles transporting children and passengers during daily use and extended trips.

Air Conditioning Information Display Integration – Sophisticated integration maintains air conditioning system information visibility on aftermarket head unit display showing climate control settings, temperatures, fan speeds, and HVAC modes. Climate display integration particularly important in 9-inch installations where large screen may occupy space previously used by separate climate control display requiring electronic integration preserving HVAC visibility. Without proper climate integration, drivers lose convenient visibility into air conditioning settings requiring physical inspection of controls or memorization of settings. Integration ensures modern functionality without sacrificing practical climate control awareness important for family comfort during travel with multiple passengers having varying temperature preferences.

Factory Dash Button Function Changes – Important installation consideration: factory dash buttons will change function after 9-inch head unit installation as original button assignments tied to factory head unit being replaced. New button functions depend on chosen aftermarket head unit's programming and button mapping capabilities. Common scenarios: previous audio source buttons may become programmable shortcuts for navigation, phone, or apps; mode buttons may access different menus on new head unit; certain controls may integrate differently with touchscreen operation. Most aftermarket head units include documentation explaining button assignments, and installers typically provide guidance on revised functions. Users generally adapt within days to new button arrangements. Button function changes represent necessary compromise enabling dramatic screen size increase and functionality enhancement.

Family Vehicle Safety Feature Preservation – Factory standard reverse camera retention particularly critical in large people-mover vehicles like Kia Carnival where vehicle size creates significant rear blind spots and backup camera essential for preventing accidents with children, obstacles, or other vehicles not visible through mirrors alone during parking operations at schools, shopping centers, or residential areas. Camera integration includes both video signal transfer and trigger signal ensuring camera image displays automatically on new 9-inch display when transmission shifted to reverse position providing immediate rear visibility. Essential safety feature for family vehicles where backup camera prevents accidents protecting children and property during daily parking operations common in family vehicle use.

OEM-Style Factory Appearance for Dash 2 – Professional fascia panel design specifically engineered for Dash 2 configuration creates factory-quality finished appearance integrating seamlessly with Kia Carnival dashboard styling, trim materials, and color schemes. OEM-style appearance important for family vehicles where aftermarket installations should enhance rather than detract from interior quality and practical family-friendly design characteristics. Quality fascia construction with proper material selection, precise molding, appropriate finish, and thoughtful design details creates installations appearing as factory equipment maintaining vehicle value and owner satisfaction. Professional appearance particularly valued in modern people-movers where interior quality and functionality directly impact family travel experience.

Plug and Play Installation Approach – Comprehensive harness and adapter integration enables plug-and-play installation connecting directly to factory vehicle wiring without cutting, splicing, or permanent modifications. Simple installation procedure involves: removing factory head unit following Kia Carnival trim removal procedures, connecting F9KA2K1 harnesses to factory connectors, connecting harnesses to aftermarket head unit, mounting new head unit in fascia, installing fascia assembly, configuring air conditioning display integration, and completing steering wheel control programming. Plug-and-play approach reduces installation errors, maintains factory wiring integrity preserving vehicle value, enables simple reversal if needed, and avoids permanent electrical modifications important for family vehicles where reliability and resale value considerations significant.

Technical Specifications

Frequently Asked Questions

Q: How do I know if my Kia Carnival has Dash 2 configuration versus other dash types?

A: Dash 2 configuration refers to specific factory dash and head unit design within Kia Carnival 2015-2020 model range. Visual identification involves examining factory head unit size, surrounding trim layout, control button arrangement, and overall dash design. Kia may have offered different dash configurations across trim levels or implemented mid-generation updates affecting compatibility. For definitive confirmation, contact Frankie's Auto Electrics with your vehicle year, trim level, VIN, and photos of factory dash and head unit. Using incorrect fascia for different dash configuration results in incompatible installation, non-functional features, or improper fit. Verification critical before purchase ensuring F9KA2K1 matches your specific Carnival configuration avoiding installation complications.

Q: What's the difference between this F9KA2K1 (Dash 2) and the HHY24K harness also for Carnival?

A: The F9KA2K1 is complete 9-inch fascia kit including fascia panel, all harnesses, adapters, and mounting hardware for 9-inch head unit installation in Dash 2 configuration. The HHY24K is wiring harness only (no fascia panel) for standard double-DIN head unit installation. F9KA2K1 required when installing 9-inch large-screen head units needing specialized fascia accommodating larger dimensions. HHY24K appropriate when installing standard double-DIN (7-inch) head units using standard fascia solutions. If upgrading to 9-inch screen, you need F9KA2K1 complete kit. If installing standard double-DIN head unit, HHY24K harness plus separate standard fascia required. Contact Frankie's Auto Electrics if uncertain which solution matches your chosen head unit type.

Q: Will factory climate controls still work after 9-inch head unit installation?

A: Yes, factory climate controls remain fully functional. However, climate control information display changes - instead of separate factory climate display or original head unit showing HVAC settings, air conditioning information now displays on new 9-inch aftermarket head unit screen through integrated display functionality. Physical climate control buttons, knobs, or controls (depending on Carnival configuration) continue operating normally adjusting temperature, fan speed, and modes. The integration ensures you can see current climate settings on new larger display maintaining convenience and functionality essential for managing passenger comfort during family travel. Some factory dash buttons may change function after installation potentially affecting climate control interaction requiring familiarization with revised arrangements.

Q: Can I install this myself or should I use professional installation?

A: Professional installation strongly recommended for 9-inch fascia kits given significant complexity compared to standard installations. Challenges include: Kia Carnival dash disassembly procedures requiring specific techniques particularly in family vehicle with complex trim panels, large fascia and head unit installation in dashboard space, proper integration of air conditioning display requiring electronic connections and configuration, steering wheel control programming, camera retention verification ensuring proper trigger and display, USB adapter integration, and ensuring proper function of all retained features. Professional installers experienced with 9-inch Kia installations typically complete work in 3-5 hours ensuring proper function of all integrated systems. Installation typically costs $400-700 depending on complexity. DIY installation possible for highly experienced enthusiasts but professional installation recommended for most customers.

Q: What happens to factory dash buttons and how will I know new functions?

A: Factory dash buttons physically remain in place but functions change after installation because original button assignments tied to factory head unit being replaced. New functions depend on chosen aftermarket head unit's programming and button mapping capabilities. Common scenarios: previous audio source buttons may become programmable shortcuts for navigation, phone, or media apps; mode buttons may access different menus on new head unit; some controls may integrate with touchscreen operation differently than original design. Most aftermarket head units include documentation explaining button assignments and many allow customization of button functions. Installers typically provide guidance on revised functions during installation. Users generally adapt within days to new button arrangements as touchscreen operation becomes primary interaction method with larger 9-inch display reducing reliance on physical buttons.
