CAC F9HY25K Hyundai i30 2012-2017 Dash 3 9 Inch Fascia Kit with SWC, Camera, Antenna and USB

CAC F9HY25K Hyundai i30 2012-2017 Dash 3 9 Inch Fascia Kit with SWC, Camera, Antenna and USB

A complete OEM-style 9 inch fascia kit purpose-built for the Hyundai i30 Dash 3 with factory navigation, bundling everything needed for a clean and fully functional aftermarket head unit upgrade in a single package.

Product Overview

The Car Audio Connect F9HY25K is an all-in-one 9 inch fascia kit designed specifically for the Hyundai i30 (2012-2017) Dash 3 variant equipped with factory navigation. The Hyundai i30 Dash 3 with factory nav presents unique installation challenges due to its integrated OEM navigation system and CAN-bus controlled factory functions. The F9HY25K addresses this directly, bundling the 9 inch mounting fascia with a steering wheel control harness, factory reverse camera retention adaptor, factory radio antenna adaptor, and factory USB adaptor into a single ready-to-install kit.

Designed to suit universal trapezoid 9 inch stereos and confirmed compatible with specific head units from Alpine, Kenwood, Pioneer, and Nakamichi, the F9HY25K retains key factory functions including steering wheel audio controls, reverse camera output, AM/FM antenna signal, and USB connectivity. Feature retention will vary depending on the head unit model selected. Important installation notes apply for certain head units regarding back DIN orientation and the optional FDINM2 vertical mount bracket, which must be ordered separately where required.

Features & Benefits

Complete All-in-One Kit: The F9HY25K combines a 9 inch mounting fascia with a SWC harness, factory camera retention adaptor, radio antenna adaptor, and USB adaptor into a single kit, eliminating the need to source multiple individual components for a Hyundai i30 Dash 3 head unit upgrade.

OEM-Style Fitment for Hyundai i30 Dash 3: Engineered specifically for the Hyundai i30 (2012-2017) Dash 3 with factory navigation, ensuring a precise, factory-finish fit that integrates cleanly into the vehicle's dashboard without gaps or misalignment.

Steering Wheel Control Retention: Retains factory steering wheel audio controls through the included SWC harness, ensuring volume, track, and call functions remain fully operational from the steering wheel after fitting a compatible aftermarket head unit.

Factory Function Retention: Retains factory reverse camera output, radio antenna signal, and USB connectivity through the included adaptors, preserving the vehicle's original capabilities. Feature retention is dependent on the head unit model used.

Broad Head Unit Compatibility: Confirmed to suit the Alpine AW409S and AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Nakamichi Android Stereo, and compatible aftermarket Android stereos, giving installers and customers strong flexibility in head unit selection.

Vertical DIN Install Support: For Alpine AW409S, AX809, Pioneer DMH-AP6650BT, and compatible aftermarket Android stereos that require vertical back DIN installation, the optional FDINM2 mount bracket is available separately to complete the installation correctly.

Technical Specs

Compatible With / Goes Well With

Compatible Vehicles:

Goes Well With:

• Alpine AW409S, AX809 head units
• Kenwood DMX80AXS head unit
• Pioneer DMH-AP6650BT head unit
• Nakamichi Android Stereo
• Compatible aftermarket Android stereos
• FDINM2 vertical DIN mount bracket (sold separately, required for select head units)

Frequently Asked Questions

What is included in the F9HY25K kit?

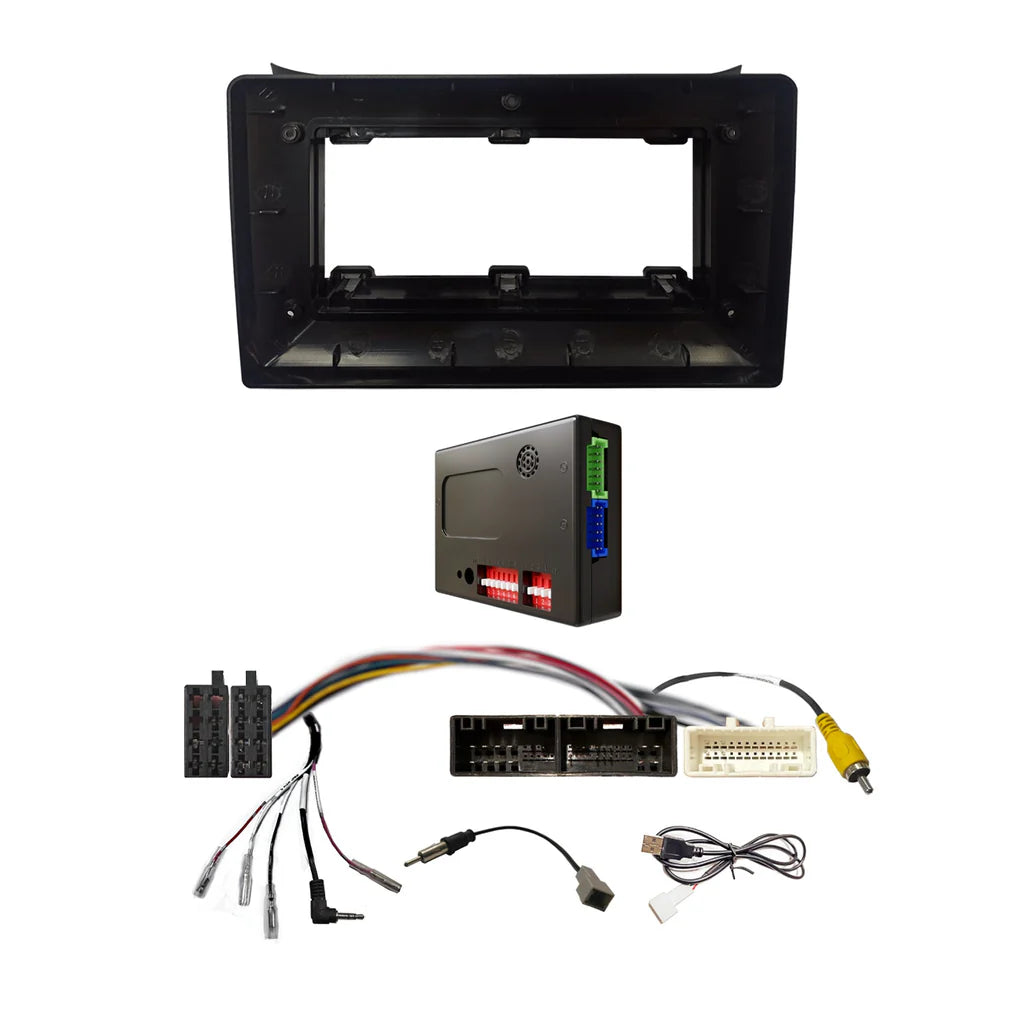

The F9HY25K includes a 9 inch mounting fascia, a steering wheel control harness, a factory reverse camera retention adaptor, a factory radio antenna adaptor, and a factory USB adaptor. All components are designed to work together for a complete, clean installation in the Hyundai i30 Dash 3 with factory navigation.

Do I need to order any additional brackets for my head unit?

This depends on your chosen head unit. The Alpine AW409S, AX809, Pioneer DMH-AP6650BT, and some aftermarket Android stereos require vertical back DIN installation, which requires the FDINM2 vertical mount bracket ordered separately. The Kenwood DMX80AXS requires the back DIN height to be adjusted to suit the fascia. The Nakamichi Android Stereo installs without additional brackets. Check the compatibility notes for your specific head unit before purchasing.

Is this kit compatible with all Hyundai i30 models from 2012-2017?

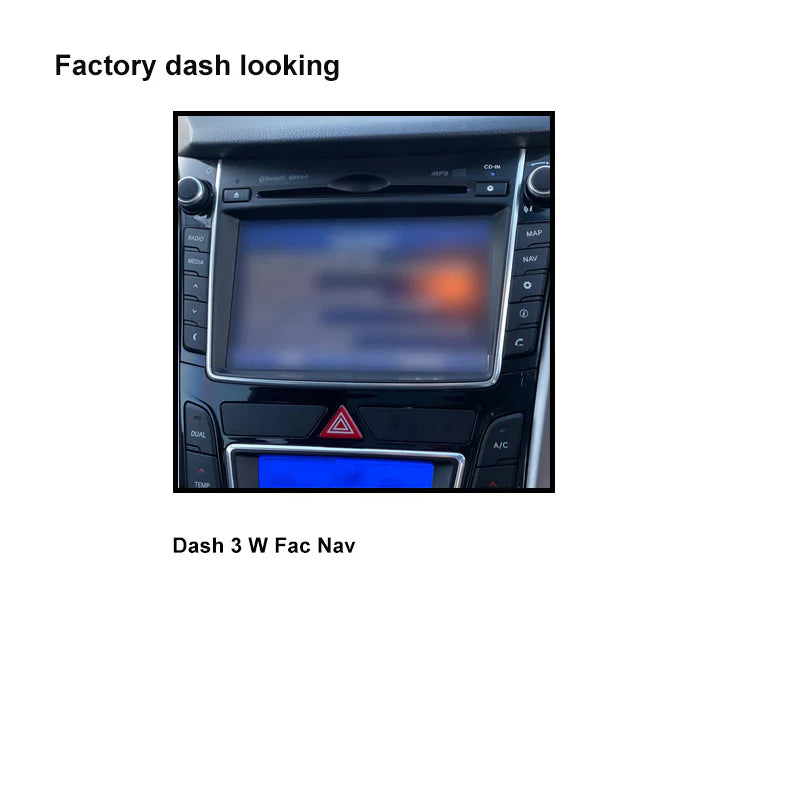

No. The F9HY25K is specifically designed for the Hyundai i30 (2012-2017) Dash 3 variant equipped with factory navigation. It is not confirmed compatible with other Hyundai i30 dash configurations or non-navigation models. Please verify your vehicle's dash configuration before purchasing, or contact us for confirmation.

Will all factory features be retained with any head unit?

Feature retention depends on the head unit model used with the F9HY25K. SWC, reverse camera, antenna, and USB retention are supported through the included harness and adaptors, but whether each feature is active will depend on the compatibility of your chosen head unit. For guaranteed feature retention, use one of the confirmed compatible head units listed above.

Is professional installation recommended for the F9HY25K?

Yes, professional installation by a qualified car audio technician is strongly recommended. The Hyundai i30 Dash 3 with factory navigation has an integrated OEM system that requires careful harness connection and head unit configuration. A professional installer will ensure the fascia is correctly fitted, all harness connections are secure, back DIN orientation is correctly handled, and all retained factory features are verified operational after installation.
