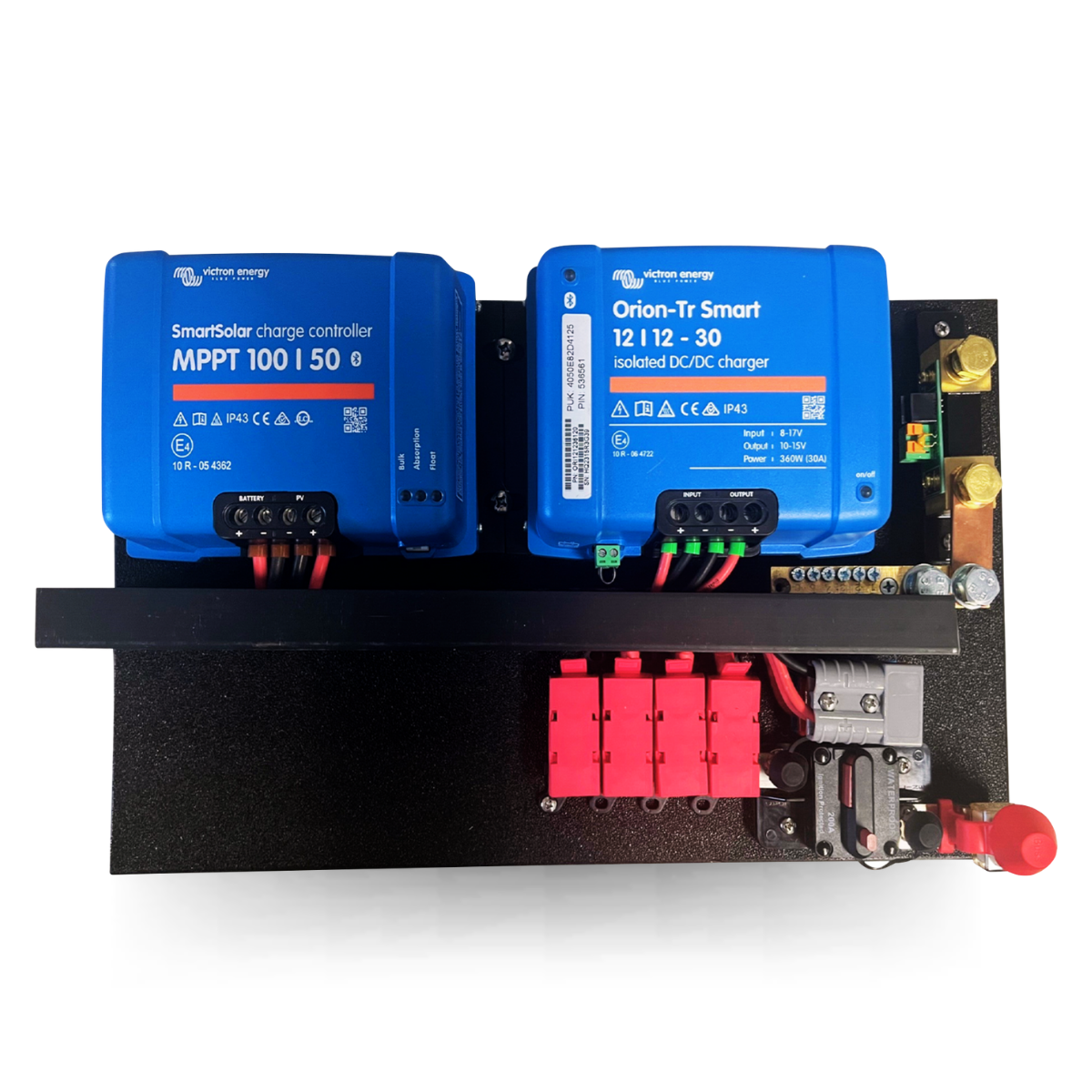

Baintech TITAN ISLAND Power Board - Off-Grid 12V Victron Energy Power Management System with MPPT Solar, DC-DC Charging, Battery Monitoring and Optional Inverter Charger

Baintech TITAN ISLAND Power Board - Off-Grid 12V Victron Energy Power Management System with MPPT Solar, DC-DC Charging, Battery Monitoring and Optional Inverter Charger

Build your ultimate off-grid power system with the Baintech TITAN ISLAND Power Board—featuring premium Victron Energy components pre-wired on professional power distribution board optimized for solar and alternator charging without AC mains dependency, Victron SmartSolar MPPT 100/50 solar charge controller delivering up to 700W solar charging capacity from multiple panel configurations, Orion-Tr Smart 12/12-30 isolated DC-DC charger providing 30A charging from vehicle alternator during driving, BMV-712 Smart battery monitor with Bluetooth connectivity displaying real-time battery voltage, current, state of charge, time remaining, and historical data through smartphone app, 4x fused positive distribution bars including SPARE 40A fuse block for custom loads or future expansion, 60A MPPT protection, 40A DC-DC protection, and 40A Anderson connector protection, MRBF fuse holder with 300A fuse providing protected connection for optional inverter charger upgrade (2000W or 3000W), negative busbar consolidating all ground connections, 200A circuit breaker protecting main battery connection, Anderson Plug & Play connectors (Red for MPPT, Blue for DC-DC, Grey for spare/auxiliary), Victron Connect app compatibility allowing wireless monitoring and configuration of all connected Victron devices through single smartphone interface, compact 450mm x 270mm dimensions suitable for space-constrained installations, professional-grade construction suitable for caravans, motorhomes, camper trailers, expedition vehicles, boats, and off-grid solar installations, backed by Victron Energy's industry-leading 5-year warranty, and eliminating weeks of research, component selection, and wiring complexity delivering turn-key off-grid power solution ready for professional installation.

Product Overview

The Baintech TITAN ISLAND Power Board delivers complete off-grid 12V power management combining Baintech expertise with world-leading Victron Energy components—designed specifically for solar and alternator charging applications without AC mains dependency eliminating complexity of component selection and DIY wiring challenges. Pre-engineered system prevents common installation mistakes with properly-sized wiring, appropriate fusing, professional busbars, and logical layout simplifying maintenance. Victron SmartSolar MPPT 100/50 provides 50A solar charging (700W on 12V) utilizing Maximum Power Point Tracking extracting maximum power regardless of shading or temperature—significantly outperforming PWM controllers during sub-optimal conditions common in remote off-grid locations. Orion-Tr Smart 12/12-30 delivers 30A alternator charging replacing VSR systems that damage modern smart alternators—isolation protects vehicle electronics, smart algorithms prevent overheating, Bluetooth monitoring displays performance ensuring alternator charging optimized during driving or engine running. BMV-712 Smart monitor transforms management from guesswork into precision displaying voltage, current, amp-hours consumed, state of charge, time remaining, and historical data enabling system optimization. Four fused distribution bars provide selective protection with upgraded 60A MPPT fusing plus SPARE 40A fuse block enabling custom loads, auxiliary equipment, or future system expansion without board modification. MRBF fuse holder with 300A fuse provides protected high-current connection for optional Victron inverter charger upgrade (2000W or 3000W MultiPlus models) transforming system into complete off-grid solution with AC output and optional AC charging capability when generator or shore power available. Color-coded Anderson connectors simplify installation—Red for MPPT solar input, Blue for DC-DC alternator charging, Grey for spare/auxiliary connections. Compact 450mm x 270mm board dimensions fit space-constrained installations in campervans, expedition vehicles, or tight marine installations where larger boards impossible. Victron Connect app wirelessly connects to all Smart components displaying real-time data, historical trends, and configuring settings. Professional construction withstands mobile environments. Victron Energy 5-year warranty included. Applications include off-grid caravans without regular shore power access, expedition vehicles for remote travel, camper trailers for bush camping, 4WD touring setups, off-grid tiny homes, remote work sites, and marine installations prioritizing solar and engine charging.

Key Features

Pre-Wired Victron Energy Off-Grid Power Board: Professional power distribution board with premium Victron components factory-wired for off-grid applications. Includes MPPT 100/50 solar controller, Orion-Tr Smart DC-DC charger, BMV-712 monitor with display, fused distribution bars with SPARE block, busbars, circuit breaker, and MRBF inverter fuse holder with correctly-sized wiring. Turn-key off-grid solution requiring only external connections for commissioning.

Victron SmartSolar MPPT 100/50 Controller: Advanced Maximum Power Point Tracking controller delivering up to 50A charging current supporting 700W solar capacity on 12V systems. MPPT technology extracts 20-30% more power compared to PWM controllers during sub-optimal conditions. Bluetooth connectivity enables wireless monitoring, intelligent charging adapts to battery type, protected by 60A fuse. Red Anderson connector for solar panel input.

Orion-Tr Smart 12/12-30 Isolated DC-DC Charger: Professional isolated DC-DC charger delivering 30A from vehicle alternator replacing outdated VSR systems. Full isolation protects vehicle electronics, smart algorithms prevent alternator overheating, automatic engine detection prevents parasitic drain. Bluetooth monitoring displays real-time performance, protected by 40A fuse. Blue Anderson connector for vehicle battery connection.

BMV-712 Smart Battery Monitor with Display: Professional monitoring system providing comprehensive battery bank visibility. Precision shunt measures actual current flow calculating accurate state of charge based on coulomb counting. Displays voltage, current, amp-hours, state of charge, time remaining, and historical data. Bluetooth connectivity streams data to app, programmable alarms warn of issues.

Four Fused Distribution Bars with SPARE Block: Professional positive power distribution with individual circuit protection. Fuse Block A (40A) SPARE for custom loads or expansion, Block B (60A) protects MPPT, Block C (40A) protects DC-DC, Block D (40A) protects Grey Anderson auxiliary connector. Individual fusing provides selective protection, standard blade fuse format simplifies replacement.

MRBF Fuse Holder with 300A Fuse for Inverter: Heavy-duty MRBF (Mega/MIDI fuse) holder with 300A fuse providing protected high-current connection for optional Victron inverter charger upgrade. Rated for continuous high-current draw from 2000W or 3000W inverter chargers (166A or 250A at 12V). MRBF format handles inverter surge currents while protecting battery and cabling from overcurrent faults. Pre-installed eliminating need for installer to source appropriate high-current fusing for inverter connection.

Optional Inverter Charger Upgrade (2000W/3000W): Board designed for seamless integration of Victron MultiPlus inverter charger (sold separately) transforming off-grid system into complete AC power solution. 2000W model provides 2000VA continuous AC output suitable for laptops, power tools, kitchen appliances, and moderate loads. 3000W model provides 3000VA continuous AC output suitable for air conditioning, induction cooking, high-power tools, and combined heavy loads. Inverter charger adds AC charging capability from generator or occasional shore power access supplementing solar and alternator charging. Protected by pre-installed MRBF 300A fuse eliminating installer fusing requirements.

Color-Coded Anderson Plug & Play Connectors: Three Anderson connectors with color-coding simplifying installation and preventing connection errors. Red Anderson for MPPT solar panel input (MPPT 100/30-50), Blue Anderson for DC-DC vehicle battery connection, Grey Anderson for spare/auxiliary equipment (protected by Fuse Block D). Each rated 50A suitable for respective charging circuits without voltage drop. Genderless design prevents incorrect mating, spring-loaded contacts maintain connection despite vibration.

Compact 450mm x 270mm Dimensions: Space-efficient board dimensions (450mm length x 270mm height) suitable for installations where space limited. Fits campervans, expedition vehicles, tight engine rooms, compact marine installations, or any application where standard larger boards impossible. Vertical orientation maximizes space efficiency while maintaining component accessibility for service. Compact design doesn't compromise functionality—includes full MPPT 100/50, DC-DC 30A, battery monitoring, and inverter capability matching larger boards.

200A Main Circuit Breaker: Heavy-duty circuit breaker protecting main battery connection providing overcurrent protection and emergency disconnect. Rated 200A suitable for high-current applications including inverter loads without nuisance tripping. Manual reset enables emergency disconnect, thermal-magnetic protection responds to overcurrent and overload.

Victron Connect App Integration: Revolutionary smartphone app providing wireless monitoring and configuration of all Victron Smart devices through single interface. Displays real-time data from MPPT and DC-DC charger and battery monitor. Historical data reveals trends enabling optimization, advanced configuration includes battery type selection and threshold programming, firmware updates delivered over-the-air.

Professional Pre-Wired Construction: Factory wiring eliminates hundreds of potential failure points in DIY installations. All wiring correctly sized preventing voltage drop and overheating, professional terminals crimped and heat-shrink insulated. Component layout optimized for cooling airflow and maintenance access, rigid backing board provides secure mounting preventing vibration damage.

Victron Energy 5-Year Warranty: Industry-leading 5-year manufacturer warranty covers all Victron components demonstrating quality and reliability. Victron Energy represents premium brand in recreational vehicle and marine industries globally. Australian warranty support ensures local service availability, warranty registration through app simplifies process.

Technical Specifications

Frequently Asked Questions

Q: Why doesn't the TITAN ISLAND include an AC mains charger like the Stal 30/50?

A: TITAN ISLAND designed specifically for off-grid applications prioritizing solar and alternator charging without AC mains dependency. Eliminates AC charger reducing cost, complexity, and board space for users rarely or never accessing shore power—ideal for bush camping, remote travel, expedition vehicles, or off-grid lifestyle where 240V power unavailable. Solar and alternator charging provides 80A combined (50A solar + 30A DC-DC) sufficient for most off-grid users. Optional inverter charger upgrade adds AC charging capability from generator or occasional shore power while providing AC output for appliances—single component replaces separate inverter and AC charger reducing cost and complexity compared to separate units.

Q: What can I use the SPARE fuse block for?

A: SPARE 40A fuse block (Fuse Block A) provides protected power distribution for custom loads, auxiliary equipment, or future system expansion without board modification. Common applications include: dedicated fridge circuit, auxiliary lighting systems, water pump circuits, communication equipment (UHF radios, satellite), USB charging stations, 12V outlets, winch controller, air compressor, or any 12V accessory requiring protected power up to 40A. Pre-installed fuse holder eliminates need for installer to add external fusing for custom loads. Flexibility enables system customization for specific user requirements without compromising factory board integrity.

Q: What are the optional 2000W and 3000W inverter charger upgrades?

A: Optional Victron MultiPlus inverter charger (sold separately) transforms off-grid system into complete AC power solution. 2000W MultiPlus 12/2000 provides 2000VA continuous AC output (240V) suitable for laptops, power tools, kitchen appliances, moderate loads plus 80A charging capability from generator or shore power. 3000W MultiPlus 12/3000 provides 3000VA continuous AC output suitable for air conditioning, induction cooking, high-power tools, heavy loads plus 120A charging capability. Both models combine pure sine wave inverter with sophisticated battery charger in single unit—more space-efficient and cost-effective than separate inverter and charger. Board includes pre-installed MRBF 300A fuse holder for protected inverter connection. Consult specifications when ordering to select appropriate model for load requirements.

Q: What size battery bank and solar array is this system suitable for?

A: System designed for off-grid installations with 100-400Ah battery capacity and 300-700W solar panel arrays. MPPT 100/50 controller supports up to 700W solar on 12V system (50A maximum) suitable for 2-3 premium 300W panels. Combined charging capability (50A solar + 30A DC-DC = 80A) suitable for charging 200Ah battery bank approximately 2.5-4 hours from 50% under optimal conditions. Without AC charger, system relies entirely on solar and alternator requiring adequate solar capacity for daily consumption. Recommend 400-700W solar for extended off-grid use with moderate loads. BMV-712 monitor accurate for battery banks from 20Ah to 10,000Ah—included 500A/50mV shunt suitable for typical applications. Optional 2000W inverter draws approximately 166A at 12V requiring adequate battery capacity—minimum 200Ah recommended, 300Ah+ for extended runtime.

Q: Will this work with lithium LiFePO4 batteries or only lead-acid?

A: All Victron components support lithium LiFePO4 batteries with appropriate configuration through Victron Connect app. Select lithium battery preset and configure correct charge voltage (typically 14.2-14.6V), absorption time, float voltage (13.5V or disabled depending on BMS), and temperature compensation settings matching battery manufacturer specifications. Lithium batteries particularly suited for off-grid applications—charge much faster utilizing full charging current throughout cycle, deeper discharge capability (80-90% vs 50% for lead-acid) providing more usable capacity from smaller battery bank, lightweight construction important for mobile applications. Optional inverter charger also supports lithium with appropriate settings. Note: Lithium batteries require built-in BMS for cell balancing and protection. System also supports all lead-acid types (flooded, AGM, GEL, calcium) through battery preset selection.
