BAINTECH SWE-MID070 70A MIDI Fuse - Replacement Automotive Fuse for Circuit Protection in 12V/24V Electrical Systems

BAINTECH SWE-MID070 70A MIDI Fuse - Replacement Automotive Fuse for Circuit Protection in 12V/24V Electrical Systems

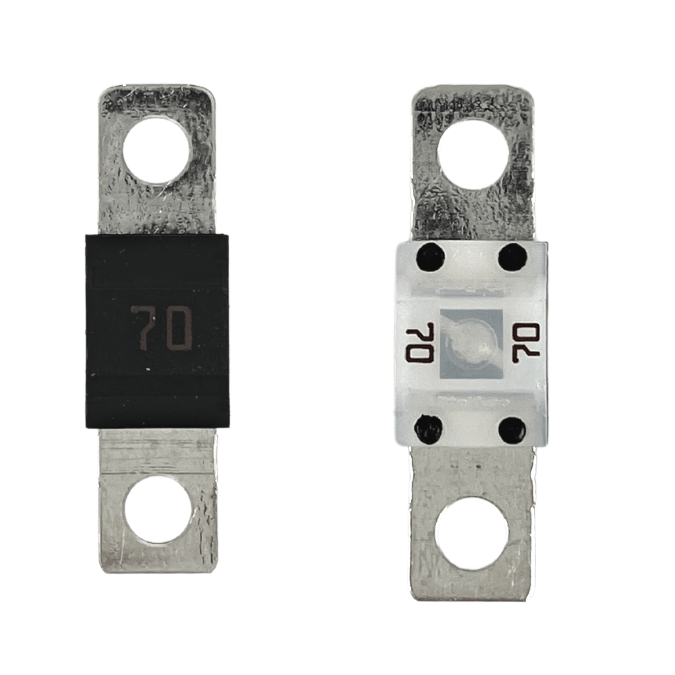

Replace blown fuses and maintain circuit protection with the Baintech SWE-MID070 70A MIDI Fuse—featuring standard MIDI fuse format compatible with all MIDI fuse holders, 70A current rating suitable for large inverters, high-output DC-DC chargers, heavy-duty LED lighting arrays, multiple high-current accessory distribution, and substantial electrical loads, robust blade-style construction withstanding vibration and mechanical stress in mobile installations, clear fuse body enabling visual inspection of fuse element condition, reliable overcurrent protection preventing wire overheating and electrical fires, corrosion-resistant terminals ensuring dependable electrical contact, and trusted replacement fuse solution for caravans, 4WD vehicles, boats, camper trailers, commercial vehicles, and mobile installations requiring 70A circuit protection in automotive and marine electrical systems.

Product Overview

The Baintech SWE-MID070 provides replacement 70A MIDI fuse for circuit protection in 12V and 24V electrical systems—essential consumable component for maintaining proper overcurrent protection in auxiliary battery circuits, large inverter installations, LED lighting systems, high-output charging systems, and high-current accessory distribution. MIDI fuse format represents industry-standard automotive fuse design offering 30-100A current capacity range—bridges gap between standard blade fuses (2-40A typical) and larger MEGA fuses (80-500A) providing optimal solution for high-current applications common in recreational vehicles, marine installations, and commercial vehicle auxiliary systems. 70A rating makes this fuse suitable for protecting circuits including large power inverters (1000-1300W continuous), high-output DC-DC chargers (60-70A output rating), auxiliary battery charging systems with substantial capacity, heavy-duty LED light bar arrays (multiple high-power bars totaling 700-840W combined), multiple parallel accessory distribution (consolidating several high-current circuits at distribution point), solar charge controllers (60-70A output capacity), dual battery systems with significant loads, combination high-current installations, and general high-current accessories drawing up to 70A continuous operation. Clear transparent fuse body enables visual inspection of internal fuse element—allows quick determination of fuse condition without electrical testing equipment by observing whether metal strip remains intact or has melted/separated indicating blown fuse requiring replacement. Robust blade-style terminal construction ensures reliable mechanical retention in MIDI fuse holders and maintains positive electrical contact despite vibration, temperature cycling, and mechanical stress typical in mobile installations—prevents loose fuse connections causing intermittent circuits, voltage drops, or heating from poor electrical contact. Corrosion-resistant terminal plating withstands exposure to moisture, road salt, engine bay heat, and environmental contamination maintaining reliable electrical conductivity throughout fuse service life—particularly important in marine environments and coastal regions where corrosion rapidly degrades unprotected electrical connections.

Key Features

Standard MIDI Fuse Format Compatibility: Universal MIDI fuse design ensures compatibility with all standard MIDI fuse holders from Baintech and other manufacturers—enables direct replacement of blown fuses without compatibility concerns or adaptor requirements. Standardized dimensions and terminal configuration guarantee proper mechanical fit and electrical contact in any MIDI holder. Widely adopted industry standard ensures replacement fuse availability from automotive retailers, marine suppliers, electrical distributors, and mobile accessory shops—eliminates extended downtime from specialty part sourcing difficulties. Compatible with existing MIDI fuse holder installations in caravans, 4WD vehicles, boats, commercial vehicles, and auxiliary electrical systems requiring 70A circuit protection.

70A Current Rating for High-Current Applications: 70A rating provides appropriate circuit protection for large power inverters (1000-1300W continuous at 12V drawing 85-115A accounting for efficiency losses and surge capacity), high-output DC-DC chargers (60-70A output rating protecting charging circuits), auxiliary battery charging with substantial capacity (alternator feeds up to 70A), heavy-duty LED lighting arrays (multiple high-power light bars totaling approximately 840W at 12V), multiple parallel accessory distribution (consolidating various high-current circuits at central distribution point), solar charging systems (charge controllers 60-70A output rating), dual battery systems with significant loading, combination high-current circuits powering multiple devices (inverter plus lights plus accessories simultaneously), and general accessories up to 70A continuous current draw. Fuse rating selected based on circuit requirements—70A appropriate for circuits drawing 45-56A continuous operation providing 25% safety margin for normal operation while protecting from dangerous overcurrent conditions.

Clear Body Visual Inspection: Transparent fuse body enables quick visual determination of fuse condition without removal from holder or electrical testing—internal metal element visible showing intact conductor indicating good fuse or severed/melted element indicating blown fuse requiring replacement. Visual inspection particularly valuable during troubleshooting electrical problems—allows rapid identification of blown fuse as potential cause of circuit failure without multimeter testing or trial-and-error component substitution. Clear body construction also permits observation of fuse element condition during installation verifying new fuse intact before installation preventing installation of damaged fuse causing immediate circuit failure. Saves troubleshooting time in field repairs and roadside situations where testing equipment may be unavailable or inconvenient to access.

Robust Blade Terminal Construction: Heavy-duty blade-style terminals ensure positive mechanical retention in MIDI fuse holder preventing accidental fuse dislodgement from vibration, mechanical shock, or thermal cycling common in mobile installations. Terminal geometry provides secure friction fit while enabling tool-free hand installation and removal for convenient fuse replacement during maintenance or troubleshooting. Blade thickness and material selection withstand repeated insertion/removal cycles without terminal deformation or mechanical wear affecting electrical contact quality. Terminal design maintains reliable low-resistance electrical connection under high-current conditions—70A continuous current generates substantial heat requiring robust terminal construction preventing contact degradation or resistance increases causing voltage drops or connection failures particularly critical at higher current levels.

Corrosion-Resistant Terminal Plating: Terminal surfaces feature corrosion-resistant plating maintaining reliable electrical conductivity despite exposure to moisture, road salt spray, engine bay heat, and environmental contamination typical in automotive and marine electrical systems. Plating prevents oxidation and corrosion formation on terminal surfaces—critical for maintaining low contact resistance ensuring minimal voltage drop and efficient current delivery through fuse to protected circuit. Enhanced corrosion resistance particularly important in marine installations, coastal environments, vehicles operating in salty conditions, or under-bonnet locations exposed to heat, moisture, and contamination where unprotected terminals rapidly corrode degrading electrical performance. Maintains consistent fuse performance throughout service life without resistance increases from terminal corrosion affecting circuit operation especially important at 70A where minor resistance increases cause significant voltage drops and heat generation.

Reliable Overcurrent Protection: Fuse element engineered to reliably interrupt circuit current when load exceeds 70A rating protecting circuit wiring, connected equipment, and vehicle electrical system from damage caused by overcurrent conditions. Time-current characteristics provide appropriate tradeoff between nuisance tripping during brief surge currents (motor starting, inverter inrush, compressor startup) and rapid interruption during sustained overloads or short circuits preventing wire overheating and fire hazards. Consistent blow characteristics ensure predictable circuit protection—fuse interrupts current within specified timeframe after overcurrent event preventing progressive damage to wiring insulation or connected equipment from sustained overload conditions before fuse activation.

Quality Replacement Component: Manufactured to automotive industry standards ensuring reliable performance, consistent blow characteristics, and proper fit in MIDI fuse holder applications. Quality construction provides dependable circuit protection without premature failure from manufacturing defects or substandard materials common in economy fuses. Appropriate replacement fuse for maintaining proper circuit protection in auxiliary electrical systems after blown fuse events from overload conditions, short circuits, or equipment faults. Essential consumable component for mobile electrical system maintenance—prudent practice maintaining spare fuses in vehicle tool kit enabling rapid circuit restoration after fuse replacement without extended downtime waiting parts delivery particularly important for high-current circuits powering essential equipment.

Versatile Circuit Protection Applications: Suitable for large inverter systems (1000-1300W), high-output DC-DC chargers (60-70A), auxiliary battery charging circuits with high current capacity, heavy-duty LED lighting arrays, multiple high-current accessory distribution, solar charging systems with substantial output, dual battery systems with significant loads, combination high-current installations powering multiple simultaneous loads, and general 70A circuits in caravans, 4WD vehicles, boats, camper trailers, commercial vehicles, agricultural equipment, and mobile installations requiring reliable 70A overcurrent protection in 12V or 24V electrical systems.

Part of Baintech's Electrical Protection Range: Component of comprehensive electrical protection product range offering diverse fuse ratings and formats for automotive and marine circuit protection requirements. Baintech reputation built on quality electrical components, reliable performance under demanding conditions, and proper engineering ensuring circuit protection functions correctly. Available through established Australian distribution networks providing convenient replacement fuse availability through auto electrical retailers, caravan accessory suppliers, marine equipment distributors, and 4WD specialty stores.

Technical Specifications

Frequently Asked Questions

Q: What size inverter can 70A fuse protect?

A: 70A fuse suitable for inverters up to approximately 1000-1300W continuous output at 12V depending on inverter efficiency and surge characteristics. Calculate: 1000W ÷ 12V ÷ 0.9 efficiency = 93A peak draw requiring margin for startup surge, however continuous operation at 900W (83A) operates with margin using 70A fuse if brief surges accommodated by inverter design. More conservatively, 70A fuse appropriate for inverters rated 800-1000W continuous ensuring adequate protection without nuisance tripping. For larger inverters (1500W+), use higher amperage fuse—80-100A for 1500W, 150A+ for 2000W+. Always verify wire capacity adequate—70A fuse requires minimum 4AWG wire, preferably 2AWG for longer runs. Consult inverter manufacturer specifications for recommended fuse size accounting for specific model surge characteristics and efficiency ratings.

Q: What wire gauge required for 70A circuit using this fuse?

A: 70A circuit requires minimum 4AWG (25mm²) wire for short runs under 2 meters, 2AWG (35mm²) wire strongly recommended for runs 2-4 meters, or 1AWG (50mm²) for runs exceeding 4 meters minimizing voltage drop at high current levels. Wire sizing critical at 70A: 4AWG rated approximately 70-85A continuous operating near capacity, 2AWG rated approximately 95-115A providing substantial safety margin and reduced voltage drop. Voltage drop considerations especially critical: 4AWG wire over 3 meters at 70A experiences approximately 4-5% voltage drop significantly affecting inverter performance, heavier 2AWG reduces drop to 2-3% maintaining adequate voltage. For large inverters and critical high-current circuits, use 2AWG minimum regardless of cable run length ensuring minimal voltage drop and heat generation. Install fuse within 200-300mm of battery protecting entire cable run. Never use wire smaller than 4AWG for 70A circuit—creates serious fire hazard from wire overheating before fuse protection activates.

Q: Can I replace 60A fuse with 70A fuse if circuit occasionally trips 60A fuse?

A: Only if circuit legitimately requires 70A capacity, wiring adequate to handle increased current, and occasional tripping caused by legitimate surge currents not underlying fault. Before increasing from 60A to 70A: measure actual circuit current with clamp meter during normal operation and peak loads determining if legitimate requirement, verify wire gauge adequate for 70A (minimum 4AWG required—if existing wire inadequate must upgrade), investigate cause of 60A fuse trips (brief surge currents during equipment startup versus sustained overload indicating problem). Legitimate reasons: equipment specifications indicate surge currents 60-70A during startup with normal operation below 60A, measured circuit draws 55-65A during peak loads requiring larger fuse, or multiple accessories simultaneously drawing combined current approaching 60A requiring margin. Never increase fuse rating attempting to bypass equipment fault, short circuit, or sustained overload—addresses symptom not cause creating fire hazard from sustained overcurrent before inadequate fuse protection activates.

Q: How do I calculate correct fuse size for my specific application?

A: Calculate required fuse size following systematic approach: measure actual circuit current draw with clamp meter during maximum load operation (most accurate method) or calculate from equipment specifications (watts ÷ voltage ÷ efficiency = amps), multiply measured or calculated current by 1.25-1.5 safety factor accounting for startup surges and variations, select next available standard fuse rating above calculated value, verify fuse rating does not exceed wire ampacity (critical safety check). Example: DC-DC charger drawing 60A continuous with 70A peak startup—60A × 1.25 = 75A calculated requirement, however brief startup surge accommodated selecting 70A fuse. Second example: inverter drawing 65A continuous requires minimum 81A fuse (65A × 1.25)—use 80-100A fuse depending on available ratings. Always verify wire capacity before finalizing fuse selection—never install fuse exceeding wire ampacity regardless of equipment current requirements.

Q: What maintenance required for MIDI fuses—when should I inspect or replace?

A: MIDI fuses require minimal maintenance but benefit from periodic inspection: visually inspect fuse element through clear body during routine electrical system checks verifying element intact without discoloration or degradation, check fuse terminals for corrosion particularly in marine or coastal environments cleaning with electrical contact cleaner if oxidation present, verify secure fit in fuse holder ensuring positive mechanical and electrical contact without looseness, and test voltage drop across fuse under load (should be minimal—significant voltage drop indicates poor connection or degraded fuse). Replace fuse when: visual inspection shows blown element (conductor severed or melted), fuse repeatedly trips indicating circuit problem or inadequate rating, terminals corroded degrading electrical contact, or fuse body damaged from physical impact. Preventive replacement not typically required—fuses operate indefinitely until blown from overcurrent. Maintain spare fuses in vehicle tool kit for rapid replacement after blown fuse events enabling circuit restoration without extended downtime particularly important for essential circuits like inverters, chargers, and lighting systems.
