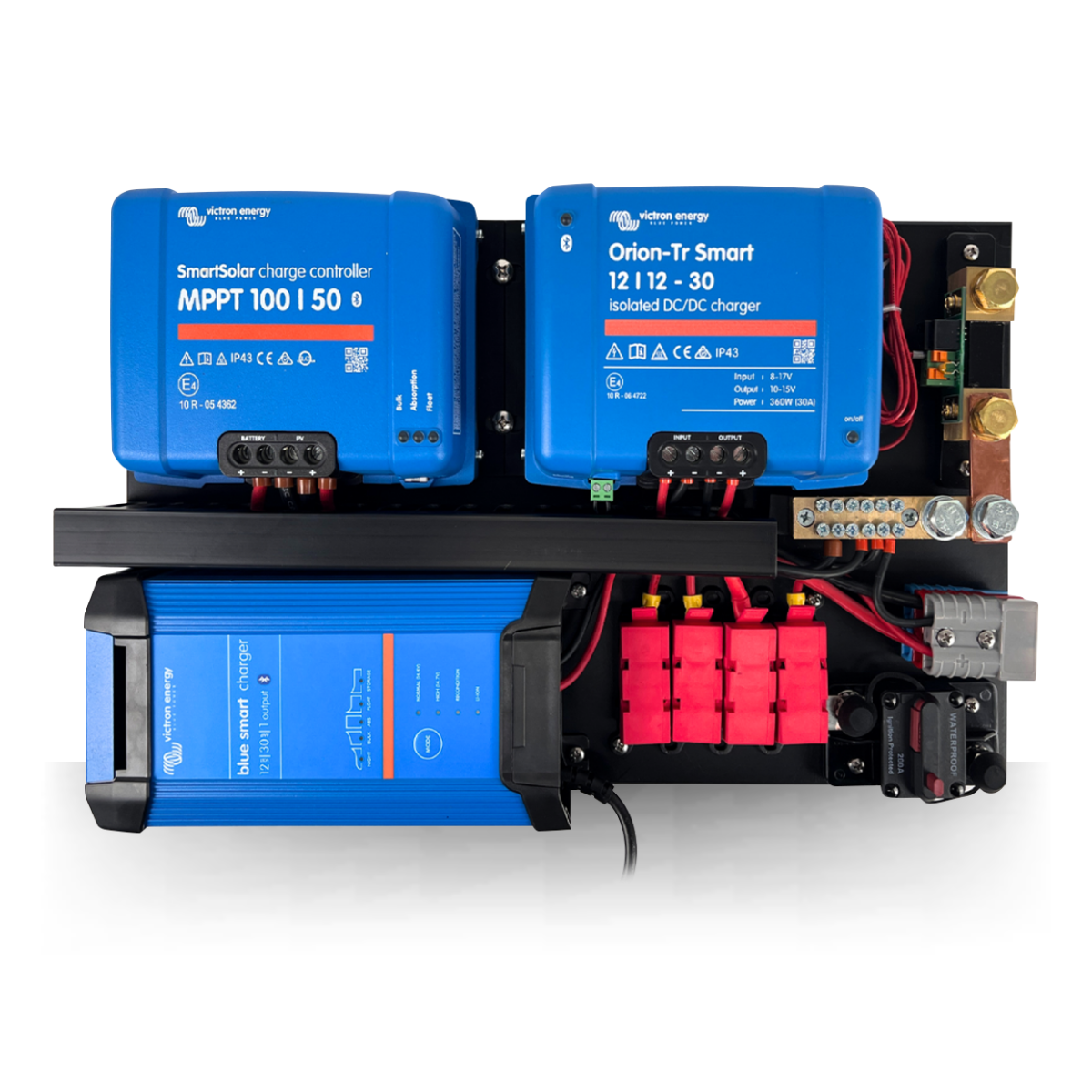

Baintech Standard Stal 50 Smart Power Board - Advanced 12V Victron Energy Power Management System with Battery Protect, MPPT Solar, DC-DC, AC Charging and Battery Monitoring

Baintech Standard Stal 50 Smart Power Board - Advanced 12V Victron Energy Power Management System with Battery Protect, MPPT Solar, DC-DC, AC Charging and Battery Monitoring

Transform your vehicle into a comprehensive off-grid power station with the Baintech Standard Stal 50 Smart Power Board—featuring premium Victron Energy components pre-wired on professional power distribution board eliminating complex DIY wiring and installation errors, Victron SmartSolar MPPT 100/50 solar charge controller delivering up to 700W solar charging capacity from multiple panel configurations, Orion-Tr Smart 12/12-30 isolated DC-DC charger providing 30A charging from vehicle alternator during driving, Blue Smart IP22 30A mains charger enabling rapid shore power charging at caravan parks or home, Victron Battery Protect (100A) providing intelligent low-voltage disconnect protection preventing excessive battery discharge and damage, BMV-712 Smart battery monitor with Bluetooth connectivity displaying real-time battery voltage, current, state of charge, time remaining, and historical data through smartphone app, 4x fused positive distribution bars with upgraded 60A MPPT protection, 40A DC-DC protection, 100A Battery Protect protection, and 40A Anderson connector protection, negative busbar consolidating all ground connections, 200A circuit breaker protecting main battery connection, Anderson Plug & Play connector enabling quick-disconnect auxiliary battery connection, Victron Connect app compatibility allowing wireless monitoring and configuration of all connected Victron devices through single smartphone interface, professional-grade construction suitable for caravans, motorhomes, camper trailers, expedition vehicles, and marine installations, backed by Victron Energy's industry-leading 5-year warranty, and eliminating weeks of research, component selection, and wiring complexity delivering turn-key power solution ready for professional installation.

Product Overview

The Baintech Standard Stal 50 Smart Power Board delivers complete turnkey 12V power management combining Baintech expertise with world-leading Victron Energy components—eliminating complexity of component selection and DIY wiring challenges for caravanners, motorhome owners, 4WD adventurers, and marine enthusiasts. Pre-engineered system prevents common installation mistakes with properly-sized wiring, appropriate fusing, professional busbars, and logical layout simplifying maintenance. Victron SmartSolar MPPT 100/50 provides 50A solar charging (700W on 12V) utilizing Maximum Power Point Tracking extracting maximum power regardless of shading or temperature—significantly outperforming PWM controllers. Orion-Tr Smart 12/12-30 delivers 30A alternator charging replacing VSR systems that damage modern smart alternators—isolation protects vehicle electronics, smart algorithms prevent overheating, Bluetooth monitoring displays performance. Blue Smart IP22 30A mains charger enables rapid shore power charging with adaptive technology adjusting profiles based on battery condition and temperature compensation preventing over/undercharging. Victron Battery Protect (100A) provides intelligent load disconnect preventing excessive battery discharge—programmable voltage thresholds automatically disconnect loads at critical voltage preventing permanent damage, automatic reconnection when recharged, protecting expensive battery investments particularly lithium batteries. BMV-712 Smart monitor transforms management from guesswork into precision displaying voltage, current, amp-hours consumed, state of charge, time remaining, and historical data. Four fused distribution bars provide selective protection with upgraded 60A MPPT fusing. Victron Connect app wirelessly connects to all Smart components displaying real-time data, historical trends, and configuring settings. Professional construction withstands mobile environments. Victron Energy 5-year warranty included. Applications include caravan power systems, motorhome off-grid capability, camper trailer expeditions, 4WD auxiliary power, and marine battery charging.

Key Features

Pre-Wired Victron Energy Power Board: Professional power distribution board with all premium Victron components factory-wired eliminating complex DIY wiring. Includes MPPT 100/50, DC-DC charger, AC charger, Battery Protect, BMV-712 monitor, fused distribution bars, busbars, and circuit breaker with correctly-sized wiring. Turn-key solution requiring only external connections for complete commissioning.

Victron SmartSolar MPPT 100/50 Controller: Advanced Maximum Power Point Tracking controller delivering up to 50A charging current supporting 700W solar capacity on 12V systems. MPPT technology extracts 20-30% more power compared to PWM controllers during sub-optimal conditions. Bluetooth connectivity enables wireless monitoring, intelligent charging adapts to battery type, protected by upgraded 60A fuse.

Orion-Tr Smart 12/12-30 Isolated DC-DC Charger: Professional isolated DC-DC charger delivering 30A from vehicle alternator replacing outdated VSR systems. Full isolation protects vehicle electronics, smart algorithms prevent alternator overheating, automatic engine detection prevents parasitic drain. Bluetooth monitoring displays real-time performance, protected by 40A fuse.

Blue Smart IP22 30A Mains Charger: Premium mains charger providing 30A from shore power enabling rapid charging at caravan parks or home. Adaptive charging technology analyzes battery condition selecting optimal profile, ambient temperature sensor adjusts voltage preventing over/undercharging. Seven-stage algorithm optimizes battery health, battery-safe design enables indefinite connection.

Victron Battery Protect (100A): Intelligent protection device preventing excessive battery discharge causing permanent damage. Programmable low-voltage disconnect automatically isolates loads when voltage drops below critical threshold preventing sulfation or BMS lockout. Automatic reconnection when voltage recovers, user-configurable thresholds through app, 100A rating suitable for inverters and combined loads.

BMV-712 Smart Battery Monitor with Display: Professional monitoring system providing comprehensive battery bank visibility. Precision shunt measures actual current flow calculating accurate state of charge based on coulomb counting. Displays voltage, current, amp-hours, state of charge, time remaining, and historical data. Bluetooth connectivity streams data to app, programmable alarms warn of issues.

Four Fused Distribution Bars with Upgraded Protection: Professional positive power distribution with individual circuit protection. Fuse Block A (100A) protects Battery Protect, Block B (60A) protects MPPT, Block C (40A) protects DC-DC, Block D (40A) protects Anderson connector. Individual fusing provides selective protection, standard blade fuse format simplifies replacement.

200A Main Circuit Breaker: Heavy-duty circuit breaker protecting main battery connection providing overcurrent protection and emergency disconnect. Rated 200A suitable for high-current applications without nuisance tripping. Manual reset enables emergency disconnect, thermal-magnetic protection responds to overcurrent and overload.

Anderson Plug & Play Connector: Quick-disconnect Anderson connector enabling rapid auxiliary battery connection and disconnection. Grey housing rated 50A suitable for charging without voltage drop. Genderless design prevents incorrect mating, spring-loaded contacts maintain connection despite vibration, protected by 40A fuse.

Victron Connect App Integration: Revolutionary smartphone app providing wireless monitoring and configuration of all Victron Smart devices through single interface. Displays real-time data from MPPT, DC-DC, AC charger, Battery Protect, and battery monitor. Historical data reveals trends enabling optimization, advanced configuration includes battery type selection and threshold programming, firmware updates delivered over-the-air.

Professional Pre-Wired Construction: Factory wiring eliminates hundreds of potential failure points in DIY installations. All wiring correctly sized preventing voltage drop and overheating, professional terminals crimped and heat-shrink insulated. Component layout optimized for cooling airflow and maintenance access, rigid backing board provides secure mounting.

Victron Energy 5-Year Warranty: Industry-leading 5-year manufacturer warranty covers all Victron components demonstrating quality and reliability. Victron Energy represents premium brand in recreational vehicle and marine industries globally. Australian warranty support ensures local service availability, warranty registration through app simplifies process.

Technical Specifications

Frequently Asked Questions

Q: What is the Battery Protect and why do I need it?

A: Victron Battery Protect (100A) provides intelligent low-voltage disconnect protection preventing excessive battery discharge causing permanent damage. Automatically disconnects loads when battery voltage drops below programmable threshold—prevents sulfation in lead-acid batteries reducing capacity, prevents lithium battery BMS lockout requiring professional reset, and protects battery investment by avoiding over-discharge damage. Automatically reconnects loads when battery sufficiently recharged after charging—no manual intervention required. Particularly critical for lithium batteries with strict discharge limits and expensive installations where battery damage costs thousands in replacement. Programmable thresholds through Victron Connect app enable customization for battery type and desired protection level. 100A rating handles inverter loads, fridges, lighting, and combined auxiliary loads providing whole-system protection.

Q: How does the Stal 50 differ from the Stal 30?

A: Stal 50 adds Victron Battery Protect (100A) providing intelligent low-voltage load disconnect preventing battery over-discharge damage—critical feature for lithium batteries and extended off-grid use. MPPT fuse upgraded to 60A (versus 40A on Stal 30) accommodating higher solar charging currents during peak production without nuisance tripping. Battery Protect replaces separate AC charger fusing in fuse block configuration while AC charger remains integrated on board. Stal 50 represents advanced system for users prioritizing battery protection and higher solar charging capability. Both systems include same MPPT 100/50 controller, DC-DC charger, AC charger, and BMV-712 monitor—difference lies in enhanced protection and fusing configuration.

Q: Can I monitor and control everything from my phone or do I need the physical displays?

A: All Victron Smart components (MPPT controller, DC-DC charger, AC charger, Battery Protect, battery monitor) include built-in Bluetooth connecting wirelessly to free Victron Connect smartphone app providing comprehensive monitoring and configuration. BMV-712 physical display included providing at-a-glance battery status without phone dependency—particularly useful when phone charging, in poor reception areas, or preferring dedicated display. App provides significantly more detail than physical display including historical trends, advanced settings, firmware updates, and simultaneous monitoring of all components including Battery Protect load status and disconnect thresholds. Recommend using both—physical display for quick status checks, app for detailed analysis and configuration.

Q: What size battery bank and solar array is this system suitable for?

A: System designed for typical caravan/motorhome installations with 100-300Ah battery capacity and 300-700W solar panel arrays. MPPT 100/50 controller supports up to 700W solar on 12V system (50A maximum) suitable for 2-3 premium 300W panels or 4-6 budget 150W panels. Combined charging capability (50A solar + 30A DC-DC + 30A AC = 110A total) suitable for rapidly charging 200Ah battery bank—approximately 2-4 hours from 50% to full under optimal conditions with all sources operating. Battery Protect 100A rating suitable for total system loads up to 1200W (100A × 12V) including inverter, fridge, lighting, and accessories. BMV-712 monitor accurate for battery banks from 20Ah to 10,000Ah through shunt selection—included 500A/50mV shunt suitable for typical recreational vehicle applications.

Q: Will this work with lithium LiFePO4 batteries or only lead-acid?

A: All Victron components support lithium LiFePO4 batteries with appropriate configuration through Victron Connect app. Select lithium battery preset and configure correct charge voltage (typically 14.2-14.6V), absorption time, float voltage (13.5V or disabled depending on BMS), and temperature compensation settings matching lithium battery manufacturer specifications. Battery Protect particularly beneficial for lithium batteries—programmable disconnect voltage (typically 11.5-12V depending on battery) prevents BMS lockout from over-discharge requiring professional reset. Lithium batteries charge much faster than lead-acid utilizing full charging current throughout charge cycle rather than tapering—50A solar charging on 100Ah lithium battery completes in approximately 2 hours from 50% versus 4-6 hours for equivalent lead-acid. Note: Lithium batteries require built-in BMS (battery management system) for cell balancing and protection—chargers do not replace BMS functionality. System also supports all lead-acid types (flooded, AGM, GEL, calcium) through battery preset selection.
