Transform your vehicle into a comprehensive off-grid power station with the Baintech Standard Stal 30 Smart Power Board—featuring premium Victron Energy components pre-wired on professional power distribution board eliminating complex DIY wiring and installation errors, Victron SmartSolar MPPT 100/50 solar charge controller delivering up to 700W solar charging capacity from multiple panel configurations, Orion-Tr Smart 12/12-30 isolated DC-DC charger providing 30A charging from vehicle alternator during driving, Blue Smart IP22 30A mains charger enabling rapid shore power charging at caravan parks or home, BMV-712 Smart battery monitor with Bluetooth connectivity displaying real-time battery voltage, current, state of charge, time remaining, and historical data through smartphone app, 4x fused positive distribution bars rated 40A each providing protected power distribution to AC charger (A), MPPT controller (B), DC-DC charger (C), and Anderson connector (D), negative busbar consolidating all ground connections, 200A circuit breaker protecting main battery connection, Anderson Plug & Play connector enabling quick-disconnect auxiliary battery connection, Victron Connect app compatibility allowing wireless monitoring and configuration of all connected Victron devices through single smartphone interface, professional-grade construction suitable for caravans, motorhomes, camper trailers, expedition vehicles, and marine installations, backed by Victron Energy's industry-leading 5-year warranty, and eliminating weeks of research, component selection, and wiring complexity delivering turn-key power solution ready for professional installation.

Product Overview

The Baintech Standard Stal 30 Smart Power Board delivers complete turnkey 12V power management combining Australia's trusted Baintech expertise with world-leading Victron Energy components—eliminating complexity of component selection, compatibility verification, and DIY wiring challenges for caravanners, motorhome owners, 4WD adventurers, and marine enthusiasts. Pre-engineered system prevents common installation mistakes including incorrect wire sizing, improper fusing, incompatible components, inadequate busbars, poor cable management, and reversed polarity connections—every component carefully selected for compatibility with properly-sized wiring, appropriate fusing, professional busbars, and logical layout simplifying maintenance and upgrades. Victron SmartSolar MPPT 100/50 provides up to 50A solar charging (700W on 12V) utilizing Maximum Power Point Tracking extracting maximum power regardless of shading, temperature, or panel mismatch—significantly outperforming PWM controllers during sub-optimal conditions. Orion-Tr Smart 12/12-30 isolated DC-DC charger delivers 30A alternator charging replacing traditional VSR systems that damage modern smart alternators—isolation protects vehicle electronics, smart algorithms prevent alternator overheating, and Bluetooth monitoring displays performance. Blue Smart IP22 30A mains charger enables rapid shore power charging—adaptive technology adjusts profiles based on battery condition, temperature compensation prevents over/undercharging, and battery-safe algorithms enable indefinite connection. BMV-712 Smart battery monitor transforms management from guesswork into precision—displays voltage, current, amp-hours consumed, state of charge percentage, time remaining, historical minimum voltage, deepest discharge, and charging cycles enabling system optimization. Four 40A fused distribution bars provide selective circuit protection where component failure doesn't compromise entire system. 200A circuit breaker protects main battery connection providing overcurrent protection and emergency disconnect. Anderson Plug & Play connector enables quick-disconnect auxiliary battery connection. Victron Connect app wirelessly connects to all Smart components displaying real-time data, historical trends, configuring settings, updating firmware, and diagnosing issues. Professional construction withstands mobile environments with components securely mounted preventing vibration damage. Victron Energy 5-year warranty provides peace of mind. Applications include caravan power systems, motorhome off-grid capability, camper trailer expedition setups, 4WD auxiliary power, and marine house battery charging.

Key Features

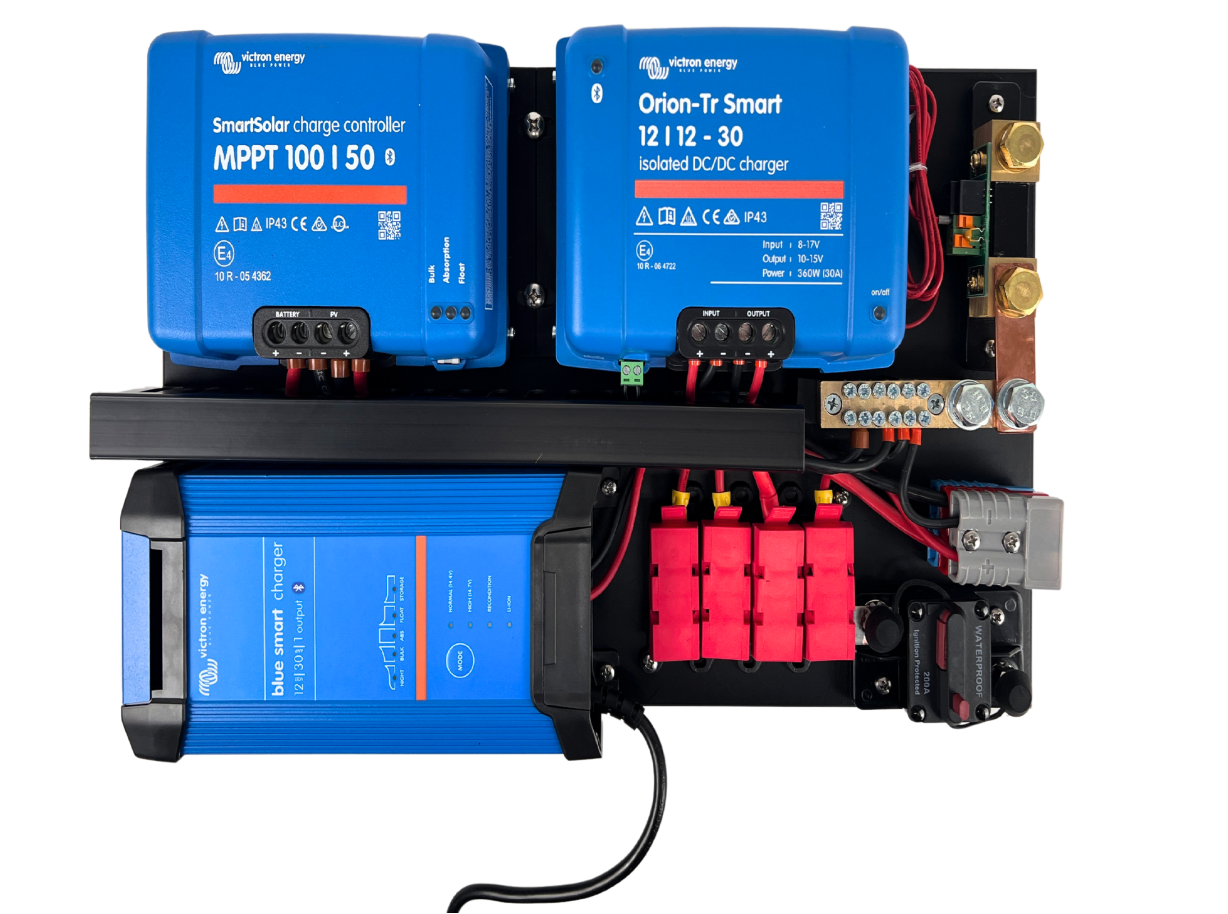

Pre-Wired Victron Energy Power Board: Professional power distribution board with all premium Victron components factory-wired eliminating complex DIY wiring challenges. Components include MPPT 100/50 solar controller, Orion-Tr Smart DC-DC charger, Blue Smart AC charger, BMV-712 battery monitor with display, fused distribution bars, busbars, and circuit breaker all interconnected with correctly-sized wiring and proper terminations. Eliminates weeks of research determining component compatibility, calculating wire sizes, selecting appropriate fusing, sourcing quality terminals and connectors, and installing hundreds of connections each representing potential failure point. Turn-key solution requiring only external connections (battery, solar, alternator, mains) for complete system commissioning.

Victron SmartSolar MPPT 100/50 Controller: Advanced Maximum Power Point Tracking solar charge controller delivering up to 50A charging current supporting up to 700W solar panel capacity on 12V systems. MPPT technology extracts 20-30% more power from solar panels compared to PWM controllers particularly during sub-optimal conditions (cloud cover, shading, temperature extremes, panel mismatch). Bluetooth connectivity enables wireless monitoring showing solar yield, battery status, and historical performance through Victron Connect app. Intelligent charging algorithm automatically adapts to battery type (lead-acid, AGM, GEL, lithium) preventing overcharge damage while maximizing charge acceptance. Suitable for multiple panel configurations (series, parallel, series-parallel) with 100V maximum input voltage enabling flexible installation layouts.

Orion-Tr Smart 12/12-30 Isolated DC-DC Charger: Professional isolated DC-DC battery charger delivering 30A charging from vehicle alternator replacing outdated VSR systems incompatible with modern smart alternators. Full electrical isolation protects sensitive vehicle electronics from auxiliary battery loads preventing warranty issues and electronic module damage. Smart charging algorithms prevent alternator overheating by monitoring input voltage and reducing output during extended charging preventing alternator thermal damage common with continuous high-load charging. Bluetooth monitoring displays real-time charging performance, input/output voltage, current, and historical data enabling optimization and troubleshooting. Automatic engine running detection activates charging only when vehicle running preventing parasitic drain on start battery.

Blue Smart IP22 30A Mains Charger: Premium mains-powered battery charger providing 30A charging from shore power (240V AC) enabling rapid charging at caravan parks, home, or marina. Adaptive charging technology automatically analyzes battery condition selecting optimal charging profile maximizing charge acceptance while preventing overcharge damage. Ambient temperature sensor adjusts charging voltage based on environmental temperature—increases voltage in cold preventing undercharging, decreases voltage in heat preventing gassing and water loss. Seven-stage charging algorithm (desulfation, soft start, bulk, absorption, reconditioning, float, storage) optimizes battery health extending service life. Bluetooth connectivity displays charging status, historical data, and configuration options through smartphone app. Battery-safe design enables indefinite connection without overcharge concerns during extended periods at powered sites.

BMV-712 Smart Battery Monitor with Display: Professional battery monitoring system providing comprehensive visibility into battery bank status eliminating guesswork. Precision shunt measures actual current flow (charging and loads) calculating accurate state of charge based on coulomb counting rather than unreliable voltage-based estimation. Displays real-time voltage, current (positive when charging, negative when discharging), consumed amp-hours, state of charge percentage, and time remaining until empty based on current discharge rate. Historical data tracks minimum voltage events, deepest discharge, average discharge, charging cycles, full discharges, and days since full charge enabling battery health assessment and system optimization. Bluetooth connectivity streams all data to Victron Connect app enabling remote monitoring without physical display access. Programmable alarms warn of low voltage, low state of charge, excessive current, or temperature extremes preventing battery damage from over-discharge or overload conditions.

Four 40A Fused Distribution Bars: Professional positive power distribution with individual circuit protection. Fuse Block A (40A) protects AC charger circuit, Fuse Block B (40A) protects MPPT solar controller, Fuse Block C (40A) protects DC-DC charger, and Fuse Block D (40A) protects Anderson auxiliary connector. Individual fusing provides selective protection where single component failure or short circuit doesn't disable entire system—failed fuse isolated to affected circuit while other charging sources continue operating. 40A fuse rating appropriate for component maximum output protecting wiring from overcurrent conditions while not nuisance-tripping during normal peak loads. Standard automotive blade fuse format simplifies replacement—spare fuses readily available at automotive stores unlike specialized fuse types requiring dealer ordering.

200A Main Circuit Breaker: Heavy-duty circuit breaker protecting main battery connection providing both overcurrent protection and emergency disconnect capability. Rated 200A suitable for high-current applications including inverter loads, air conditioning, induction cooking, and combined system loads without nuisance tripping. Manual reset design enables use as emergency disconnect—trip breaker to isolate entire system during maintenance, storage, or emergency without disconnecting battery terminals. Thermal-magnetic protection responds to both instantaneous overcurrent (short circuits) and sustained overload (excessive loads) protecting cables from fire risk and battery from damage. Surface-mount design with protective boot prevents accidental operation while enabling deliberate activation when required.

Anderson Plug & Play Connector: Quick-disconnect Anderson connector enabling rapid auxiliary battery connection and disconnection. Grey Anderson housing rated 50A suitable for auxiliary battery charging without voltage drop or overheating issues. Plug & Play design facilitates battery removal for maintenance, replacement, seasonal storage, or temporary charging without disturbing permanently-wired connections. Genderless connector design prevents incorrect mating—either half connects to either half eliminating polarity confusion. Spring-loaded contacts maintain reliable connection despite vibration in mobile applications. Popular Anderson format compatible with vast aftermarket accessories including portable solar panels, jump-start cables, and auxiliary battery boxes enabling system expandability.

Victron Connect App Integration: Revolutionary smartphone app providing wireless monitoring and configuration of all connected Victron Smart devices through single unified interface. App connects via Bluetooth displaying real-time data from MPPT controller (solar yield, battery voltage, charging current), DC-DC charger (input/output voltage, charging current, alternator status), AC charger (charging stage, voltage, current, temperature), and battery monitor (state of charge, voltage, current, time remaining) eliminating need for individual component displays. Historical data reveals trends over days, weeks, or months enabling system optimization—solar production patterns identify shading issues, charging efficiency reveals component performance, and consumption patterns highlight excessive loads. Advanced configuration enables battery type selection, charge voltage adjustment, temperature compensation tuning, and alarm threshold programming typically requiring computer connection on non-smart equipment. Firmware updates delivered over-the-air keeping system current with latest Victron improvements without dealer visits or cable connections.

Professional Pre-Wired Construction: Factory wiring eliminates hundreds of potential failure points inherent in DIY installations. All inter-component wiring correctly sized based on current ratings and cable lengths preventing voltage drop and overheating issues. Professional-grade terminals crimped with proper dies and heat-shrink insulated preventing corrosion and short circuits. Cable management routes wiring neatly preventing chafing against sharp edges, pinching under components, or exposure to heat sources that cause insulation breakdown. Component layout optimized for cooling airflow, maintenance access, and logical troubleshooting—clearly labeled connections simplify professional installation and future service. Rigid backing board provides secure component mounting preventing vibration loosening or connection fatigue common with individually-mounted components subjected to mobile environment stresses.

Victron Energy 5-Year Warranty: Industry-leading 5-year manufacturer warranty covers all Victron components demonstrating company confidence in quality and reliability. Victron Energy represents premium brand in recreational vehicle and marine industries globally—reputation built on exceptional product performance, regular firmware improvements, and responsive customer support. Warranty coverage significantly exceeds typical 1-2 year consumer electronics warranties providing long-term peace of mind for substantial investment. Australian warranty support through established distributor network ensures local service availability without international shipping delays or communication challenges. Warranty registration through Victron Connect app QR codes simplifies process ensuring coverage activated immediately upon installation.

Technical Specifications

Frequently Asked Questions

Q: Is this board completely plug-and-play or does it still require professional installation?

A: Board arrives fully pre-wired between all Victron components but requires professional installation connecting external systems (battery, solar panels, vehicle alternator, mains power). Electrician or experienced installer needs to mount board securely, connect main battery positive through 200A circuit breaker, connect battery negative through BMV-712 shunt (critical for accurate monitoring), wire solar panels to MPPT controller, connect vehicle start battery to DC-DC charger input, wire mains 240V to AC charger, and configure Victron Connect app settings for battery type and capacity. Pre-wired board eliminates complex inter-component wiring reducing installation time from days to hours while ensuring professional-grade connections between components.

Q: Can I monitor and control everything from my phone or do I need the physical displays?

A: All Victron Smart components (MPPT controller, DC-DC charger, AC charger, battery monitor) include built-in Bluetooth connecting wirelessly to free Victron Connect smartphone app providing comprehensive monitoring and configuration. BMV-712 physical display included providing at-a-glance battery status without phone dependency—particularly useful when phone charging, in poor reception areas, or preferring dedicated display. App provides significantly more detail than physical display including historical trends, advanced settings, firmware updates, and simultaneous monitoring of all components. Recommend using both—physical display for quick status checks, app for detailed analysis and configuration.

Q: What size battery bank and solar array is this system suitable for?

A: System designed for typical caravan/motorhome installations with 100-300Ah battery capacity and 300-700W solar panel arrays. MPPT 100/50 controller supports up to 700W solar on 12V system (50A maximum) suitable for 2-3 premium 300W panels or 4-6 budget 150W panels. Combined charging capability (50A solar + 30A DC-DC + 30A AC = 110A total) suitable for rapidly charging 200Ah battery bank—approximately 2-4 hours from 50% to full under optimal conditions with all sources operating. BMV-712 monitor accurate for battery banks from 20Ah to 10,000Ah through shunt selection—included 500A/50mV shunt suitable for typical recreational vehicle applications. Oversized charging capability relative to battery capacity enables shorter charge times, reduced generator runtime, and better performance during sub-optimal conditions (cloudy days, short driving distances, limited shore power access).

Q: Will this work with lithium LiFePO4 batteries or only lead-acid?

A: All Victron components support lithium LiFePO4 batteries with appropriate configuration through Victron Connect app. Select lithium battery preset and configure correct charge voltage (typically 14.2-14.6V), absorption time, float voltage (13.5V or disabled depending on BMS), and temperature compensation settings matching lithium battery manufacturer specifications. Lithium batteries charge much faster than lead-acid utilizing full charging current throughout charge cycle rather than tapering—50A solar charging on 100Ah lithium battery completes in approximately 2 hours from 50% versus 4-6 hours for equivalent lead-acid. Note: Lithium batteries require built-in BMS (battery management system) for cell balancing and protection—chargers do not replace BMS functionality. System also supports all lead-acid types (flooded, AGM, GEL, calcium) through battery preset selection.

Q: What happens if one charging source fails—do the others keep working?

A: Independent charging sources with individual fuse protection ensure system redundancy—failure of single component doesn't disable other charging methods. If MPPT controller fails (Fuse Block B), DC-DC and AC chargers continue operating. If AC charger fails (Fuse Block A), solar and alternator charging unaffected. If DC-DC charger fails (Fuse Block C), solar and shore power charging operational. This redundancy critical for extended remote travel where single-point failures could strand users without charging capability. BMV-712 battery monitor provides early warning of charging system issues—if solar production drops unexpectedly or alternator charging stops, monitor data reveals problem enabling troubleshooting before battery completely depletes. Replace individual blown fuse to restore affected circuit—spare 40A blade fuses readily available at automotive stores ensuring quick repair.
