BAINTECH BTMID-H070R MIDI Fuse Holder with 70A MIDI Fuse - Heavy-Duty Circuit Protection for High-Current 12V/24V Automotive and Marine Electrical Systems

BAINTECH BTMID-H070R MIDI Fuse Holder with 70A MIDI Fuse - Heavy-Duty Circuit Protection for High-Current 12V/24V Automotive and Marine Electrical Systems

Protect high-current circuits with the Baintech BTMID-H070R MIDI Fuse Holder—featuring complete fuse holder assembly with included 70A MIDI fuse providing reliable circuit protection for large inverters, high-output battery chargers, multiple accessory circuits, heavy-duty lighting systems, and high-current accessories, robust construction withstanding vibration and harsh mobile installation conditions, easy fuse replacement without tools for convenient maintenance and troubleshooting, MIDI fuse format offering superior current capacity compared to standard blade fuses, secure terminal connections ensuring reliable electrical contact under demanding conditions, corrosion-resistant materials suitable for automotive and marine environments, and trusted circuit protection solution for caravans, 4WD vehicles, boats, camper trailers, commercial vehicles, and mobile installations requiring heavy-duty overcurrent protection for 70A electrical circuits.

Product Overview

The Baintech BTMID-H070R addresses circuit protection requirements for high-current 12V and 24V electrical circuits providing MIDI fuse holder with included 70A fuse—protecting large power inverters, high-output DC-DC chargers, auxiliary battery systems, multiple accessory distribution, heavy-duty LED lighting arrays, and high-current equipment from overcurrent damage, wire overheating, and fire hazards. MIDI fuse format represents robust automotive fuse standard bridging gap between standard blade fuses (typically 2-40A capacity) and larger MEGA fuses (80-500A capacity)—offering 30-100A current range ideal for substantial auxiliary electrical systems, moderate to large inverter installations, high-current accessory circuits, and secondary battery charging systems commonly found in expedition vehicles, serious touring setups, and marine installations with significant electrical demands. Fuse holder construction incorporates secure terminal connections, robust housing materials, and positive fuse retention preventing vibration-induced loosening or accidental fuse ejection during offroad travel or rough water conditions—critical for mobile installations experiencing constant movement and mechanical stress. Included 70A MIDI fuse provides immediate circuit protection upon installation eliminating need for separate fuse purchase and ensuring correct amperage rating for holder capacity—70A rating suitable for circuits including large inverters (800-1200W continuous), high-output DC-DC chargers (50-60A output), auxiliary battery charging from high-output alternators, multiple parallel accessory circuits, heavy-duty LED light bar arrays, and general high-current distribution up to 70A capacity. Tool-free fuse replacement enables convenient troubleshooting and maintenance—fuse holder design allows hand removal of blown fuses and installation of replacement fuses without screwdrivers, pliers, or special tools particularly valuable during roadside repairs or field troubleshooting when tools may be inaccessible. Corrosion-resistant terminal construction and housing materials ensure reliable long-term performance in automotive and marine environments—withstands exposure to moisture, road salt, engine bay heat, and environmental contamination typical in vehicle electrical systems without terminal corrosion or housing degradation affecting circuit protection reliability.

Key Features

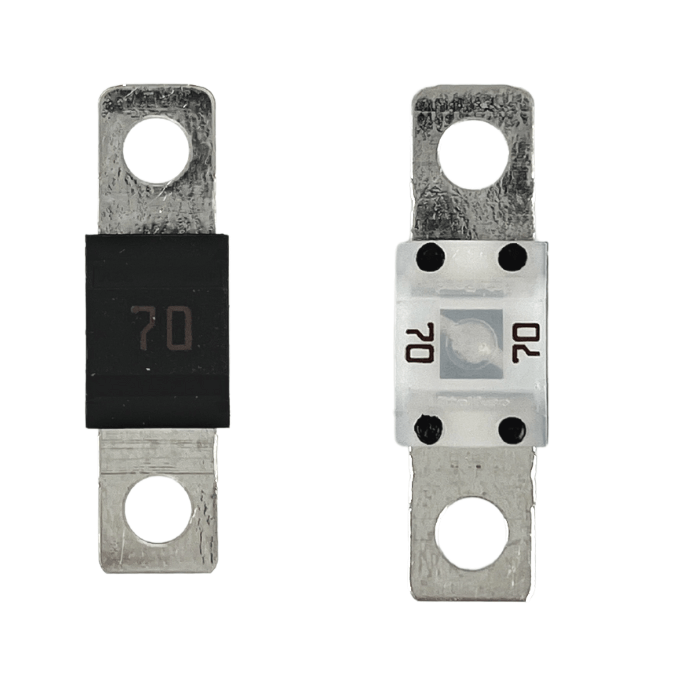

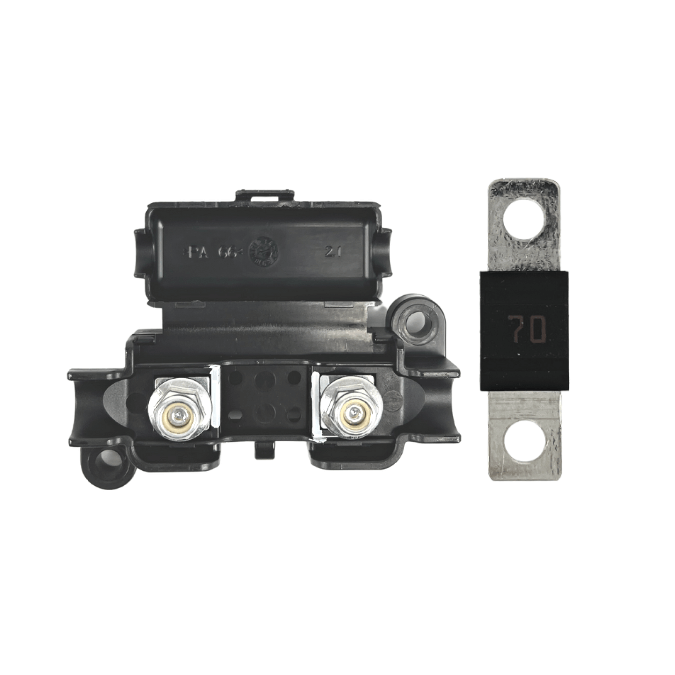

Complete MIDI Fuse Holder Assembly with 70A Fuse: Includes fuse holder and 70A MIDI fuse providing immediate circuit protection capability upon installation without requiring separate fuse purchase. 70A rating suitable for large power inverters (800-1200W continuous), high-output DC-DC chargers (50-60A), auxiliary battery charging from high-output alternators, multiple parallel accessory circuits, heavy-duty LED lighting arrays (multiple high-power light bars), dual battery systems with substantial loads, and general high-current distribution up to 70A capacity. MIDI fuse format offers superior current capacity and robust construction compared to standard blade fuses—better suited for higher-current applications while maintaining compact size compared to large MEGA fuses. Holder accommodates standard MIDI fuse range (30-100A) enabling easy current rating adjustment by replacing fuse with different amperage matching circuit requirements.

Robust Construction for Mobile Installations: Heavy-duty housing and terminal design withstand vibration, mechanical stress, temperature extremes, and harsh environmental conditions typical in vehicle and marine electrical systems. Positive fuse retention mechanism prevents vibration-induced loosening or accidental fuse ejection during offroad travel, rough water conditions, or high-vibration applications. Secure terminal connections maintain reliable electrical contact despite constant movement and mechanical stress—eliminates intermittent connections or high-resistance joints causing voltage drops, heat generation, or circuit failures. Suitable for permanent installations in caravans, 4WD vehicles, boats, commercial vehicles, agricultural equipment, and construction vehicles requiring dependable circuit protection under demanding operating conditions handling substantial current loads.

Tool-Free Fuse Replacement: Fuse holder design enables hand removal and installation of fuses without requiring screwdrivers, pliers, or special tools—critical for convenient maintenance, troubleshooting, and roadside repairs. Simple lift-and-remove mechanism allows quick fuse inspection determining whether fuse blown or intact without electrical testing equipment. Replacement fuses install easily by hand pressing new fuse into holder until securely seated. Tool-free operation particularly valuable during emergency repairs in remote locations, field troubleshooting when tools unavailable, or routine maintenance checks verifying fuse condition. Reduces downtime from blown fuses enabling rapid circuit restoration after overload events or equipment faults—critical for high-current circuits powering essential equipment like inverters or charging systems.

MIDI Fuse Format Advantages: MIDI fuse standard provides optimal balance between current capacity and physical size—handles 30-100A circuits without requiring large MEGA fuse installations occupying excessive space. Blade-style design with robust terminals ensures reliable electrical connection and positive mechanical retention suitable for high-current applications. Widely available replacement fuses from automotive retailers, marine suppliers, and electrical distributors—eliminates sourcing difficulties or extended downtime waiting specialty fuse deliveries. Clear fuse body enables visual inspection of fuse element determining blown fuse condition without removal—internal element visible through transparent housing showing intact or severed conductor indicating fuse status particularly important for high-current circuits where blown fuse diagnosis critical for troubleshooting.

Corrosion-Resistant Terminal Construction: Terminal materials and plating resist corrosion from moisture exposure, road salt contamination, engine bay heat, and environmental conditions degrading electrical connections in automotive and marine installations. Maintains low contact resistance throughout product lifespan ensuring minimal voltage drop and efficient power delivery to protected circuits—critical at 70A current levels where even small resistance increases cause significant voltage drops and heat generation. Enhanced corrosion resistance particularly critical in marine environments, coastal regions, vehicles operating in salty conditions, or under-bonnet installations exposed to heat, moisture, and contamination. Prevents terminal oxidation, contact degradation, and resistance increases causing voltage drops, heat generation, or circuit failures from poor electrical connections handling high current.

Secure Terminal Connections for High-Current Applications: Terminal design accommodates heavy-gauge wire required for 70A circuits including ring terminals, spade terminals, or direct wire connection depending on holder configuration—provides flexibility for different installation requirements and existing wiring configurations. Secure mechanical connection ensures reliable electrical contact under vibration and mechanical stress preventing terminal loosening or separation during vehicle operation particularly critical at high current levels where poor connections generate excessive heat. Proper terminal torque maintains consistent contact pressure eliminating high-resistance joints causing heat generation, voltage drops, or intermittent connections. Terminal sizing accommodates appropriate wire gauges for 70A current capacity—typically 4-6AWG wire required for 70A circuits depending on cable run length and voltage drop considerations.

Versatile High-Current Circuit Protection Applications: Suitable for large inverter installations (800-1200W continuous at 12V) protecting inverter input circuits from overcurrent damage, high-output DC-DC charger circuits (50-60A output) providing short-circuit protection for battery charging systems, auxiliary battery charging protecting high-current alternator feeds to secondary battery banks, multiple parallel accessory distribution protecting consolidated high-current distribution points supplying multiple lower-current circuits, heavy-duty LED lighting arrays protecting multiple high-power light bars or substantial lighting installations, dual battery systems providing overcurrent protection for high-current battery interconnections, solar charging systems protecting high-output charge controller connections, and general 70A circuits requiring reliable overcurrent protection in 12V or 24V electrical systems with substantial power demands.

Part of Baintech's Electrical Protection Range: Component of comprehensive electrical protection and distribution product range offering diverse solutions for automotive and marine electrical systems. Baintech reputation built on quality materials, reliable performance under demanding conditions, and proper engineering ensuring circuit protection functions correctly safeguarding expensive electrical equipment and preventing fire hazards from wire overheating. Available through established Australian distribution networks with technical support for proper fuse sizing, installation guidance, and circuit protection system design ensuring correct protection for specific high-current applications.

Quality Australian-Market Product: Designed and distributed for Australian market by Bainbridge Technologies (Baintech) meeting requirements for automotive and marine electrical installations including harsh environmental conditions, diverse vehicle applications, and compliance with Australian electrical standards. Available through established Australian distribution networks including auto electrical retailers, caravan accessory suppliers, marine equipment distributors, 4WD specialty stores, and commercial vehicle suppliers with knowledgeable staff providing installation guidance and technical support ensuring proper circuit protection implementation for high-current applications.

Technical Specifications

Frequently Asked Questions

Q: What circuits is 70A MIDI fuse suitable for protecting?

A: 70A MIDI fuse protects high-current circuits including large inverters (800-1200W continuous at 12V drawing 65-100A+), high-output DC-DC chargers (50-60A output rating), auxiliary battery charging from high-output alternators (60-70A charging circuits), multiple parallel accessory distribution (consolidating several lower-current circuits at distribution point), heavy-duty LED lighting arrays (multiple high-power light bars totaling 500-800W combined), dual battery systems (high-current battery interconnections), high-output solar charge controllers, and general high-current accessories up to 70A capacity. Not suitable for very large inverters (2000W+ requiring 150-200A+ fusing), electric winches (requiring 150-400A fusing), or primary alternator output (requiring 100-200A+ fusing). Fuse rating should be 125-150% of circuit normal operating current—70A fuse appropriate for circuits drawing 45-56A continuous operation.

Q: What wire size needed for 70A circuit with MIDI fuse holder?

A: 70A circuit requires minimum 4AWG (25mm²) wire for short runs under 2 meters, 2AWG (35mm²) wire recommended for longer runs 2-4 meters, or 1AWG (50mm²) for runs exceeding 4 meters minimizing voltage drop at high current levels. Wire sizing critical at 70A—inadequate wire gauge causes excessive voltage drop reducing equipment performance and creating fire hazard from wire overheating. Consider: continuous current capacity (4AWG rated ~70-85A, 2AWG rated ~95-115A), voltage drop calculations (2-3% maximum for critical circuits like inverters), cable run length (longer runs exponentially increase voltage drop at high current), and ambient temperature (engine bay installations require derating). Install fuse holder within 200-300mm of battery positive terminal protecting entire cable run. Use marine-grade tinned copper wire in corrosive environments. Terminate wires with heavy-duty ring terminals rated for wire gauge ensuring secure connection.

Q: Can I use 70A fuse for lower-current circuit requiring only 40-50A protection?

A: Not recommended—fuse rating should match circuit requirements, not exceed them. Using 70A fuse on 40-50A circuit creates safety hazard: wire rated 40-50A could overheat drawing 60-70A before fuse protection activates, equipment designed for 40-50A maximum could suffer damage from overcurrent before fuse blows, and fire risk from wire insulation melting before fuse interrupts circuit. Correct approach: replace 70A fuse with appropriate rating (50A fuse for 40-50A circuit), verify wire gauge adequate for actual circuit current, and ensure fuse rating matches wire ampacity—never exceed wire current capacity with oversized fuse. MIDI holder accommodates 30-100A fuses enabling proper sizing—purchase correct amperage fuse matching circuit requirements.

Q: Where should 70A MIDI fuse holder be installed for inverter protection?

A: Install fuse holder in positive wire between battery and inverter as close to battery positive terminal as practical—ideally within 200-300mm protecting entire cable run from short circuits. For inverter installations specifically: mount holder on battery positive terminal using heavy-duty ring terminal, secure holder near battery preventing movement from vibration (critical at high current where loose connections generate heat), route heavy-gauge cable directly from fuse holder to inverter positive terminal without intermediate connections (minimizes voltage drop), ensure holder accessible for fuse inspection without inverter removal, and verify adequate ventilation around holder (high-current fusing generates heat during overcurrent events). Some installations use fuse holder integrated into inverter mounting location—acceptable if positive cable from battery properly protected with fuse near battery. Never install fuse only at inverter end leaving unprotected cable between battery and fuse—entire cable vulnerable to short circuit fire hazard.

Q: How do I know if 70A fuse is correct size for my inverter?

A: Calculate inverter current draw: divide inverter wattage by battery voltage accounting for efficiency losses. Example: 1000W inverter at 12V draws approximately 95A (1000W ÷ 12V ÷ 0.9 efficiency = 93A), requiring minimum 100A fuse protection—70A fuse inadequate causing nuisance trips. 800W inverter draws approximately 74A requiring 80-100A fuse—70A fuse marginal potentially causing trips during peak loads. 600W inverter draws approximately 56A—70A fuse appropriate with 25% safety margin. Proper sizing: measure actual current with clamp meter during maximum inverter load, multiply measured current by 1.25-1.5 safety factor accounting for startup surges, select next available fuse rating above calculated value. Undersized fuse causes nuisance trips interrupting power during normal operation, oversized fuse fails protecting inverter and wiring from damage. Consult inverter specifications for manufacturer-recommended fuse size.
