BAINTECH BTMID-H030R MIDI Fuse Holder with 30A MIDI Fuse - Heavy-Duty Circuit Protection for 12V/24V Automotive and Marine Electrical Systems

BAINTECH BTMID-H030R MIDI Fuse Holder with 30A MIDI Fuse - Heavy-Duty Circuit Protection for 12V/24V Automotive and Marine Electrical Systems

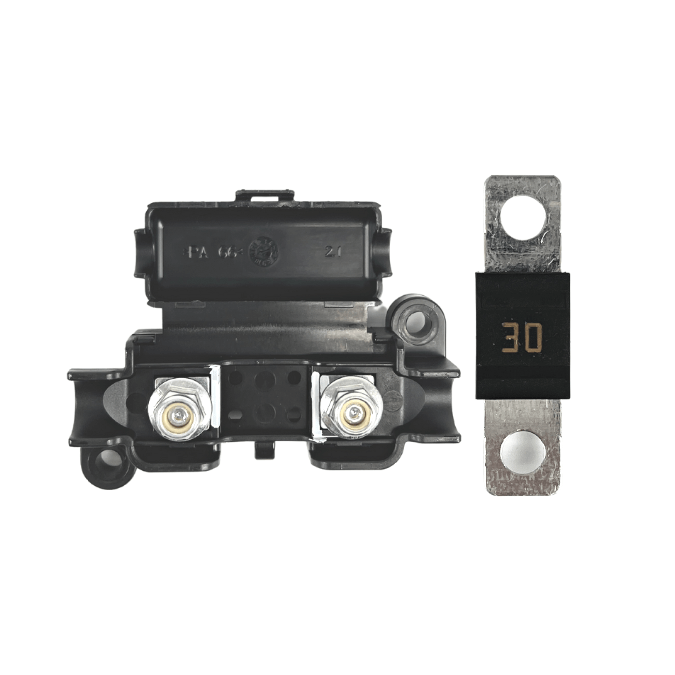

Protect high-current circuits with the Baintech BTMID-H030R MIDI Fuse Holder—featuring complete fuse holder assembly with included 30A MIDI fuse providing reliable circuit protection for auxiliary batteries, inverters, winches, lighting circuits, and high-current accessories, robust construction withstanding vibration and harsh mobile installation conditions, easy fuse replacement without tools for convenient maintenance and troubleshooting, MIDI fuse format offering superior current capacity compared to standard blade fuses, secure terminal connections ensuring reliable electrical contact under demanding conditions, corrosion-resistant materials suitable for automotive and marine environments, and trusted circuit protection solution for caravans, 4WD vehicles, boats, camper trailers, commercial vehicles, and mobile installations requiring heavy-duty overcurrent protection for 30A electrical circuits.

Product Overview

The Baintech BTMID-H030R addresses circuit protection requirements for medium to high-current 12V and 24V electrical circuits providing MIDI fuse holder with included 30A fuse—protecting auxiliary battery systems, power inverters, winch installations, LED light bar circuits, high-current accessories, and distribution systems from overcurrent damage, wire overheating, and fire hazards. MIDI fuse format represents robust automotive fuse standard bridging gap between standard blade fuses (typically 2-40A capacity) and larger MEGA fuses (80-500A capacity)—offering 30-100A current range ideal for auxiliary electrical systems, moderate inverter installations, accessory circuits, and secondary battery charging systems commonly found in recreational vehicles, 4WD touring setups, and marine installations. Fuse holder construction incorporates secure terminal connections, robust housing materials, and positive fuse retention preventing vibration-induced loosening or accidental fuse ejection during offroad travel or rough water conditions—critical for mobile installations experiencing constant movement and mechanical stress. Included 30A MIDI fuse provides immediate circuit protection upon installation eliminating need for separate fuse purchase and ensuring correct amperage rating for holder capacity—30A rating suitable for circuits including auxiliary battery charging (DC-DC chargers, battery isolators, VSR systems), small to medium inverters (300-500W continuous), LED light bar installations (multiple bars or single high-power bar), portable fridge circuits (dual fridge setups or large capacity units), and general accessory distribution up to 30A capacity. Tool-free fuse replacement enables convenient troubleshooting and maintenance—fuse holder design allows hand removal of blown fuses and installation of replacement fuses without screwdrivers, pliers, or special tools particularly valuable during roadside repairs or field troubleshooting when tools may be inaccessible. Corrosion-resistant terminal construction and housing materials ensure reliable long-term performance in automotive and marine environments—withstands exposure to moisture, road salt, engine bay heat, and environmental contamination typical in vehicle electrical systems without terminal corrosion or housing degradation affecting circuit protection reliability.

Key Features

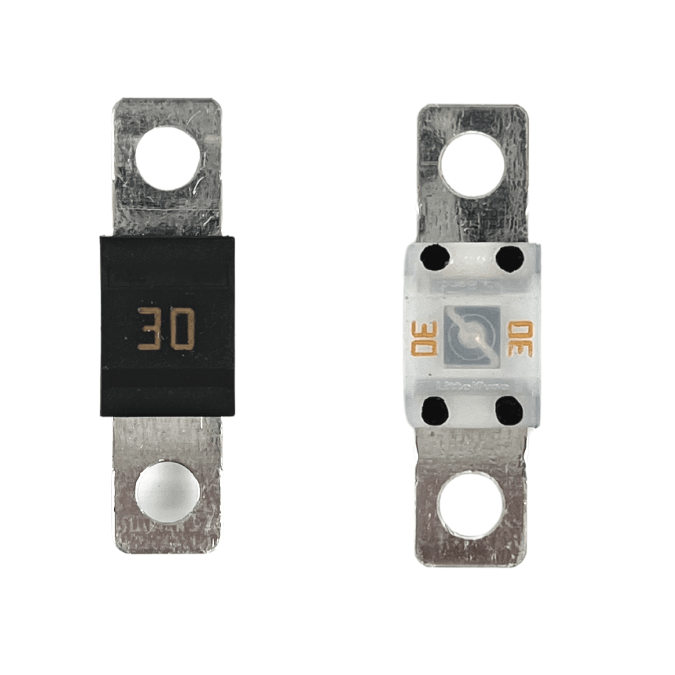

Complete MIDI Fuse Holder Assembly with 30A Fuse: Includes fuse holder and 30A MIDI fuse providing immediate circuit protection capability upon installation without requiring separate fuse purchase. 30A rating suitable for auxiliary battery charging systems, small to medium inverters, LED lighting circuits, portable fridge installations, and general accessory distribution up to 30A capacity. MIDI fuse format offers superior current capacity and robust construction compared to standard blade fuses—better suited for higher-current applications while maintaining compact size compared to large MEGA fuses. Holder accommodates standard MIDI fuse range (30-100A) enabling easy current rating adjustment by replacing fuse with different amperage matching circuit requirements.

Robust Construction for Mobile Installations: Heavy-duty housing and terminal design withstand vibration, mechanical stress, temperature extremes, and harsh environmental conditions typical in vehicle and marine electrical systems. Positive fuse retention mechanism prevents vibration-induced loosening or accidental fuse ejection during offroad travel, rough water conditions, or high-vibration applications. Secure terminal connections maintain reliable electrical contact despite constant movement and mechanical stress—eliminates intermittent connections or high-resistance joints causing voltage drops, heat generation, or circuit failures. Suitable for permanent installations in caravans, 4WD vehicles, boats, commercial vehicles, agricultural equipment, and construction vehicles requiring dependable circuit protection under demanding operating conditions.

Tool-Free Fuse Replacement: Fuse holder design enables hand removal and installation of fuses without requiring screwdrivers, pliers, or special tools—critical for convenient maintenance, troubleshooting, and roadside repairs. Simple lift-and-remove mechanism allows quick fuse inspection determining whether fuse blown or intact without electrical testing equipment. Replacement fuses install easily by hand pressing new fuse into holder until securely seated. Tool-free operation particularly valuable during emergency repairs in remote locations, field troubleshooting when tools unavailable, or routine maintenance checks verifying fuse condition. Reduces downtime from blown fuses enabling rapid circuit restoration after overload events or equipment faults.

MIDI Fuse Format Advantages: MIDI fuse standard provides optimal balance between current capacity and physical size—handles 30-100A circuits without requiring large MEGA fuse installations occupying excessive space. Blade-style design with robust terminals ensures reliable electrical connection and positive mechanical retention. Widely available replacement fuses from automotive retailers, marine suppliers, and electrical distributors—eliminates sourcing difficulties or extended downtime waiting specialty fuse deliveries. Clear fuse body enables visual inspection of fuse element determining blown fuse condition without removal—internal element visible through transparent housing showing intact or severed conductor indicating fuse status.

Corrosion-Resistant Terminal Construction: Terminal materials and plating resist corrosion from moisture exposure, road salt contamination, engine bay heat, and environmental conditions degrading electrical connections in automotive and marine installations. Maintains low contact resistance throughout product lifespan ensuring minimal voltage drop and efficient power delivery to protected circuits. Enhanced corrosion resistance particularly critical in marine environments, coastal regions, vehicles operating in salty conditions, or under-bonnet installations exposed to heat, moisture, and contamination. Prevents terminal oxidation, contact degradation, and resistance increases causing voltage drops, heat generation, or circuit failures from poor electrical connections.

Secure Terminal Connections: Terminal design accommodates various wire attachment methods including ring terminals, spade terminals, or direct wire connection depending on holder configuration—provides flexibility for different installation requirements and existing wiring configurations. Secure mechanical connection ensures reliable electrical contact under vibration and mechanical stress preventing terminal loosening or separation during vehicle operation. Proper terminal torque maintains consistent contact pressure eliminating high-resistance joints causing heat generation, voltage drops, or intermittent connections. Terminal sizing accommodates appropriate wire gauges for 30A current capacity—typically 8-10AWG wire adequate for 30A circuits depending on cable run length and voltage drop considerations.

Versatile Circuit Protection Applications: Suitable for auxiliary battery charging circuits protecting DC-DC chargers and battery isolators from overcurrent damage, inverter installations providing short-circuit protection for small to medium power inverters, LED lighting circuits protecting light bar installations and auxiliary lighting systems, portable fridge circuits ensuring proper overcurrent protection for refrigeration equipment, winch installations protecting control circuits and secondary power feeds, solar charging systems providing circuit protection for charge controller connections, accessory distribution protecting multiple accessory circuits from individual distribution point, and general 30A circuits requiring reliable overcurrent protection in 12V or 24V electrical systems.

Part of Baintech's Electrical Protection Range: Component of comprehensive electrical protection and distribution product range offering diverse solutions for automotive and marine electrical systems. Baintech reputation built on quality materials, reliable performance under demanding conditions, and proper engineering ensuring circuit protection functions correctly safeguarding expensive electrical equipment and preventing fire hazards from wire overheating. Available through established Australian distribution networks with technical support for proper fuse sizing, installation guidance, and circuit protection system design ensuring correct protection for specific applications.

Quality Australian-Market Product: Designed and distributed for Australian market by Bainbridge Technologies (Baintech) meeting requirements for automotive and marine electrical installations including harsh environmental conditions, diverse vehicle applications, and compliance with Australian electrical standards. Available through established Australian distribution networks including auto electrical retailers, caravan accessory suppliers, marine equipment distributors, 4WD specialty stores, and commercial vehicle suppliers with knowledgeable staff providing installation guidance and technical support ensuring proper circuit protection implementation.

Technical Specifications

Frequently Asked Questions

Q: What circuits is 30A MIDI fuse suitable for protecting?

A: 30A MIDI fuse protects circuits including auxiliary battery charging (DC-DC chargers 20-30A output, battery isolators, VSR systems), small to medium inverters (300-500W continuous at 12V drawing 25-40A), LED light bar installations (multiple bars or single high-power bar up to ~360W at 12V), dual portable fridge setups or large capacity units drawing up to 30A combined, solar charge controller connections, accessory distribution panels supplying multiple lower-current circuits, and general high-current accessories up to 30A capacity. Not suitable for larger inverters (1000W+ requiring 80-100A+ fusing), electric winches (requiring 150-400A fusing depending on winch capacity), or high-current alternator charging (requiring 80-150A+ fusing). Fuse rating should be 125-150% of circuit normal operating current—30A fuse appropriate for circuits drawing 20-24A continuous operation.

Q: How do I know when MIDI fuse is blown—how to check?

A: Blown fuse identification: visual inspection through clear fuse body showing severed internal element (conductor broken or separated), testing with multimeter measuring continuity across fuse terminals (infinite resistance indicates blown fuse, near-zero resistance indicates intact fuse), or circuit failure symptoms including complete loss of power to protected equipment, inverter not operating, lights not illuminating, or accessories not functioning. MIDI fuse transparent body enables visual inspection without fuse removal—intact fuse shows continuous metal strip connecting both terminals, blown fuse displays visible gap or discoloration where element melted. If fuse repeatedly blows after replacement, indicates circuit problem requiring investigation—check for short circuits, overloaded equipment, undersized fuse rating, or faulty accessories drawing excessive current.

Q: What wire size needed for 30A circuit with MIDI fuse holder?

A: 30A circuit requires minimum 10AWG (6mm²) wire for short runs under 2-3 meters, 8AWG (10mm²) wire recommended for longer runs 3-6 meters minimizing voltage drop and providing additional safety margin. Wire sizing considers: continuous current capacity (10AWG rated ~30A, 8AWG rated ~40A), voltage drop calculations (2-3% maximum recommended for critical circuits), cable run length (longer runs require heavier gauge), and ambient temperature (engine bay installations require derating for heat exposure). Install fuse holder within 200-300mm of power source (battery positive terminal) protecting entire cable run from short circuits. Use marine-grade tinned copper wire in corrosive environments preventing wire degradation. Terminate wires with appropriately-sized ring terminals ensuring secure mechanical and electrical connection to fuse holder terminals.

Q: Can I replace 30A fuse with different amperage—what determines correct fuse size?

A: Yes, MIDI fuse holder accommodates 30-100A MIDI fuses enabling amperage adjustment matching circuit requirements. Correct fuse size determined by: circuit maximum continuous current draw (measure with clamp meter or calculate from equipment specifications), wire capacity (fuse rating should not exceed wire ampacity—10AWG wire maximum ~30A fuse), equipment protection requirements (fuse rated 125-150% of equipment normal operating current protecting from overload while allowing startup surges), and safety considerations (oversized fuse fails to protect wire from overheating, undersized fuse nuisance-trips during normal operation). Calculate: measure circuit actual current draw under maximum load, multiply by 1.25-1.5 safety factor, select next available fuse rating. Example: inverter drawing 24A continuous requires minimum 30A fuse (24A × 1.25 = 30A). Never install fuse larger than wire capacity—creates fire hazard from wire overheating before fuse protection activates.

Q: Where should MIDI fuse holder be installed in electrical system?

A: Install fuse holder in positive wire as close to power source (battery positive terminal) as practical—ideally within 200-300mm protecting entire cable run from short circuits. Common installation locations: directly on battery positive terminal using ring terminal connection, on battery terminal post alongside other connections, on positive busbar near battery in distribution panel, or on positive cable near alternator for charging circuits. Mount fuse holder securely preventing movement from vibration—use cable ties, mounting brackets, or holder-specific mounting hardware. Ensure holder accessible for fuse inspection and replacement without requiring disassembly of surrounding components. Avoid locations exposed to excessive heat (directly on hot engine components), moisture (low points accumulating water), or mechanical damage (pinch points, sharp edges, moving parts). Keep holder orientation allowing convenient fuse removal—some holders require specific orientation for proper tool-free fuse extraction.
