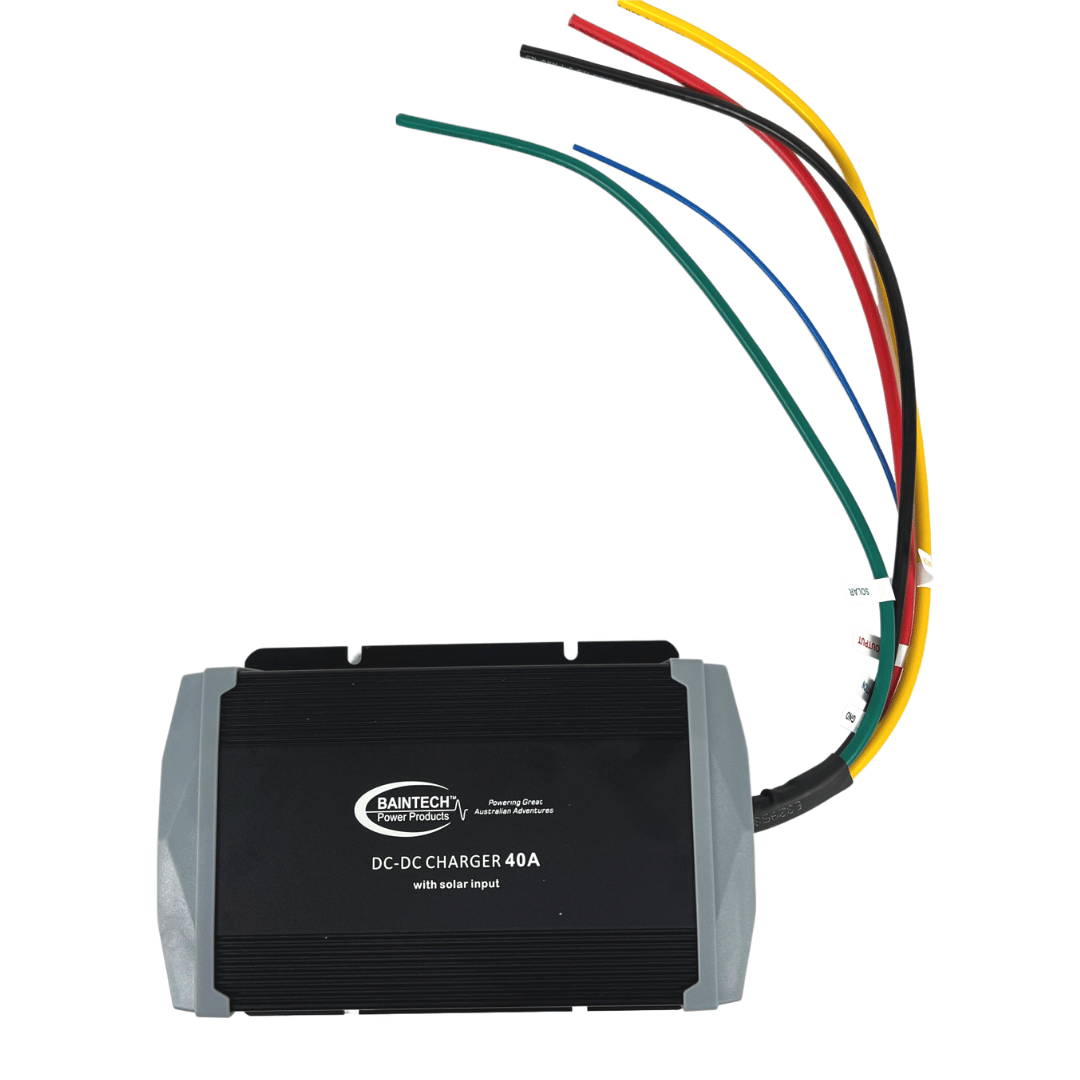

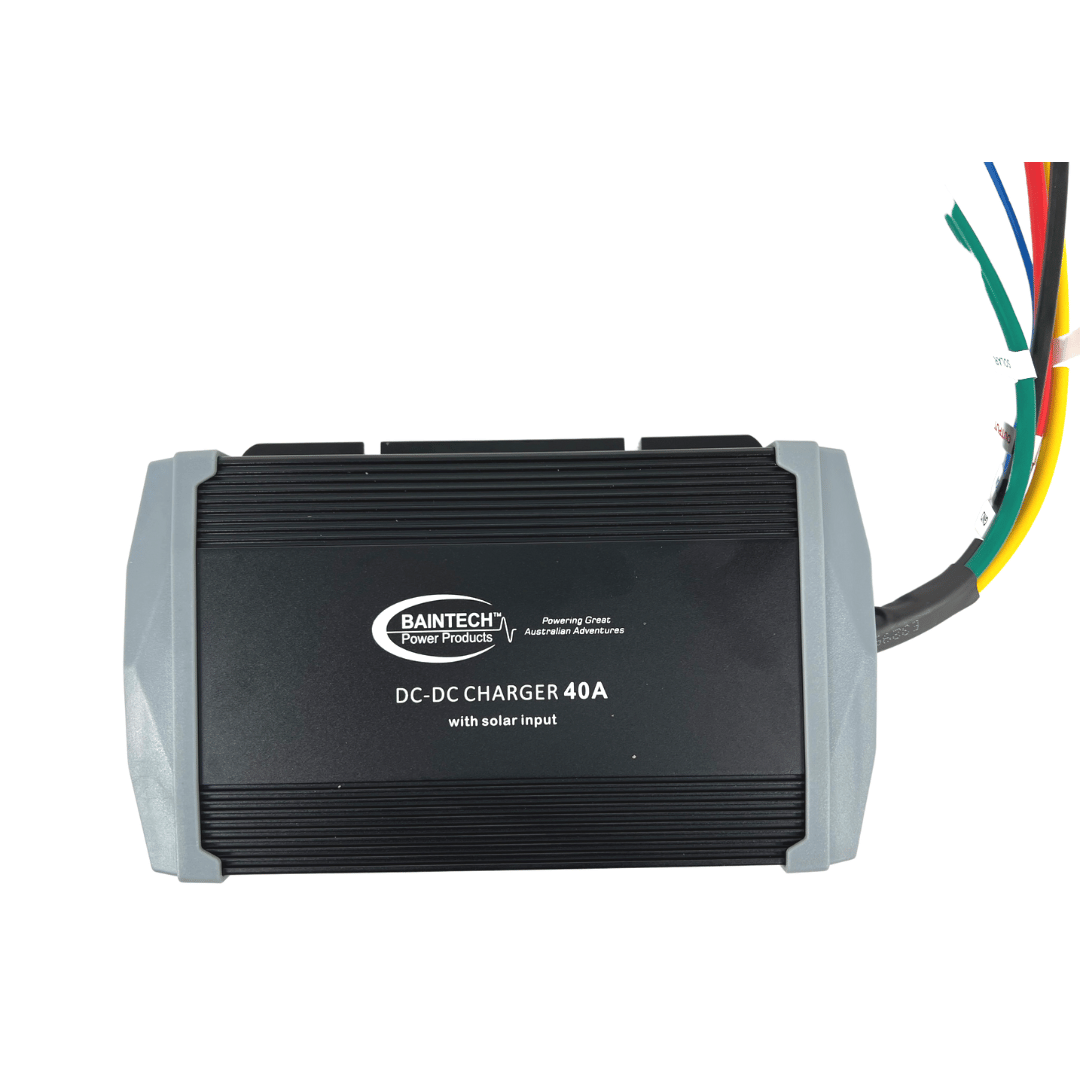

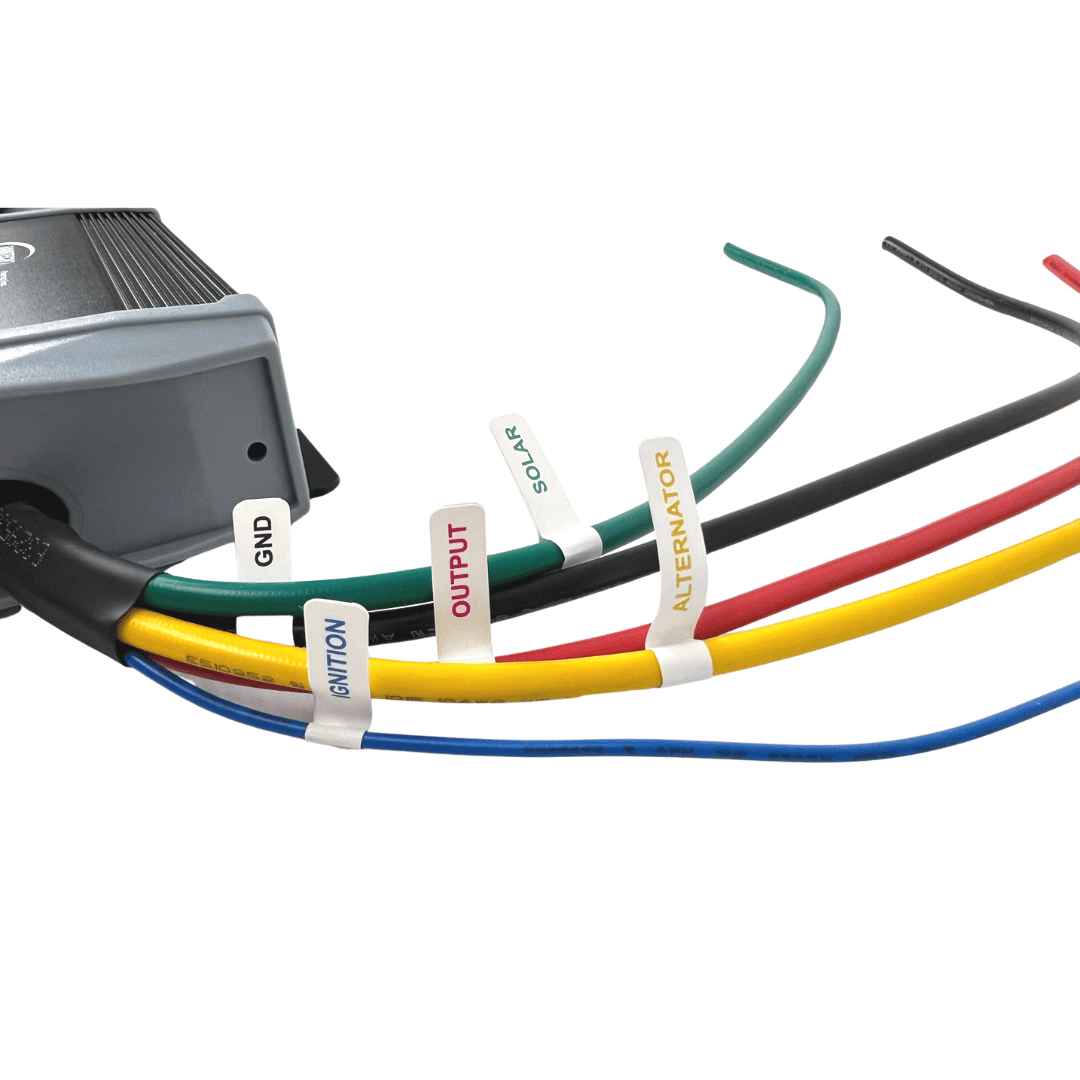

BAINTECH BTDC-DCS40A 40 Amp DC-DC Battery Charger with Solar MPPT - Dual Input Smart Charging System for 4WD, Caravan & Off-Grid Applications

BAINTECH BTDC-DCS40A 40 Amp DC-DC Battery Charger with Solar MPPT - Dual Input Smart Charging System for 4WD, Caravan & Off-Grid Applications

Maximize auxiliary battery charging efficiency with the BAINTECH BTDC-DCS40A 40 Amp DC-DC Battery Charger with Solar MPPT — an intelligent dual-input charging solution engineered to keep your auxiliary batteries fully charged from both vehicle alternator and solar panels simultaneously. This advanced DC-DC charger delivers 40 amps of charging current from your vehicle's alternator while simultaneously harvesting solar energy through integrated MPPT (Maximum Power Point Tracking) technology that optimizes solar panel output — compatible with both 12V and 24V alternator systems making it suitable for light vehicles, trucks, buses, and commercial applications — features universal battery chemistry profiles including Standard Lead Acid, Gel, AGM, Calcium, and Lithium (LiFePO4) batteries with selectable charging parameters for optimal battery health — supports smart alternator systems found in modern Euro 5/6 vehicles where variable voltage output challenges traditional isolators and split charge systems — delivers up to 95% charging efficiency through advanced switch-mode power conversion that minimizes heat generation and maximizes power transfer — and features IP66 waterproof rating with ultra-compact dimensions suitable for crowded engine bays and confined installation spaces in modern vehicles. Built to withstand the harsh environments common in off-road touring and remote travel including extreme temperatures, vibration, dust, and electrical noise, the BAINTECH DC-DC Solar Charger represents the ultimate auxiliary battery charging solution for serious Australian adventurers who demand reliable power independence during extended outback expeditions, Cape York adventures, or remote beach camping where every amp of charging capacity matters.

Product Overview

The BAINTECH BTDC-DCS40A DC-DC Battery Charger addresses the fundamental challenge facing modern touring vehicles — how to efficiently charge auxiliary batteries from increasingly complex alternator systems while simultaneously harvesting available solar energy to maximize off-grid power independence. Traditional battery isolators and voltage-sensitive relays (VSRs) fail in modern vehicles equipped with smart alternators that deliberately reduce charging voltage to improve fuel economy, while also wasting valuable solar energy when the vehicle alternator is operating. This intelligent DC-DC charger solves both problems through sophisticated charging algorithms that work with any alternator system and MPPT solar charge control that operates simultaneously. The 40 amp DC-DC charging capacity ensures rapid auxiliary battery recharging during driving, while the integrated solar MPPT controller extracts maximum available power from solar panels even during partial cloud cover or non-optimal mounting angles. The charger automatically manages priority between alternator and solar inputs, combining both sources when available to deliver maximum charging current or switching seamlessly to solar-only charging when parked. Universal voltage input accepts both 12V and 24V alternator systems without configuration changes, while the multiple battery chemistry profiles ensure optimal charging for traditional lead-acid batteries or modern lithium systems. Australian grey nomads, 4WD tourers, commercial fleet operators, and off-grid adventurers choose the BAINTECH DC-DC Solar Charger for its combination of high-output charging capability, solar integration efficiency, smart alternator compatibility, and bulletproof reliability in the dust, heat, vibration, and electromagnetic interference environment of Australian touring vehicles.

Key Features

40 Amp High-Output DC-DC Charging Capacity Delivers robust 40 amp charging current from your vehicle alternator to rapidly recharge auxiliary batteries during driving, providing professional-grade charging capability that restores depleted battery banks in hours rather than days. This substantial charging current maintains auxiliary batteries at full capacity during extended touring, supports high-power accessory loads including inverters and camping fridges without battery depletion, and ensures morning batteries are fully recharged after overnight camping loads before you reach your next destination.

Integrated Solar MPPT Charge Controller Incorporates Maximum Power Point Tracking (MPPT) solar charge control technology that continuously optimizes solar panel voltage and current to extract maximum available power under all conditions. The MPPT algorithm delivers 20-30% more charging efficiency compared to PWM controllers, maintaining peak solar output during partial cloud cover, early morning, late afternoon, or non-optimal panel angles — critical for maximizing daily solar harvest during Australian winters or tropical wet season camping where solar conditions are rarely ideal.

Dual Input Simultaneous Charging Capability Accepts power from both vehicle alternator and solar panels simultaneously, intelligently combining both charging sources to deliver maximum total charging current when both are available. The sophisticated power management automatically prioritizes alternator charging during driving while harvesting supplementary solar energy, then seamlessly transitions to solar-only charging when parked — ensuring your batteries receive maximum charging regardless of whether you're driving, parked in sun, or experiencing mixed conditions throughout the day.

12V and 24V Alternator Compatibility Works seamlessly with both 12 volt and 24 volt vehicle electrical systems without configuration changes, making it suitable for light vehicles, heavy trucks, buses, motorhomes, and commercial fleet applications. The universal input voltage acceptance eliminates the need to specify different chargers for different vehicle types, while the output remains fixed at 12V battery charging regardless of input voltage — ideal for fleet operators managing diverse vehicle types or upgrading from 12V to 24V vehicles.

Smart Alternator Compatible Technology Specifically engineered to work with modern Euro 5/6 smart alternator systems that use variable voltage regulation for fuel economy optimization. Traditional battery isolators and VSRs fail with smart alternators that reduce charging voltage below 13V, but this DC-DC charger maintains proper auxiliary battery charging regardless of alternator output voltage, ensuring reliable charging in modern Ford Rangers, Toyota LandCruiser 300 Series, RAM trucks, and European vehicles equipped with intelligent battery management systems.

Multi-Chemistry Battery Profile Selection Supports all common battery types including Standard Lead Acid, Gel, AGM, Calcium, and Lithium (LiFePO4) batteries with selectable charging profiles optimized for each chemistry's unique requirements. The correct charging voltage, absorption time, and float parameters for each battery type ensure maximum battery lifespan, optimal charge acceptance, and safe operation — critical when upgrading from traditional AGM to modern lithium batteries that require different charging voltages to prevent BMS disconnection.

95% Peak Charging Efficiency Achieves up to 95% power conversion efficiency through advanced switch-mode power supply topology that minimizes wasted energy as heat. This exceptional efficiency means more charging current reaches your battery rather than heating the charger enclosure, reduces installation heat dissipation requirements, enables smaller enclosure dimensions, and maximizes fuel economy by extracting maximum useful power from every amp drawn from the alternator.

IP66 Waterproof and Dustproof Protection Features IP66 environmental protection rating providing complete defense against dust ingress and powerful water jets from any direction. This sealed construction ensures reliable operation when mounted in engine bays exposed to water crossings, pressure washing, road spray, and dust ingress, or in caravan compartments subject to moisture condensation and dust infiltration during off-road travel through outback conditions.

Ultra-Compact High Power Density Design Engineered with space-efficient dimensions specifically designed for installation in crowded modern engine bays where underbonnet real estate is limited. The compact footprint combined with high 40 amp output represents cutting-edge power density that delivers professional charging capacity without consuming the space required by older transformer-based chargers or bulky linear power supplies, making it ideal for modern vehicles packed with emissions equipment and safety systems.

Comprehensive Safety Protection Systems Incorporates multiple protection circuits including low-voltage input protection preventing excessive alternator load, over-voltage protection guarding against charging system faults, over-temperature protection preventing thermal damage during extreme conditions, reverse polarity protection preventing installation errors, and short-circuit protection isolating faults before they damage electrical systems — ensuring safe operation across all conditions including installation mistakes and electrical system failures.

Harsh Environment Engineered Reliability Built specifically for the challenging conditions common in Australian off-road touring including extreme ambient temperatures from -20°C to +70°C, continuous vibration on corrugated roads and washboard tracks, high-altitude low-pressure environments, and electromagnetic interference from alternators, ignition systems, and radio transmitters. The ruggedized construction ensures reliable charging performance through millions of kilometres of remote travel without the electronic failures, connection degradation, or performance loss that plague consumer-grade equipment.

Technical Specifications

Frequently Asked Questions

What's the advantage of DC-DC charging versus a traditional VSR or isolator?

DC-DC chargers provide proper multi-stage battery charging (bulk, absorption, float) like a mains battery charger, whereas VSRs and isolators simply connect batteries together. This proper charging significantly extends battery lifespan, especially for AGM and lithium batteries. Additionally, DC-DC chargers work with modern smart alternators that VSRs fail with, isolate starter and auxiliary batteries preventing voltage drop affecting vehicle electronics, and boost charging voltage even when alternator voltage is low for fuel economy.

Can I use this with my existing solar panels or do I need special solar panels?

The integrated MPPT solar controller works with most 12V solar panels and arrays producing up to approximately 50V open circuit voltage (verify exact specification). You can use your existing portable solar blankets, fixed roof panels, or multiple panels in series — the MPPT controller automatically extracts maximum power. Ensure your solar array voltage doesn't exceed the maximum input voltage specification, and that solar panel positive/negative are correctly connected to the charger's solar input terminals.

Will this charge my lithium battery properly with the correct voltage?

Yes, when configured to lithium (LiFePO4) battery mode, the charger applies appropriate charging voltage (typically 14.4V-14.6V) and charging profile required by 12V lithium batteries. This prevents the over-voltage or under-voltage charging that occurs when using lead-acid charging profiles on lithium batteries, which can trigger BMS disconnection or prevent batteries reaching full capacity. Always verify your specific lithium battery manufacturer's charging voltage requirements and configure the charger accordingly.

How do I size the cables and fuse for installation?

For 40 amp charging current, use minimum 6mm² (4 B&S) automotive cable for cable runs under 3 meters, or 8-10mm² for longer runs to minimize voltage drop. Install a 50-60 amp fuse on the positive cable within 30cm of the starter battery connection to protect against cable short circuits. The alternator connection typically draws less than the full 40 amps due to efficiency, but size fusing based on cable capacity and worst-case current draw as specified in the installation manual.

Can this be used to charge my starter battery from solar when parked for extended periods?

This DC-DC charger is designed to charge the auxiliary battery from the alternator and solar, not to charge the starter battery. For extended parking periods, the alternator input prevents starter battery drain. If you need to maintain your starter battery during storage, use a separate CTEK or Baintech mains-powered battery maintainer connected to the starter battery, or install a separate solar controller feeding the starter battery with appropriate isolation from the auxiliary charging system.
