BAINTECH BTCIGAVOLTAMP LED Volt & Amp Meter - Flush Mount Dual Display Digital Voltmeter/Ammeter with Red LED for 12V/24V Battery Monitoring

BAINTECH BTCIGAVOLTAMP LED Volt & Amp Meter - Flush Mount Dual Display Digital Voltmeter/Ammeter with Red LED for 12V/24V Battery Monitoring

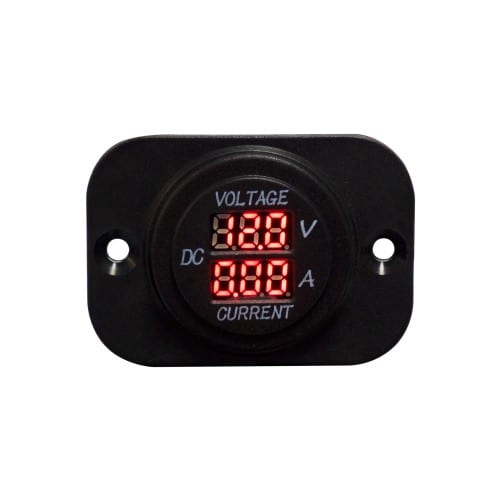

Monitor voltage and current simultaneously with the Baintech BTCIGAVOLTAMP LED Volt & Amp Meter—featuring dual red LED digital displays showing real-time battery voltage and current flow, flush-mount design for professional dashboard installation, 12V/24V dual voltage compatibility, shunt-based current measurement, and comprehensive power system monitoring for 4WD, marine, caravan, and automotive applications requiring complete electrical system visibility.

Product Overview

The Baintech BTCIGAVOLTAMP addresses comprehensive battery system monitoring requirements providing combined voltmeter and ammeter in single flush-mount unit displaying simultaneous voltage and current measurements enabling users understand complete electrical system operation, assess battery state-of-charge through voltage readings, monitor power consumption or charging rates through current measurements, verify charging system performance, identify electrical issues, and optimize power management throughout vehicles, caravans, boats, 4WD setups, and auxiliary battery installations. Dual red LED digital displays provide clear numerical readouts for both voltage (volts) and current (amperes) eliminating analog gauge interpretation and offering superior visibility in low-light conditions common during nighttime camping, early morning travel, or dim cabin environments where traditional gauges difficult to read accurately. Combined voltage and current monitoring provides complete electrical system picture—voltage alone indicates battery state-of-charge but current flow reveals whether battery charging or discharging and at what rate, enabling understanding net power balance critical for off-grid camping where matching consumption to charging capacity prevents battery depletion, solar installations where monitoring charging current verifies panel performance, and auxiliary battery systems where understanding both voltage and current flow enables optimizing usage patterns and identifying issues. Flush-mount design enables professional dashboard integration positioning displays flush with mounting surface creating clean finished appearance matching factory instrument aesthetics—superior to surface-mount alternatives protruding from panels and providing sleeker installation appropriate for modern vehicle interiors, custom dashboard builds, or quality-conscious installations where appearance matters alongside functionality. Dual 12V/24V compatibility enables single meter solution across diverse vehicle fleet including passenger vehicles, caravans, boats, 4WD rigs operating 12V systems plus commercial trucks, buses, agricultural equipment operating 24V systems—eliminating need for voltage-specific meters and providing installation flexibility. Shunt-based current measurement (shunt typically included or sold separately depending on model) installs inline with battery cable enabling accurate current monitoring without meter handling high currents directly—improving safety, reliability, and installation flexibility compared to direct-reading ammeters requiring all current flow through meter body potentially creating failure points.

Key Features

Dual Red LED Digital Displays: Separate displays simultaneously show battery voltage and current flow providing complete electrical system visibility in single instrument. Red LED technology offers bright clear readouts with excellent low-light visibility for nighttime or dim conditions. Digital format eliminates analog gauge interpretation providing precise measurements. Dual display configuration enables monitoring both parameters continuously without switching modes or alternating displays.

Comprehensive Voltage and Current Monitoring: Voltage display shows real-time battery voltage enabling state-of-charge assessment, charging system verification, and low voltage identification. Current display shows instantaneous current flow (charging or discharging) enabling understanding power consumption patterns, verifying charging rates, monitoring solar output, and identifying high-current accessories. Combined monitoring provides complete power system picture revealing net energy balance critical for off-grid power management.

Flush-Mount Professional Installation: Recessed design positions displays flush with mounting surface creating clean finished appearance matching factory instrument aesthetics. Flush installation provides professional dashboard integration appropriate for modern vehicle interiors, custom builds, or quality-conscious installations. Mounting cutout allows panel installation in dashboards, consoles, switch panels, or equipment enclosures maintaining sleek appearance while providing comprehensive monitoring.

Dual 12V/24V Compatibility: Automatic voltage detection supports both 12V and 24V systems enabling single meter across diverse vehicle fleet. Eliminates voltage-specific meter requirements and provides installation flexibility for mixed-voltage operations or voltage conversions. Current measurement range typically scaled appropriate for voltage system (higher amperage range for 12V, proportionally adjusted for 24V providing equivalent power monitoring).

Shunt-Based Current Measurement: Shunt installs inline with battery cable generating voltage drop proportional to current flow which meter reads and converts to amperage display. Shunt-based measurement enables accurate current monitoring without meter handling high currents directly—improving safety and reliability. Shunt separates high-current path from display unit allowing meter mounting convenient viewing locations while shunt installs near battery handling actual current flow.

Real-Time Power System Analysis: Simultaneous voltage and current monitoring enables understanding complete electrical system operation including battery state-of-charge (voltage), charging or discharging rate (current), net power balance (voltage + current trends), charging system performance verification, solar panel output assessment, accessory load identification, and electrical system troubleshooting. Real-time data supports informed power management decisions optimizing battery usage and preventing over-discharge.

Versatile Mobile Applications: Suitable for auxiliary battery monitoring in caravans/4WDs, dual battery system management, solar installation performance tracking, marine house battery monitoring, and any application requiring comprehensive electrical system visibility. Particularly valuable for off-grid camping where understanding both voltage and current flow critical for matching consumption to charging capacity preventing battery depletion.

Baintech Quality and Rugged Construction: Quality components and robust design withstand vehicle vibration, temperature variations, and environmental exposure common in automotive, marine, and RV applications. LED display technology provides reliability and longevity. Designed for demanding mobile environments including off-road travel, marine operations, and extended camping use.

Technical Specifications

Frequently Asked Questions

Q: How do I install BTCIGAVOLTAMP volt/amp meter and where does shunt connect?
A: Installation requires: (1) cutting mounting hole in panel matching meter dimensions, (2) inserting meter into cutout and securing from behind, (3) connecting meter power wires to battery (positive and negative/ground), (4) installing current shunt inline with battery cable carrying current being measured (typically positive cable for auxiliary systems), (5) connecting shunt signal wires to meter's current sensing inputs. Shunt installs where all monitored current flows through—typically in charging wire for auxiliary battery charging monitoring or main battery cable for total system monitoring. Professional installation recommended for users uncertain about shunt placement.

Q: What does voltage and current information tell me about my battery system?
A: Voltage indicates battery state-of-charge (12.7V = fully charged lead-acid, 12.2V = 50% charged, etc.). Current shows charging (+amperes) or discharging (-amperes) and rate. Together they reveal: Charging - voltage rising + positive current = battery charging from alternator/solar; Discharging - voltage falling + negative current = battery powering accessories; Net Balance - if charging current exceeds discharge current, battery gaining charge; if discharge exceeds charging, battery depleting. Monitoring both enables understanding whether current usage sustainable or battery depleting requiring charging intervention.

Q: Can BTCIGAVOLTAMP measure both charging and discharging current simultaneously?
A: Meter displays instantaneous current in single direction at any moment—positive values during charging (current flowing into battery) or negative values during discharging (current flowing out of battery). When both charging and discharging occur simultaneously (solar charging while accessories operating), meter displays net current—difference between charging input and discharge output. For example: solar providing 10A charging while accessories drawing 6A shows +4A net charging. To monitor charging and discharge separately requires two meters with separate shunts in respective circuits.

Q: Does BTCIGAVOLTAMP require separate power or powered from monitored battery?
A: Meter powered from battery being monitored through dedicated power wires separate from current measurement circuit. Power connections enable meter operation while shunt signal wires provide current measurement data. Minimal meter current draw (typically milliamps) negligible compared to battery capacity. Unlike simple voltmeter powered through measurement connection, volt/amp meter requires separate power plus shunt connections—typically four or more wires total depending on design.

Q: What current measurement range does BTCIGAVOLTAMP support?
A: Current range depends on included or specified shunt rating—common ranges include 0-50A, 0-100A, or 0-150A depending on application. Verify shunt rating matches intended application: 50A adequate for most auxiliary battery monitoring, solar charging, moderate accessory loads; 100A+ required for high-current applications including large inverters, multiple simultaneous high-power accessories, or comprehensive system monitoring including intermittent high loads. Consult product specifications or contact Baintech confirming shunt rating for specific meter model before purchase.

Q: Can I monitor auxiliary battery voltage and current separate from starter battery?
A: Yes, excellent application—connect meter power to auxiliary battery terminals and install shunt in auxiliary battery circuit (charging wire or main positive cable) enabling independent auxiliary battery monitoring. For dual battery systems, some users install two meters (one per battery) providing complete visibility, or single meter on auxiliary battery (typically more critical for off-grid management) while monitoring starter battery through vehicle factory gauges. Separate monitoring enables optimizing auxiliary battery usage without starter battery interference.

Q: Is BTCIGAVOLTAMP suitable for solar charging system monitoring?
A: Yes, ideal for solar monitoring—voltage shows battery state-of-charge while current displays solar charging output enabling verification of panel performance, optimization of panel positioning, identification of shading issues, and understanding charging patterns throughout different weather and times. Install shunt in positive wire between solar controller and battery enabling current measurement. Real-time displays show immediate feedback when adjusting panel angles helping optimize solar collection. Combined voltage/current monitoring reveals complete picture of solar system effectiveness including both battery condition and charging rate.
