BAINTECH BTBLMON Bluetooth Battery Monitor with 500 Amp Shunt - Wireless Battery Monitoring System for 4WD, Caravan, Marine & Off-Grid Applications

BAINTECH BTBLMON Bluetooth Battery Monitor with 500 Amp Shunt - Wireless Battery Monitoring System for 4WD, Caravan, Marine & Off-Grid Applications

Take complete control of your battery system with the BAINTECH BTBLMON Bluetooth Battery Monitor with 500 Amp Shunt — a professional-grade wireless battery monitoring solution that delivers real-time battery data directly to your smartphone or tablet. This intelligent monitoring system features a precision 500 amp shunt for accurate current measurement across high-power electrical systems including dual battery setups, large solar arrays, and inverter circuits — provides comprehensive battery data including state of charge, voltage, current flow, consumed amp-hours, remaining capacity, and time to empty via intuitive Bluetooth app interface — eliminates the need for hardwired display panels by transmitting all data wirelessly to iOS and Android devices within 10 meters range — features 500 amp continuous measurement capacity suitable for demanding applications including large inverters, multiple solar panels, high-draw accessories, and commercial electrical systems — includes precision voltage monitoring accurate to 0.01V for reliable battery health assessment and charge cycle optimization — and delivers Baintech's proven reliability for accurate long-term battery monitoring in harsh Australian touring environments. Perfect for serious 4WD adventurers, grey nomads with complex electrical systems, marine operators, off-grid installations, and anyone demanding precise battery management data to maximize battery lifespan, prevent over-discharge, and optimize charging efficiency, the BAINTECH Bluetooth Battery Monitor transforms battery management from guesswork into data-driven precision.

Product Overview

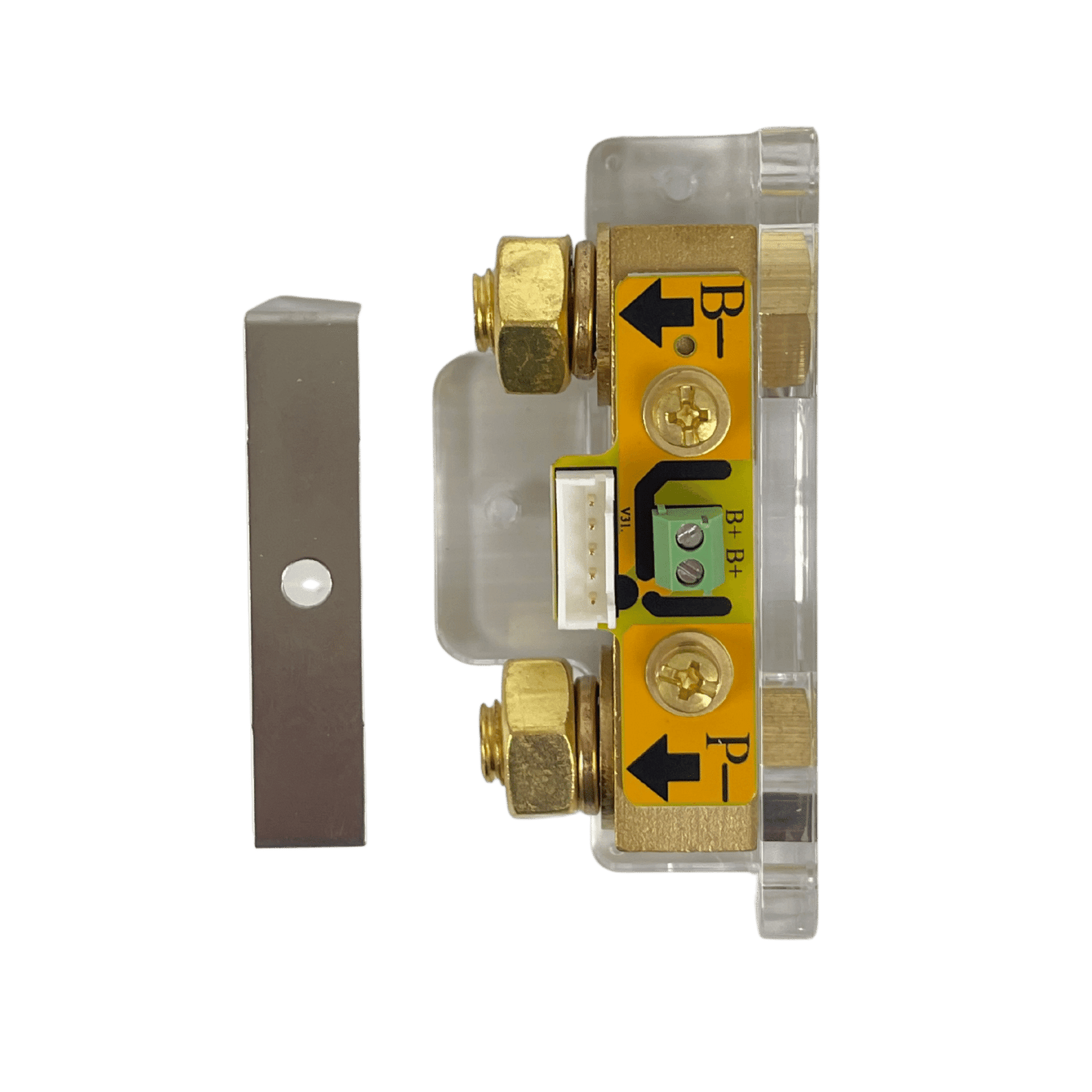

The BAINTECH BTBLMON Bluetooth Battery Monitor represents modern battery management technology, replacing bulky hardwired display panels with wireless smartphone connectivity that provides comprehensive battery system data anywhere within Bluetooth range. At the heart of this monitoring system is a precision 500 amp shunt — a calibrated current-sensing resistor that measures every amp flowing into and out of your battery with exceptional accuracy. This continuous current monitoring, combined with precise voltage measurement, enables sophisticated battery state calculations including true state of charge percentage, consumed amp-hours since full charge, remaining capacity, estimated time to empty under current load, and historical data tracking for battery health assessment. The wireless Bluetooth connectivity revolutionizes battery monitoring by eliminating cable runs, allowing display-free installations that preserve clean dashboard aesthetics, and enabling multiple users to simultaneously view battery data from their personal devices without additional hardware. The 500 amp capacity handles serious electrical systems including large inverters drawing 200+ amps, multiple high-output solar arrays, heavy-duty DC-DC chargers, and commercial applications where accurate current measurement across the full load range is essential. Australian tourers with sophisticated caravan electrical systems, live-aboard boaties, off-grid solar system owners, and commercial operators choose Baintech Bluetooth battery monitors for their combination of professional-grade accuracy, wireless convenience, comprehensive data presentation, and reliable performance through extreme temperature ranges, vibration, and the electromagnetic interference environment of modern vehicles and boats.

Key Features

500 Amp Continuous Measurement Capacity Features a robust 500 amp shunt capable of accurately measuring high currents in demanding electrical systems including large inverters, multiple solar charging sources, heavy accessory loads, and commercial applications. This substantial current capacity ensures accurate measurement across the full operating range without saturation or measurement errors that occur when undersized shunts encounter loads exceeding their design capacity — essential for systems regularly drawing 100+ amps or experiencing surge currents from inverter startup.

Wireless Bluetooth Smartphone Connectivity Transmits comprehensive battery data wirelessly to iOS and Android smartphones and tablets within approximately 10 meter range, eliminating the need for hardwired display panels, cable runs, and dashboard-mounted screens. This wireless approach preserves clean vehicle aesthetics, allows flexible monitoring from anywhere in the vehicle or nearby camp area, enables multiple users to view battery data simultaneously, and simplifies installation by requiring only power connections at the shunt location without display wiring.

Comprehensive Battery State Monitoring Provides complete battery system data including real-time state of charge percentage, instantaneous current flow (charge and discharge), battery voltage accurate to 0.01V, consumed amp-hours, remaining battery capacity, estimated time to empty under current load, and historical data for battery health assessment. This comprehensive data presentation enables informed decisions about power consumption, charging requirements, and battery replacement timing based on measurable performance degradation.

Precision Current and Voltage Measurement Utilizes calibrated current sensing through the 500 amp shunt and precise voltage monitoring to deliver professional-grade measurement accuracy essential for reliable battery state calculations. The shunt-based current measurement provides true bi-directional current sensing that distinguishes charging current from discharge current, while the high-resolution voltage monitoring detects subtle voltage changes that indicate battery state of charge, charge acceptance, and cell health issues.

Real-Time State of Charge Calculation Employs sophisticated coulomb-counting algorithms that track every amp-hour entering and leaving your battery system, providing accurate state of charge percentage that accounts for charging efficiency, Peukert effects, temperature compensation, and battery chemistry characteristics. This intelligent calculation delivers far more accurate state of charge information than simple voltage-based estimation, which can be misleading during charging, under load, or with modern lithium batteries.

Universal Battery Chemistry Compatibility Works with all common battery types including AGM, gel, calcium, flooded lead-acid, and lithium (LiFePO4) batteries with user-configurable settings that adjust monitoring calculations for different battery chemistry characteristics. This universal compatibility makes the monitor suitable for diverse applications from traditional caravan AGM batteries through modern lithium house battery systems, with accurate state of charge calculation customized for each chemistry's unique charge/discharge curves.

Historical Data and Trend Analysis Records battery performance data over time, enabling trend analysis that identifies battery degradation, charging system issues, or excessive discharge patterns before they cause system failures. This historical data capability supports informed maintenance decisions, validates battery warranty claims with documented performance history, and enables optimization of charging parameters based on actual battery behavior rather than manufacturer specifications alone.

Time to Empty and Remaining Capacity Calculates estimated time to empty based on current discharge rate and remaining battery capacity, providing actionable information for power management decisions during off-grid camping. This predictive capability warns when battery reserves are insufficient for planned power consumption, enables adjustment of accessory usage to extend battery life, and helps determine when generator running or solar charging is necessary to maintain adequate reserves.

Easy Smartphone App Interface Features intuitive iOS and Android apps providing clear data presentation with customizable display layouts, configurable alarms for low voltage or state of charge, graphical historical data visualization, and user-friendly setup wizards that guide installation configuration. The app interface eliminates the limited display capabilities of hardwired panels, providing rich data presentation, easy parameter adjustment, and regular firmware updates that add features without hardware changes.

Professional Installation with Automotive-Grade Components Built with heavy-duty automotive-grade shunt resistor, sealed electronics resistant to moisture and dust, vibration-resistant construction, and corrosion-resistant terminals suitable for harsh marine and off-road environments. The professional construction ensures reliable long-term operation through the temperature extremes, vibration, and electromagnetic interference environment of Australian touring vehicles, caravans, and boats without measurement drift or electronic failures.

Technical Specifications

Frequently Asked Questions

What's the advantage of a shunt-based monitor versus a simple battery meter?

Shunt-based monitors provide true state of charge by measuring every amp entering and leaving your battery, calculating accurate capacity percentage based on actual current flow. Simple battery meters only measure voltage, which is unreliable for state of charge — a battery can show 12.4V when 80% charged or 50% charged depending on whether it's under load, recently charged, or resting. The shunt-based approach delivers accuracy within 1-2% versus voltage-based estimation that can be off by 30% or more.

Can I monitor multiple batteries with one shunt?

The shunt monitors the total current flowing through it, so it measures the combined state of batteries connected in parallel to the same electrical system. For dual battery systems, install the shunt on the negative cable of the battery bank you want to monitor (typically the auxiliary/house battery), ensuring all loads and charging sources for that battery flow through the shunt. You cannot monitor completely isolated battery banks with a single shunt — each requires its own monitoring system.

How difficult is installation and do I need to reset the monitor when fully charged?

Installation requires connecting the 500A shunt in series with your battery's negative cable (all negative current must flow through the shunt) and connecting the monitor's power and sensing wires. Initial setup requires configuring battery capacity and chemistry in the app. The monitor should be synchronized to 100% state of charge when you know the battery is fully charged (after extended solar charging or shore power) — this calibration ensures accurate state of charge tracking from that point forward.

Will this work with my lithium battery management system (BMS)?

Yes, the Baintech Bluetooth monitor works alongside lithium BMS systems and provides additional functionality. While the BMS protects cells from over-voltage, under-voltage, and temperature extremes, the Baintech monitor provides user-accessible state of charge data, historical trends, and current flow information that most BMS systems don't display. The monitor's lithium battery mode adjusts calculations for LiFePO4 chemistry's unique characteristics including flat voltage curve and high charge acceptance.

What happens if I exceed 500 amps momentarily?

The 500 amp rating is continuous, with shunts typically tolerating brief surges 50-100% above rating without damage. However, regularly exceeding rated current causes measurement inaccuracy and potential damage. If your system routinely draws over 400 amps (very large inverter loads), consider whether 500A capacity is adequate or if a higher-rated monitoring system would be more appropriate. Most caravan and 4WD systems with 2000-3000W inverters stay well within 500A capacity.
