BAINTECH BTAnderson/Ciga Surface Mount Anderson Plug & Ciga Socket Panel - Versatile 50A Dual-Connection Mounting System for 4WD, Caravan & Marine

BAINTECH BTAnderson/Ciga Surface Mount Anderson Plug & Ciga Socket Panel - Versatile 50A Dual-Connection Mounting System for 4WD, Caravan & Marine

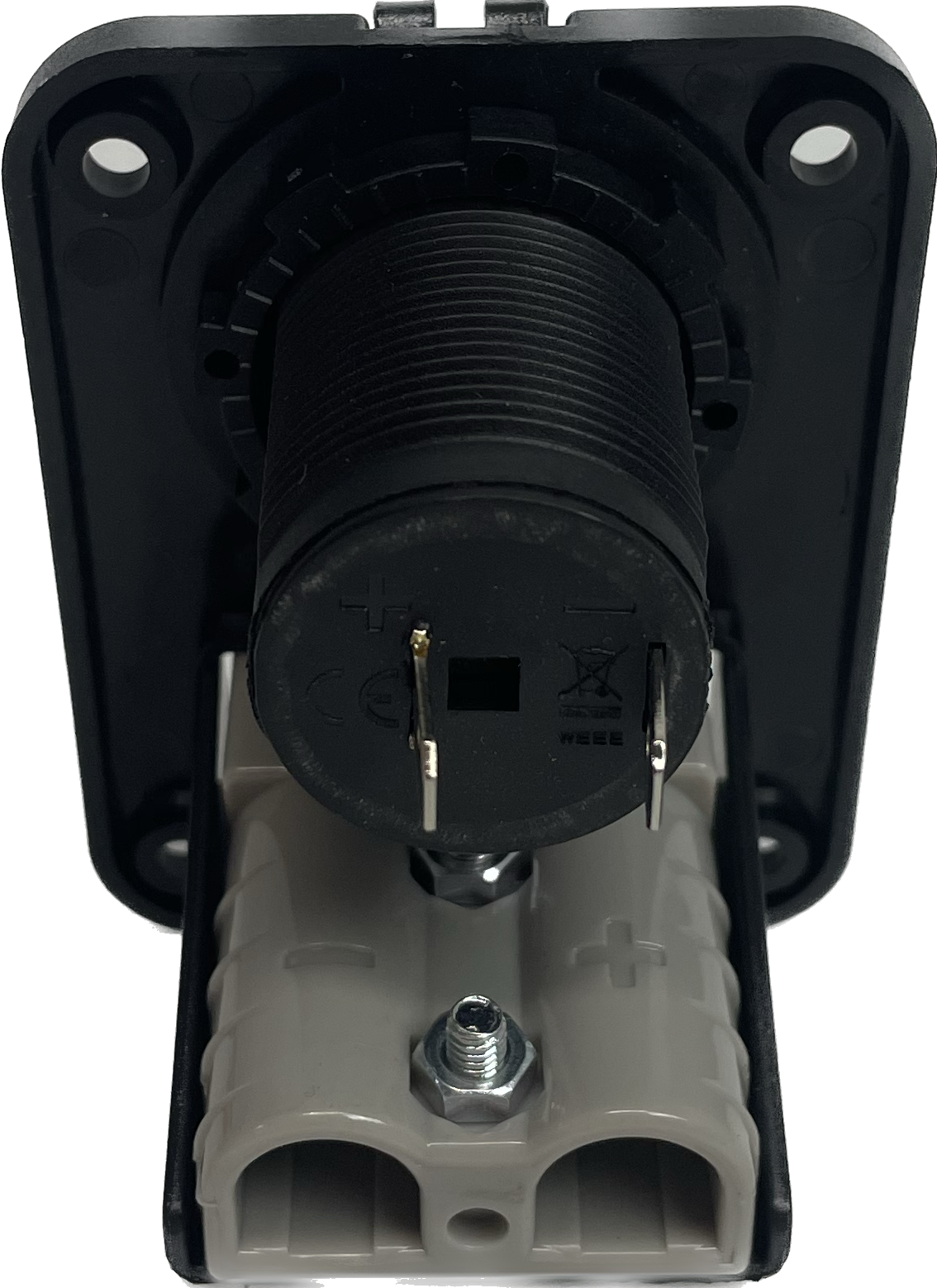

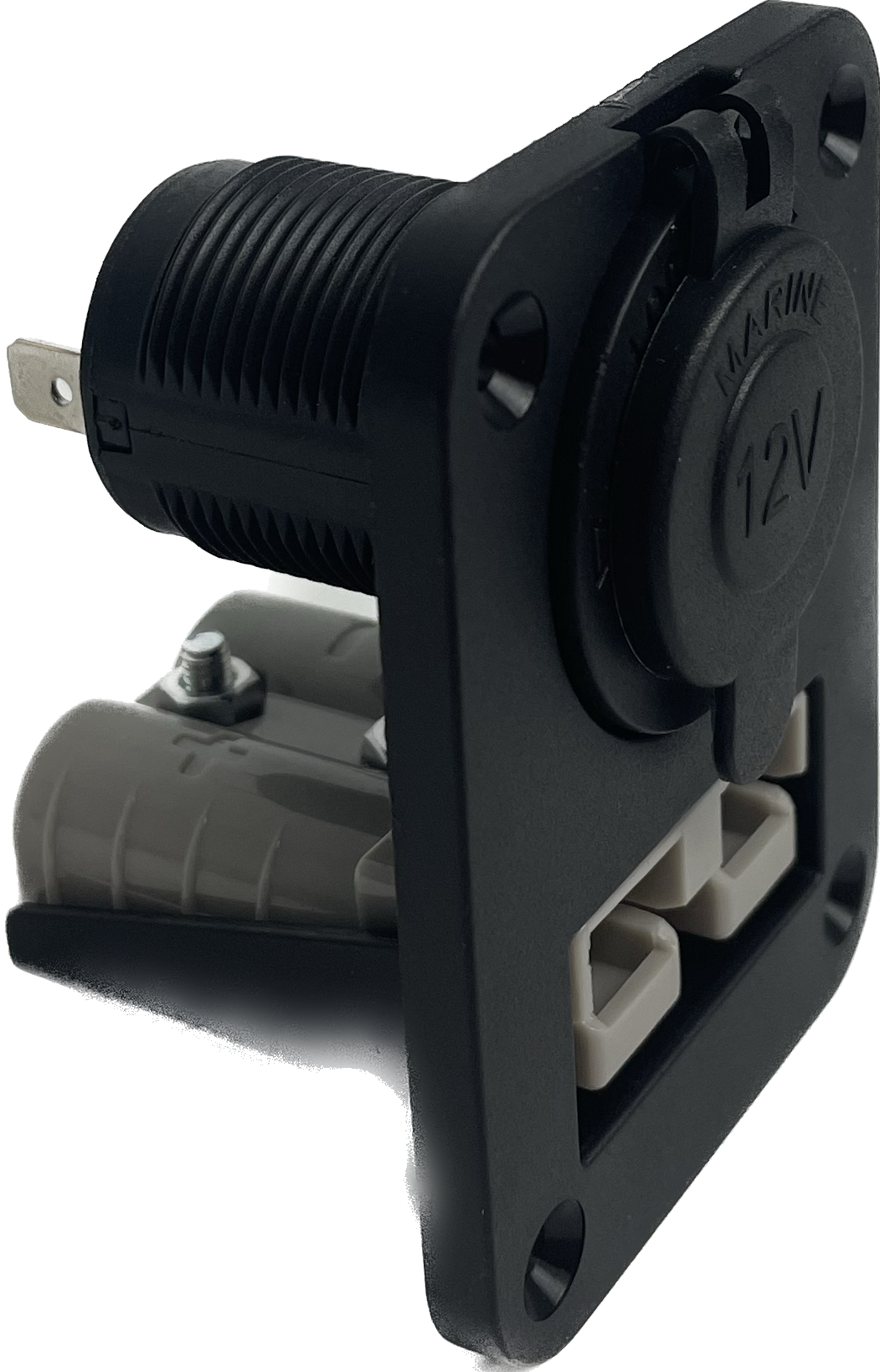

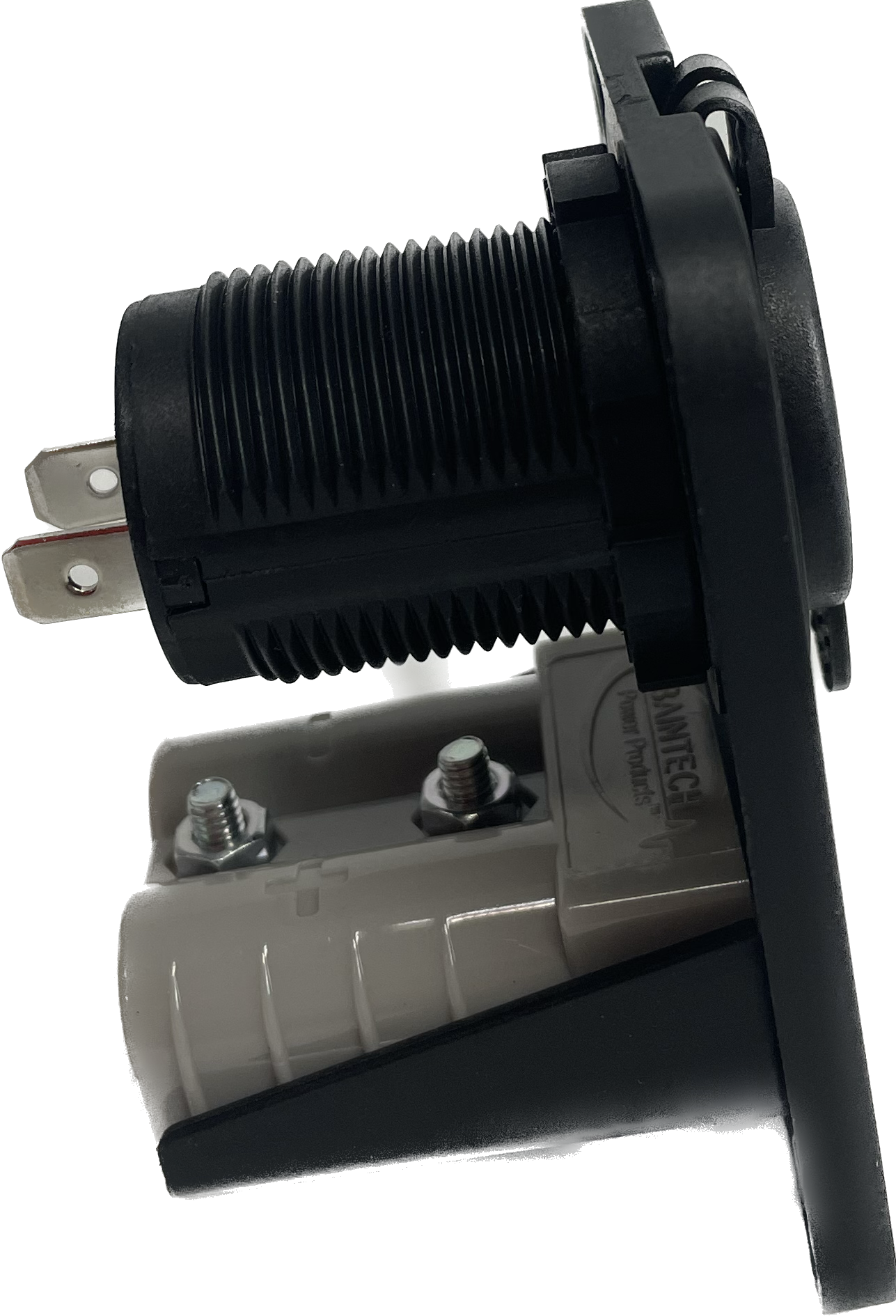

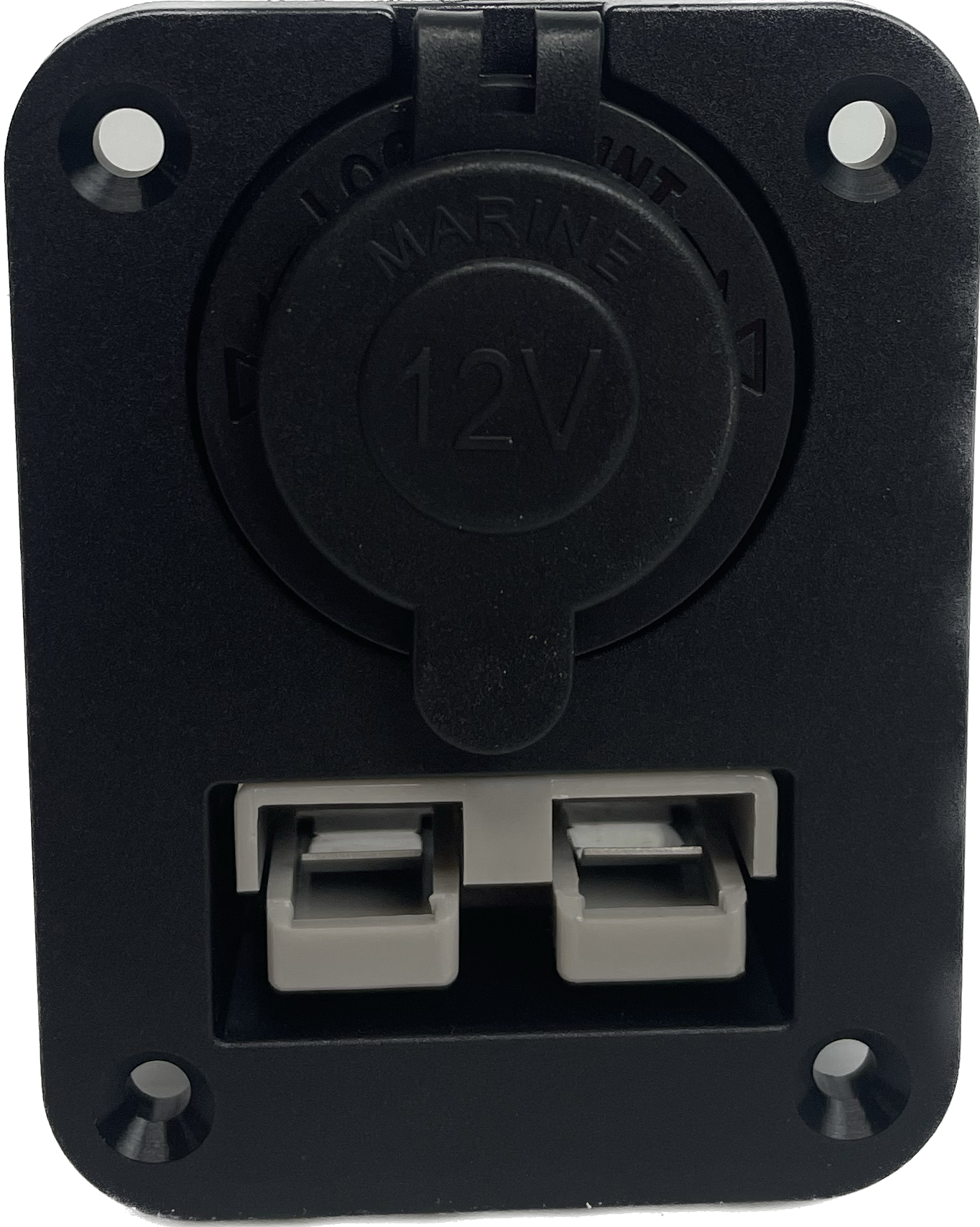

Create professional electrical connections with easy surface mounting using the BAINTECH BTAnderson/Ciga Surface Mount Anderson Plug & Ciga Socket Panel — a versatile dual-purpose mounting solution combining 50 amp Anderson plug capability with a standard 12V cigarette lighter socket in one robust unit. This heavy-duty combination panel features a genuine 50 amp continuous-rated Anderson plug with premium UL silver-coated copper contacts for high-current solar, dual battery, and charging applications — integrates a standard 12V Ciga socket providing convenient power for traditional cigarette lighter accessories including USB chargers, air compressors, dash cameras, and portable electronics — designed for straightforward surface mounting that installs directly onto flat panels, bulkheads, or walls without requiring complex cutouts or recessed installation — includes black UV-stabilized PVC housing with complete surface mounting plate for quick, secure installation on vehicle panels, caravan walls, camper trailer floors, or boat consoles — features Baintech's improved terminal design with tinned copper inserts specifically engineered to prevent short circuits and ensure reliable long-term connections — and delivers the robust construction quality that has made Baintech Australia's trusted name in 12V electrical accessories. Perfect for retrofitting electrical access points to existing panels, creating auxiliary charging stations in camper trailers, or installing electrical hubs where flush mounting isn't practical, the BAINTECH Surface Mount Anderson/Ciga Panel provides professional-grade dual connectivity with simplified installation that gets your electrical system operational quickly.

Product Overview

The BAINTECH BTAnderson/Ciga Surface Mount Panel addresses a common installation challenge faced by 4WD owners, caravan retrofitters, and boat owners — the need to add electrical connection points to existing panels where cutting large openings for flush mounting isn't practical, desirable, or possible. This surface-mount design attaches directly to panel surfaces using the included mounting hardware, eliminating the precision cutting, panel modification, and potential mistakes associated with flush mounting systems. The complete panel assembly simply bolts onto any flat surface, providing both 50 amp Anderson connectivity for high-power applications and a standard Ciga socket for everyday accessory use. This dual-function approach maximizes electrical capability while minimizing installation complexity — you gain both professional solar panel connections, battery charging capability, or inverter circuits through the Anderson plug, plus universal 12V accessory power for the countless devices using cigarette lighter connections. The 50 amp Anderson plug with UL silver-coated copper contacts delivers superior conductivity and corrosion resistance for reliable performance in demanding touring environments, while the Ciga socket features robust spring contacts designed for thousands of insertion cycles. Australian adventurers, caravan retrofitters, and marine installers choose Baintech surface mount panels when they need professional electrical connectivity without modifying existing panels, want quick installation with minimal tools, or require flexible placement where flush mounting presents challenges.

Key Features

50 Amp Anderson Plug with Premium Silver-Coated Contacts Features a genuine 50 amp continuous-rated Anderson plug incorporating UL-certified silver-coated copper contacts delivering superior electrical conductivity and exceptional corrosion resistance. This professional-grade connection handles high-power applications including solar arrays up to 700+ watts, dual battery charging systems, DC-DC charger connections, and inverter circuits without contact overheating or voltage drop, while maintaining reliable performance through thousands of connection cycles in coastal salt air, tropical humidity, and dusty outback conditions.

Integrated 12V Ciga Socket for Universal Accessory Power Includes a standard 12V cigarette lighter socket providing convenient power access for the enormous variety of 12V accessories using this universal connection standard. Power USB phone chargers, portable GPS units, dash cameras, tire inflators, work lights, camping fridges, laptop chargers, and countless other devices without requiring separate accessory outlets, while robust spring contacts maintain reliable connection tension through years of daily use.

Simple Surface Mounting Installation Designed specifically for surface mounting directly onto flat panels, bulkheads, walls, or floors without requiring precision cutouts, recessed cavities, or complex panel modifications. The complete assembly with integrated mounting plate simply bolts to any flat surface using standard fasteners, dramatically reducing installation time and eliminating the risk of incorrectly sized or positioned cutouts that can ruin expensive panels or compromise structural integrity.

Dual-Function Space-Efficient Design Combines both 50 amp Anderson connectivity and standard Ciga socket power in a single compact panel, maximizing electrical functionality while minimizing the space consumed on installation surfaces. This intelligent integration is particularly valuable when retrofitting electrical access to existing caravans, camper trailers, or boats where adding multiple separate panels would create cluttered, unprofessional appearances or exhaust available mounting space.

Professional Black UV-Stabilized Housing Constructed from high-quality UV-stabilized PVC material that resists degradation, cracking, and color fading under continuous exposure to intense Australian sun. The black finish provides professional appearance matching most vehicle and caravan interiors, while the robust construction maintains structural integrity through temperature extremes from -20°C to +70°C, sustained vibration on corrugated roads, and years of harsh touring conditions.

Complete PVC Surface Mounting Plate Included Comes with a complete PVC surface mounting plate providing secure, stable mounting on flat surfaces without additional hardware purchases. The integrated mounting plate distributes installation loads across a larger surface area, preventing stress concentration that could crack thin panels, while providing proper spacing for cable entry and connection access behind the panel assembly.

Improved Anti-Short Circuit Terminal Design Features Baintech's enhanced terminal design with improved spacing, insulation barriers, and connection geometry specifically engineered to prevent accidental short circuits during installation and operation. This safety-focused design eliminates dangerous failure modes where loose terminal screws, wayward wire strands, or improper routing creates shorts that can damage batteries, destroy sensitive electronics, or start electrical fires in confined vehicle spaces.

Quality Tinned Copper Terminal Inserts Incorporates tinned copper wire terminal inserts accepting heavy-gauge automotive cable for the Anderson plug circuit (typically 8-10mm² for 50A applications) and appropriate wiring for the Ciga socket circuit. The tinned copper construction resists corrosion far superior to bare copper terminals, maintains secure screw-clamp connection pressure without cold flow, and provides reliable long-term electrical connections that won't develop high-resistance joints requiring periodic maintenance.

Heavy-Duty Construction for Demanding Use Built with reinforced end plate design, strong mounting platforms, and durable contact materials designed specifically for continuous heavy-duty use in demanding Australian touring environments. The robust construction withstands thousands of Anderson plug connection cycles and Ciga socket insertions without contact degradation, housing cracks, or mechanical failures, ensuring reliable performance through decades of outback travel, beach adventures, and off-road expeditions.

Retrofit-Friendly Design for Existing Installations Ideal for retrofitting electrical capability to existing caravans, camper trailers, boats, or 4WDs where cutting panels for flush mounting would compromise waterproofing, structural strength, or factory warranties. The surface-mount approach preserves original panels while adding essential electrical functionality, making it perfect for upgrading older vehicles or adding auxiliary power points without permanent panel modifications.

Technical Specifications

Frequently Asked Questions

What's the advantage of surface mounting versus flush mounting?

Surface mounting requires no panel cutting or modification — you simply bolt the complete assembly to any flat surface, making installation faster, easier, and reversible. This is ideal for retrofitting electrical access to existing vehicles without compromising panels, for rental vehicles or caravans where permanent modifications aren't desired, or for installations where cutting precise openings is difficult or risky. Flush mounting provides a more integrated appearance but requires precise cutting and irreversible panel modification.

Can I mount this on the exterior of my vehicle or caravan?

While the UV-stabilized housing withstands outdoor conditions, this panel is designed primarily for interior or protected mounting locations such as under bullbars, in storage compartments, or behind protective panels. Both the Anderson plug and Ciga socket are weather-resistant when connected but should be protected from direct heavy rain, submersion, or pressure washing when unmated. For fully exposed exterior mounting, consider additional weather protection or sealed connector alternatives.

How thick can the mounting surface be for proper cable connection?

The surface mount design accommodates typical vehicle and caravan panel thicknesses from 3mm to 12mm, with cables entering from behind the mounting surface through appropriate cable entry points. For thicker panels or unusual mounting scenarios, verify that sufficient space exists behind the mounting surface for cable routing, terminal connections, and proper bend radius on heavy-gauge Anderson plug wiring.

Do I need to fuse both the Anderson and Ciga circuits separately?

Yes, each circuit requires appropriate fusing based on wire gauge and intended loads. The Ciga socket circuit typically uses 15-20 amp fusing depending on wire size and expected accessory loads, while the Anderson plug circuit requires fusing appropriate for its specific application — often 30-50 amps for solar input or dual battery systems. Never rely on shared fusing for circuits with different current ratings or applications.

Can I use this for permanent solar panel installation or just portable blankets?

The 50 amp Anderson plug handles both portable solar blankets that connect/disconnect frequently and permanent fixed solar panel installations requiring continuous connection. For permanent installations, ensure cables are properly secured, protected from abrasion, and routed away from hot or moving components. The Anderson plug's robust construction and silver-coated contacts provide reliable long-term performance for either application type.
