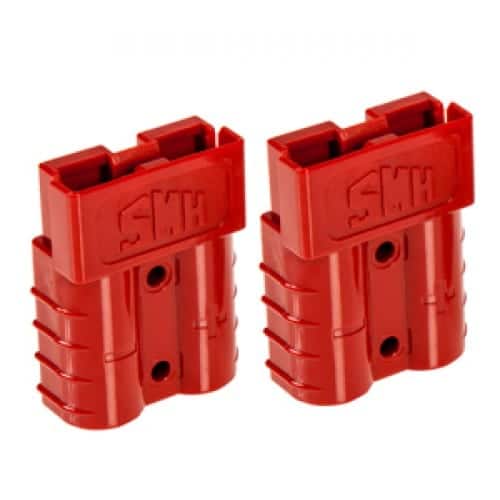

BAINTECH BTA502-RED 50A Anderson Plug 2-Pack - Red Keyed Connector Pair for Voltage Segregation and System Isolation

BAINTECH BTA502-RED 50A Anderson Plug 2-Pack - Red Keyed Connector Pair for Voltage Segregation and System Isolation

Create complete voltage-segregated Anderson connections with the Baintech BTA502-RED 50A Anderson Plug 2-Pack—featuring matched pair of red keyed connectors rated for 50A/600V, specialized housing design incompatible with other colored Anderson plugs while maintaining standard grey/black compatibility, secure positive locking mechanism, and complete connection solution enabling voltage segregation between 12V/24V/48V systems or circuit isolation throughout vehicles, caravans, boats, trailers, solar installations, and commercial equipment requiring foolproof connection error prevention.

Product Overview

The Baintech BTA502-RED addresses complete voltage-segregated Anderson connection requirements providing matched pair of red keyed 50A Anderson plugs enabling immediate high-current DC power connections in installations requiring voltage segregation, system isolation, or connection error prevention where accidental cross-connections between incompatible electrical systems could damage equipment, create safety hazards, or compromise system functionality. Two-pack configuration provides both red connector halves required for complete segregated connection—one plug terminates vehicle/source cable while second plug terminates accessory/load cable, mating together forming secure electrical connection physically incompatible with other colored Anderson systems (blue, orange, green, yellow, purple) while maintaining compatibility with standard grey/black Anderson plugs when strategic interoperability required. Red keyed design features specialized housing incorporating unique keying physically preventing mating with other colored Anderson connectors—critical for voltage segregation strategies preventing accidental cross-connections between 12V, 24V, and 48V systems common in solar installations, commercial vehicles operating multiple voltage levels, marine vessels with various battery banks, trailer connections requiring dedicated circuits, renewable energy systems incorporating diverse voltage infrastructure, and specialized equipment where connection error prevention through physical incompatibility provides superior safety compared to labeling-only approaches relying on operator attention. Two-pack provides complete red circuit connection solution eliminating need for purchasing individual plugs separately, ensures matched connector pair from same manufacturer maintaining compatibility and quality consistency, and simplifies inventory management for users implementing color-coded voltage segregation strategies throughout electrical systems requiring foolproof differentiation preventing installation errors, maintenance confusion, or emergency repair mistakes where incorrect connections under stress could cause expensive equipment damage or safety hazards. Each plug rated 50A continuous current and 600V supporting heavy-duty DC applications across 12V/24V/48V voltage ranges plus specialized high-voltage applications, featuring robust contact construction supporting sustained high-current operation without overheating, secure positive locking mechanism preventing accidental disconnection, and professional-grade materials withstanding harsh Australian environmental conditions including extended outdoor exposure, temperature extremes, moisture, dust, salt atmosphere, vibration, and demanding operational environments common in vehicles, caravans, boats, trailers, solar installations, and commercial equipment.

Key Features

Complete Red Keyed Connection Pair: Two-pack provides both red keyed connector halves required for complete voltage-segregated Anderson connection—one plug terminates vehicle/source cable while second plug terminates accessory/load cable, mating together forming secure 50A electrical connection physically incompatible with other colored Anderson systems while maintaining standard grey/black compatibility when required. Matched pair ensures connector compatibility, quality consistency, and proper mechanical/electrical performance eliminating concerns about mixing different manufacturer plugs. Complete red connection solution particularly valuable for new voltage segregation implementations, dedicated trailer connections requiring circuit isolation, replacing existing standard Anderson connections with color-coded alternatives, or users building multiple segregated circuits throughout electrical systems requiring matched connector sets. Two-pack simplifies purchasing compared to sourcing individual red plugs separately and ensures both connection ends available when needed.

Red Keyed Housing for Voltage Segregation: Specialized red housing incorporates unique keying physically preventing mating with other colored Anderson connectors (blue, orange, green, yellow, purple) while maintaining compatibility with standard grey/black Anderson plugs. Keying enables establishing dedicated red circuit connections guaranteed incompatible with other colored systems—critical for voltage segregation strategies preventing accidental cross-connections between different voltage levels, isolation of incompatible circuits serving different functions, physical differentiation of critical systems requiring connection error prevention, or dedicated trailer connections isolated from other colored circuits. Red keying provides foolproof protection superior to labeling-only approaches where operator error, poor visibility, emergency conditions, or maintenance confusion could cause incorrect connections damaging equipment or creating safety hazards. Particularly valuable for solar installations, commercial vehicles, marine vessels, trailer connections, and specialized equipment operating multiple voltage systems.

50A/600V Rating for Heavy-Duty Applications: Both plugs rated for 50A continuous current and 600V supporting heavy-duty DC applications across 12V/24V/48V voltage ranges common in automotive, marine, and renewable energy systems, plus AC applications where high voltage ratings required. 50A capacity enables demanding applications including battery charging circuits, solar panel connections, inverter connections, auxiliary power distribution, trailer electrical systems, and commercial equipment power requirements. 600V rating significantly exceeds typical automotive 12V/24V requirements providing substantial safety margin and enabling specialized high-voltage DC applications common in modern solar installations, electric vehicle charging systems, or industrial equipment. Professional-grade rating ensures reliable performance across diverse applications from standard automotive systems through advanced renewable energy installations.

Secure Positive Locking Mechanism: Integrated locking mechanism on both red plugs prevents accidental disconnection from vibration, cable tension, vehicle movement, or equipment operation—critical for applications where connection failures could compromise safety, damage equipment, or interrupt critical operations. Positive mechanical lock engages when connectors fully seated ensuring secure connection throughout operation while deliberate unlock action required for disconnection prevents casual separation. Self-aligning housing design ensures proper connector orientation during mating, positive engagement confirmation through tactile feedback, and secure retention throughout environmental exposure and operational demands. Locking mechanism maintains connection integrity during off-road travel, trailer towing over rough roads, marine operations, equipment vibration, and demanding commercial applications.

Compatible with Standard Grey/Black Anderson Plugs: Red keyed plugs maintain compatibility with standard grey/black Anderson connectors enabling connection with universal Anderson ecosystem when strategic interoperability required—providing flexibility connecting red keyed circuits to standard Anderson infrastructure while preserving incompatibility with other colored systems. Compatibility particularly valuable for transitioning existing Anderson installations to color-coded segregation strategies, connecting specialized red circuits to main Anderson distribution systems, trailer connections requiring standard interface compatibility, or maintaining interoperability with standard Anderson-equipped accessories while preventing cross-connection with other colored voltage-specific circuits. Design enables strategic deployment of color keying where voltage segregation critical while maintaining standard Anderson compatibility where segregation unnecessary.

High-Quality Construction for Demanding Applications: Professional-grade contact materials maintain low electrical resistance supporting sustained 50A operation without overheating, reliable electrical connection throughout temperature cycling from extreme heat to freezing conditions, and corrosion resistance from moisture exposure or salt atmosphere in marine/coastal environments. Durable red housing materials resist UV degradation from extended sun exposure, impact damage from vehicle operation or equipment handling, and temperature extremes from outback heat to alpine cold. Housing design provides environmental sealing when properly mated protecting electrical contacts from moisture ingress, dust contamination, and salt atmosphere critical for marine applications, coastal operations, trailer connections, and outdoor equipment installations. Quality construction withstands vibration, repeated insertion/removal cycles, cable strain, and mechanical stress throughout connector service life.

Versatile Voltage Segregation and Trailer Applications: Suitable for diverse applications requiring voltage segregation, system isolation, or dedicated connections including solar installations segregating 12V/24V/48V circuits, commercial vehicles isolating different voltage systems, marine vessels with multiple battery banks operating various voltages, trailer connections requiring dedicated circuits isolated from other colored systems, renewable energy systems incorporating diverse voltage levels, electric vehicle charging infrastructure, specialized equipment requiring connection error prevention, and any installation where physical incompatibility provides superior safety compared to labeling-only approaches. Red keying enables establishing dedicated circuit connections guaranteed incompatible with other colored systems. Two-pack enables complete red connection with matched quality components or provides spare connector for future expansions, emergency repairs, or additional system connections maintaining standardized red format throughout electrical infrastructure.

Baintech Quality and Complete Connection Solution: Australian-market product from Bainbridge Technologies incorporating quality materials, professional-grade construction, specialized red color keying for voltage segregation and dedicated circuit applications, and proper engineering ensuring reliable high-current performance meeting electrical safety requirements. Anderson-style connector design ensures mechanical compatibility with standard Anderson ecosystem (grey/black) while red keying prevents cross-connection with other colors. Two-pack provides complete connection solution with matched red components ensuring reliable voltage-segregated performance throughout demanding applications. Available through established Australian distribution networks with technical support available for application guidance, voltage segregation planning, and troubleshooting support.

Technical Specifications

Frequently Asked Questions

Q: What's included in BTA502-RED 2-pack and what connections can I make?
A: BTA502-RED includes two red keyed Anderson plugs forming one complete voltage-segregated connection pair—one plug terminates vehicle/source cable while second plug terminates accessory/load cable, mating together forming complete red circuit physically incompatible with other colored Anderson systems (blue, orange, green, yellow, purple) while maintaining compatibility with standard grey/black Anderson plugs. Two-pack provides both connector halves required for single complete red connection, not two separate connections. For multiple segregated connections, purchase multiple 2-packs—each provides one complete color-coded connection. For complete red circuit isolation, use both red plugs. For selective isolation connecting red circuit to standard distribution, mate one red plug with grey/black plug.

Q: Why use red keyed 2-pack versus standard grey/black Anderson plugs?
A: Red keying provides physical incompatibility preventing accidental cross-connections between different voltage systems or incompatible circuits—superior to labeling-only approaches where operator error, poor visibility, or emergency conditions could cause incorrect connections damaging equipment or creating safety hazards. Two-pack provides complete matched red connection ensuring both cable ends feature identical keying preventing connection to other colored systems while maintaining standard grey/black compatibility when required. Common applications include solar installations segregating different voltage circuits (12V/24V/48V), commercial vehicles isolating voltage systems, marine vessels with multiple battery banks, dedicated trailer connections requiring isolation, or any installation where connection error prevention through physical incompatibility critical.

Q: Can I use red Anderson plugs for trailer connections?
A: Yes, red keyed Anderson plugs excellent for trailer connections requiring dedicated circuits isolated from other colored systems or providing visual differentiation from standard grey/black Anderson connections. Common application: use red Anderson 2-pack for trailer auxiliary power creating complete red circuit while using different colors (blue, yellow) for vehicle-side connections preventing accidental connection to wrong circuits. Red keying provides physical enforcement preventing connection errors while secure locking mechanism and 50A capacity support comprehensive trailer electrical requirements including auxiliary batteries, electric brakes, or interior accessories. Install using appropriate wire gauge (typically 6-10AWG), ensure proper polarity, fuse protection, and cable routing preventing damage during articulation.

Q: Can red plugs connect to standard Anderson or only other red plugs?
A: Red keyed Anderson plugs mate with other red keyed Anderson plugs AND standard grey/black Anderson plugs, but physically incompatible with other colored Anderson connectors (blue, orange, green, yellow, purple). This selective compatibility enables strategic voltage segregation: red circuits isolated from other colored systems while maintaining ability connecting to standard Anderson distribution when appropriate. For complete red circuit isolation, use both 2-pack plugs creating red-to-red connection preventing any standard Anderson compatibility. For partial isolation, mate one red plug with standard grey/black plug enabling connection to main Anderson infrastructure while preventing cross-connection with other colors.

Q: What voltage should I assign to red colored Anderson plugs?
A: Red color itself doesn't designate specific voltage—users establish their own color-coding conventions based on installation requirements. Common strategy: assign red for specific voltage level (example: red=12V) while other colors represent different voltages (blue=24V, yellow=48V), preventing cross-connections between voltage systems. Alternatively, use colors segregating functional circuits regardless of voltage (red=battery charging, blue=inverter circuits, standard grey/black=general distribution) or dedicated applications (red=trailer connections). 600V rating supports 12V, 24V, 48V, and higher voltage DC applications. Establish clear color-coding documentation for installation ensuring all users understand what red represents preventing confusion during maintenance or modifications.

Q: What wire gauge should I use with BTA502-RED rated for 50A?
A: Wire gauge selection based on current capacity requirements: minimum 6AWG for 50A continuous current applications, 8-10AWG for moderate current (20-30A), with larger gauges for longer cable runs minimizing voltage drop. For typical trailer connections, dual battery systems, or solar installations with moderate current, 8AWG or 10AWG wire may suffice though 6AWG provides better margin. Use quality marine-grade tinned copper wire for maximum corrosion resistance particularly important for trailer connections experiencing weather exposure. Select wire insulation rated appropriate for actual system voltage. 600V connector rating provides substantial safety margin for typical 12V-48V applications.

Q: Can I mix red 2-pack with other colored Anderson plug 2-packs?
A: Yes, different colored Anderson 2-packs designed for voltage segregation systems where multiple colors isolate different circuits. Each color incompatible with other colors (red won't mate with blue, orange, green, yellow, or purple) while all colors remain compatible with standard grey/black Anderson plugs. Purchase multiple colored 2-packs establishing comprehensive color-coded segregation: example—red 2-pack for 12V circuits, blue 2-pack for 24V circuits, yellow 2-pack for 48V circuits—each voltage level physically isolated from others preventing cross-connections while all may connect to standard grey/black distribution when appropriate. Establish clear documentation detailing which colors represent which voltages, functions, or applications ensuring consistent use throughout installation.
