BAINTECH BTA50-RED 50A Anderson Plug - Red Keyed Connector for Voltage Segregation and System Isolation

BAINTECH BTA50-RED 50A Anderson Plug - Red Keyed Connector for Voltage Segregation and System Isolation

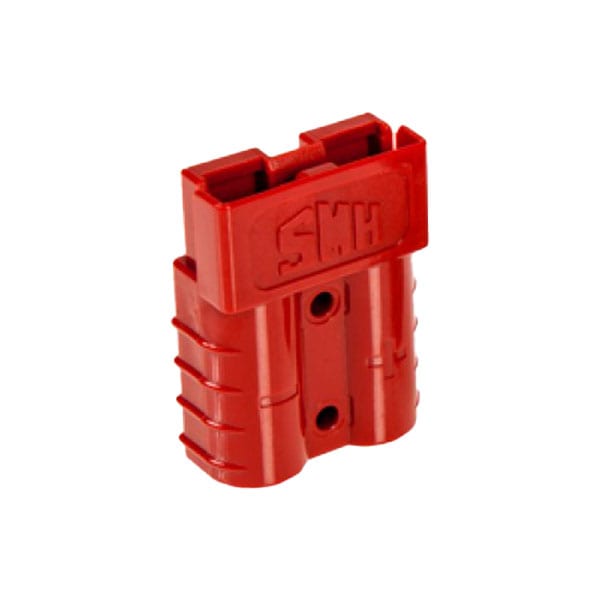

Prevent accidental cross-connections with the Baintech BTA50-RED 50A Anderson Plug—featuring red keyed housing design incompatible with other colored Anderson connectors while maintaining compatibility with standard grey/black plugs, 50A/600V rating supporting heavy-duty applications, secure positive locking mechanism, and specialized keying enabling voltage segregation between 12V/24V/48V systems or isolation of incompatible circuits throughout vehicles, caravans, boats, solar installations, and commercial equipment requiring connection error prevention.

Product Overview

The Baintech BTA50-RED addresses specialized Anderson connection requirements where voltage segregation, system isolation, or connection error prevention critical for preventing accidental cross-connections between incompatible electrical systems operating at different voltages or serving distinct functions requiring physical separation preventing incorrect mating. Standard grey/black Anderson plugs mate universally with any other Anderson connector—creating potential hazards in installations featuring multiple voltage systems (12V, 24V, 48V) or distinct circuits requiring isolation where accidental cross-connection could damage equipment, create safety hazards, or compromise system functionality. Red keyed Anderson plugs solve this challenge through specialized housing design featuring unique keying physically preventing mating with other colored Anderson connectors (blue, orange, green, yellow, purple) while maintaining compatibility with standard grey/black Anderson plugs—enabling users establish dedicated red circuit connections guaranteed incompatible with other colored systems while preserving ability connecting with standard Anderson ecosystem when appropriate. BTA50-RED provides professional-grade 50A Anderson plug rated for 600V supporting heavy-duty DC and AC applications across diverse voltage ranges, featuring robust contact construction supporting sustained high-current operation, secure positive locking mechanism preventing accidental disconnection, and red keyed housing enabling voltage segregation strategies common in renewable energy installations, commercial vehicles, marine vessels, and specialized equipment operating multiple voltage systems requiring foolproof connection differentiation preventing operator errors causing equipment damage or safety hazards. Keyed color system particularly valuable for solar installations where 12V battery charging circuits must remain isolated from 24V or 48V system components, commercial vehicles operating both 12V auxiliary systems and 24V main electrical systems, marine vessels with multiple battery banks operating different voltages, renewable energy systems incorporating various voltage levels throughout generation/storage/distribution infrastructure, and any installation where connection error prevention through physical incompatibility provides superior safety compared to labeling-only approaches relying on operator attention preventing mistakes during installation, maintenance, or emergency repairs where connection errors likely under stress or time pressure.

Key Features

Red Keyed Housing for Voltage Segregation: Specialized red housing incorporates unique keying physically preventing mating with other colored Anderson connectors (blue, orange, green, yellow, purple) while maintaining compatibility with standard grey/black Anderson plugs. Keying enables establishing dedicated red circuit connections guaranteed incompatible with other colored systems—critical for voltage segregation strategies preventing accidental cross-connections between 12V, 24V, and 48V systems, isolation of incompatible circuits serving different functions, or physical differentiation of critical systems requiring connection error prevention. Red keying provides foolproof protection superior to labeling-only approaches where operator error, poor visibility, emergency conditions, or maintenance confusion could cause incorrect connections damaging equipment or creating safety hazards. Particularly valuable for renewable energy installations, commercial vehicles, marine vessels, and specialized equipment operating multiple voltage systems.

50A/600V Rating for Heavy-Duty Applications: Rated for 50A continuous current and 600V supporting heavy-duty DC applications across 12V/24V/48V voltage ranges common in automotive, marine, and renewable energy systems, plus AC applications where high voltage ratings required. 50A capacity enables demanding applications including battery charging circuits, solar panel connections, inverter connections, auxiliary power distribution, and commercial equipment power requirements. 600V rating significantly exceeds typical automotive 12V/24V requirements providing substantial safety margin and enabling specialized high-voltage DC applications common in modern solar installations, electric vehicle charging systems, or industrial equipment where higher voltages improve efficiency or reduce conductor size requirements. Professional-grade rating ensures reliable performance across diverse applications from standard automotive 12V systems through advanced renewable energy installations operating elevated voltages.

Secure Positive Locking Mechanism: Integrated locking mechanism prevents accidental disconnection from vibration, cable tension, vehicle movement, or equipment operation—critical for applications where connection failures could compromise safety, damage equipment, or interrupt critical operations. Positive mechanical lock engages when connectors fully seated ensuring secure connection throughout operation while deliberate unlock action required for disconnection prevents casual separation. Self-aligning housing design ensures proper connector orientation during mating, positive engagement confirmation through tactile feedback, and secure retention throughout environmental exposure and operational demands. Locking mechanism maintains connection integrity during off-road travel, marine operations, equipment vibration, and demanding commercial applications where connection reliability essential.

Compatible with Standard Grey/Black Anderson Plugs: Red keyed plugs maintain compatibility with standard grey/black Anderson connectors enabling connection with universal Anderson ecosystem when appropriate—providing flexibility connecting red keyed circuits to standard Anderson infrastructure while preserving incompatibility with other colored systems. Compatibility particularly valuable for transitioning existing Anderson installations to color-coded segregation strategies, connecting specialized red circuits to main Anderson distribution systems, or maintaining interoperability with standard Anderson-equipped accessories while preventing cross-connection with other colored voltage-specific circuits. Design enables strategic deployment of color keying where needed while maintaining standard Anderson compatibility where segregation unnecessary.

High-Quality Construction for Demanding Applications: Professional-grade contact materials maintain low electrical resistance supporting sustained 50A operation without overheating, reliable electrical connection throughout temperature cycling from extreme heat to freezing conditions, and corrosion resistance from moisture exposure or salt atmosphere in marine/coastal environments. Durable red housing materials resist UV degradation from extended sun exposure, impact damage from vehicle operation or equipment handling, and temperature extremes from outback heat to alpine cold. Housing design provides environmental sealing when properly mated protecting electrical contacts from moisture ingress, dust contamination, and salt atmosphere critical for marine applications, coastal operations, and outdoor equipment installations. Quality construction withstands vibration, repeated insertion/removal cycles, cable strain, and mechanical stress throughout connector service life.

Versatile Voltage Segregation Applications: Suitable for diverse applications requiring voltage segregation or system isolation including solar installations segregating 12V/24V/48V circuits, commercial vehicles isolating 12V auxiliary systems from 24V main electrical systems, marine vessels with multiple battery banks operating different voltages, renewable energy systems incorporating various voltage levels, electric vehicle charging infrastructure, specialized equipment requiring connection error prevention, trailer connections requiring dedicated circuits, and any installation where physical incompatibility provides superior safety compared to labeling-only approaches. Red keying enables establishing dedicated circuit connections guaranteed incompatible with other colored systems while maintaining standard Anderson compatibility where appropriate. Strategic color deployment prevents connection errors that could damage expensive equipment, create safety hazards, or compromise system functionality.

Industry Standard Anderson Compatibility: Anderson-style connector design ensures mechanical compatibility with standard Anderson connector ecosystem (grey/black plugs) while specialized red keying prevents cross-connection with other colors. Gender-neutral design means any two red Anderson plugs mate together, or red plugs mate with standard grey/black plugs, simplifying inventory management within red circuit applications. Self-aligning housing design guides proper connector orientation during mating ensuring correct polarity and secure mechanical engagement. Anderson industry standard ensures broad accessory compatibility, availability of matching components, and proven reliability across automotive, marine, and renewable energy markets.

Baintech Quality and Specialized Engineering: Australian-market product from Bainbridge Technologies incorporating quality materials, professional-grade construction, specialized color keying for voltage segregation applications, and proper engineering ensuring reliable high-current performance meeting electrical safety requirements. Red keyed design enables strategic voltage segregation preventing connection errors in complex electrical systems operating multiple voltages. Available through established Australian distribution networks with technical support available for application guidance, voltage segregation planning, and troubleshooting support.

Technical Specifications

Frequently Asked Questions

Q: What Anderson connectors are compatible with red keyed plugs?
A: Red keyed Anderson plugs mate with other red keyed Anderson plugs and standard grey/black Anderson plugs, but physically incompatible with other colored Anderson connectors (blue, orange, green, yellow, purple). Keying design enables voltage segregation strategies where red circuits isolated from other colored systems while maintaining compatibility with standard Anderson ecosystem. For complete red circuit connection, use two red plugs. For connecting red circuit to standard Anderson distribution, mate red plug with grey/black plug. For absolute isolation requiring both connection ends keyed preventing any standard Anderson compatibility, use matching color pairs ensuring complete circuit isolation.

Q: Why would I use red keyed Anderson plugs instead of standard grey/black?
A: Red keying provides physical incompatibility preventing accidental cross-connections between different voltage systems or incompatible circuits—superior to labeling-only approaches where operator error, poor visibility, or emergency conditions could cause incorrect connections damaging equipment or creating safety hazards. Common applications include solar installations segregating different voltage circuits, commercial vehicles isolating 12V auxiliary systems from 24V main electrical, marine vessels with multiple battery banks operating different voltages, dedicated trailer connections requiring isolation, or any installation where connection error prevention through physical incompatibility critical. Red keying enables establishing dedicated circuit connections guaranteed incompatible with other colored systems while maintaining standard grey/black Anderson compatibility where appropriate.

Q: Can I use red Anderson plugs for 12V, 24V, or 48V systems?
A: Yes, red Anderson plugs rated 600V supporting 12V, 24V, 48V, and higher voltage DC applications within rating. However, red color itself doesn't designate specific voltage—users establish their own color-coding conventions based on installation requirements. Common strategy: assign red for specific voltage (example: red=12V) while other colors represent different voltages (blue=24V, yellow=48V), preventing cross-connections between voltage levels. Alternatively, use colors segregating functional systems regardless of voltage (red=battery charging, blue=inverter circuits, standard grey/black=general distribution). Establish clear color-coding documentation for installation ensuring all users understand what each color represents preventing confusion during maintenance or modifications.

Q: Do I need red plugs on both ends for complete circuit isolation?
A: Depends on isolation requirements. For complete circuit isolation preventing any connection to standard Anderson infrastructure, use matching red plugs on both cable ends—ensuring red circuit only mates with other red circuits and cannot connect to standard grey/black Anderson ecosystem. For partial isolation where red circuit must remain incompatible with other colored systems but may connect to standard Anderson distribution when appropriate, use red plug on one end and grey/black plug on opposite end—enabling connection between red circuit and standard Anderson while preventing cross-connection with other colors. Consider isolation strategy during system design: complete isolation requires matching colors both ends, selective isolation uses mixed color/standard combinations enabling controlled interoperability.

Q: What wire gauge should I use with BTA50-RED rated for 50A?
A: Wire gauge selection based on current capacity requirements: minimum 6AWG for 50A continuous current applications, 8-10AWG for moderate current (20-30A), with larger gauges for longer cable runs minimizing voltage drop. For typical dual battery installations or trailer connections with moderate current, 8AWG or 10AWG wire may suffice though 6AWG provides better margin. Use quality marine-grade tinned copper wire for maximum corrosion resistance in harsh environments. 600V rating indicates maximum voltage connector safely handles—select wire insulation rated appropriate for actual system voltage.

Q: Can I use red Anderson plugs for trailer connections?
A: Yes, red keyed Anderson plugs excellent for trailer connections requiring dedicated circuits isolated from other colored systems or providing visual differentiation from standard grey/black Anderson connections. Common application: use red Anderson for trailer auxiliary power while using different color (blue, yellow) for vehicle-side connections preventing accidental connection to wrong circuits. Red keying provides physical enforcement preventing connection errors while secure locking mechanism and 50A capacity support comprehensive trailer electrical requirements including auxiliary batteries, electric brakes, or interior accessories. Install using appropriate wire gauge (typically 6-10AWG), ensure proper polarity, fuse protection, and cable routing preventing damage during articulation.

Q: How do I establish color-coding scheme for my installation?
A: Establish clear color-coding documentation detailing what each color represents (voltage levels, functional systems, or other organizational scheme) and ensure documentation accessible for all users, installers, and maintenance personnel. Use cable labels in addition to color keying reinforcing voltage or function identification. Consider using consistent practices where possible—common convention assigns colors to voltage levels (example: red=12V, blue=24V, yellow=48V) but any logical scheme works if clearly documented. For complex installations, create wiring diagrams showing color assignments and update documentation when modifications occur ensuring current information available preventing confusion during future work.
